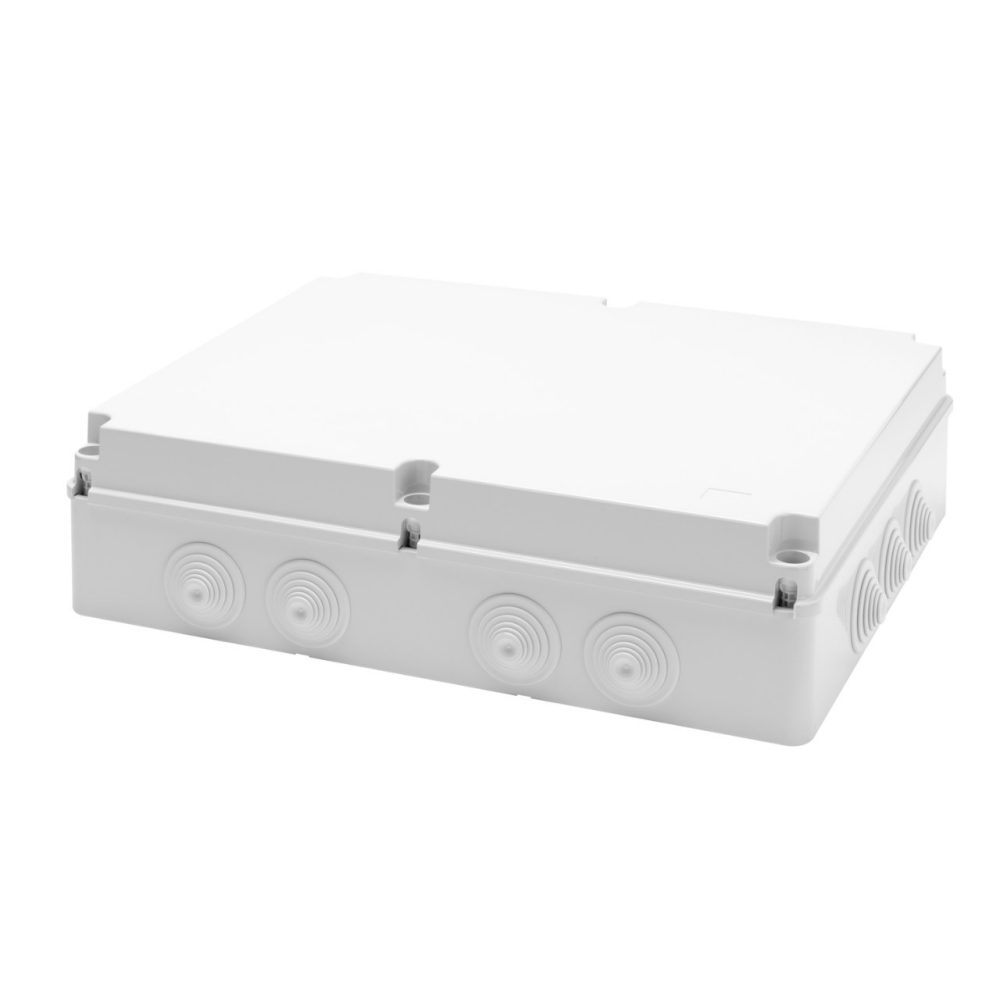

JUNCTION BOX WITH PLAIN SCREWED LID - IP55 - INTERNAL DIMENSIONS 460X380X120 - WALLS WITH CABLE GLANDS - GWT960ºC - GREY RAL 7035

Kód: GW44061

Řada: 44 CE Range
Technopolymer surface-mounting watertight junction boxes

The 44 CE junction boxes range consists of 3 families made of different technopolymers (two of which are Halogen Free) and available in 11 sizes with an ordinary or high-capacity base, high or low lids, blank or transparent lids, smooth walls or with quick-entry cable glands.

IP55

IK08

960 °C

85 °C

Technické informace

Informace

Stáhnout

Certifikáty

Insulation class II (according to IEC 61140 standards)

Colour Grey RAL 7035

IP degree IP55

Material Technopolymer GWPLAST 75

Mechanical resistance IK08

Internal dim. LxHxD (mm) 460x380x120

Entries No. holes / Ø 14 / 48

Lid screws (no. and type) 4 insul. sealable hinged

Application Special uses

Glow Wire Test 960 °C

Lid Plain screwed

Operating temperature -25 +60 °C

Electrocod 02210

Thermo-pressure with ball 85 °C

Torque screws tightening 1.8 Newton/Meter

Walls With cable glands

Accessories for insulation restoring GW44621

Ware Number 85381000

Product Data Sheet

Technical characteristics - DE

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

Přejít do oblasti pro stahování Přejít do oblasti pro stahování

Reach Declaration

Display the certificate

CE marking

VYBAVENÍ A POZNÁMKY

ACCESSORIES SUPPLIED: GW44061 screwcaps for double insulation.
CHARACTERISTICS: Casing type H in accordance with EN60670-1, and type Ha in accordance with IEC60670-1.
APPLICATIONS: ideal for applications requiring a minimum GWT of 850°C in compliance with standards EN 60670 and IEC 60670, such as floating floors and suspended ceilings.
NOTES: to restore the double insulation and original IP degree of protection of the boxes, use the isolating screwcaps or the surface-mounting fixing brackets for boxes measuring at least 190x140mm.
For GW44055 quick entry cable glands, suitable for cables with Ø from 4 to 14mm and conduits Ø 16, 20 and 25mm.
For GW44057 and GW44058 quick entry cable glands, suitable for cables with Ø from 4 to 14mm and conduits Ø 16, 20, 25 and 32mm.
For GW44059, GW44060 and GW44061 quick entry cable glands, suitable for cables with Ø from 4 to 14mm and conduits Ø 16, 20, 25, 32 and 40mm.
