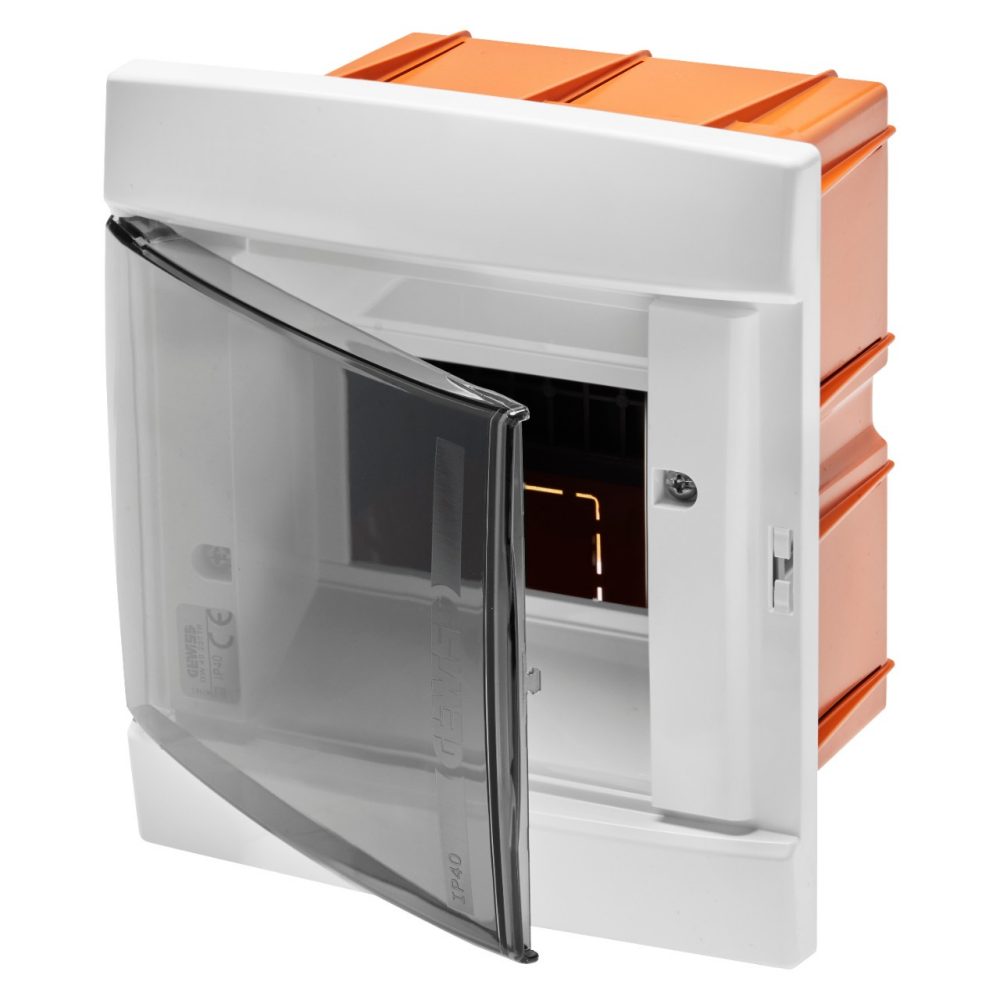

DECORATIVE ENCLOSURE - FLUSH MOUNTING - PRE-ARRANGED FOR HOUSING TERMINAL BLOCKS - 148X165X23 - WHITE - 4+1/2 MODULES

Kód: GW40237TB

Řada: 40 CDI Range
Flush-mounting distribution boards and enclosures

The widest offer of flush-mounting distribution boards and enclosures currently available on the market. Seven families designed to offer advanced solutions in the residential and commercial sector, also available in halogen-free material. Versions from 2 to 72 modules, degree of protection from IP40 to IP55 and special versions for plasterboard. The range includes also two Multimedia Enclosures: Full Version (54 modules) and Compact Version (36 modules).

IP40

IK08

650 °C

70 °C

Technické informace

Informace

Stáhnout

Certifikáty

Insulation class II (according to IEC 61140 standards)

Colour White

Outer dim. LxHxD (mm) 146x165x108

IP degree IP40

Installation Flush mounting enclosures

Dispersible power (W) 13

Mechanical resistance IK08

Rated voltage 400 V

Door colour Smoked Transparent

No. of modules EN 50022 4+1/2

Rated current 125 A

Glow Wire Test 650 °C

For walls Brickwall

Operating temperature -15 ÷ +60°C

Type of material Halogen-free in compliance with EN 60754-2

Electrocod -

Thermo-pressure with ball 70 °C

Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49

Insulation voltage 750 V

Max. installable terminal blocks -

Ware Number 85381000

Product Data Sheet

User guide

DXF drawing

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES

Přejít do oblasti pro stahování Přejít do oblasti pro stahování

Reach Declaration

Display the certificate

CE marking

VYBAVENÍ A POZNÁMKY

ACCESSORIES SUPPLIED: 6.5 M module-covering profiles co-ordinated with the colour of the enclosure front (for 4, 8 and 12-module enclosures - 1 profile; for 24-module enclosures - 2 profiles; for 36-module enclosures- 3 profiles), circuit labels, mortar guard element in cardboard supplied as standard in the packs and packed with paper banding.
NOTES: Dispersible power calculated according to CEI 23-49.
CHARACTERISTICS: Module-covering profiles can be divided into 1/2 module elements, using scissors.
Mortar guard element assembled by pressing on the base opening. Thermo-pressure with ball equal to 70°C.
IP40 guaranteed even with open door, in the case of wall-embedded installation using devices of at least IP40 and the module-covering profiles supplied.
Bottoms of 8 and 12 module enclosures can be assembled side-by-side using combined coupling element GW40425.
Enclosures composed by front cover;Front of the enclosure and DIN rail frame fully compatible with the bottom of the previous decorative flush mounting enclosures 40CDi Range DIN frame, terminal blocks and back plastic bottom.
INSTALLATION: for the possible enclosure-terminal block combinations, refer to the summary "COMPATIBILITY OF FLUSH-MOUNTING ENCLOSURES WITH BIPOLAR AND UNIPOLAR TERMINAL BLOCKS" in the selection guides of 40CDì range.
