IEC 309 BTS Range Extra-low voltage plugs and socket-outlets IEC 309 standard

IEC 309 BTS Range Extra-low voltage plugs and socket-outlets IEC 309 standard

Straight plugs - IP44

Extra-low voltage screw wiring straight plugs
Extra-low voltage screw wiring straight plugs
Gewiss-code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h

Gewiss-code GW60064
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60065
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60066
Rated current (A) 16
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60067
Rated current (A) 16
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60068
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60069
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60070
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60071
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60072
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
Gewiss-code GW60073
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60074
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60075
Rated current (A) 32
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60076
Rated current (A) 32
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60077
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60078
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60079
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60080
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60081
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
UITRUSTING EN OPMERKINGEN

90° plugs - IP44

Extra-low voltage screw wiring 90° plugs
Extra-low voltage screw wiring 90° plugs
Gewiss-code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h

Gewiss-code GW60127
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60128
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60129
Rated current (A) 16
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60130
Rated current (A) 16
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60131
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60132
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60133
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60134
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60135
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
Gewiss-code GW60136
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60137
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60138
Rated current (A) 32
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60139
Rated current (A) 32
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60140
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60141
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60142
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60143
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60144
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
UITRUSTING EN OPMERKINGEN

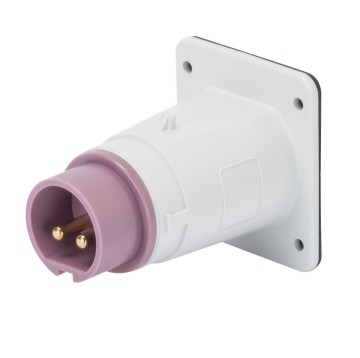

Straight flush-mounting inlets - IP44

Extra-low voltage screw wiring straight flush-mounting inlets
Extra-low voltage screw wiring straight flush-mounting inlets
Gewiss-code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h
Flange dimensions (mm)

Gewiss-code GW60245
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60246
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60247
Rated current (A) 16
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60248
Rated current (A) 16
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60249
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60250
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60251
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60252
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60253
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60254
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60255
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60256
Rated current (A) 32
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60257
Rated current (A) 32
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60258
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60259
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60260
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60261
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW60262
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Flange dimensions (mm) 85x75
Ga

90° surface-mounting inlets - IP44

Extra-low voltage screw wiring 90° angled surface-mounting inlets
Extra-low voltage screw wiring 90° angled surface-mounting inlets
Gewiss-code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h

Gewiss-code GW60464
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60465
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60466
Rated current (A) 16
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60467
Rated current (A) 16
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60468
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60469
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60470
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60471
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60472
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
Gewiss-code GW60473
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60474
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW60475
Rated current (A) 32
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60476
Rated current (A) 32
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW60477
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60478
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW60479
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60480
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW60481
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
UITRUSTING EN OPMERKINGEN

Connectors - IP44

Extra-low voltage screw wiring straight connectors
Extra-low voltage screw wiring straight connectors
Gewiss-code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h

Gewiss-code GW62064
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62065
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62066
Rated current (A) 16
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62067
Rated current (A) 16
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62068
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62069
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62070
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62071
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62072
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
Gewiss-code GW62073
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62074
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62075
Rated current (A) 32
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62076
Rated current (A) 32
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62077
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62078
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62079
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62080
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62081
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
UITRUSTING EN OPMERKINGEN

10° flush-mounting socket-outlets - IP44

Extra-low voltage screw wiring 10° angled flush-mounting socket-outlets
Extra-low voltage screw wiring 10° angled flush-mounting socket-outlets
Gewiss-code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h
Flange dimensions (mm)

Gewiss-code GW62265
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62266
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62267
Rated current (A) 16
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62268
Rated current (A) 16
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62269
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62270
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62271
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62272
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62273
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62274
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62275
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62276
Rated current (A) 32
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62277
Rated current (A) 32
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62278
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62279
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62280
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62281
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Flange dimensions (mm) 85x75
Ga
Gewiss-code GW62282
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Flange dimensions (mm) 85x75
Ga
UITRUSTING EN OPMERKINGEN

10° flush-mounting socket-outlets - IP67

10° surface-mounting socket-outlets - IP44

Extra-low voltage screw wiring 10° angled surface-mounting socket-outlets
Extra-low voltage screw wiring 10° angled surface-mounting socket-outlets
Gewiss-code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h

Gewiss-code GW62456
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62457
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62458
Rated current (A) 16
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62459
Rated current (A) 16
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62460
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62461
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62462
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62463
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62464
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
Gewiss-code GW62465
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62466
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62467
Rated current (A) 32
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62468
Rated current (A) 32
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62469
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62470
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62471
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62472
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62473
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
UITRUSTING EN OPMERKINGEN

90° surface-mounting socket-outlets - IP44

Extra-low voltage screw wiring 90° angled surface-mounting socket-outlets
Extra-low voltage screw wiring 90° angled surface-mounting socket-outlets
Gewiss-code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h

Gewiss-code GW62538
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62539
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62540
Rated current (A) 16
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62541
Rated current (A) 16
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62542
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62543
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62544
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62545
Rated current (A) 16
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62546
Rated current (A) 16
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
Gewiss-code GW62547
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62548
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25 V
Colour Violet
Frequency 50 - 60 Hz
Reference h -
Ga
Gewiss-code GW62549
Rated current (A) 32
No. of poles 2P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62550
Rated current (A) 32
No. of poles 3P
Rated voltage 40-50 V
Colour White
Frequency 50 - 60 Hz
Reference h 12
Ga
Gewiss-code GW62551
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62552
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 100 - 200 Hz
Reference h 4
Ga
Gewiss-code GW62553
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62554
Rated current (A) 32
No. of poles 3P
Rated voltage 20-25V and 40-50 V
Colour Green
Frequency 401 - 500 Hz
Reference h 11
Ga
Gewiss-code GW62555
Rated current (A) 32
No. of poles 2P
Rated voltage 20-25V and 40-50 V
Colour White
Frequency d.c.
Reference h 10
Ga
UITRUSTING EN OPMERKINGEN
Profiling
Uw oplossingen op maat
PRODUCTEN EN OPLOSSINGEN VOOR AL UW BEHOEFTEN
Fout bij sturen van verzoek.
Probeer later opnieuw!
Dank u!
Uw aanvraag is met succes verstuurd
