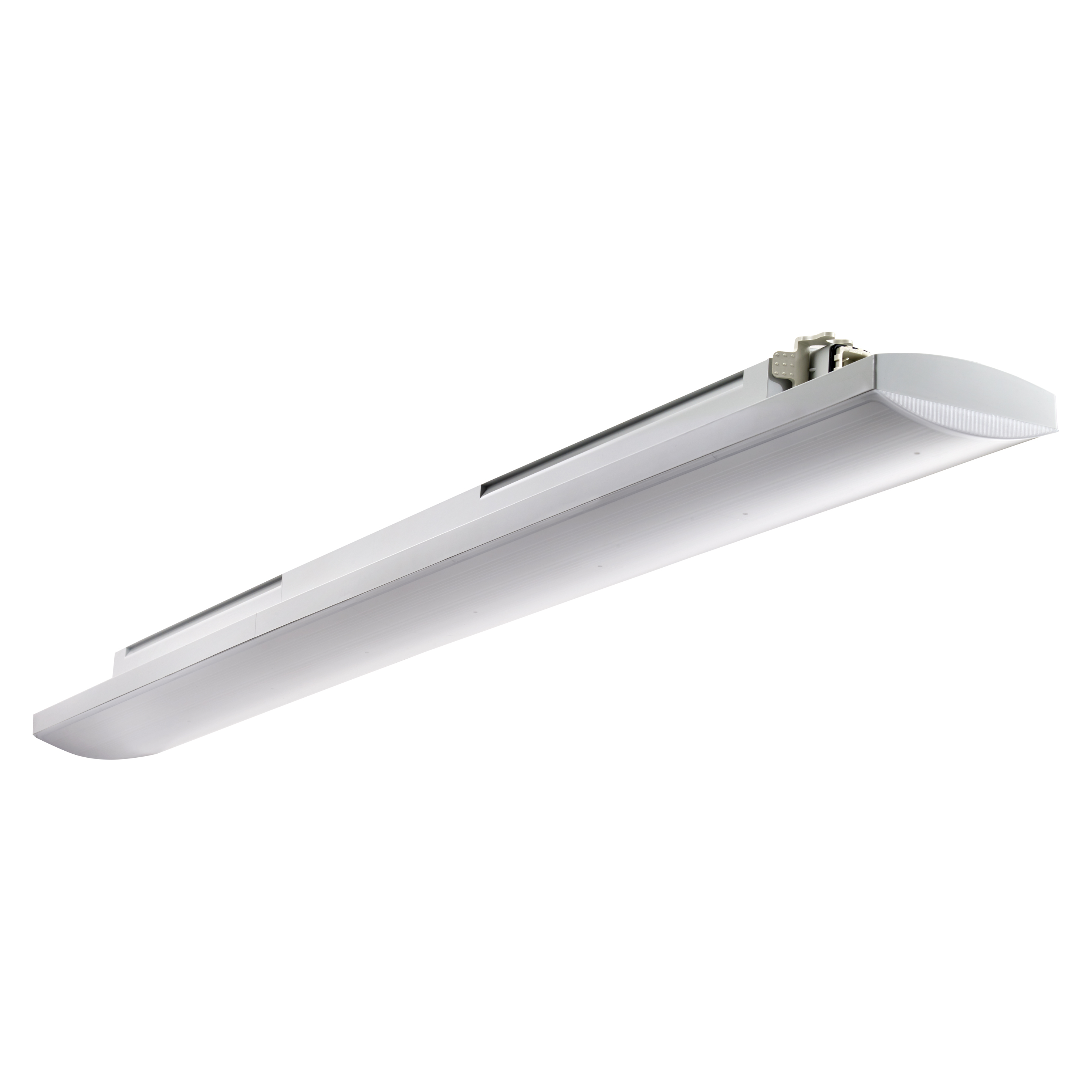

SMART [3]- LED watertight luminaires

SMART [3]
LED watertight luminaires

Smart [3] is the new range of LED watertight luminaires that completes the Smart selection. Ideal even in installation contexts of limited height (less than 4 metres), they are entirely designed, developed and produced in Italy. They are distinguished by an elegant design that highlights the particular features of the new LED technology, their extremely reduced energy consumption, their high impact resistance and their quick, easy installation.

See all product
Benefits
Modularity
Connectivity
Flexibility
Modularity
Modularity
Smart [3] is available in three sizes and in a Stand Alone version or with through wiring for quick and easy installation and modular use in line or in series.
Connectivity
Connectivity
Smart [3] is designed to communicate with IoT systems that allow you to monitor consumption, power, programming, and carry out efficiency testing, for an increasingly SMART system.
Flexibility
Flexibility
Thanks to the different wattages and high-efficiency versions, the range is able to meet any lighting requirement and application.

The products of this series

Navigate by catalogue
All filters
102 products
Grid
List

SMART [3]

SMART[3] - 800

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118P
ON / OFF
Stand alone
4000 K
CRI>80
1600
15 W
1.5
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P
ON / OFF
Stand alone
4000 K
CRI>80
3200
27 W
1.5
SMART[3] - OPAL SHIELD - STAND ALONE - 800MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P30K
ON / OFF
Stand alone
3000 K
CRI>80
3000
27 W
1.5
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P57K
ON / OFF
Stand alone
5700 K
CRI>80
3200
27 W
1.5
SMART[3] - OPAL DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118PL
ON / OFF
Through wiring
4000 K
CRI>80
1600
15 W
1.5
See all
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118P
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL SHIELD - STAND ALONE - 800MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P30K
SMART[3] - OPAL SHIELD - STAND ALONE - 800MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P57K
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118T
ON / OFF
Stand alone
4000 K
CRI>80
1700
15 W
1.5
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T
ON / OFF
Stand alone
4000 K
CRI>80
3400
27 W
1.5
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 800MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T30K
ON / OFF
Stand alone
3000 K
CRI>80
3200
27 W
1.5
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T57K
ON / OFF
Stand alone
5700 K
CRI>80
3400
27 W
1.5
SMART[3] - TRANSPARENT SHIELD - QUICK WIRING CONNECTION - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118TL
ON / OFF
Through wiring
4000 K
CRI>80
1700
15 W
1.5
See all
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118T
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 800MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T30K
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 800MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T57K
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
See all

SMART[3] - 1200

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136P
ON / OFF
Stand alone
4000 K
CRI>80
2500
20 W
2
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P
ON / OFF
Stand alone
4000 K
CRI>80
5000
40 W
2
SMART[3] - OPAL SHIELD - STAND ALONE - 1200MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P30K
ON / OFF
Stand alone
3000 K
CRI>80
4800
40 W
2
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P57K
ON / OFF
Stand alone
5700 K
CRI>80
5000
40 W
2
SMART[3] - OPAL DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136PL
ON / OFF
Through wiring
4000 K
CRI>80
2500
20 W
2
See all
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136P
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL SHIELD - STAND ALONE - 1200MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P30K
SMART[3] - OPAL SHIELD - STAND ALONE - 1200MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P57K
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136T
ON / OFF
Stand alone
4000 K
CRI>80
2600
20 W
2
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T
ON / OFF
Stand alone
4000 K
CRI>80
5200
40 W
2
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 1200MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T30K
ON / OFF
Stand alone
3000 K
CRI>80
4900
40 W
2
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T57K
ON / OFF
Stand alone
5700 K
CRI>80
5200
40 W
2
SMART[3] - TRANSPARENT DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 1200MM - 4000K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136TL
ON / OFF
Through wiring
4000 K
CRI>80
2600
20 W
2
See all
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136T
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 1200MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T30K
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 1200MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T57K
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
See all

SMART[3] - 1600

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158P
ON / OFF
Stand alone
4000 K
CRI>80
3250
26 W
2.5
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P
ON / OFF
Stand alone
4000 K
CRI>80
6400
50 W
2.5
SMART[3] - OPAL SHIELD - STAND ALONE - 1600MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P30K
ON / OFF
Stand alone
3000 K
CRI>80
6100
50 W
2.5
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P57K
ON / OFF
Stand alone
5700 K
CRI>80
6400
50 W
2.5
SMART[3] - OPAL DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158PL
ON / OFF
Through wiring
4000 K
CRI>80
3250
26 W
2.5
See all
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158P
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL SHIELD - STAND ALONE - 1600MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P30K
SMART[3] - OPAL SHIELD - STAND ALONE - 1600MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P57K
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158T
ON / OFF
Stand alone
4000 K
CRI>80
3400
26 W
2.5
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T
ON / OFF
Stand alone
4000 K
CRI>80
6700
50 W
2.5
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 1600MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T30K
ON / OFF
Stand alone
3000 K
CRI>80
6400
50 W
2.5
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T57K
ON / OFF
Stand alone
5700 K
CRI>80
6700
50 W
2.5
SMART[3] - TRANSPARENT DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158TL
ON / OFF
Through wiring
4000 K
CRI>80
3400
26 W
2.5
See all
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158T
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 1600MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T30K
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 1600MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T57K
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
Show
See all

Complementary items

Category
Complements for installation

Change category

Change category

Complements for installation

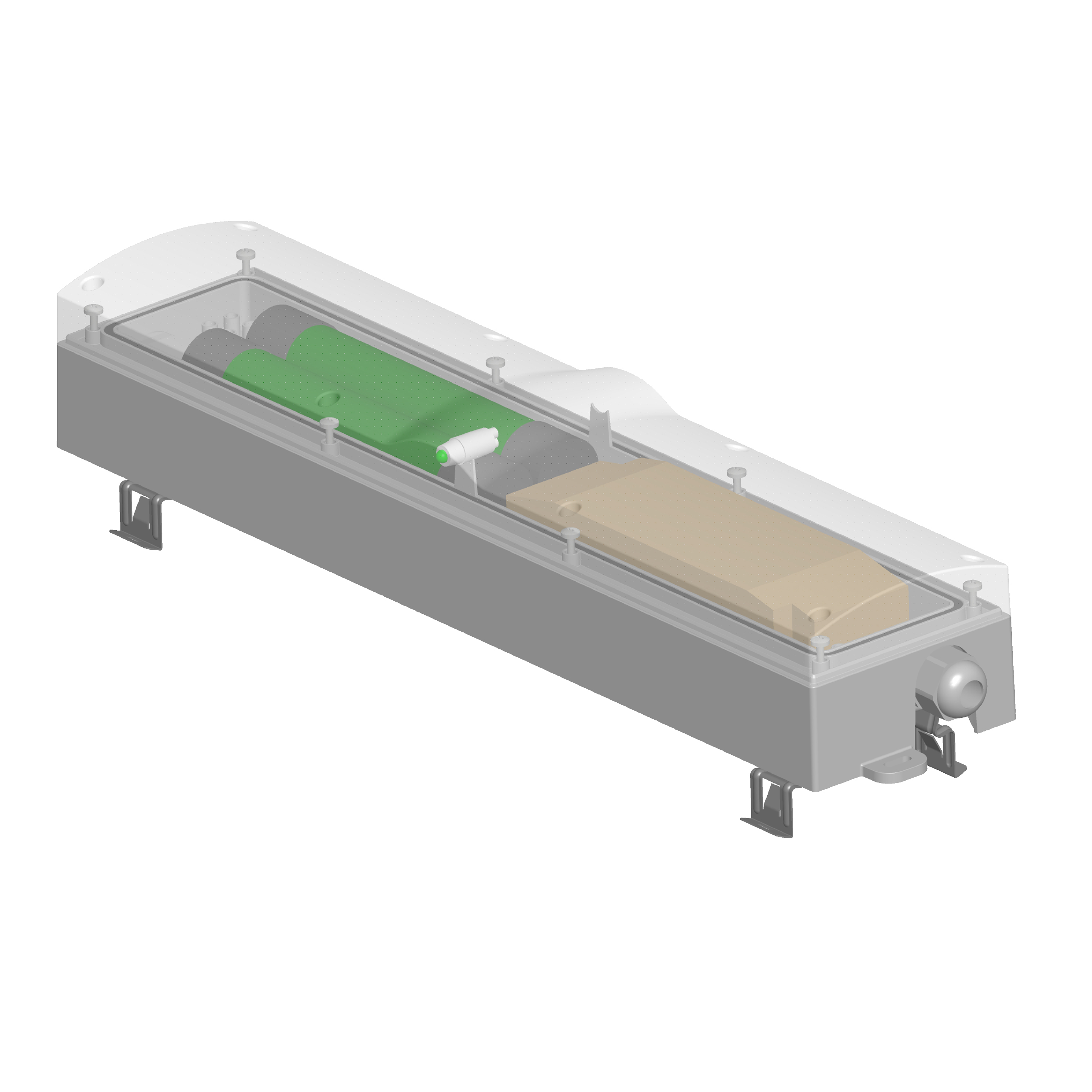

Emergency kit
Cod Gewiss
Description

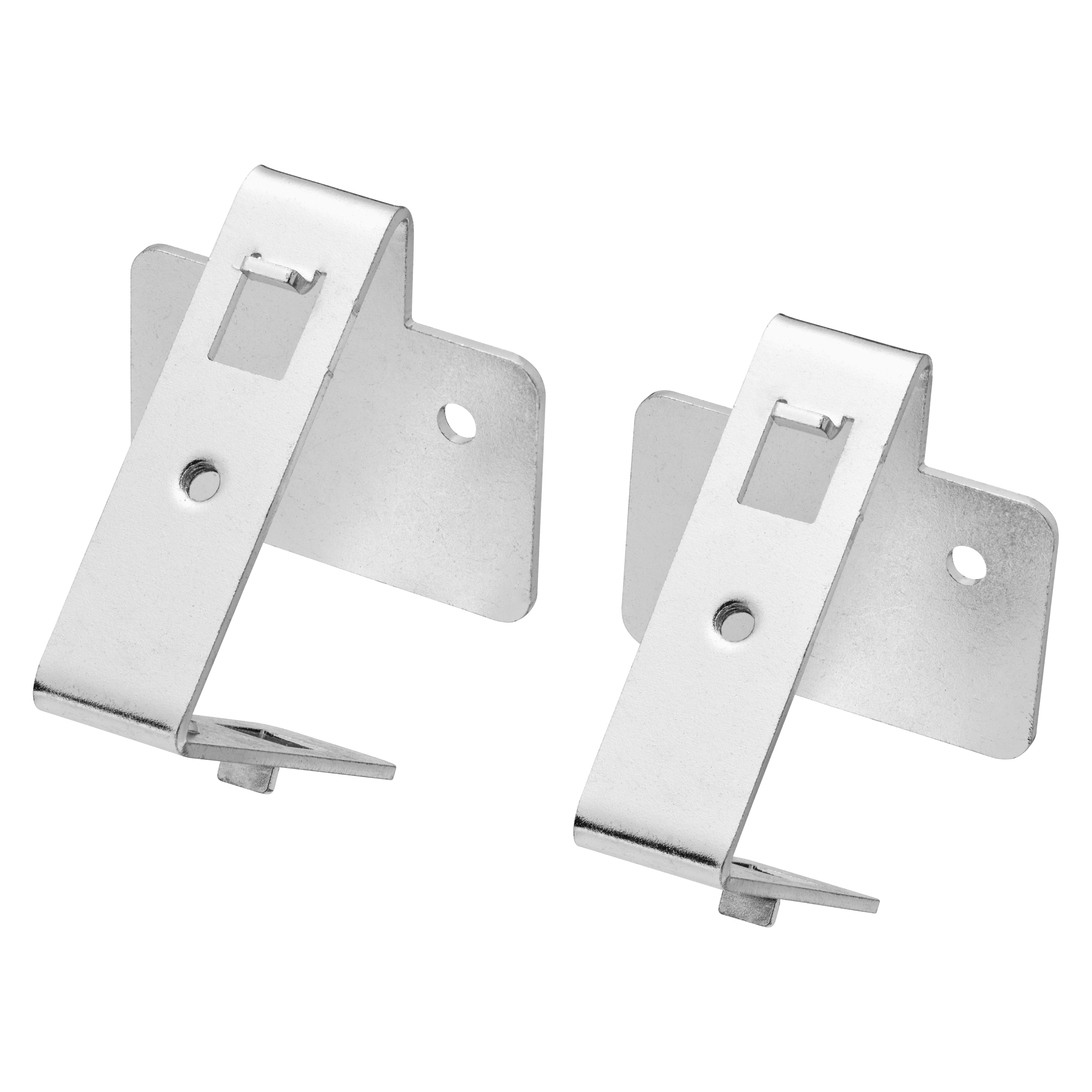

SMART [3] - WALL-MOUNTING BRACKET 30°/45°
GWS3191
Pair of brackets for fixing to the wall at 30° or 45°
SMART [3] - MALE CONNECTOR 4 POLES 10A
GWS3194
4P 10 A male connector
SMART [3] - RIGID PIPE ADAPTOR
GWS3193
Flexible connector for 20 mm pipe
SMART [3] - CONTINUOUS LINE CONNECTION KIT
GWS3197
Continuous line connection kit
SMART [3] - RINA BRACKET KIT
GWS3296
RINA collars kit for Smart [3]
SMART [3] - WALL-MOUNTING BRACKET 30°/45°
GWS3191
SMART [3] - WALL-MOUNTING BRACKET 30°/45°
Show
SMART [3] - MALE CONNECTOR 4 POLES 10A
GWS3194
SMART [3] - MALE CONNECTOR 4 POLES 10A
Show
SMART [3] - RIGID PIPE ADAPTOR
GWS3193
SMART [3] - RIGID PIPE ADAPTOR
Show
SMART [3] - CONTINUOUS LINE CONNECTION KIT
GWS3197
SMART [3] - CONTINUOUS LINE CONNECTION KIT
Show
See all
Cod Gewiss
Description
Autonomy
SMART [3] - EMERGENCY KIT 3H FOR THROUGH WIRING VERSION
GWS3198
Smart [3] emergency kit - through wiring
3 h
SMART [3] - EMERGENCY KIT 3H FOR THROUGH WIRING VERSION
GWS3198
SMART [3] - EMERGENCY KIT 3H FOR THROUGH WIRING VERSION
Show
You saw 102 products on 102

Applications

services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy text has been changed. Please consent again

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website

You are entering the site:

International - EN

GEWISS World websites are available for each country, differentiated by language, services and catalogue offerings.

Continue on international site Continue on international site

Do you want to change country?

Choose another country Choose another country
