Installation MAVIL trunkings BRX perforated steel cable trays
All media

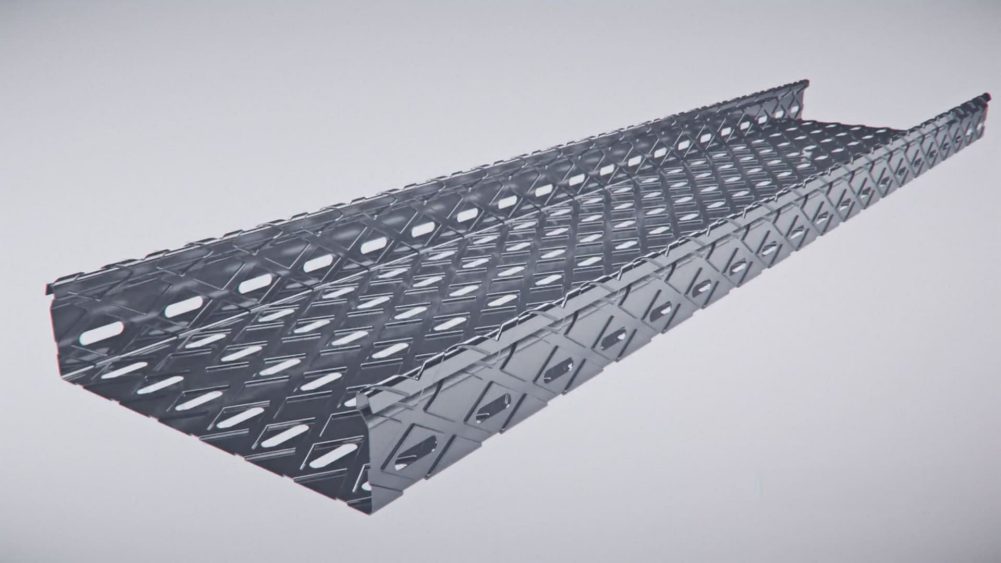

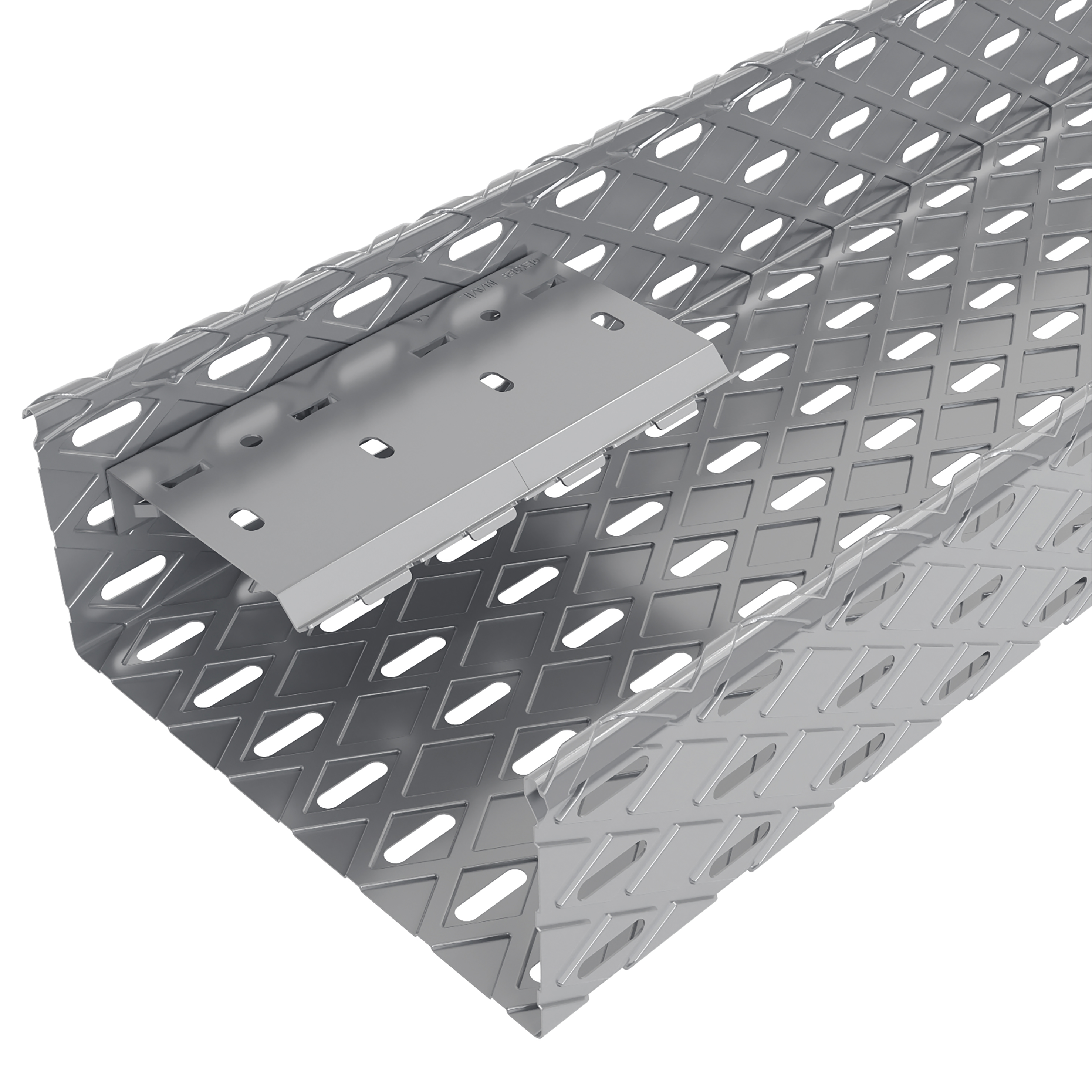

BRX perforated steel cable trays

The galvanized steel cable tray system of BRX Series, thanks to the rounded edges and its particular design, is easy to install and safe for the cables, as well as the ideal solution even in more aggressive environments, with the special HP finishing (Zn +Mg).

See all product
Benefits
Simple and fast assembling
A complete solution
Safety first of all
Simple and fast assembling
Simple and fast assembling

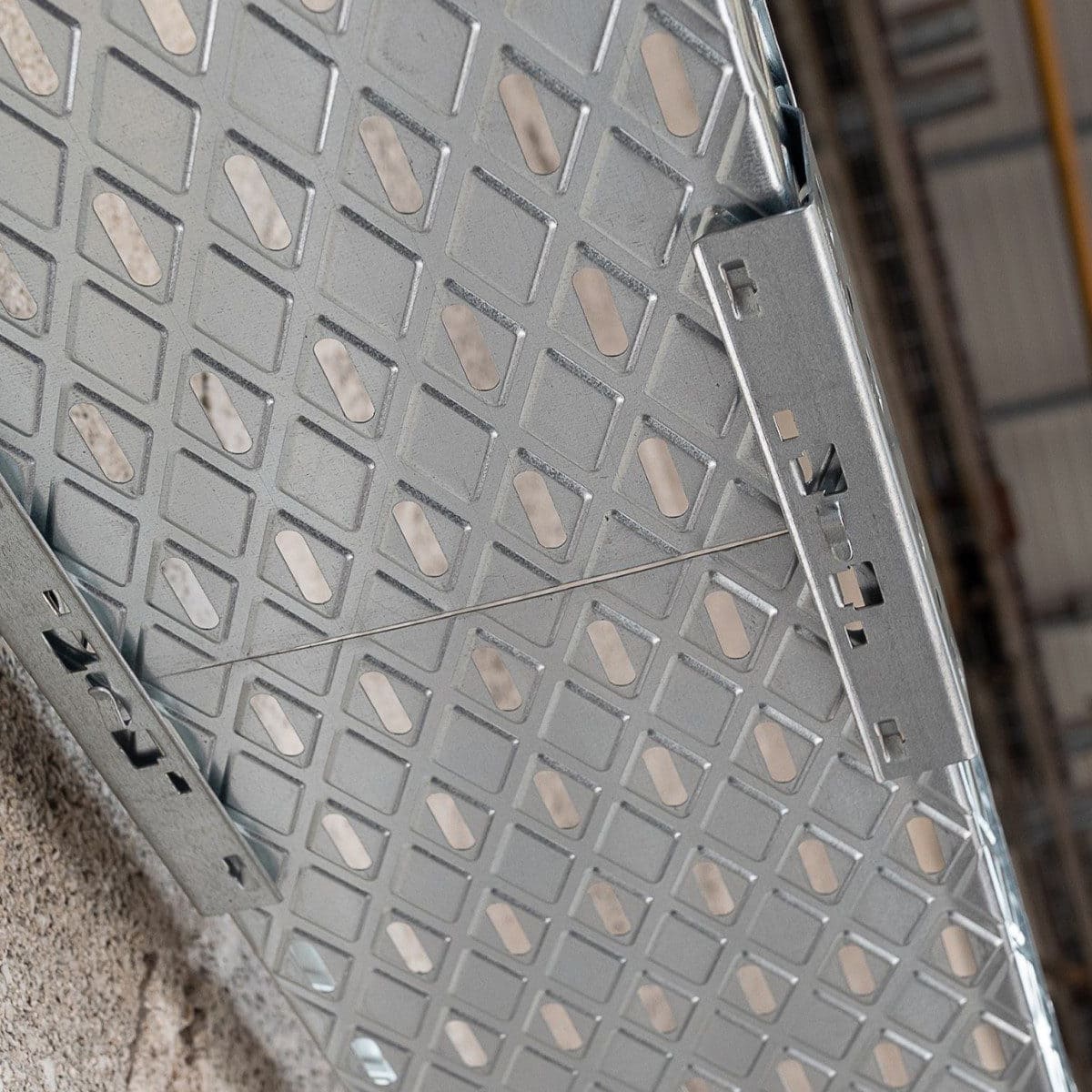

The couplers assembling from the outside makes the assembly of the linear elements particularly simple and fast.
The availability of the automatic coupler in 4 heights (H35, H50, H80 and H95), then, makes it possible to satisfy every installation requirement.
Finally, the particular drawing with an "X" pattern facilitates a quick sliding of the cables inside, thanks to the less friction generated.
A complete solution
A complete solution
The cable tray solution with couplers included can satisfy various needs, because it is easier to order, to transport, to store and to install, as well as the two different finishing available: Z275 (Sendzimir type) or HP (with Zn-Mg finishing) , for the most aggressive environments.
Safety first of all
Safety first of all
All versions of the range guarantee excellent load resistance even on low thicknesses, resulting at the same time, if necessary, being easy to cut on site.
Furthermore, the rounded edge provides the necessary safety during installation, while the positioning of the couplers on the outside helps to maintain 100% of the useful space inside the cable tray, facilitating the sliding of the cables.

The products of this series

Navigate by catalogue
All filters
990 products
Grid
List

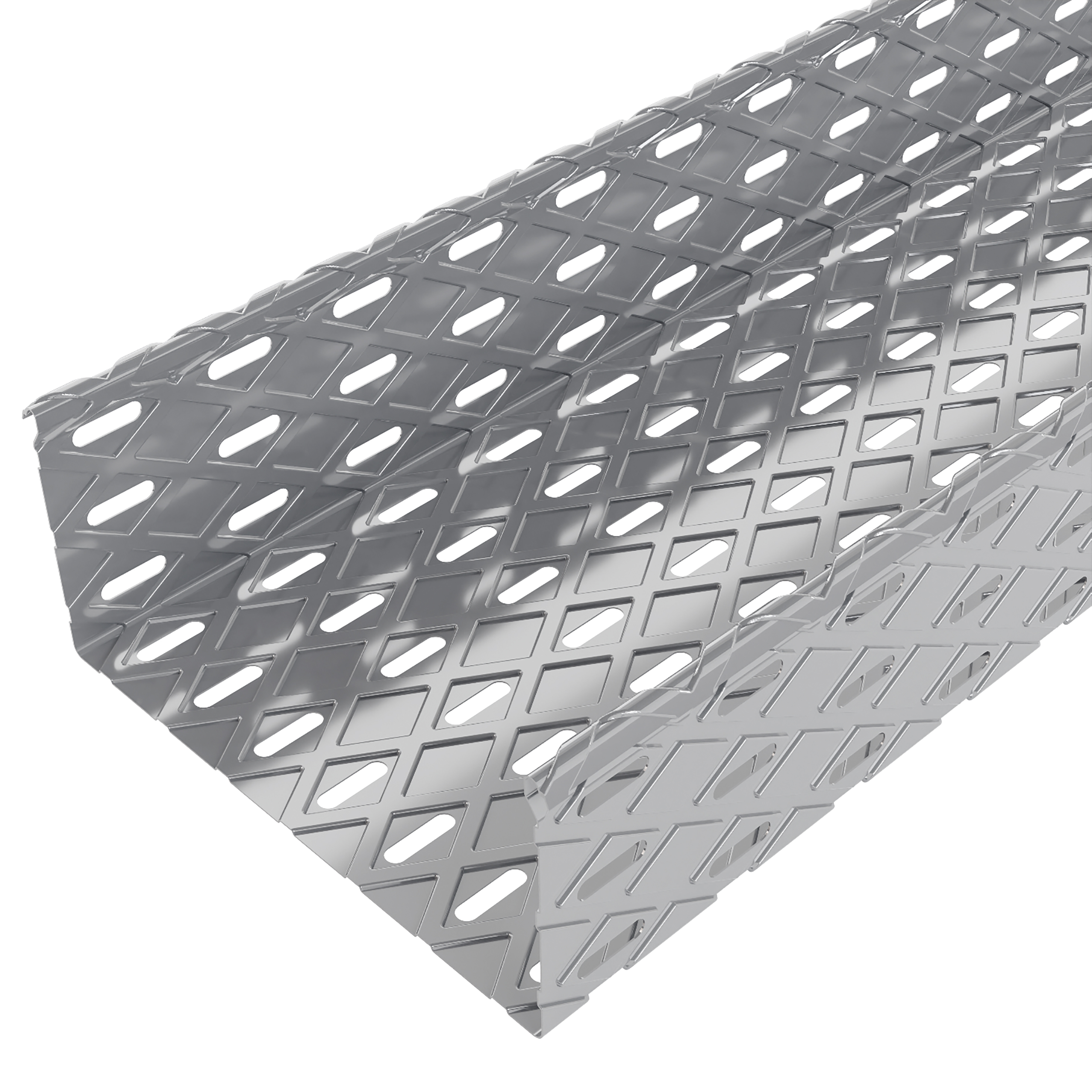

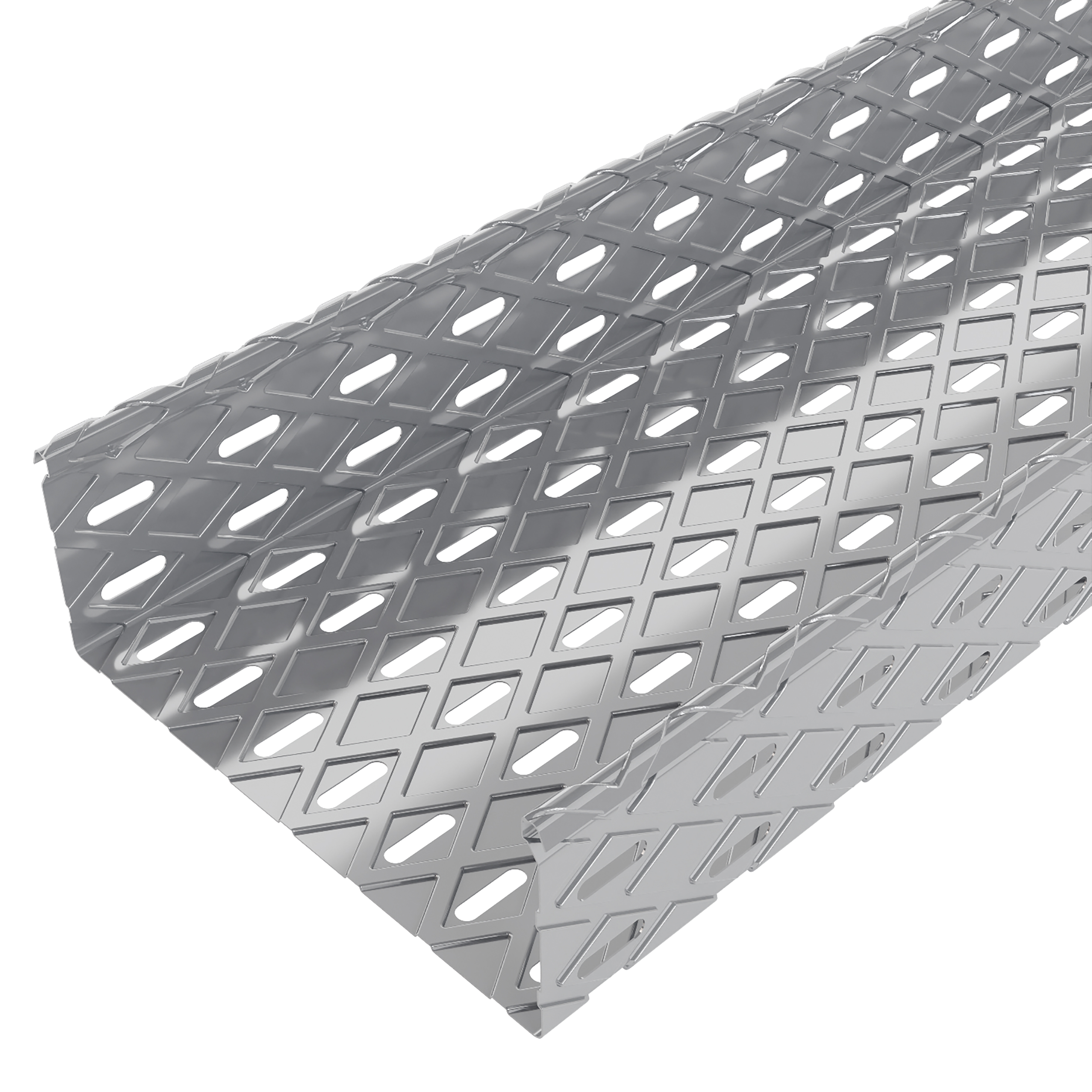

BRX cable trays with rolled edges

BRX 35 cable trays

Category
Steel cable trays - 3m - H.35

Change category

Change category

Steel cable trays - 3m - H.35
Steel cable trays with couplers included - 3m - H.35

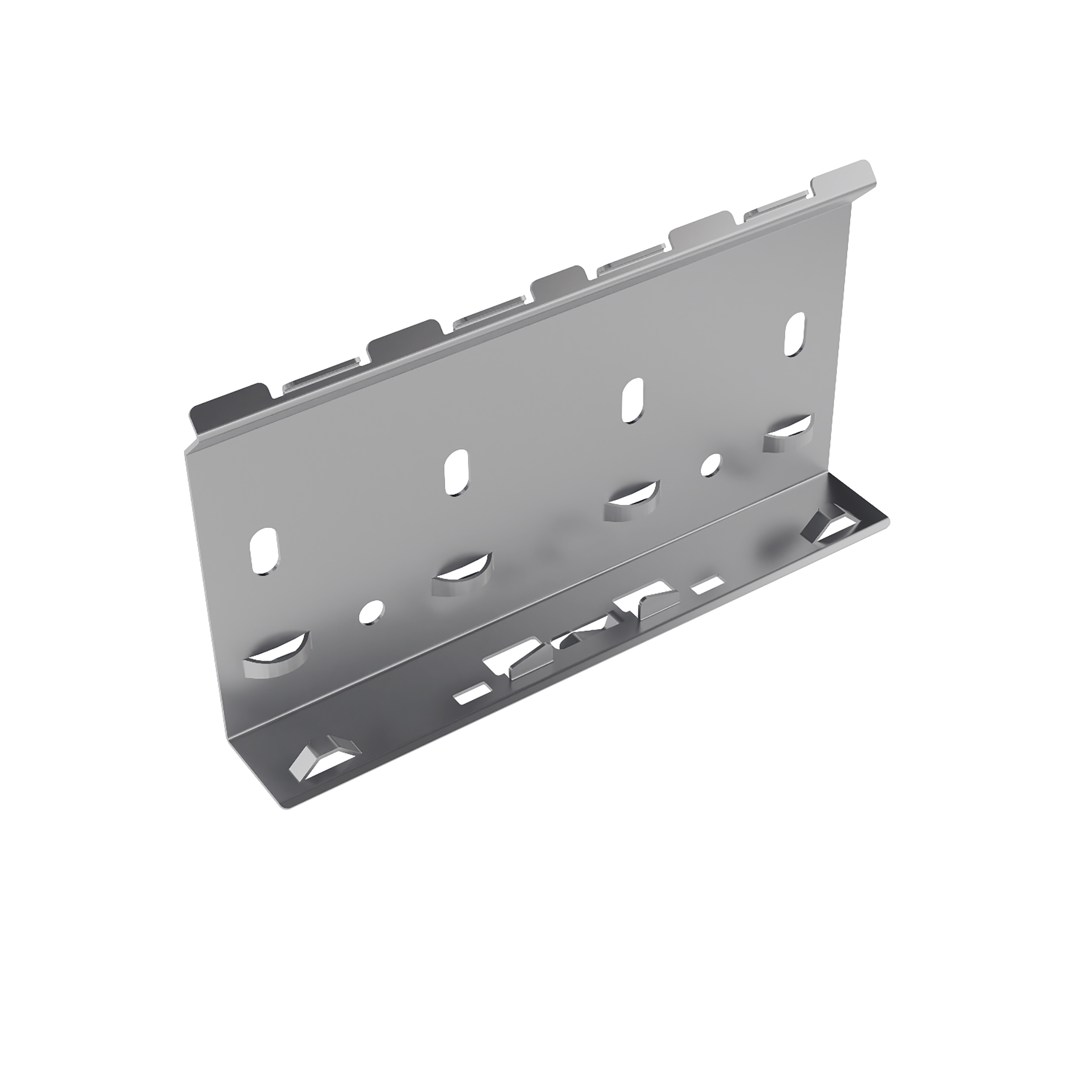

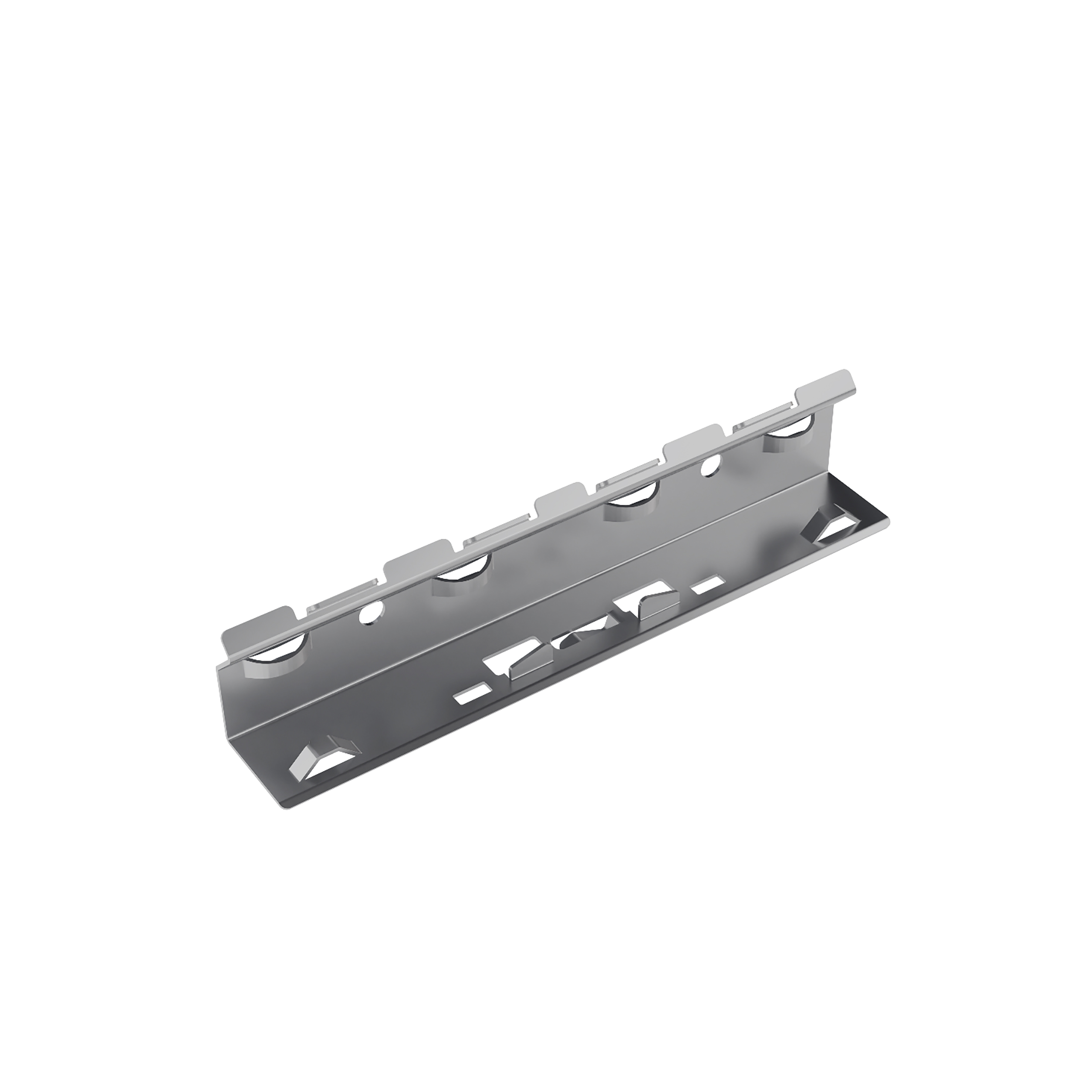

BRX 35 automatic coupler

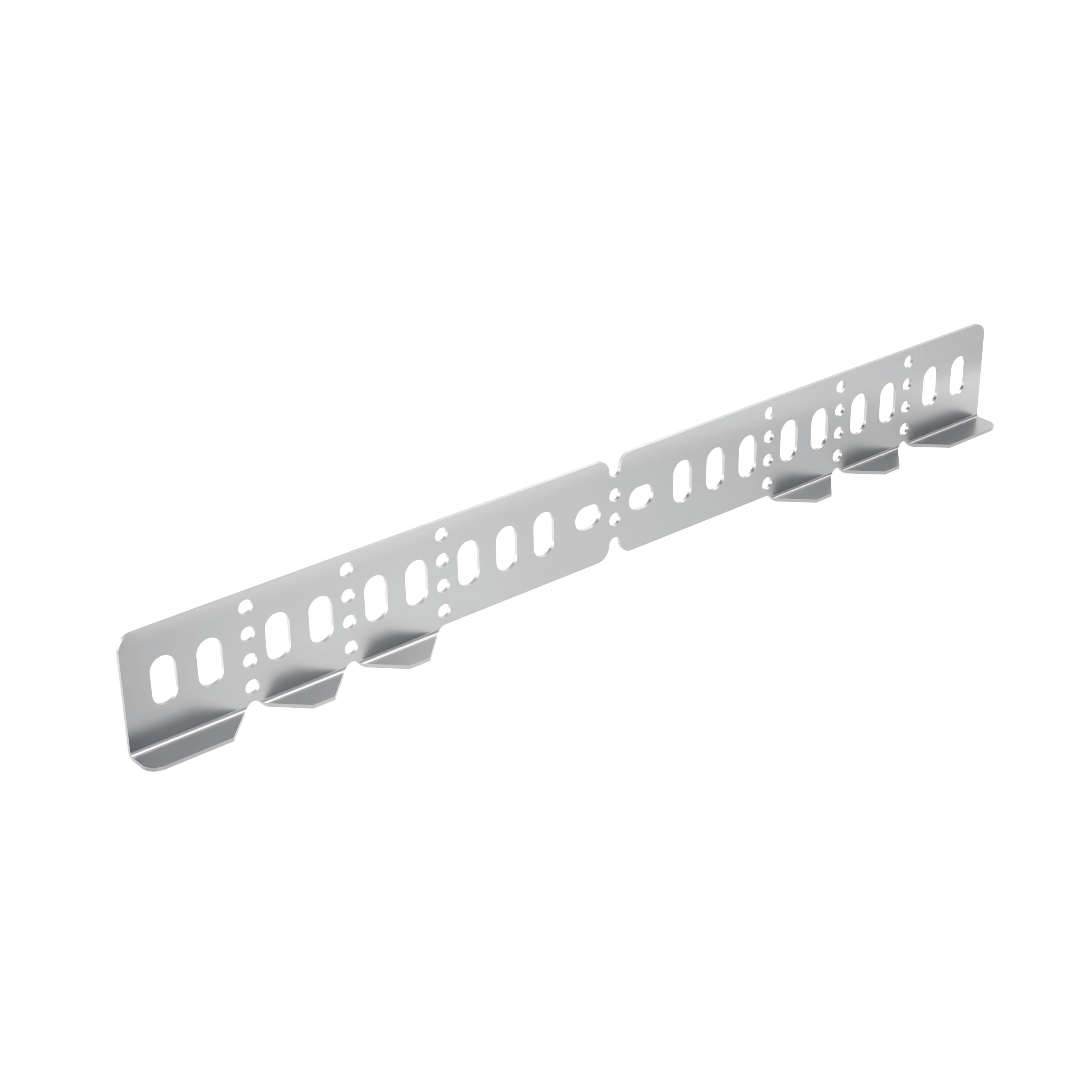

BRX 35 bolt coupler
Cod Gewiss
Finishing
BRN equivalent
Internal width (mm)
Power calble capacity (kg/m)
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 65MM - FINISHING Z275
MVX40100
Z275
MV40100
65
5
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
MVX40101
Z275
MV40101
95
7.3
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
MVX40103
Z275
MV40103
155
12.5
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
MVX40105
Z275
MV40105
215
17.7
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 305MM - FINISHING Z275
MVX40108
Z275
MV40108
305
25.4
See all
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 65MM - FINISHING Z275
MVX40100
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 65MM - FINISHING Z275
Show
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
MVX40101
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
Show
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
MVX40103
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
Show
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
MVX40105
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Internal width (mm)
Power calble capacity (kg/m)
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 65MM - FINISHING Z275
MVX0213EC
Z275
65
5
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
MVX0213ED
Z275
95
7.3
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
MVX0213EF
Z275
155
12.5
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
MVX0213EH
Z275
215
17.7
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 305MM - FINISHING Z275
MVX0213EL
Z275
305
25.4
See all
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 65MM - FINISHING Z275
MVX0213EC
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 65MM - FINISHING Z275
Show
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
MVX0213ED
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
Show
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
MVX0213EF
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
Show
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
MVX0213EH
BRX35 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u

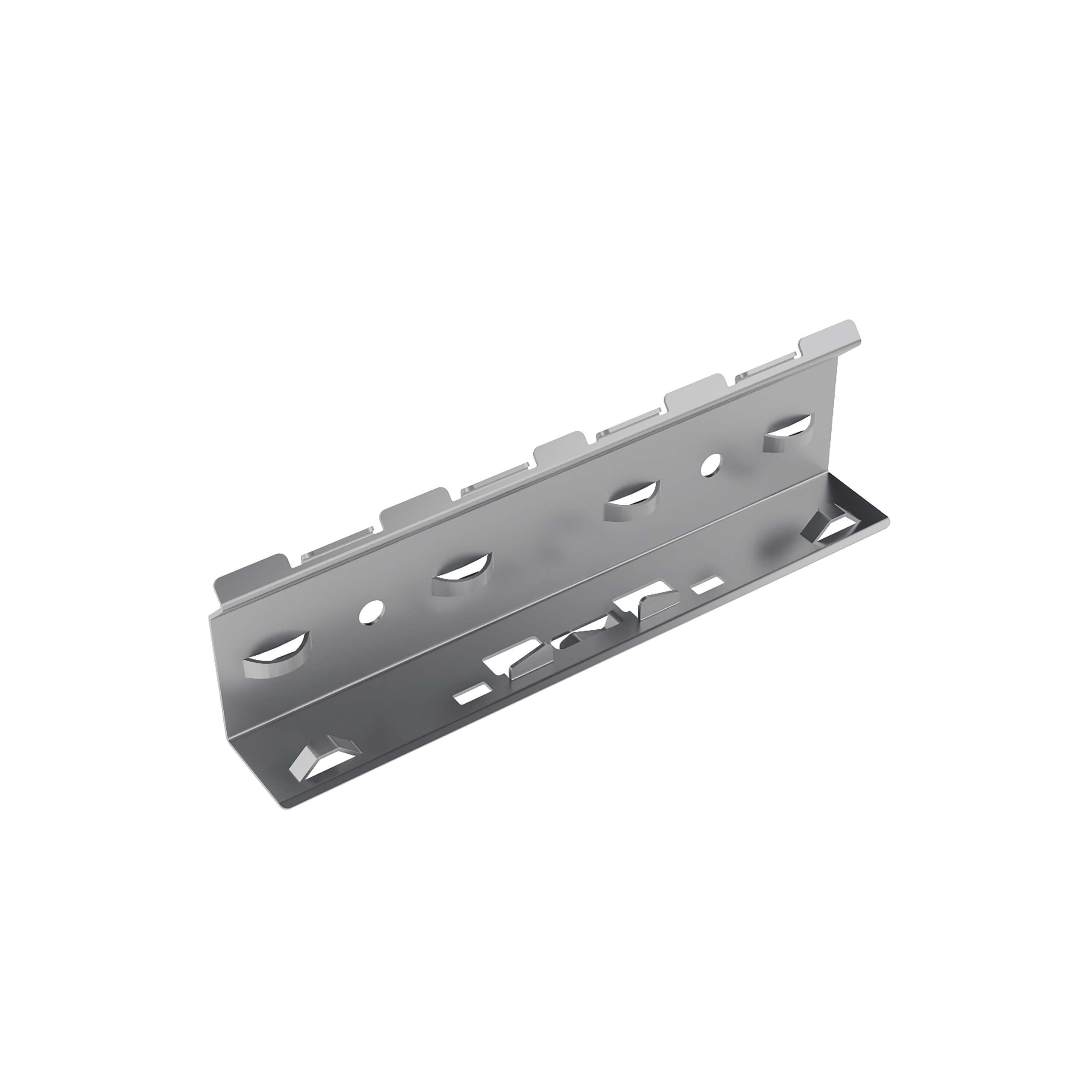

BRX 35 AUTOMATIC COUPLER - FINISHING Z275
MVX41110
Z275
MV41110
BRX 35
0.093
BRX 35 AUTOMATIC COUPLER - FINISHING Z275
MVX41110
BRX 35 AUTOMATIC COUPLER - FINISHING Z275
Show
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u

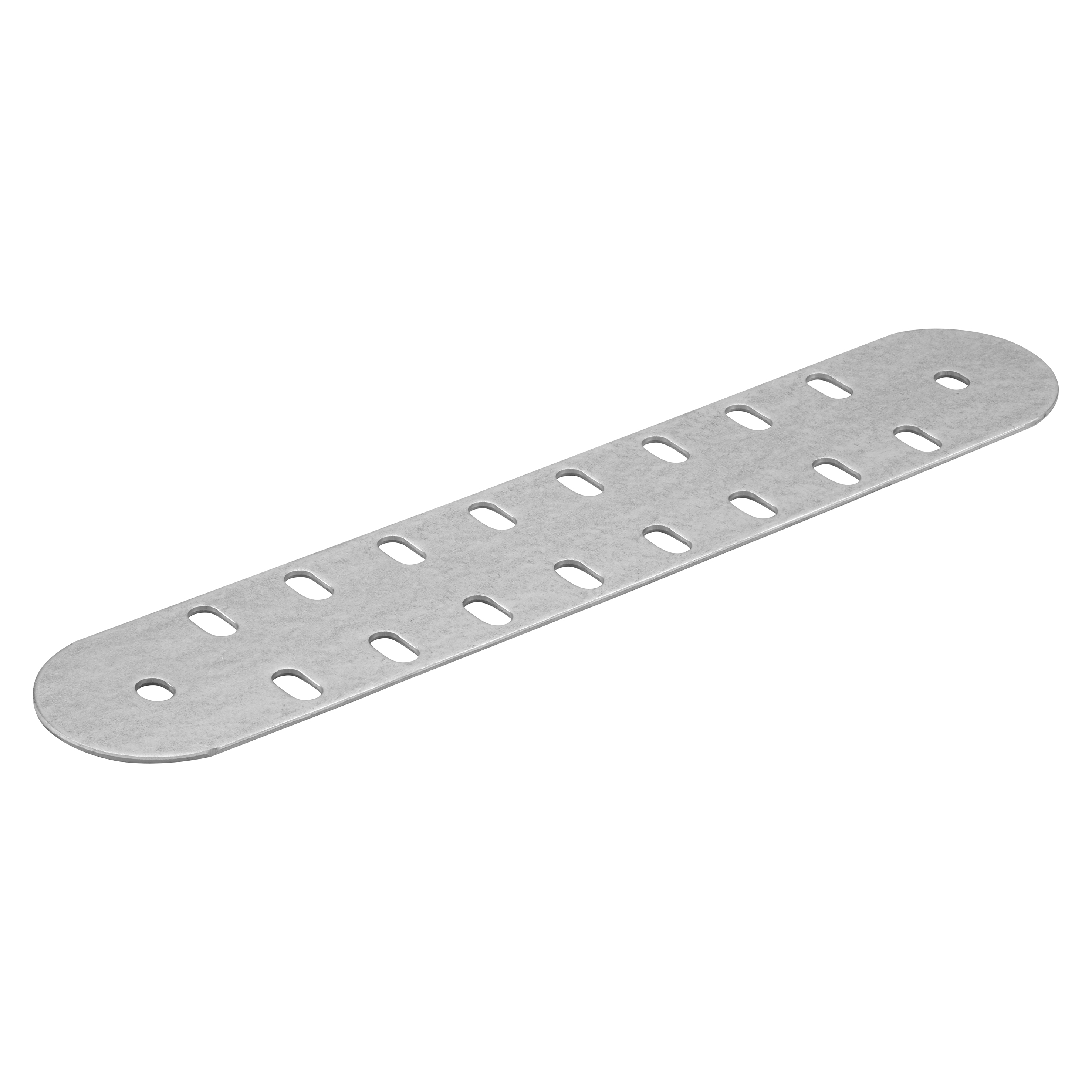

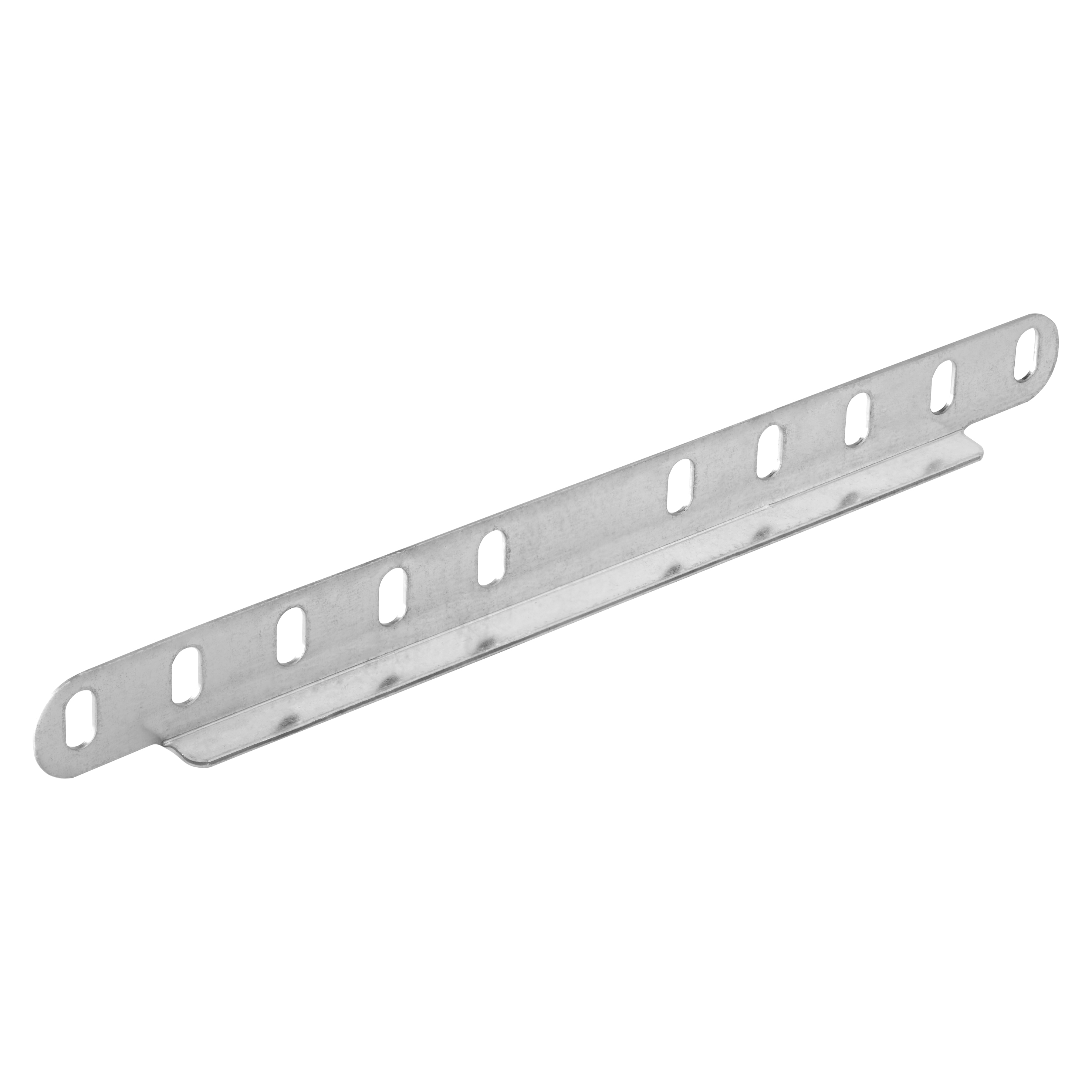

BRX BOLT COUPLER - H35 - FINISHING Z275
MVC0710EA
Z275
MV41120
BRX 35
0.092
BRX BOLT COUPLER - H35 - FINISHING HDG
MVC0720EA
HDG
-
BRX 35
0.096
BRX BOLT COUPLER - H35 - FINISHING Z275
MVC0710EA
BRX BOLT COUPLER - H35 - FINISHING Z275
Show
BRX BOLT COUPLER - H35 - FINISHING HDG
MVC0720EA
BRX BOLT COUPLER - H35 - FINISHING HDG
Show

BRX 50 cable trays

Category
Steel cable trays - 3m - H.50

Change category

Change category

Steel cable trays - 3m - H.50
Steel cable trays with couplers included - 3m - H.50
BRX 50 automatic coupler
BRX 50 bolt coupler
Cod Gewiss
Finishing
BRN equivalent
Internal width (mm)
Power calble capacity (kg/m)
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 65MM - FINISHING Z275
MVX40120
Z275
MV40120
65
7.3
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
MVX40121
Z275
MV40121
95
10.8
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
MVX40123
Z275
MV40123
155
18.2
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
MVX40125
Z275
MV40125
215
25.6
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 305MM - FINISHING Z275
MVX40128
Z275
MV40128
305
36.7
See all
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 65MM - FINISHING Z275
MVX40120
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 65MM - FINISHING Z275
Show
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
MVX40121
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
Show
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
MVX40123
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
Show
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
MVX40125
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Internal width (mm)
Power calble capacity (kg/m)
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 65MM - FINISHING Z275
MVX0213GC
Z275
65
7.3
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
MVX0213GD
Z275
95
10.8
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
MVX0213GF
Z275
155
18.2
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
MVX0213GH
Z275
215
25.6
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 305MM - FINISHING Z275
MVX0213GL
Z275
305
36.7
See all
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 65MM - FINISHING Z275
MVX0213GC
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 65MM - FINISHING Z275
Show
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
MVX0213GD
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
Show
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
MVX0213GF
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
Show
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
MVX0213GH
BRX50 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u
BRX50 AUTOMATIC COUPLER - FINISHING Z275
MVX41111
Z275
MV41111
BRX 50
0.115
BRX50 AUTOMATIC COUPLER - FINISHING HP
MVX0670GA
HP
-
BRX 50
0.115
BRX50 AUTOMATIC COUPLER - FINISHING Z275
MVX41111
BRX50 AUTOMATIC COUPLER - FINISHING Z275
Show
BRX50 AUTOMATIC COUPLER - FINISHING HP
MVX0670GA
BRX50 AUTOMATIC COUPLER - FINISHING HP
Show
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
MVC0710GA
Z275
MV41120
BRX 50
0.114
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HDG
MVC0720GA
HDG
-
BRX 50
0.118
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HP
MVC0770GA
HP
-
BRX 50
0.114
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
MVC0710GA
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
Show
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HDG
MVC0720GA
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HDG
Show
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HP
MVC0770GA
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HP
Show

BRX 80 cable trays

Category
Steel cable trays - 3m - H.80

Change category

Change category

Steel cable trays - 3m - H.80
Steel cable trays with couplers included - 3m - H.80
BRX 80 automatic coupler
Giunzioni a vite BRX 80
Cod Gewiss
Finishing
BRN equivalent
Internal width (mm)
Power calble capacity (kg/m)
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
MVX0013LD
Z275
MVN0013LD
95
23.7
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
MVX0013LF
Z275
MVN0013LF
155
29.6
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
MVX0013LH
Z275
MVN0013LH
215
41.5
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 305MM - FINISHING Z275
MVX0013LL
Z275
MVN0013LL
305
59.4
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 395MM - FINISHING Z275
MVX0013LP
Z275
MVN0013LP
395
77.3
See all
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
MVX0013LD
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
Show
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
MVX0013LF
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
Show
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
MVX0013LH
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
Show
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 305MM - FINISHING Z275
MVX0013LL
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 305MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Internal width (mm)
Power calble capacity (kg/m)
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
MVX0213LD
Z275
95
23.7
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
MVX0213LF
Z275
155
29.6
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
MVX0213LH
Z275
215
41.5
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 305MM - FINISHING Z275
MVX0213LL
Z275
305
59.4
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 395MM - FINISHING Z275
MVX0213LP
Z275
395
77.3
See all
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
MVX0213LD
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
Show
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
MVX0213LF
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
Show
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
MVX0213LH
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
Show
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 305MM - FINISHING Z275
MVX0213LL
BRX80 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 305MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Type
Kg/u
BRX80 AUTOMATIC COUPLER - FINISHING Z275
MVX0610LA
Z275
BRX 80
0.156
BRX80 AUTOMATIC COUPLER - FINISHING Z275
MVX0610LA
BRX80 AUTOMATIC COUPLER - FINISHING Z275
Show
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
MVC0710LA
Z275
MVC0310XA
BRX 80
0.155
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING HDG
MVC0720LA
HDG
-
BRX 80
0.162
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
MVC0710LA
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
Show
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING HDG
MVC0720LA
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING HDG
Show

BRX 95 cable trays

Category
Steel cable trays - 3m - H.95

Change category

Change category

Steel cable trays - 3m - H.95
Steel cable trays with couplers included - 3m - H.95
BRX 95 automatic coupler
BRX 95 bolt coupler
Cod Gewiss
Finishing
BRN equivalent
Internal width (mm)
Power calble capacity (kg/m)
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
MVX0013ND
Z275
MVN0013ND
95
22.2
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
MVX0013NF
Z275
MVN0013NF
155
36.5
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
MVX0013NH
Z275
MVN0013NH
215
50.7
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 305MM - FINISHING Z275
MVX0013NL
Z275
MVN0013NL
305
72
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 395MM - FINISHING Z275
MVX0013NP
Z275
MVN0013NP
395
93.3
See all
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
MVX0013ND
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 95MM - FINISHING Z275
Show
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
MVX0013NF
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 155MM - FINISHING Z275
Show
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
MVX0013NH
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 215MM - FINISHING Z275
Show
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 305MM - FINISHING Z275
MVX0013NL
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - WIDTH 305MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Internal width (mm)
Power calble capacity (kg/m)
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
MVX0213ND
Z275
95
22.2
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
MVX0213NF
Z275
155
36.5
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
MVX0213NH
Z275
215
50.7
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 305MM - FINISHING Z275
MVX0213NL
Z275
305
72
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 395MM - FINISHING Z275
MVX0213NP
Z275
395
93.3
See all
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
MVX0213ND
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 95MM - FINISHING Z275
Show
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
MVX0213NF
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 155MM - FINISHING Z275
Show
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
MVX0213NH
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 215MM - FINISHING Z275
Show
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 305MM - FINISHING Z275
MVX0213NL
BRX95 CABLE TRAY MADE FROM GALVANISED STEEL WITH ROLLED EDGES - COUPLERS INCLUDED - WIDTH 305MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Type
Kg/u
BRX95 AUTOMATIC COUPLER - FINISHING Z275
MVX0610NA
Z275
BRX 95
0.178
BRX95 AUTOMATIC COUPLER - FINISHING HP
MVX0670NA
HP
BRX 95
0.178
BRX95 AUTOMATIC COUPLER - FINISHING Z275
MVX0610NA
BRX95 AUTOMATIC COUPLER - FINISHING Z275
Show
BRX95 AUTOMATIC COUPLER - FINISHING HP
MVX0670NA
BRX95 AUTOMATIC COUPLER - FINISHING HP
Show
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
MVC0710NA
Z275
MVC0310XA
BRN 95
0.177
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING HDG
MVC0720NA
HDG
-
BRN 95
0.185
BRX BOLT COUPLER - H95 - FINISHING HP
MVC0770NA
HP
-
BRN 95
0.177
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
MVC0710NA
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
Show
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING HDG
MVC0720NA
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING HDG
Show
BRX BOLT COUPLER - H95 - FINISHING HP
MVC0770NA
BRX BOLT COUPLER - H95 - FINISHING HP
Show

Couplers

Category
BRX automatic coupler

Change category

Change category

BRX automatic coupler
BRX bolt coupler
BRX pliable coupler
BRX coupler with variable angle
Universal coupler
Earth connector
Bolt

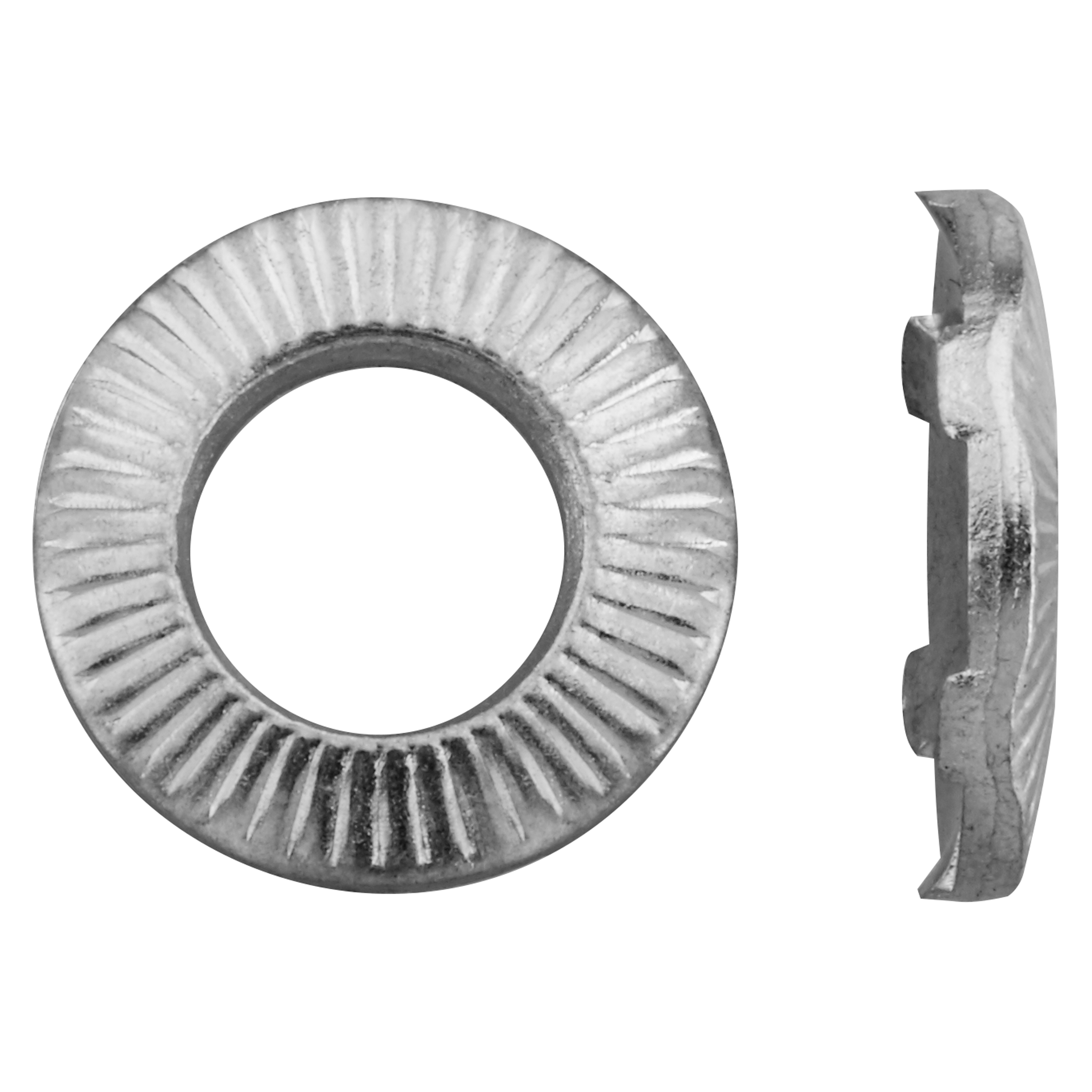

Toothed contact washer
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u
BRX 35 AUTOMATIC COUPLER - FINISHING Z275
MVX41110
Z275
MV41110
BRX 35
0.093
BRX50 AUTOMATIC COUPLER - FINISHING Z275
MVX41111
Z275
MV41111
BRX 50
0.115
BRX80 AUTOMATIC COUPLER - FINISHING Z275
MVX0610LA
Z275
-
BRX 80
0.156
BRX95 AUTOMATIC COUPLER - FINISHING Z275
MVX0610NA
Z275
-
BRX 95
0.178
BRX50 AUTOMATIC COUPLER - FINISHING HP
MVX0670GA
HP
-
BRX 50
0.115
See all
BRX 35 AUTOMATIC COUPLER - FINISHING Z275
MVX41110
BRX 35 AUTOMATIC COUPLER - FINISHING Z275
Show
BRX50 AUTOMATIC COUPLER - FINISHING Z275
MVX41111
BRX50 AUTOMATIC COUPLER - FINISHING Z275
Show
BRX80 AUTOMATIC COUPLER - FINISHING Z275
MVX0610LA
BRX80 AUTOMATIC COUPLER - FINISHING Z275
Show
BRX95 AUTOMATIC COUPLER - FINISHING Z275
MVX0610NA
BRX95 AUTOMATIC COUPLER - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u
BRX BOLT COUPLER - H35 - FINISHING Z275
MVC0710EA
Z275
MV41120
BRX 35
0.092
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
MVC0710GA
Z275
MV41120
BRX 50
0.114
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
MVC0710LA
Z275
MVC0310XA
BRX 80
0.155
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
MVC0710NA
Z275
MVC0310XA
BRN 95
0.177
BRX BOLT COUPLER - H35 - FINISHING HDG
MVC0720EA
HDG
-
BRX 35
0.096
See all
BRX BOLT COUPLER - H35 - FINISHING Z275
MVC0710EA
BRX BOLT COUPLER - H35 - FINISHING Z275
Show
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
MVC0710GA
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
Show
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
MVC0710LA
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
Show
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
MVC0710NA
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
BRN equivalent
Type
Kg/u
BRX PLIABLE COUPLER- H35 - FINISHING Z275
MVC0810EA
Z275
MV41130
BRX/BRN 35
0.076
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING Z275
MVC0810GA
Z275
MV41130
BRX/BRN 50
0.097
BRX/BRN NP/BRN HL PLIABLE COUPLER- H80 - FINISHING Z275
MVC0810LA
Z275
MVC0410XA
BRX/BRN 80
0.139
BRX/BRN NP/BRN HL PLIABLE COUPLER- H95 - FINISHING Z275
MVC0810NA
Z275
MVC0410XA
BRX/BRN 95
0.16
BRX PLIABLE COUPLER- H35 - FINISHING HDG
MVC0820EA
HDG
-
BRX/BRN 35
0.079
See all
BRX PLIABLE COUPLER- H35 - FINISHING Z275
MVC0810EA
BRX PLIABLE COUPLER- H35 - FINISHING Z275
Show
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING Z275
MVC0810GA
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING Z275
Show
BRX/BRN NP/BRN HL PLIABLE COUPLER- H80 - FINISHING Z275
MVC0810LA
BRX/BRN NP/BRN HL PLIABLE COUPLER- H80 - FINISHING Z275
Show
BRX/BRN NP/BRN HL PLIABLE COUPLER- H95 - FINISHING Z275
MVC0810NA
BRX/BRN NP/BRN HL PLIABLE COUPLER- H95 - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Type
BRX35/50 COUPLER WITH VARIABLE ANGLE - FINISHING Z275
MV41120
Z275
BRX/BRN 35-50
BRX80/95 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
MV41140
Z275
BRX/BRN 80-95
BRX35/50 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
MV41222
HDG
BRX/BRN 35-50
BRX80/95 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
MV41240
HDG
BRX/BRN 80-95
BRX35/50 COUPLER WITH VARIABLE ANGLE - FINISHING HP
MV41720
HP
BRX/BRN 35-50
See all
BRX35/50 COUPLER WITH VARIABLE ANGLE - FINISHING Z275
MV41120
BRX35/50 COUPLER WITH VARIABLE ANGLE - FINISHING Z275
Show
BRX80/95 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
MV41140
BRX80/95 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
Show
BRX35/50 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
MV41222
BRX35/50 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
Show
BRX80/95 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
MV41240
BRX80/95 COUPLER WITH VARIABLE ANGLE - FINISHING HDG
Show
See all
Cod Gewiss
Finishing
Type
BRX35/50 UNIVERSAL COUPLER - FINISHING Z275
MVC3510GA
Z275
BRX 35-50
BRX80 UNIVERSAL COUPLER - FINISHING Z275
MVC3510LA
Z275
BRX 80
BRX95 UNIVERSAL COUPLER - FINISHING Z275
MVC3510NA
Z275
BRX 95
BRX35/50 UNIVERSAL COUPLER - FINISHING HDG
MVC3520GA
HDG
BRX 35-50
BRX80 UNIVERSAL COUPLER - FINISHING HDG
MVC3520LA
HDG
BRX 80
See all
BRX35/50 UNIVERSAL COUPLER - FINISHING Z275
MVC3510GA
BRX35/50 UNIVERSAL COUPLER - FINISHING Z275
Show
BRX80 UNIVERSAL COUPLER - FINISHING Z275
MVC3510LA
BRX80 UNIVERSAL COUPLER - FINISHING Z275
Show
BRX95 UNIVERSAL COUPLER - FINISHING Z275
MVC3510NA
BRX95 UNIVERSAL COUPLER - FINISHING Z275
Show
BRX35/50 UNIVERSAL COUPLER - FINISHING HDG
MVC3520GA
BRX35/50 UNIVERSAL COUPLER - FINISHING HDG
Show
See all
Cod Gewiss
Type
Ø (mm)
Height (mm)
Nominal section (mm²)
Kg/m
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 16-25 MM²
MV41940
Terminal kit + 2 washers
17
20
16-25
0.48
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-70 MM²
MV41941
Terminal kit + 2 washers
21
26
25-70
0.7
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-95 MM²
MV41942
Terminal kit + 2 washers
24
30
25-95
0.94
EARTH CONNECTOR - NOMINAL SECTION 16-25 MM²
MV41943
Terminal only
17
20
16-25
0.382
EARTH CONNECTOR - NOMINAL SECTION 25-70 MM²
MV41944
Terminal only
21
26
25-70
0.606
See all
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 16-25 MM²
MV41940
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 16-25 MM²
Show
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-70 MM²
MV41941
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-70 MM²
Show
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-95 MM²
MV41942
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-95 MM²
Show
EARTH CONNECTOR - NOMINAL SECTION 16-25 MM²
MV41943
EARTH CONNECTOR - NOMINAL SECTION 16-25 MM²
Show
See all
Cod Gewiss
Finishing
Current product
Description
Dimension
Kg/u
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING EZ
MV66100
EZ
•
Bolt + nut
M6x10
0.748
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING EZ
MV66101
EZ
•
Bolt + nut
M6x14
0.82
BOLTS - BOLT M6 X 20 - FLANGED NUT - FINISHING EZ.
MV66403
EZ
•
Bolt + nut
M6x20
0.936
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING GEOMET
MV66200
Geomet
•
Bolt + nut
M6x10
0.82
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING GEOMET
MV66201
Geomet
•
Bolt + nut
M6x14
0.748
See all
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING EZ
MV66100
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING EZ
Show
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING EZ
MV66101
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING EZ
Show
BOLTS - BOLT M6 X 20 - FLANGED NUT - FINISHING EZ.
MV66403
BOLTS - BOLT M6 X 20 - FLANGED NUT - FINISHING EZ.
Show
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING GEOMET
MV66200
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING GEOMET
Show
See all
Cod Gewiss
Finishing
Ø (mm)
Kg/u
TOOHED CONTACT WASHER - Ø6 - FINISHING Z275
MV64179
Z275
6
0.005
TOOHED CONTACT WASHER - Ø6 - FINISHING Z275
MV64179
TOOHED CONTACT WASHER - Ø6 - FINISHING Z275
Show

BRX cover

Category
BRX Snap-fit cover - 3m

Change category

Change category

BRX Snap-fit cover - 3m
Cod Gewiss
Finishing
Width (mm)
Kg/m
BRX/BRN NP SNAP-FIT COVER - WIDTH 65 - 3 METRES - FINISHING Z275
MVC0013AC
Z275
65
0.545
BRX/BRN NP SNAP-FIT COVER - WIDTH 95 - 3 METRES - FINISHING Z275
MVC0013AD
Z275
95
0.644
BRX/BRN NP SNAP-FIT COVER - WIDTH 155 - 3 METRES - FINISHING Z275
MVC0013AF
Z275
155
0.94
BRX/BRN NP SNAP-FIT COVER - WIDTH 215 - 3 METRES - FINISHING Z275
MVC0013AH
Z275
215
1.236
BRX/BRN NP SNAP-FIT COVER - WIDTH 305 - 3 METRES - FINISHING Z275
MVC0013AL
Z275
305
1.683
See all
BRX/BRN NP SNAP-FIT COVER - WIDTH 65 - 3 METRES - FINISHING Z275
MVC0013AC
BRX/BRN NP SNAP-FIT COVER - WIDTH 65 - 3 METRES - FINISHING Z275
Show
BRX/BRN NP SNAP-FIT COVER - WIDTH 95 - 3 METRES - FINISHING Z275
MVC0013AD
BRX/BRN NP SNAP-FIT COVER - WIDTH 95 - 3 METRES - FINISHING Z275
Show
BRX/BRN NP SNAP-FIT COVER - WIDTH 155 - 3 METRES - FINISHING Z275
MVC0013AF
BRX/BRN NP SNAP-FIT COVER - WIDTH 155 - 3 METRES - FINISHING Z275
Show
BRX/BRN NP SNAP-FIT COVER - WIDTH 215 - 3 METRES - FINISHING Z275
MVC0013AH
BRX/BRN NP SNAP-FIT COVER - WIDTH 215 - 3 METRES - FINISHING Z275
Show
See all

Cover accessory

Category
BRN cover clip

Change category

Change category

BRN cover clip
BRN join cover
Cod Gewiss
Finishing
For BRX
BFR30-BRX35 COVER CLIP - FINISHING INOX 304L
MV41601
Stainless steel 304L
35
BRX/BRN HL 50-80-110 COVER CLIP - FINISHING INOX 304L
MV41602
Stainless steel 304L
50 - 80 - 110
BFR60/110-BRN95 HL-BRX65/95 COVER CLIP - FINISHING INOX 304L
MV41603
Stainless steel 304L
65 - 95
BFR30-BRX35 COVER CLIP - FINISHING INOX 316L
MV41801
Stainless steel 316L
35
BFR60/110-BRX65/95 COVER CLIP - FINISHING INOX 316L
MV41803
Stainless steel 316L
65 - 95
BFR30-BRX35 COVER CLIP - FINISHING INOX 304L
MV41601
BFR30-BRX35 COVER CLIP - FINISHING INOX 304L
Show
BRX/BRN HL 50-80-110 COVER CLIP - FINISHING INOX 304L
MV41602
BRX/BRN HL 50-80-110 COVER CLIP - FINISHING INOX 304L
Show
BFR60/110-BRN95 HL-BRX65/95 COVER CLIP - FINISHING INOX 304L
MV41603
BFR60/110-BRN95 HL-BRX65/95 COVER CLIP - FINISHING INOX 304L
Show
BFR30-BRX35 COVER CLIP - FINISHING INOX 316L
MV41801
BFR30-BRX35 COVER CLIP - FINISHING INOX 316L
Show
See all

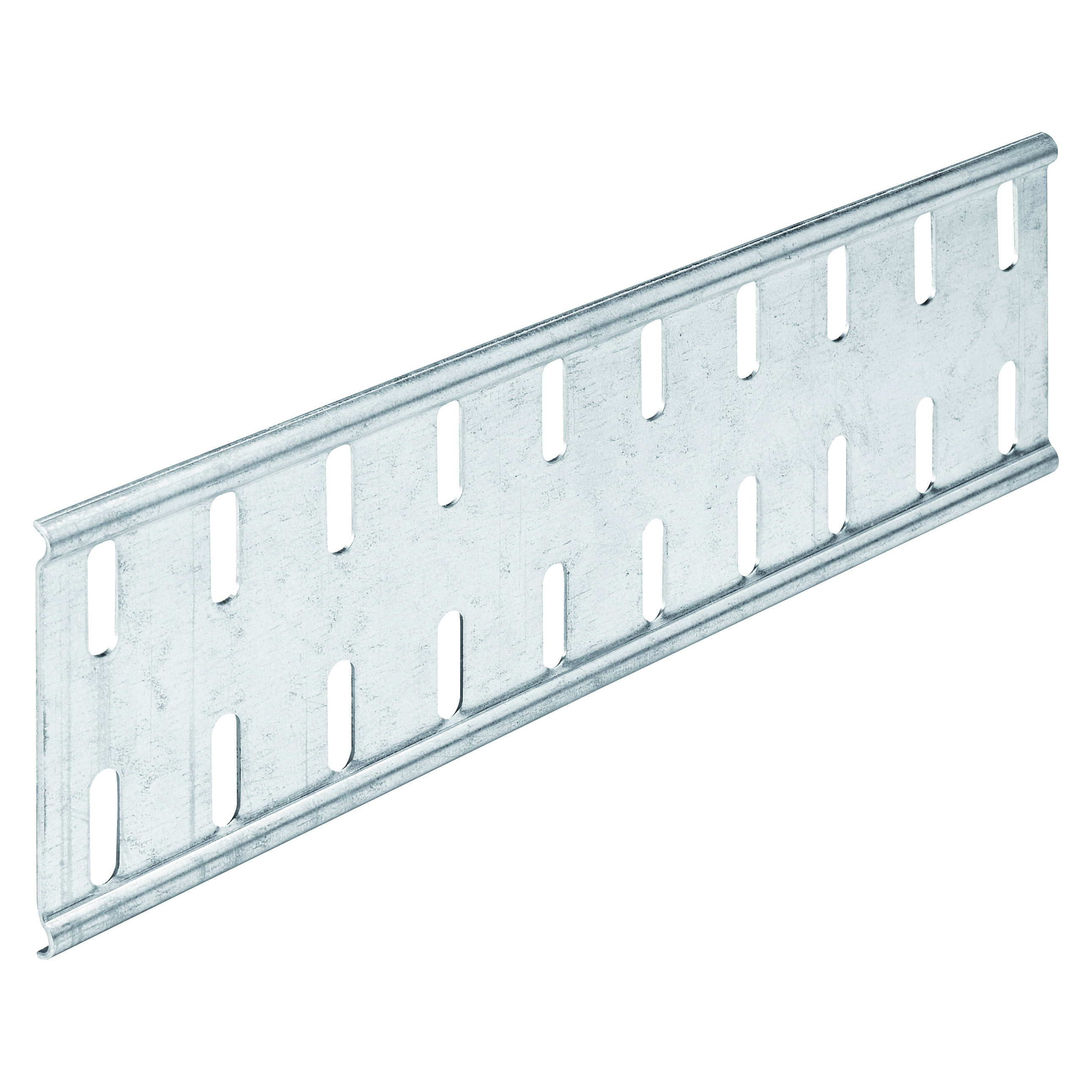

Cod Gewiss
Finishing
Width (mm)
BRX BASE JOINT PLATE - WIDTH 395 - FINISHING Z275
MV48151
Z275
395
BRX BASE JOINT PLATE - WIDTH 515 - FINISHING Z275
MV48155
Z275
515
BRX BASE JOINT PLATE - WIDTH 605 - FINISHING Z275
MV48157
Z275
605
BRX BASE JOINT PLATE - WIDTH 395 - FINISHING HDG
MV48251
HDG
395
BRX BASE JOINT PLATE - WIDTH 515 - FINISHING HDG
MV48255
HDG
515
See all
BRX BASE JOINT PLATE - WIDTH 395 - FINISHING Z275
MV48151
BRX BASE JOINT PLATE - WIDTH 395 - FINISHING Z275
Show
BRX BASE JOINT PLATE - WIDTH 515 - FINISHING Z275
MV48155
BRX BASE JOINT PLATE - WIDTH 515 - FINISHING Z275
Show
BRX BASE JOINT PLATE - WIDTH 605 - FINISHING Z275
MV48157
BRX BASE JOINT PLATE - WIDTH 605 - FINISHING Z275
Show
BRX BASE JOINT PLATE - WIDTH 395 - FINISHING HDG
MV48251
BRX BASE JOINT PLATE - WIDTH 395 - FINISHING HDG
Show
See all

BRX L-shape strip

Category
L-shape divider - 3 metres

Change category

Change category

L-shape divider - 3 metres
L-shape strip join element
Cod Gewiss
Finishing
For BRX
Kg/m
BFR30-BRX35 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65110X
Z275
35
0.484
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65111X
Z275
50
0.571
BFR110-BRN80/95HL-BRN80/95NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65113X
Z275
80 - 95
0.741
BFR30-BRX35 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65210X
HDG
35
0.484
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65211X
HDG
50
0.571
See all
BFR30-BRX35 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65110X
BFR30-BRX35 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
Show
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65111X
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
Show
BFR110-BRN80/95HL-BRN80/95NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65113X
BFR110-BRN80/95HL-BRN80/95NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
Show
BFR30-BRX35 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65210X
BFR30-BRX35 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
Show
See all
Cod Gewiss
Finishing
L-SHAPE STRIP JOIN ELEMENT - PVC
MV65719
PVC
L-SHAPE STRIP JOIN ELEMENT - PVC
MV65719
L-SHAPE STRIP JOIN ELEMENT - PVC
Show
You saw 232 products on 990
Show others
Navigate by catalogue

Applications

Sports
Indoor sports facilities
Show more
Sports
Stadium and arena
Show more
Retail
Shopping centres
Show more
Industry
Manufacturing
Show more
Industry
Heavy industry
Show more
Healthcare
Hospitals
Show more
Retail
DIY stores
Show more
Transportation
Airports
Show more
Residential
Residences
Show more
Industry
Warehouse logistics
Show more
services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy text has been changed. Please consent again

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website
