BUSBAR Range
Distribution systems for distribution boards

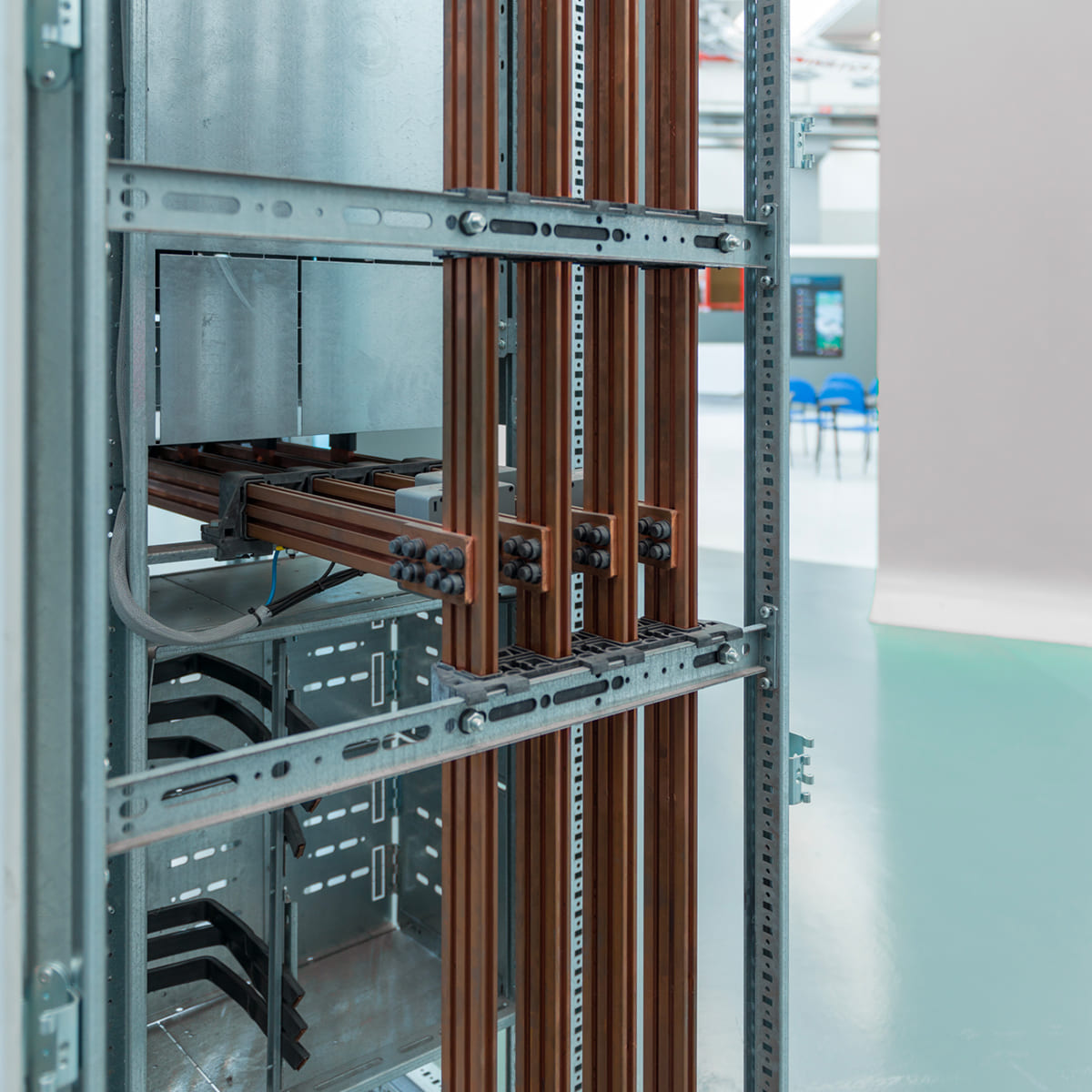

The BUSBAR range, in addition to distribution terminal blocks, consists of flat and shaped busbars in copper and aluminium in order to make distribution system inside QDX boards.

See all product
Benefits
Flexibility of use
Reduction of wiring time
Quick connect
Flexibility of use
Flexibility of use
The pre-drilled holes, with 25 mm spacing, on the flat bars allows for quick bar, strap or cable connection. In addition, junctions between flat bars and contoured busbars can be made easily using special joints.
Reduction of wiring time
Reduction of wiring time
Thanks to the fastening system on the frame that locks into the back of the dual DIN rail and dedicated connectors, the GWFIX 100 quick connection system greatly reduces the labour time and materials required for wiring (cables and terminals).
Quick connect
Quick connect
Connections to the busbar system are facilitated by the special shape of the contoured busbar section, with a special sliding hammer screw in the profile that allows the connection of junctions at any point on the busbar, avoiding the need to drill holes.

The products of this series

Navigate by catalogue
All filters
113 products
Grid
List

Distribution terminal blocks

Horizontal divider

Category

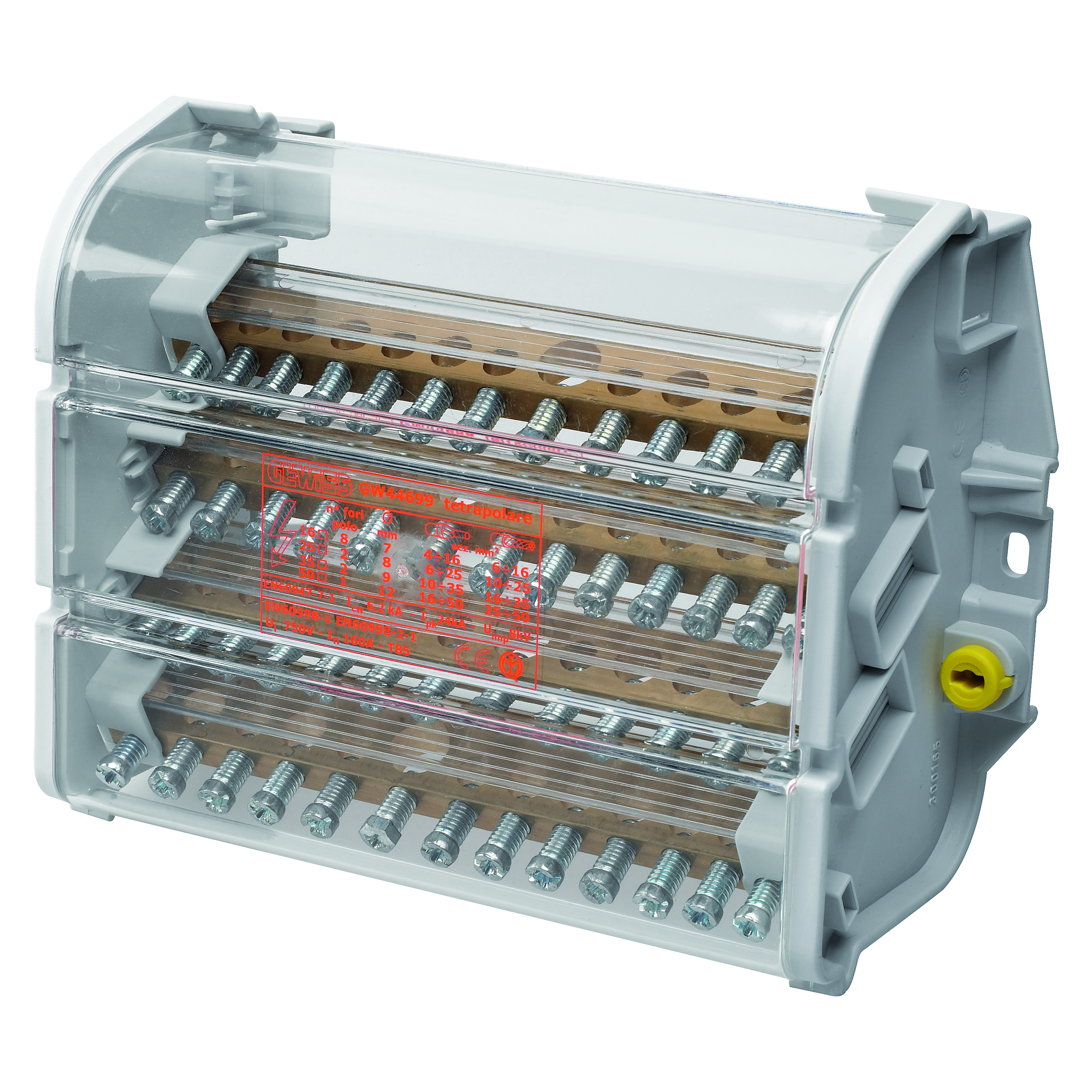

Horizontal four-pole divider 250 A with pre-drilled threaded M6 busbars

Change category

Change category

Horizontal four-pole divider 250 A with pre-drilled threaded M6 busbars
Horizontal four-pole divider 400 A with pre-drilled threaded M6 busbars
Cod Gewiss
For boards
No. of modules EN 50022
Installation
Input connecting capacity
Output connecting capacity
Icw (1s)
HORIZONTAL FOUR POLE DIVIDER - 250A - 258X190X70MM 16 MODULES ON PROFILE EN 50022 - CVX 630K/CVX 630M/ CVX 1600
GW44700
QDX 630L/H - 1600H
16
On profile EN 50022
1xM12
10xM6
17 kA
HORIZONTAL FOUR POLE DIVIDER - 250A - 600X150X70MM - 24 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
GW45545
QDX 630L/H - 1600H
24
On functional profile
1xM8+2xM6
21xM6
23 kA
HORIZONTAL FOUR POLE DIVIDER - 250A - 850x150x70MM - 35 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
GW45546
QDX 630L/H - 1600H
35
On functional profile
1xM8+2xM6
32xM6
20 kA
HORIZONTAL FOUR POLE DIVIDER - 250A - 258X190X70MM 16 MODULES ON PROFILE EN 50022 - CVX 630K/CVX 630M/ CVX 1600
GW44700
HORIZONTAL FOUR POLE DIVIDER - 250A - 258X190X70MM 16 MODULES ON PROFILE EN 50022 - CVX 630K/CVX 630M/ CVX 1600
Show
HORIZONTAL FOUR POLE DIVIDER - 250A - 600X150X70MM - 24 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
GW45545
HORIZONTAL FOUR POLE DIVIDER - 250A - 600X150X70MM - 24 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
Show
HORIZONTAL FOUR POLE DIVIDER - 250A - 850x150x70MM - 35 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
GW45546
HORIZONTAL FOUR POLE DIVIDER - 250A - 850x150x70MM - 35 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
Show
Cod Gewiss
For boards
No. of modules EN 50022
Installation
Input connecting capacity
Output connecting capacity
Icw (1s)
HORIZONTAL FOUR POLE DIVIDER - 400A - 600x150x70MM - 24 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
GW45547
QDX 630L/H - 1600H
24
On functional profile
1xM8+2xM6
21xM6
23 kA
HORIZONTAL FOUR POLE DIVIDER - 400A - 850x150x70MM - 35 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
GW45548
QDX 630L/H - 1600H
35
On functional profile
1xM8+2xM6
32xM6
20 kA
HORIZONTAL FOUR POLE DIVIDER - 400A - 600x150x70MM - 24 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
GW45547
HORIZONTAL FOUR POLE DIVIDER - 400A - 600x150x70MM - 24 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
Show
HORIZONTAL FOUR POLE DIVIDER - 400A - 850x150x70MM - 35 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
GW45548
HORIZONTAL FOUR POLE DIVIDER - 400A - 850x150x70MM - 35 MODULES - ON FUNCTIONAL PROFILE - FOR QDX 630L/H-1600H
Show

Modular dividers

Category
Modular distribution terminal block with protective cap - 750V - T 85°C

Change category

Change category

Modular distribution terminal block with protective cap - 750V - T 85°C
Four-pole distribution terminal block supplied with protective cap
Cod Gewiss
Rated current (A)
Outer dim. LxHxD (mm)
No. of modules EN 50022
Input connecting capacity
Output connecting capacity
Icw (1s)
TWO-POLE 4 MODULES TERMINAL BLOCK EN50022 - 100A 750V
GW44691
100
70x49x50
4
1x(6-35) mm²
[1x(4-25) + 5x(1.5-10)] mm²
6 kA
TWO-POLE 8 MODULES TERMINAL BLOCK EN50022 - 125A 750V
GW44693
125
141x49x50
8
1x(6-35) mm²
[2x(4-25) + 2x(4-16) + 10x(1.5-10)] mm²
6 kA
TWO-POLE 4 MODULES TERMINAL BLOCK EN50022 - 100A 750V
GW44691
TWO-POLE 4 MODULES TERMINAL BLOCK EN50022 - 100A 750V
Show
TWO-POLE 8 MODULES TERMINAL BLOCK EN50022 - 125A 750V
GW44693
TWO-POLE 8 MODULES TERMINAL BLOCK EN50022 - 125A 750V
Show
Cod Gewiss
Rated current (A)
Outer dim. LxHxD (mm)
No. of modules EN 50022
Input connecting capacity
Output connecting capacity
Icw (1s)
FOUR-POLE 4 MODULES TERMINAL BLOCK EN50022 - 100A 750V
GW44696
100
70x88.5x50
4
1x(6-35) mm²
[1x(4-25) + 5x(1.5-10)] mm²
6 kA
FOUR-POLE 8 MODULES TERMINAL BLOCK EN50022 - 125A 750V
GW44698
125
141x88.5x50
8
1x(6-35) mm²
[2x(4-25) + 2x(4-16) + 10x(1.5-10)] mm²
6 kA
FOUR-POLE 8 MODULES TERMINAL BLOCK EN50022 - 160A 750V
GW44699
160
185x135x75
10
1x(16-50) mm²
[2x(10-35) + 2x(6-25) + 8x(4-16)] mm²
10 kA
FOUR-POLE 4 MODULES TERMINAL BLOCK EN50022 - 100A 750V
GW44696
FOUR-POLE 4 MODULES TERMINAL BLOCK EN50022 - 100A 750V
Show
FOUR-POLE 8 MODULES TERMINAL BLOCK EN50022 - 125A 750V
GW44698
FOUR-POLE 8 MODULES TERMINAL BLOCK EN50022 - 125A 750V
Show
FOUR-POLE 8 MODULES TERMINAL BLOCK EN50022 - 160A 750V
GW44699
FOUR-POLE 8 MODULES TERMINAL BLOCK EN50022 - 160A 750V
Show
You saw 10 products on 113
Show others
