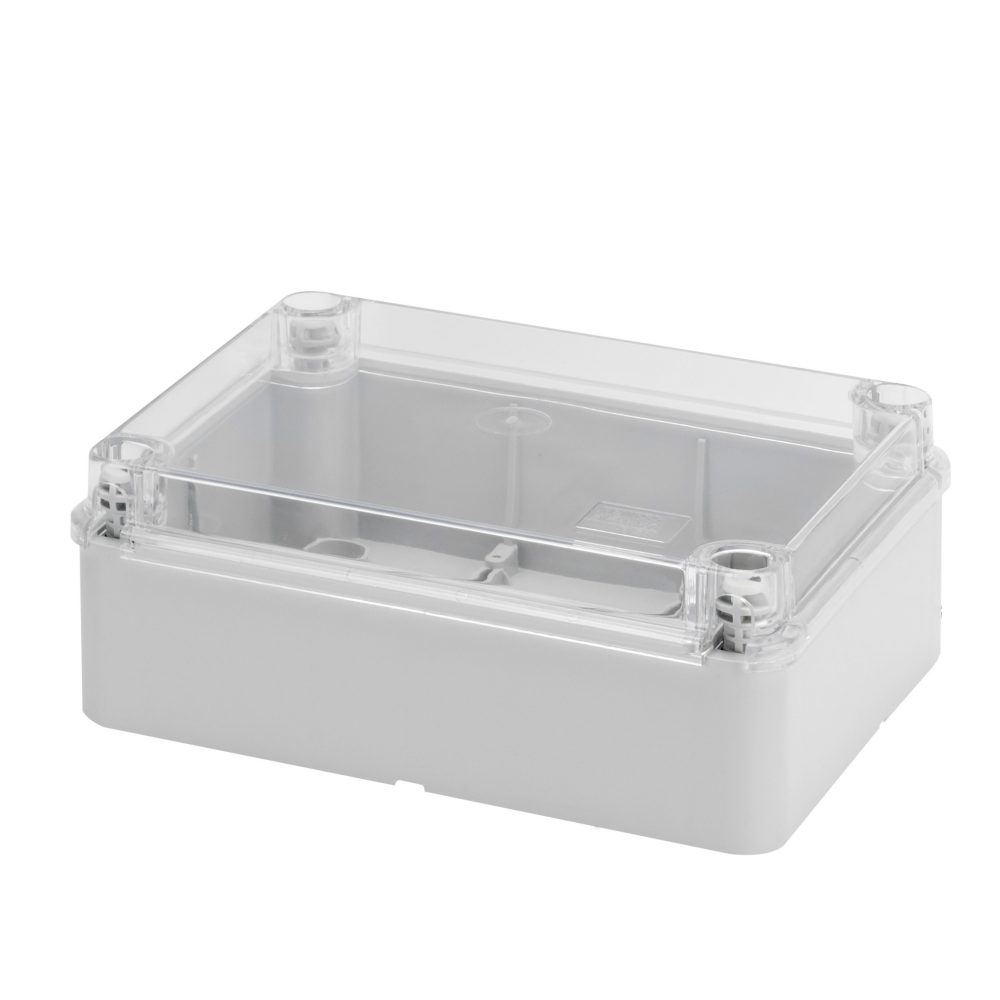

BOX FOR JUNCTIONS AND FOR ELECTRIC AND ELECTRONIC EQUIPMENT - WITH TRANSPARENT PLAIN LID - IP56 - INTERNAL DIMENSIONS 190X140X70 - WITH SMOOTH WALLS

Code: GW44427

Range: 44 CE Range
Technopolymer surface-mounting watertight junction boxes

The 44 CE junction boxes range consists of 3 families made of different technopolymers (two of which are Halogen Free) and available in 11 sizes with an ordinary or high-capacity base, high or low lids, blank or transparent lids, smooth walls or with quick-entry cable glands.

IP56

IK08

650 °C

110 °C

Technical Info

Information

Download

Software

Certificates

Insulation class II (according to IEC 61140 standards)

Colour Grey RAL 7035

IP degree IP56

Material Technopolymer GWPLAST 120

Mechanical resistance IK08

Internal dim. LxHxD (mm) 190x140x70

Max Ø holes possible 37 mm

Lid screws (no. and type) 4 insul. sealable hinged

Application Industrial uses

Glow Wire Test 650 °C

Lid colour Transparent

Lid Plain screwed

Operating temperature -25 +60 °C

Type of material Halogen-free in compliance with EN 60754-2

Electrocod 0231

Thermo-pressure with ball 110 °C

Torque screws tightening 1.8 Newton/meter

Walls Smooth

Accessories for insulation restoring GW44621, GW44622

Ware Number 85381000
