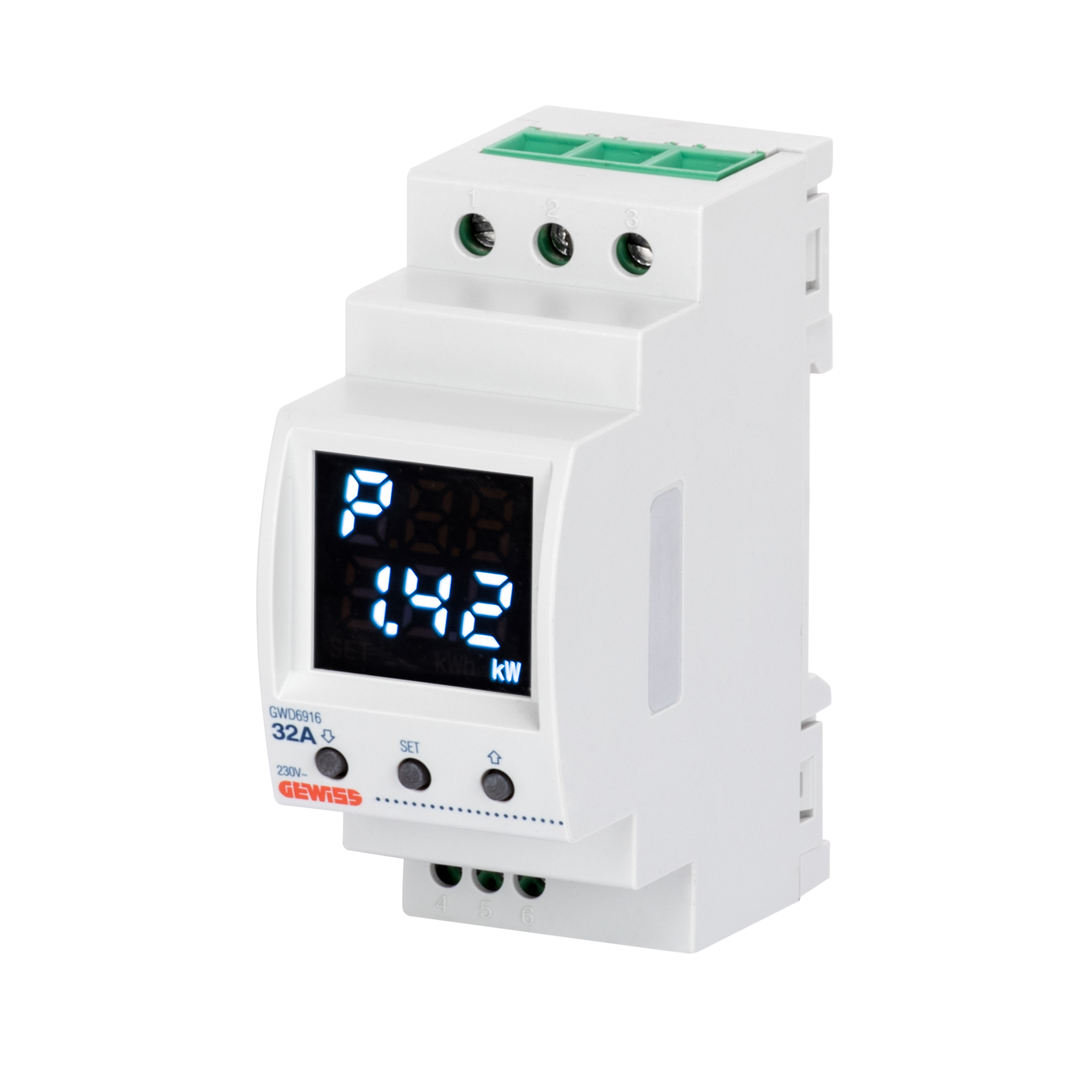

P-COMFORT - LOAD MANAGEMENT RELAY - WIRE VERSION

Code: GWD6916

Range: 90 AM Range
Modular accessories

The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.

Technical Info

Information

Download

Software

Certificates

Description Load management relay p-comfort

Model Wire version

Rated voltage (V) 230 ac

No. of modules EN 50022 2

Rated current 32 A

Type relay contact Changeover (potential free contact)

Capacity relay contact 16 A AC1 250 V ac

Standard EN 60669-1, EN 60669-2-1

Rated frequency (Hz) 50

Insulation voltage (Ui) 1000 V

Rated impulse withstand voltage (Uimp) 1 kV

Section rigid cable Max 6 mm²

Section flexible cable Max 4 mm²

Rigid cable section for contact terminals Max 4 mm²

Flexible cable section for contact terminals Max 2,5 mm²

Operating temperature -5 ÷ +45 °C

Stocking temperature -25 ÷ +70 °C

Absorbed power with In 2 VA

Sound level at 10 cm 85 Db

Measured sizes Active power (absorbed and supplied), active energy (absorbed and supplied)

Resetting of energy count Yes

Acoustic warning threshold exceeded Yes

Adjustament power range 0 ÷ 8 kW (3,8 kW default)

Adjustment of non-priority load contact opening delay time 10 ÷ 120 s (45 s default)

Adjustment of non-priority load contact opening time 10 ÷ 255 s (90 s default)

Electrocod 140

Ware Number 85389099

Product Data Sheet

Technical characteristics - IT

Technical characteristics - DE

Technical characteristics - EN

Technical characteristics - ES

User guide

Disposal

Go to download area Go to download area

PROJEX

Low voltage system design

PBT-Q

Low voltage systems and boards

CENTRAL

Quotation and Thermal test of modular enclosures

PRICE

Estimation of electrical systems

ENERGYpro

Boards for building sites, campings-piers and distribution

CADpro

Advanced design of electrical systems

Go to software area Go to software area

CE marking

EQUIPMENT AND NOTES

APPLICATION: The P-Comfort relay can be installed in electrical systems up to 6 kW. In the event of overload due to the simultaneous switching of several electric loads, P-Comfort prevents power supply interruption disconnecting the non-preferential loads wired to the relay inside the device. After a time period, P-Comfort automatically power supplies non-preferential loads again, avoiding service interruptions. P-Comfort allows the measurement and visualisation on the display of the active energy values (supplied and absorbed), and instantaneous active power (supplied and absorbed).
