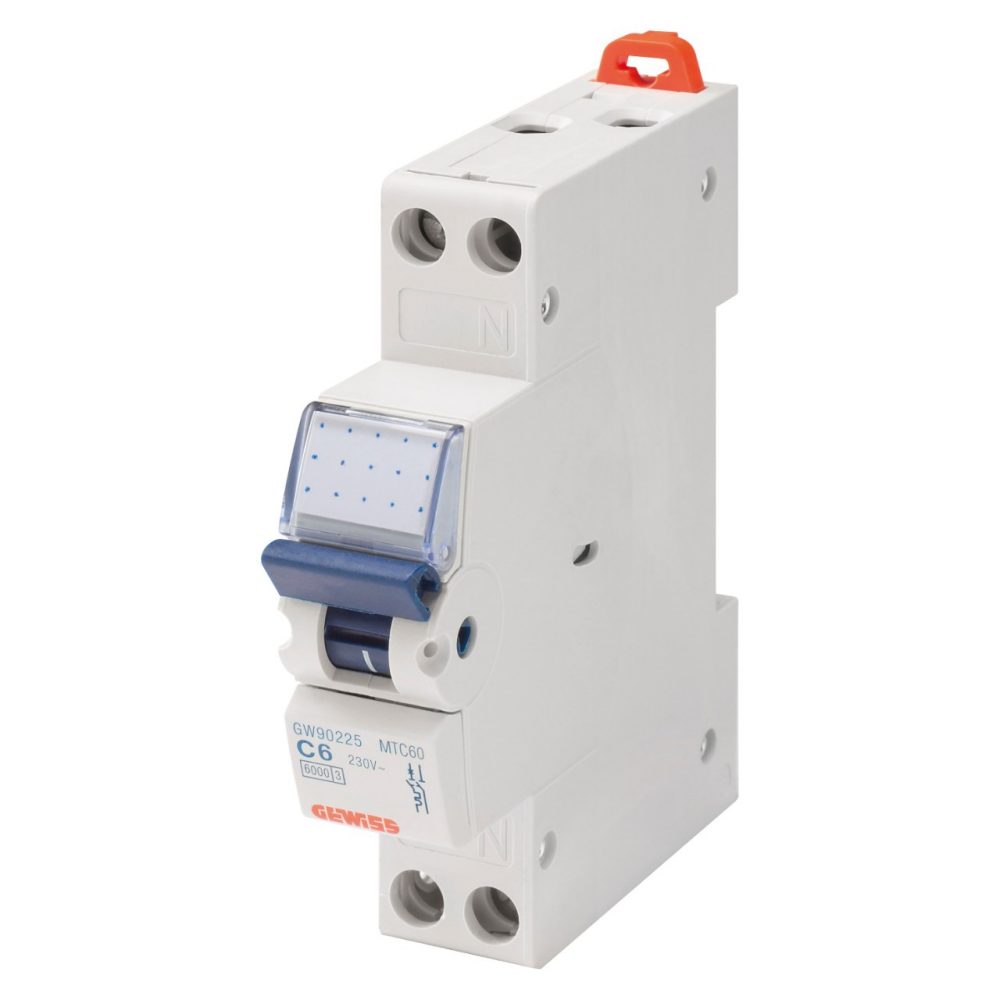

COMPACT MINIATURE CIRCUIT BREAKER - MTC 60 - 1P+N CHARACTERISTIC C 6A - 1MODULE
Code:
GW90225
Range: 90 MCB Range
Modular circuit breakers for circuit protection
Modular circuit breakers for circuit protection
The 90 MCB range meets any requirement for protection against overcurrent and shortcircuit, for all domestic, commercial and industrial applications.
The range comprises MTC, compact miniature circuit breakers (from 2 to 32 A, curves B and C up to 10 kA) MT traditional miniature circuit breakers (from 1 to 63 A, curves B, C and D up to 25 kA) MTHP High-Power Miniature circuit breakers (from 20 to 125 A, curves C and D up to 25 kA).
The range comprises MTC, compact miniature circuit breakers (from 2 to 32 A, curves B and C up to 10 kA) MT traditional miniature circuit breakers (from 1 to 63 A, curves B, C and D up to 25 kA) MTHP High-Power Miniature circuit breakers (from 20 to 125 A, curves C and D up to 25 kA).
Technical Info
Information
Download
Software
Certificates
Description
COMPACT MINIATURE CIRCUIT BREAKER
Code
MTC 60
No. of poles
1P+N
No. modules
1
Rated current
6 A
Curve
C
Rated voltage
230 V
Standard
EN 60898
Rated frequency (Hz)
50/60 Hz
Breaking capacity EN 60898 230V (Icn)
6000 A
Breaking capacity EN 60898 (Ics)
1 x Icn
Breaking capacity IEC/EN 60947-2 230V (Icu)
7.5 kA
Breaking capacity IEC/EN 60947-2 (Ics)
100% Icu
Insulation voltage (Ui)
500 V
Rated impulse withstand voltage (Uimp)
4 kV
Minimum operating voltage
12 V ac
Maximum operating voltage
253 Vac
Electrical endurance
10.000
Mechanical endurance
20.000
Section rigid cable
<=1x16 - <=1x10+1x6 mm²
Section flexible cable
<=1x10 - <=2x6 mm²
Rated tightening torque
1.2 Nm
Operating temperature
-25 +60 °C
Stocking temperature
-40°C ÷ +70°C
Accessoriabile
No
Electrocod
1411
Ware Number
85362010
