CHORUS - Domestic range
White modular devices

CHORUS - Domestic range White modular devices

The Chorus modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colours and finishes: glossy white, bright and versatile.
Unlimited functions in reduced spaces: the Chorus range consists of button keys with ½, 1, 2 and 3 modules to optimise space as needed.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support.

Command - Glossy white version

Command devices - screw terminals

One-way switches 1P - 250V ac
One-way switches 1P - 250V ac
Gewiss Code
No. modules
Description
Button key
Rated power of 230V LED lamps

Gewiss Code GW10001
No. modules 1
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10002
No. modules 1
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10003
No. modules 1
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10021
No. modules 1/2
Description 1P - 10AX
Button key Neutral
Rated power of 230V LED lamps 100 W
Go
Gewiss Code GW10022
No. modules 1/2
Description 1P - 10AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 100 W
Go
Gewiss Code GW10031
No. modules 2
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10032
No. modules 2
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10033
No. modules 2
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10041
No. modules 3
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10042
No. modules 3
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10043
No. modules 3
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
EQUIPMENT AND NOTES
One-way switches 2P - 250V ac
One-way switches 2P - 250V ac
Gewiss Code
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps

Gewiss Code GW10004
No. modules 1
Description 2P - 16 AX
Button key Neutral
Symbol 0/1
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10005
No. modules 1
Description 2P - 16AX illuminable
Button key With replaceable neutral lens
Symbol -
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10006
No. modules 1
Description 2P - 10AX
Button key With key
Symbol 0/1
Rated power of 230V LED lamps 100 W
Go
Gewiss Code GW10034
No. modules 2
Description 2P - 16 AX
Button key Neutral
Symbol 0/1
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10035
No. modules 2
Description 2P - 16AX illuminable
Button key With replaceable neutral lens
Symbol -
Rated power of 230V LED lamps 200 W
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
Two-way switches 1P - 250V ac
Two-way switches 1P - 250V ac
Gewiss Code
No. modules
Description
Button key
Rated power of 230V LED lamps

Gewiss Code GW10051
No. modules 1
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10052
No. modules 1
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10053
No. modules 1
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10054
No. modules 1
Description 1P - 10AX
Button key With key
Rated power of 230V LED lamps 100 W
Go
Gewiss Code GW10061
No. modules 1/2
Description 1P - 10AX
Button key Neutral
Rated power of 230V LED lamps 100 W
Go
Gewiss Code GW10071
No. modules 2
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10072
No. modules 2
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10073
No. modules 2
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10081
No. modules 3
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10082
No. modules 3
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10083
No. modules 3
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
EQUIPMENT AND NOTES
Intermediate switches 1P - 250V ac
Intermediate switches 1P - 250V ac
Gewiss Code
No. modules
Description
Button key
Rated power of 230V LED lamps

Gewiss Code GW10091
No. modules 1
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10092
No. modules 1
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10093
No. modules 1
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10101
No. modules 2
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10102
No. modules 2
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10103
No. modules 2
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10111
No. modules 3
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10112
No. modules 3
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Go
Gewiss Code GW10113
No. modules 3
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
Push-buttons 1P - 250V ac
Push-buttons 1P - 250V ac
Gewiss Code
No. modules
Description
Button key
Symbol

Gewiss Code GW10131
No. modules 1
Description 1P NO - 16A
Button key Neutral
Symbol -
Go
Gewiss Code GW10132
No. modules 1
Description 1P NO - 16A illuminable
Button key With diffuser
Symbol -
Go
Gewiss Code GW10133
No. modules 1
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol -
Go
Gewiss Code GW10136
No. modules 1
Description 1P NO - 16A
Button key Pull-cord
Symbol -
Go
Gewiss Code GW10137
No. modules 1
Description 1P NC - 16A
Button key Neutral
Symbol O red
Go
Gewiss Code GW10138
No. modules 1
Description 1P NC+NO - 16 A
Button key Stop
Symbol Red
Go
Gewiss Code GW10139
No. modules 1
Description 1P NO+NC - 16 A
Button key Start
Symbol Green
Go
Gewiss Code GW10140
No. modules 1
Description 1P NO+NO - 10A
Button key With interlock
Symbol UP - DOWN
Go
Gewiss Code GW10141
No. modules 1
Description 1P NO+NO - 16 A
Button key Double
Symbol -
Go
Gewiss Code GW10142
No. modules 1
Description 1P NO - 16A illuminable
Button key Green diffuser
Symbol -
Go
Gewiss Code GW10143
No. modules 1
Description 1P NO - 16A illuminable
Button key Red diffuser
Symbol -
Go
Gewiss Code GW10144
No. modules 1
Description 1P NO - 16A illuminable
Button key Opal diffuser
Symbol -
Go
Gewiss Code GW10151
No. modules 1
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol Light
Go
Gewiss Code GW10152
No. modules 1
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol Key
Go
Gewiss Code GW10153
No. modules 1
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol Bell
Go
Gewiss Code GW10161
No. modules 1/2
Description 1P NO - 10A
Button key Neutral
Symbol -
Go
Gewiss Code GW10162
No. modules 1/2
Description 1P NO - 10A illuminable
Button key With diffuser
Symbol -
Go
Gewiss Code GW10171
No. modules 2
Description 1P NO - 16A
Button key Neutral
Symbol -
Go
Gewiss Code GW10172
No. modules 2
Description 1P NO - 16A illuminable
Button key With diffuser
Symbol -
Go
Gewiss Code GW10173
No. modules 2
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol -
Go
Gewiss Code GW10181
No. modules 3
Description 1P NO - 16A
Button key Neutral
Symbol -
Go
Gewiss Code GW10182
No. modules 3
Description 1P NO - 16A illuminable
Button key With diffuser
Symbol -
Go
Gewiss Code GW10183
No. modules 3
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol -
Go
EQUIPMENT AND NOTES

Command devices - quick wiring terminals

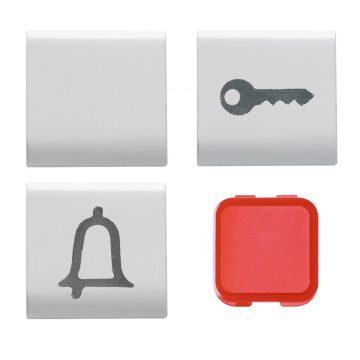

Lenses with illuminated symbol

Symbols for illuminable command devices
Symbols for illuminable command devices
Gewiss Code
Suitable for
Symbol

Gewiss Code GW10501
Suitable for General services
Symbol Neutral
Go
Gewiss Code GW10502
Suitable for General services
Symbol Light
Go
Gewiss Code GW10503
Suitable for General services
Symbol Stair light
Go
Gewiss Code GW10504
Suitable for General services
Symbol Table light
Go
Gewiss Code GW10505
Suitable for General services
Symbol Bell
Go
Gewiss Code GW10506
Suitable for General services
Symbol Fan
Go
Gewiss Code GW10507
Suitable for General services
Symbol Key
Go
Gewiss Code GW10508
Suitable for General services
Symbol Alarm
Go
Gewiss Code GW10509
Suitable for General services
Symbol ON
Go
Gewiss Code GW10510
Suitable for General services
Symbol OFF
Go
Gewiss Code GW10511
Suitable for General services
Symbol Nurse
Go
Gewiss Code GW10512
Suitable for General services
Symbol Waitress
Go
Gewiss Code GW10513
Suitable for General services
Symbol Dimmer increase
Go
Gewiss Code GW10514
Suitable for General services
Symbol Dimmer decrease
Go
Gewiss Code GW10515
Suitable for General services
Symbol UP arrow
Go
Gewiss Code GW10516
Suitable for General services
Symbol DOWN arrow
Go
Gewiss Code GW10517
Suitable for General services
Symbol UP - DOWN arrow
Go
Gewiss Code GW10518
Suitable for General services
Symbol RIGHT - LEFT arrow
Go
Gewiss Code GW10531
Suitable for Numerical services
Symbol One
Go
Gewiss Code GW10532
Suitable for Numerical services
Symbol Two
Go
Gewiss Code GW10533
Suitable for Numerical services
Symbol Three
Go
Gewiss Code GW10534
Suitable for Numerical services
Symbol Four
Go
Gewiss Code GW10535
Suitable for Numerical services
Symbol Five
Go
Gewiss Code GW10536
Suitable for Numerical services
Symbol Six
Go
Gewiss Code GW10537
Suitable for Numerical services
Symbol Seven
Go
Gewiss Code GW10538
Suitable for Numerical services
Symbol Eight
Go
Gewiss Code GW10539
Suitable for Numerical services
Symbol Nine
Go
Gewiss Code GW10540
Suitable for Numerical services
Symbol Zero
Go
EQUIPMENT AND NOTES

Interchangeable button keys and diffusers

Interchangeable button keys and diffusers
Interchangeable button keys and diffusers
Gewiss Code
Description
Symbol

Gewiss Code GW10541
Description Keys 22x22 mm
Symbol General
Go
Gewiss Code GW10542
Description Keys 22x22 mm
Symbol With label
Go
Gewiss Code GW10543
Description Keys 22x22 mm
Symbol Key
Go
Gewiss Code GW10544
Description Keys 22x22 mm
Symbol Bell
Go
Gewiss Code GW10545
Description Keys 22x22 mm
Symbol Vertical arrow
Go
Gewiss Code GW10546
Description Keys 22x22 mm
Symbol Horizontal arrow
Go
Gewiss Code GW10547
Description Diffusers
Symbol Red
Go
Gewiss Code GW10548
Description Diffusers
Symbol Green
Go
Gewiss Code GW10549
Description Diffusers
Symbol Opal
Go
Gewiss Code GW10550
Description Diffusers
Symbol Amber
Go
EQUIPMENT AND NOTES

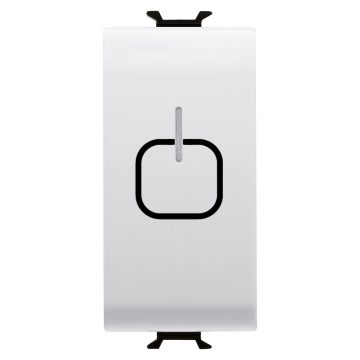

Soft-click electronic push-buttons

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
Backlit soft-click electronic push-buttons for BUS inputs
Backlit soft-click electronic push-buttons for BUS inputs
Gewiss Code
No. modules
Type of contact
Button key
Type of use

Gewiss Code GW10913
No. modules 1
Type of contact 1NO - Potential-free
Button key With diffuser
Type of use Bus contacts interfaces
Go
Gewiss Code GW10916
No. modules 1
Type of contact 1NO - Potential-free
Button key With replaceable neutral lens
Type of use Bus contacts interfaces
Go
Gewiss Code GW10917
No. modules 2
Type of contact 1NO - Potential-free
Button key With diffuser
Type of use Bus contacts interfaces
Go
Gewiss Code GW10918
No. modules 2
Type of contact 1NO - Potential-free
Button key With replaceable neutral lens
Type of use Bus contacts interfaces
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Touch command modules

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

ICE TOUCH plates

Touch commands - Glossy white version

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Blanking modules and cable outlet

Movement detectors

EQUIPMENT AND NOTES

Relay

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Hotel components - Glossy white version

Badge switch

EQUIPMENT AND NOTES

Interchangeable button keys

Indicator light device

Power - Glossy white version

Socket-outlets - Italian/German standard

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Socket-outlets for dedicated lines - Italian/German Standard

EQUIPMENT AND NOTES

Socket-outlets - German Standard

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Socket-outlets - French Standard

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Socket-outlets - Israeli Standard

Socket-outlets - international standard

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Interlocked switched socket-outlets

Shaver socket-outlet

EQUIPMENT AND NOTES

Data - Glossy white version

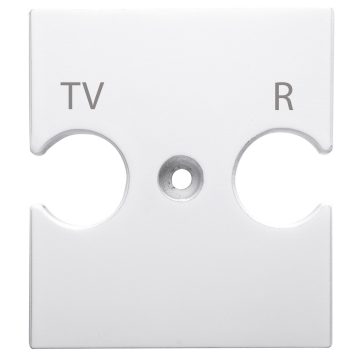

TV-SAT sockets

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

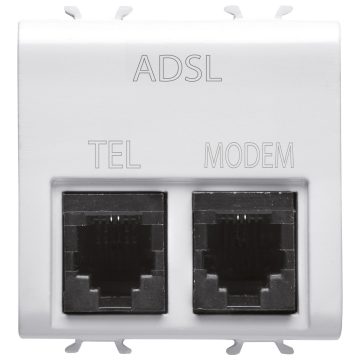

Telephone sockets

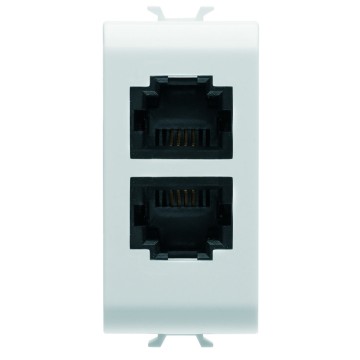

Data sockets

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Adapters for optical fiber

EQUIPMENT AND NOTES

Socket-outlets for auxiliary circuits

Audio and video sockets

USB and HDMI couplers and sockets

USB chargers

Protection - Glossy white version

Miniature circuit breakers

MCB - Miniature circuit breakers - C characteristic - 230V ac
MCB - Miniature circuit breakers - C characteristic - 230V ac
Gewiss Code
Description
Rated current (A)
Breaking capacity
No. modules

Gewiss Code GW10461
Description Single pole (1P)
Rated current (A) 6
Breaking capacity 3 kA
No. modules 1
Go
Gewiss Code GW10462
Description Single pole (1P)
Rated current (A) 10
Breaking capacity 3 kA
No. modules 1
Go
Gewiss Code GW10463
Description Single pole (1P)
Rated current (A) 16
Breaking capacity 3 kA
No. modules 1
Go
Gewiss Code GW10466
Description Two-pole (1P+N)
Rated current (A) 6
Breaking capacity 3 kA
No. modules 1
Go
Gewiss Code GW10467
Description Two-pole (1P+N)
Rated current (A) 10
Breaking capacity 3 kA
No. modules 1
Go
Gewiss Code GW10468
Description Two-pole (1P+N)
Rated current (A) 16
Breaking capacity 3 kA
No. modules 1
Go
RCBO - Residual current breakers with overcurrent protection - C characteristic - class A - 230V ac - 50/60 Hz
RCBO - Residual current breakers with overcurrent protection - C characteristic - class A - 230V ac - 50/60 Hz
Gewiss Code
Description
Rated current (A)
Breaking capacity
Idn
No. modules

Gewiss Code GW10482
Description Two-pole (1P+N)
Rated current (A) 6
Breaking capacity 3 kA
Idn 10 mA
No. modules 2
Go
Gewiss Code GW10483
Description Two-pole (1P+N)
Rated current (A) 6
Breaking capacity 3 kA
Idn 30 mA
No. modules 2
Go
Gewiss Code GW10485
Description Two-pole (1P+N)
Rated current (A) 10
Breaking capacity 3 kA
Idn 10 mA
No. modules 2
Go
Gewiss Code GW10486
Description Two-pole (1P+N)
Rated current (A) 10
Breaking capacity 3 kA
Idn 30 mA
No. modules 2
Go
Gewiss Code GW10488
Description Two-pole (1P+N)
Rated current (A) 16
Breaking capacity 3 kA
Idn 10 mA
No. modules 2
Go
Gewiss Code GW10489
Description Two-pole (1P+N)
Rated current (A) 16
Breaking capacity 3 kA
Idn 30 mA
No. modules 2
Go

Protection devices

EQUIPMENT AND NOTES

Indicator - Glossy white version

Indicator light devices

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Anti black-out and emergency lamps

EQUIPMENT AND NOTES

Acoustic signalling devices

Energy, temperature and comfort management - Glossy white version

Timer devices

EQUIPMENT AND NOTES

Temperature control devices

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Dimmer

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Technical alarms - Glossy white version

Gas detectors

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Anti-flood system with Zigbee wireless transmission

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Accessories

EQUIPMENT AND NOTES

Accessories

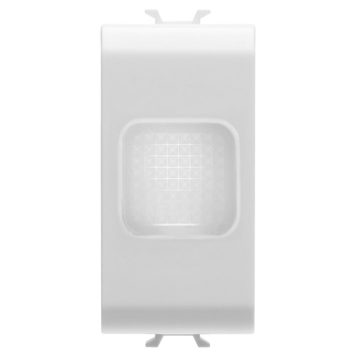

Signalling units

LED signalling units - 230 V AC - 0.6 W
LED signalling units - 230 V AC - 0.6 W
Gewiss Code
Lamp voltage
Lamp power
Lamp
Light emitted
Cable Colour

Gewiss Code GW10881
Lamp voltage 230 V ac - 50/60 Hz
Lamp power 0.6 W
Lamp LED
Light emitted Blue
Cable Colour Blue
Go
Gewiss Code GW10882
Lamp voltage 230 V ac - 50/60 Hz
Lamp power 0.6 W
Lamp LED
Light emitted White
Cable Colour White
Go
Gewiss Code GW10883
Lamp voltage 230 V ac - 50/60 Hz
Lamp power 0.6 W
Lamp LED
Light emitted Red
Cable Colour Red
Go
Gewiss Code GW10884
Lamp voltage 230 V ac - 50/60 Hz
Lamp power 0.6 W
Lamp LED
Light emitted Green
Cable Colour Green
Go
Gewiss Code GW10885
Lamp voltage 230 V ac - 50/60 Hz
Lamp power 0.6 W
Lamp LED
Light emitted Amber
Cable Colour Orange
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Accessories

Profiling
Customized solutions for you
PRODUCTS AND SOLUTIONS FOR YOUR NEEDS
Error sending request.
Please try again later!
Thank you!
Your request has been sent successfully
