Chorus - Building Automation KNX BUS

CHARACTERISTICS: integrated coil to uncouple the power supply from the BUS line.
Reset push-button for restoring all the devices connected to the BUS line.
APPLICATIONS: the power supply feeds and controls the BUS voltage.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
The maximum number of devices that can be powered is calculated on the basis of their absorption.

APPLICATIONS: for the logic connection and the galvanic separation of lines and areas (fields).
NOTES: equipped with 2 coupling terminals for connection to BUS.

CHARACTERISTICS: equipped with B-type USB port.
APPLICATIONS: for the connection of a PC with a USB port to the KNX BUS.
NOTES: equipped with coupling terminal for connection to bus.

CHARACTERISTICS: equipped with A-type USB connector.
APPLICATIONS: for the connection of a PC with a USB port to the KNX BUS.
NOTES: equipped with screw terminal for connection to the bus.
AVAILABILITY: item available when GW90706S is out of stock.

CHARACTERISTICS: equipped with RJ45 port.
APPLICATIONS: for connecting the KNX lines to the IP backbones and the PC interface via LAN to the KNX BUS. Supports up to 5 simultaneous connections.
NOTES: equipped with coupling terminal for connection to bus.

CHARACTERISTICS: equipped with RJ45 port.
APPLICATIONS: for connecting a PC via LAN to the KNX BUS. Supports up to 5 simultaneous connections. To be used with the HAPPY HOME app for smartphones and tablets (available for Android and iOS) to manage the KNX domotic system via LAN and WiFi access points, or from a distance. The app can also be used with the codes GW90767 and GW90767AP.
NOTES: equipped with coupling terminal for connection to bus.

CHARACTERISTICS: multiprotocol gateway provided with KNX, ZigBee, WiFi and LAN interfaces.
APPLICATIONS: the device allows to supervise, command and control the Home&Building automation system through the cloud, ensuring full integration and functional interoperability between different communication protocols. The management of the functions and the access to the data of the system is cloud-based and takes place through a dedicated App (for PC, smartphone and tablet).
ACCESSORIES SUPPLIED: plug power supply and brackets for DIN rail-mounting.
NOTES: table- or DIN rail-mounting.
GWA9000: the access to the cloud services is free of charge for a first period after the purchase. After that period, the payment of the service can be made in a lump sum or with annual tranches. Please, refer to the www.gewiss.com website for more information or contact the Gewiss technical service.
GWA9002: smart gateway includes an unlimited preloaded license.

CHARACTERISTICS: extends the license for the access to the GWA9000 Smart Gateway cloud services for an unlimited period.

CHARACTERISTICS: the device combines the function of a command and supervision panel in a H&B automation system (together with Smart Gateway) and of video entryphone indoor unit with speakerphone (together with 2N IP video entryphone outdoor units). Supply voltage via Power over Ethernet - PoE (IEEE 802.3af) or, as an alternative, with external power supply (eg: GW90802). The panel is based on SIP protocol with H.264 video coding.
NOTES: wall-mounting. To fix it, use flush-mounting Ø60mm round (eg: GW24232), square (eg: GW24231) or rectangular (eg: GW24403) boxes with the aid of  the supplied wall metal bracket.

CHARACTERISTICS: protected against input overvoltages and output short-circuiting.
NOTES: to supply 7" touch panels.

CHARACTERISTICS: KNX module with 6 independent channels. Each channel is associated with an RGB night-time backlit LED or a status display LED for the commanded load. Each channel can be personalised using a set of adhesive icons. To be completed with the glass ICE Touch KNX plate (code GW16946CB, GW16946CN, GW16946CT). The device's touch commands can only be activated with the plate mounted: therefore, to configure the module the ICE Touch KNX plates or alternative the test plate (GW16950) must be used. To be configured with ETS software.
APPLICATIONS: used for sending ON-OFF commands with fronts management, switching commands and sequences, timed commands, multiple pressing, priority commands, commands for managing roller shutters (single or double push-button), dimmers (single or double push-button) and scenes (storage and activation).
NOTES: equipped with coupling terminal with protection lid, for connection to BUS, and with set of icons to personalise the functions of each channel.

CHARACTERISTICS: plates made in glass with a glossy finish, used to complete the touch push-button panel modules - KNX (GWA9421) or Easy (GWA9471). The plates have 6 capacitive touch areas.
NOTES: the symbols shown in the picture are indicative only: they can be personalised using the set of adhesive icons included in the touch push-button module package. The code of the plate is unique and independent from the number of channels that you want to activate (from 1 to 6).

CHARACTERISTICS: plates made in glass with a glossy finish, used to complete the touch push-button panel modules - KNX (GWA9421) or Easy (GWA9471). The plates have 6 capacitive touch areas.
NOTES: the symbols shown in the picture are indicative only: they can be personalised using the set of adhesive icons included in the touch push-button module package. The code of the plate is unique and independent from the number of channels that you want to activate (from 1 to 6).

CHARACTERISTICS: plates made in glass with a glossy finish, used to complete the touch push-button panel modules - KNX (GWA9421) or Easy (GWA9471). The plates have 6 capacitive touch areas.
NOTES: the symbols shown in the picture are indicative only: they can be personalised using the set of adhesive icons included in the touch push-button module package. The code of the plate is unique and independent from the number of channels that you want to activate (from 1 to 6).

CHARACTERISTICS: plate in transparent plastic, with 6 capacitive touch areas.
NOTES: to be used for configuring the touch push-button panel modules - KNX (GWA9421) or Easy (GWA9471) - if the ICE touch KNX glass plates are not available in the system.

CHARACTERISTICS: KNX module with 6 independent channels, with touch commands (capacitive) and temperature sensor. Each channel is associated with an amber/blue LED for night-time backlit or to show the status of the commanded load. To be completed with Italian standard ICE Touch KNX glass plate (code GW16962CB, GW16964CB, GW16966CB, GW16962CN, GW16964CN, GW16966CN, GW16962CT, GW16964CT, GW16966CT). To be configured with ETS software.
APPLICATIONS: allows you to send ON-OFF commands with fronts management, switchover commands, timed commands, commands for roller shutter management (single or double push-button), dimmers (single or double push-button) and scenes (memorisation and activation).
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: plates in glass and with a glossy finish, used to complete the touch push-button panel modules - KNX (GW10746) or Easy (GW10741).

CHARACTERISTICS: plates in glass and with a glossy finish, used to complete the touch push-button panel modules - KNX (GW10746) or Easy (GW10741).

CHARACTERISTICS: plates in glass and with a glossy finish, used to complete the touch push-button panel modules - KNX (GW10746) or Easy (GW10741).

CHARACTERISTICS: BUS interfaces for connecting 2 or 4 push-buttons or conventional potential-free contacts. The reading voltage (SELV) is generated inside the device. For each input, an output is available for powering a low absorption LED (lower than 1mA such as, for example, GW10886, GW10887, GW10888, GW10889, GW10890) for displaying the status of the load commanded. To be configured with ETS software.
APPLICATIONS: for sending ON-OFF commands with fronts management, switching commands and sequences, brief / prolonged contact closure management, timed commands, priority commands, commands for managing roller shutters (single or double push-button), dimmers (single or double push-button), scenes (storage and activation), impulse count, output LED control, acquisition of temperature values via NTC sensor (GW90721A only). Installation in flush-mounting box, junction boxes or embedded in the blanking modules GW10571, GW12571, GW14571. The slot on the plastic casing also allows it to be fixed with screws.
NOTES: equipped with coupling terminal for connection to the BUS, and unshielded cables for connecting the inputs, of length 30 cm extendible to 10m with unshielded twisted cable.

CHARACTERISTICS: the module has 4 digital inputs for push-buttons or conventional potential-free contacts and 4 universal input channels. The universal input channels can be configured as inputs for push-buttons or conventional potential-free contacts, analogue inputs (0..20mA, 4..20mA, 0..10V, 0..1V), digital inputs for measurement devices with S0 interface, inputs for NTC probe sensors that can be used for controlling the same number of thermoregulation areas. The module is provided also with 4 PWM outputs for LEDs (3.3V) for signalling the status of the loads. The device has 8 amber LEDs for signalling the status of the inputs. To be configured with ETS software.
APPLICATIONS: the input channels are used for sending ON-OFF commands with fronts management, switching commands and sequences, brief / prolonged contact closure management, timed commands, priority commands, thermoregulation commands, commands for managing roller shutters (single or double push-button), dimmers (single or double push-button), scenes (storage and activation), impulse count.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: BUS interface module for connecting 8 push-buttons or conventional live contacts. The device has 8 amber LEDs for signalling the status of the inputs. To be configured with ETS software.
APPLICATIONS: for sending ON-OFF commands with fronts management, switching commands and sequences, brief / prolonged contact closure management, timed commands, priority commands, commands for managing roller shutters (single or double push-button), dimmers (single or double push-button), scenes (storage and activation), impulse count.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

NOTES: the miniature lamps are equipped with power cables.
If connected with the interfaces GW90721, GW90834, GW90721A, GW90727, GW90834A, GW90833 they do not require the use of a current limiting resistance. In this case, the maximum current consumption is less than 1mA.

CHARACTERISTICS: 1-gang blanking module with pad printing KNX/EIB.
Allows the housing and fast identification of the 2- and 4-channel contact interface.
NOTES: embedded coupling.

CHARACTERISTICS: KNX module with 6 independent channels, with replaceable button keys and built-in temperature sensor. Each channel is associated with an amber/green night-time locating LED or a status display LED for the commanded load. To be configured with ETS software. The package includes 3 replaceable button keys (GW1x553) and 10 lenses with illuminated symbols (2 x GW10502A, 1 x GW10509A, 1 x GW10510A, 1 x GW10513A, 1 x GW10514A, 1 x GW10519A, 1 x GW10520A, 1 x GW10529A, 1 x GW10530A). You can still customize the module with other type of replaceable button keys (suited for 1 or 2 lenses, with 2 diffusers, 1- or 2-module) or with other lenses in the catalogue.
APPLICATIONS: allows you to send ON-OFF commands with fronts management, switching commands and sequences, brief/prolonged contact closure management, timed commands, priority commands, commands for roller shutter management (single or double push-button), dimmers (single or double push-button) and scenes (memorisation and activation).
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: KNX module with 6 independent channels, with replaceable button keys and 1-channel ON/OFF actuator. Each channel is associated with an amber/green night-time locating LED or a status display LED for the commanded load. One pair of keys can be used for local actuator command. The actuator manages the load via a potential-free output contact (NO). To be configured with ETS software. The package includes 3 replaceable button keys (GW1x553) and 10 lenses with illuminated symbols (2 x GW10502A, 1 x GW10509A, 1 x GW10510A, 1 x GW10513A, 1 x GW10514A, 1 x GW10519A, 1 x GW10520A, 1 x GW10529A, 1 x GW10530A). You can still customize the module with other type of replaceable button keys (suited for 1 or 2 lenses, with 2 diffusers, 1- or 2-module) or with other lenses in the catalogue.
APPLICATIONS: the push-button panel allows you to send ON-OFF commands with fronts management, switching commands and sequences, brief/prolonged contact closure management, timed commands, priority commands, commands for roller shutter management (single or double push-button), dimmers (single or double push-button) and scenes (memorisation and activation). The actuator allows the execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands and scene management commands.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: KNX module with 6 independent channels, with replaceable button keys and 1-channel roller shutter actuator. Each channel is associated with an amber/green night-time locating LED or a status display LED for the commanded load. One pair of keys can be used for local actuator command. The actuator manages a motor to move roller-shutters, curtains, venetian blinds, rolling blinds, etc. via 2 potential-free interlocked output contacts (NO). To be configured with ETS software. The package includes 3 replaceable button keys (GW1x553) and 10 lenses with illuminated symbols (2 x GW10502A, 1 x GW10509A, 1 x GW10510A, 1 x GW10513A, 1 x GW10514A, 1 x GW10519A, 1 x GW10520A, 1 x GW10529A, 1 x GW10530A). You can still customize the module with other type of replaceable button keys (suited for 1 or 2 lenses, with 2 diffusers, 1- or 2-module) or with other lenses in the catalogue.
APPLICATIONS: the push-button panel allows you to send ON-OFF commands with fronts management, switching commands and sequences, brief/prolonged contact closure management, timed commands, priority commands, commands for roller shutter management (single or double push-button), dimmers (single or double push-button) and scenes (memorisation and activation). The actuator allows the execution of commands of movements/adjustment/stopping, along with priority commands, scene management and alarm signalling commands.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: KNX module with 4 independent channels, with replaceable button keys. Each channel is associated with a RGB LED for night-time locating or status display for the commanded load. To be configured with ETS software. The package includes 2 replaceable button keys (GW1x553) and 10 lenses with illuminated symbols (2 x GW10502A, 1 x GW10509A, 1 x GW10510A, 1 x GW10513A, 1 x GW10514A, 1 x GW10519A, 1 x GW10520A, 1 x GW10529A, 1 x GW10530A). You can still customize the module with other type of replaceable button keys (arranged for 1 or 2 lenses, with 2 diffusers, 1 or 2 modules) or with other lenses in the catalogue.
APPLICATIONS: allows you to send ON-OFF commands with fronts management, switching commands and sequences, brief/prolonged contact closure management, timed commands, priority commands, commands for roller shutter management (single or double push-button), dimmers (single or double push-button) and scenes (memorisation and activation).
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

NOTES: to be used for the customization of Easy (GW1x753A, GW1x754A, GW1x755A, GW1x757) and KNX (GW1x783A, GW1x784A, GW1x785A, GW1x787) 6 and 4-channel push-button panels with interchangeable symbols.

CHARACTERISTICS: with "Do not disturb" and "Make up the room" pad printings. Include lenses with illuminated symbols.
NOTES: to be used for the customization of Easy (GW1x753A, GW1x754A, GW1x755A, GW1x757) and KNX (GW1x783A, GW1x784A, GW1x785A, GW1x787) 6- and 4-channel push-button panels with interchangeable symbols.

NOTES: to be used for the customization of the button keys of Easy (GW1x753A, GW1x754A, GW1x755A, GW1x757) and KNX (GW1x783A, GW1x784A, GW1x785A, GW1x787) 6 and 4-channel push-button panels with interchangeable symbols.

CHARACTERISTICS: push-button panel with 4 button keys/4 channels. Each button key is associated with an amber LED for night-time backlit, and a green LED to display the status of the commanded load. To be configured with ETS software.
APPLICATIONS: allows you to send ON-OFF commands with fronts management, switchover commands, timed commands, commands for roller shutter management (single or double push-button), dimmers (single or double push-button) and scenes (memorisation and activation).
NOTES: equipped with coupling terminal with protection lid, for connection to BUS, and with set of icons to personalise the button key functions.

CHARACTERISTICS: push-button suitable for connection of KNX BUS contacts interfaces, or the command of bistable relays, electronic one-way switches for heavy duty loads, or dimmers with a remote control input. Output contact 4A (AC1) - 230 V ac.

CHARACTERISTICS: push-button for BUS inputs, suitable for KNX BUS contact interface connections. Equipped with 2-colour (amber/green) LED with colour selector (can be set up to work as a night-time localisation lamp or to indicate the load status).

CHARACTERISTICS: double push-button suitable for connection of KNX BUS contacts interfaces or electronic control panels for moving roller shutters.

CHARACTERISTICS: movement sensor with detection conditioned by the light threshold value set. Adjustable lens. Operating range: 10m.
Vertical bearing angle: 30°. Horizontal bearing angle: 105°. Light threshold value adjustable by means of the frontal access trimmer or ETS parameter.
The cycle time can be set via ETS and modified (± 50%) via the front access trimmer.
Front green LED signals movement detection and command entry. To be configured with ETS software.
APPLICATIONS: allows you to send timed commands to the movement detector.
The device is able to manage a safety pause upon the deactivation of the controlled load. For installation indoors.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: wall and ceiling-mounting, without additional accessories.
Angled fixing by means of the accessory GW90782. Spherical head that can be adjusted horizontally, vertically and along its axis, to adapt the operating range to the environmental conditions.
Limitation of the single lens sectors by means of a flexible cover cap. Manual timing: from 1 second to 8 minutes; Via ETS: from 3 seconds to 152 hours.
APPLICATIONS: to check areas, with a surveillance range of 220°. For the first 4 metres, the surveillance range is 360°.
NOTES: equipped with coupling terminal for connection to BUS. Cover plate and cover cap for limiting the operating range; screws and wall plugs.

APPLICATIONS: for fixing the outdoor movement detector on inner and outer angles. Possibility of mounting on conduits, using brackets available on the market.
NOTES: screws and wall plugs included.

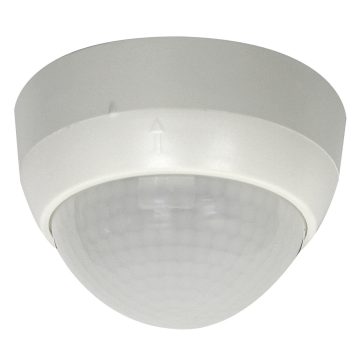

CHARACTERISTICS: with 3 PIR sensors and a 360° circular shape operating range. Max. presence detection range: from 4 up to 8m, max. motion detection range: from 10 to 16m depending on the installatin height and the type of approach (tangential or radial). Ceiling installation. To be configured with ETS software.
APPLICATIONS: for environments where it is necessary to send activation commands to actuator devices via the KNX bus according to the movements detected and possibily the light intensity measured.
NOTES: equipped with coupling terminal for connection to BUS.

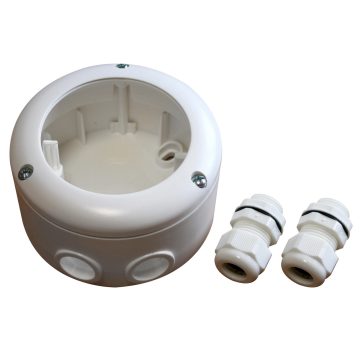

APPLICATIONS: accessory for the KNX presence detector GWA9531A wall installation.

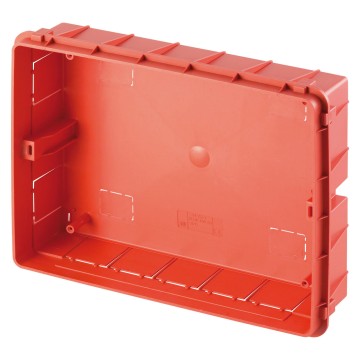

APPLICATIONS: flush-mounting box with spring clip for the KNX presence detector GWA9531A plasterboard installation.

CHARACTERISTICS: 1-channel actuator for activating loads via a potential-free output contact (NO/NC).
Equipped with a front push-button for local command, a indicator LED for output contact closure and night-time backlit LED. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions..
For discharge lamps and compensated fluorescent lamps, use a support relay.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: 4-channel actuator for activating loads via potential-free output contacts (NO). Suitable for commanding incandescent lamps (230 V ac): 1500 W, halogen lamps (230 V ac): 1500 W, loads controlled from electronic transformers: 600 VA, uncompensated fluorescent lamps: 400 VA, energy saving lamps (compact fluorescent): 8x23 W. Max switchover current 10 A (cos.fi 1). Use a support relay for the compensated fluorescent lamps and for all loads that are not indicated. Equipped with front push-buttons for local implementation, and signalling LED for closure of output contact. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions..
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: 4-channel actuator for activating loads via potential-free output contacts (NO). Suitable for commanding incandescent lamps (230 Vac): 3000 W, halogen lamps (230 V ac): 3000 W, loads controlled from toroidal transformers: 3000 W, loads controlled from electronic transformers: 2000 W, energy saving lamps (compact fluorescent): 80x23W. Max switchover current 16A (AC1), 16AX (140µF ref EN 60669-1) fluorescent loads with maximum surge current 400A (200µs). Equipped with front push-buttons for local implementation, and signalling LED for closure of output contact. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions..
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: 4-channel actuator for activating loads via potential-free output contacts (NO). Suitable for commanding incandescent lamps (230 Vac): 3000 W, halogen lamps (230 V ac): 3000 W, loads controlled from toroidal transformers: 3000 W, loads controlled from electronic transformers: 2000 W, energy saving lamps (compact fluorescent): 80x23W. Max switchover current 16A (AC1), 16AX (140µF ref. EN 60669-1) fluorescent loads with maximum surge current 400A (200µs). Equipped with front push-buttons for manual activation, and signalling LED for closure of output contact. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions..
NOTES: equipped with coupling terminal for connection to BUS (with protection lid). Possibility to activate the loads manually, even without the BUS voltage (230Vac auxiliary power supply required).

CHARACTERISTICS: 8-channel actuator for activating loads via potential-free output contacts (NO). Suitable for commanding incandescent lamps (230Vac): 2000W, halogen lamps (230Vac): 2000W, loads controlled from toroidal transformers: 1500W, loads controlled from electronic transformers: 1200W, energy saving lamps (compact fluorescent): 40x23W, LED lamps (230Vac): 40x10W. Max switchover current 10A (AC1), 10AX (140μF rif. EN 60669-1) fluorescent loads with maximum surge current 400A (150μs). Equipped with front push-buttons for local implementation, and signalling LED for closure of output contact. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions, counters.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: 3-channel actuator for activating loads via potential-free output contacts (NO), with the measure of the power and the energy consumed by each channel. Suitable for commanding incandescent lamps (230Vac): 3000W, halogen lamps (230Vac): 3000W, loads controlled from toroidal transformers: 3000W, loads controlled from electronic transformers: 2000W, energy saving lamps (compact fluorescent): 80x23W. Max switchover current 16 A (AC1), 16 AX (140 μF ref. EN 60669-1) fluorescent loads with maximum surge current 400A (200 μs). Equipped with front push-buttons for local implementation and signalling led for closure of output contact. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions. Allows the measurement and the sending on the KNX bus of the active energy (exported and imported), instantaneous active and reactive power (exported and imported), voltage, current, power factor and frequency, with the possibility to disconnect the load for each channel independently. Suitable for single-phase systems.
NOTES: equipped with coupling terminal for connection to bus (with protection lid).

CHARACTERISTICS: 1-channel actuator to activate a motor to move roller-shutters, curtains, Venetian blinds, rolling blinds, etc. via 2 potential-free interlocked output contacts (NO). Equipped with two front push-buttons for local implementation, two LEDs to signal the closure of the outputs contacts, and two LEDs for night-time localisation. To be configured with ETS software.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: 2- and 4-channel actuators to activate motors to move roller-shutters, curtains, venetian blinds, rolling blinds, etc. via respectively 4 and 8 potential-free interlocked output contacts (NO) With 4 (8) frontal push-buttons for local activation, and 4 (8) LEDs indicating output contact closure.
APPLICATIONS: carries out commands of movement/adjustment/stopping, along with priority commands, scene management and alarm signalling commands. Permit the management of different times for up/down movements and for slat adjustment.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
GW90857: possibility to activate the loads manually, even without the BUS voltage.

CHARACTERISTICS: the module has 4 relay 10A output channels and 4 universal input channels that can be configured as inputs for push-buttons or conventional potential-free contacts, analogue inputs (0..20mA, 4..20mA, 0..10V, 0..1V), digital inputs for measurement devices with S0 interface (max 1), inputs for NTC probe sensors (max 2) that can be used for controlling the same number of thermoregulation areas. The 4 universal input channels can also be configured as PWM outputs for LEDs (3.3V) for signalling the status of the loads. The 4 relay output channels are suitable for commanding incandescent lamps (230V AC): 1500W, halogen lamps (230V AC): 1500W, loads controlled from electronic transformers: 600 VA, uncompensated fluorescent lamps 400VA, energy saving lamps (compact fluorescent): 8x23W. Max switchover current 10 A (cos.fi 1). Use a support relay for the compensated fluorescent lamps and for all loads that are not indicated. The device has front push-buttons for the local command of the relay outputs, 4 green LEDs for signalling output contact closure, and 4 amber LEDs for signalling the status of the inputs. To be configured with ETS software.
APPLICATIONS: the input channels are used for sending ON-OFF commands with fronts management, switching commands and sequences, brief / prolonged contact closure management, timed commands, priority commands, commands for managing roller shutters (single or double push-button), dimmers (single or double push-button), scenes (storage and activation), impulse count. The output channels are used for the execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, and scene management commands.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: 12-channel actuator with potential-free output contacts (NO) for activating 12 loads (on/off switching mode) or 6 shutters/venetian blinds with 230Vac motors. Each single pair of channels can be separately configured for switching loads or roller shutter command. Suitable for commanding incandescent lamps (230Vac): 1500W, halogen lamps (230Vac): 1500W, loads controlled from toroidal transformers: 1200W, loads controlled from electronic transformers: 1000W, energy saving lamps (compact fluorescent): 25x23W, LED lamps (230Vac): 25x10W, motors: 800W. Max switchover currents 8A (AC1), 8AX (140μF ref. EN 60669-1) fluorescent loads with maximum surge current 300A (150μs). Equipped with front push-buttons for manual activation, and signalling LED for closure of output contact. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, block commands, safety functions, logic functions, counters, output status signal, commands of movement/adjustment/stopping, alarm signalling.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid). Possibility to activate the loads manually, even without the BUS voltage (230Vac auxiliary power supply required).

CHARACTERISTICS: it presents three output channels 1-10 V for commanding ballast with 1-10 V interface and three relay On/Off output channels switching the ballast power off. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, relative and absolute light intensity adjustment, scene management, timed commands, priority commands, logic functions.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: for the adjustment and switching of incandescent and halogen lamps 230V AC, low voltage halogen lamps with electronic and winding transformers, LED lamps 230V AC with dimmer function, and CFL lamps with dimmer function. Manual selection of the type of load (Leading Edge or Trailing Edge piloting), soft-start function for lamp protection, front LEDs for signalling the status of the outputs. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, relative and absolute light intensity adjustment, scene management, timed commands, priority commands, logic functions.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: bleeder for dimmable LED lamps. Supplied with cables (length 15cm).
APPLICATIONS: suitable for Easy (GWA9351, GWA9352), KNX (GWA9301, GWA9302) or traditional (GW1x572, GW1x573) universal dimmers.

CHARACTERISTICS: for the adjustment and switching of incandescent lamps, halogen lamps (high and low voltage), compact adjustable fluorescent lamps (energy saving lamps), 230V ac adjustable LED lamps and fans (max. 100W). Automatic load recognition and light intensity regulation power: 400W per channel or 800W in parallel operation. The device has frontal buttons for manual operation and signalling leds for the operation status of each channel. To be configured via ETS software.
APPLICATIONS: light intensity regulation, regulation value limitations, soft switchover, block function, forced operation, scenarios, status return on channels, operating hour-counter and signalling for assistance, management during mains or bus failure and reset, diagnosis messages.
NOTES: equipped with coupling terminal for connection to BUS. Possibility to activate the loads manualy, even without the bus voltage.

CHARACTERISTICS: dimmer in CVD version (control with constant voltage) for regulating RGB(W) LED strips, and in CCD version (control with constant current) for regulating "power" LEDs. 4 front button keys for testing the outputs and 4 front LEDs for signalling the load status and other operating parameters. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, regulation and setting of the light intensity level for each single channel (and the 4 channels simultaneously), selection of feedback on status or light intensity value, scene management, timed sequences, priority commands, logic functions. The 4 outputs can be used to control each of the 4 channels R, G, B and W of a single LED lamp, or up to 4 independent LEDs.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: device used to extend the control capacity of CVD LED dimmers by up to 10A per channel.
APPLICATIONS: to be used with KNX (GW90764) and Easy (GW90854) dimmer actuators for CVD LEDs.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).

CHARACTERISTICS: actuator for the command of fan coils with 2- or 3-point heating/cooling valves and up to 3 fan levels in 2- and 4-pipe systems. Equipped with an additional programmable relay (eg: to control a heating/cooling battery or as a switching output) and two potential-free inputs for windows contact or temperature probe sensor (es: GWA9145) and condensate monitoring. The device has frontal Test buttons (for a simple check of fan levels and heating/cooling switching during the setup steps) and 9 signalling leds for the operation status. Regulation is via an external control variable or the integrated ambient thermostat (in the latter case it is necessary to add the temperature probe sensor). To be configured via ETS software.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: actuator for the command of fan coils with 0-10V proportional heating/cooling valves and up to 3 fan levels (or with 0-10V proportional output) in 2- and 4-pipe systems. Equipped with an additional progrmmable relay (eg: to control a heating/cooling battery or as a switching output) and two potential-free inputs for windows contact or temperature probe sensor (es: GWA9145) and condensate monitoring. The device has frontal Test buttons (for a simple check of fan levels and heating/cooling switching during the setup steps) and 9 signalling leds for the operation status. Regulation is via an external control variable or the integrated ambient thermostat (in the latter case it is necessary to add the temperature probe sensor). To be configured via ETS software.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: NTC sensor 100K.
NOTES: to be used in combination with KNX fan coil actuators.

CHARACTERISTICS: flush-mounting timed thermostat with humidity management, that can be programmed on a weekly basis to control heating/cooling and humidification/dehumidification systems on the BUS. 3-level temperature profile (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 output for commanding the area solenoid valve (or as a generic output for executing ON/OFF commands, timed commands, priority commands or scene management); 1 input for the potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. With 10 hour profiles that can be freely used (programmer function) plus another two reserved for the timed thermostat, with 15-minute resolution. Equipped with an extractable front and LCD display with customisable RGB backlighting. To be configured with ETS software.
APPLICATIONS: can be combined with KNX flush-mounting thermostats for local temperature adjustment: In this case, the timed thermostat acts as a master, sending the temperature profile to the BUS.
NOTES: equipped with coupling terminal for connection to BUS. The device requires a back-up power supply from 2 AA alkaline batteries (not included), housed in the extractable front, to guarantee the updating of the calendar (day, time) in the event of a BUS voltage failure. The device does not have a built-in humidity sensor, so the relative humidity value must be obtained from an external KNX sensor (es: GW1x762H).

CHARACTERISTICS: flush-mounting thermostat with humidity management, to control heating/cooling and humidification/dehumidification systems on the BUS and to manually manage the temperature on three levels (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 output for commanding the area solenoid valve (or as a generic output for executing ON/OFF commands, timed commands, priority commands or scene management); 1 input for the potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. Equipped with an LCD display with customisable RGB backlighting. To be configured with ETS software.
APPLICATIONS: can be combined with KNX flush-mounting timed thermostats for local temperature adjustment: in this case, the thermostat acts as a Slave, executing the temperature profile sent from the Master (timed thermostat), using the locally defined setpoint values. If the system contains remote elements with their own control logic (e.g. flush-mounting KNX temperature adjustment probes), the thermostat can be used to visualise and set their operating parameters (max. 4 elements).
NOTES: equipped with coupling terminal for connection to BUS. The device does not have a built-in humidity sensor, so the relative humidity value must be obtained from an external KNX sensor (es: GW1x762H).

CHARACTERISTICS: flush-mounting temperature adjustment probe for controlling heating/cooling systems on the BUS. 3-level temperature profile (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 input for the potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. Equipped with a front LED signalling the operating status and the load status (solenoid valve). To be configured with ETS software.
APPLICATIONS: can be combined with thermostats GW10795H, GW12795H, GW14795H or timed thermostats GW10794H, GW12794H, GW14794H to adjust the temperature in specific areas and for controlling and displaying the probe parameters (the probe does not have a display).
NOTES: it is equipped with coupling terminal for connection to bus.

CHARACTERISTICS: flush-mounting temperature adjustment probe with humidity sensor for controlling heating/cooling systems and humidification/dehumidification systems on the BUS. 3-level temperature profile (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 input for a potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. Equipped with a front LED signalling the operating status and the load status (solenoid valve). To be configured with ETS software.
APPLICATIONS: can be combined with thermostats GW10795H, GW12795H, GW14795H or timed thermostats GW10794H, GW12794H, GW14794H to adjust the temperature in specific areas and for controlling and displaying the probe parameters (the probe does not have a display).
NOTES: it is equipped with coupling terminal for connection to bus.

CHARACTERISTICS: flush-mounting temperature/humidity probe sensor for sending temperature and relative humidity values on the KNX BUS. Temperature range: 0…+45°C. Relative humidity range: 10-95%. Equipped with a front signalling LED. To be configured with ETS software or with Easy Controller.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: NTC sensor 10K BETA 3435 1%. Temperature range: -50…+110 °C; precision: ±1%; capsule material: thermoplastic rubber.
NOTES: to be used in combination with the EASY and KNX timed thermostats, thermostats, temperature sensors, EASY and KNX flush-mounting humidity/temperature sensors, input modules, etc..

CHARACTERISTICS: NTC flush-mounting temperature probe sensor 10K ±2%, BETA 3977 ±0.75%. Temperature range: -40…+125°C. Equipped with a front signalling LED.
NOTES: to be used in combination with the timed thermostats, thermostats, temperature sensors, EASY and KNX flush-mounting humidity/temperature sensors, input modules, etc..

CHARACTERISTICS: flush-mounting thermostat to control heating/cooling systems on the BUS and manage the temperature in manual mode or on 3 levels (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous adjustment 0%-100%), fan coil (max. 3 speeds with ON/OFF or 0%/100% commands). Can be used to manage humidification/dehumidification systems if connected to an external humidity sensor (e.g. GW1x762H). Includes 1 input for a potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. With user interface with touch commands (capacitive) on glass plate and backlit display. The thermostat has built-in proximity and temperature sensors. To be configured with ETS software or with Easy Controller.
APPLICATIONS: can be combined with KNX flush-mounting timed thermostats or KNX control panels for local temperature adjustment: In this case, the thermostat acts as the slave by executing the temperature profile sent by the master.
NOTES: equipped with coupling terminal for connection to BUS. The thermostats include a front plate, electronic unit and metal support, and are suitable for screw fixing on both rectangular 3-gang boxes (centre distance 83.5 mm) and round/square boxes (centre distance 60 mm) equipped with fixing columns. Plate material: glass.

APPLICATIONS: to be used for powering LPG detectors (GW10711, GW12711, GW14711, GW20868, GW21868, GW30520), methane detectors (GW10712, GW12712, GW14712, GW20867, GW21867, GW30519); Thermo ICE WiFi (GW16972CB, GW16972CN, GW16972CT) and KNX/Easy (GW16974CB, GW16974CN, GW16974CT) thermostats.

CHARACTERISTICS: wall-mounting thermostat to control heating/cooling and humidification/dehumidification systems on the BUS and manage the temperature in manual mode or on 3 levels (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%-100%), proportional-integral (PWM or continuous adjustment), fan coil (max. 3 speeds or with continuous adjustment 0%-100%). Includes 1 input for external NTC temperature sensor (e.g.: protection for flood mounting heating). Equipped with a user interface with touch commands (capacitive) on technopolymer plate and backlit display. The thermostat has built-in proximity, temperature and humidity sensors. The device supports KNX Secure. To be configured with ETS software.
APPLICATIONS: can be combined with KNX flush-mounting timed thermostats or Smart Gateway for local temperature adjustment: in this case, the thermostat acts as the slave by executing the temperature sent by the master. Available a "hotel" operating mode with simplified functionalities and user interface for hotel applications.
NOTES: equipped with coupling terminal for connection to bus. Wall fixing with wall plugs or screw fixing on rectangular 3-gang boxes (centre distance 83.5 mm). Plate material: technopolymer.

CHARACTERISTICS: timed thermostat that can be programmed on a weekly basis to control heating/cooling systems on the KNX BUS.
3-level temperature profile (comfort, pre-comfort, economy). Regulation with two-point (ON/OFF) or proportional (PWM) control.
Equipped with a backlit LCD display. To be configured with ETS software.
APPLICATIONS: can be combined with thermostats GW10793, GW14793 to adjust the temperature in specific areas. In this case, the timed thermostat performs the Master function by sending the temperature profile to the BUS or the values of the corresponding set points.
NOTES: equipped with coupling terminal for connection to BUS. The device requires a back-up power supply from 2 AAA alkaline batteries (not included), to guarantee the updating of the calendar (day, time) in the event of a BUS voltage failure.

CHARACTERISTICS: thermostat to control heating/cooling systems on BUS. Regulation with two-point (ON/OFF) or proportional (PWM) control.
Equipped with a backlit LCD display. To be configured with ETS software.
APPLICATIONS: can be combined with timed thermostats GW10791, GW14791 to adjust the temperature in specific areas. In this case, the thermostat acts as a Slave, following the temperature profile sent from the Master (timed thermostat), using the locally defined setpoint values or relative deviation values. This also makes it possible to control the fan coils.
NOTES: equipped with coupling terminal for connection to BUS. Equipped with a rechargeable back-up battery to guarantee the updating of the calendar (day, time) in the event of a BUS voltage failure.

CHARACTERISTICS: load management to control the activation/deactivation of electrical appliances wired to the relay inside the device or connected to KNX actuators, preventing the main line power supply disconnection and avoiding service interruptions. The device supports KNX Secure. To be configured with ETS software.
APPLICATIONS: allows the measurement, the visualisation on the display and the sending on the KNX bus of the active energy (exported and imported), instantaneous active and reactive power (exported and imported), voltage, current, power factor and frequency.
NOTES: equipped with coupling terminal for connection to bus.

CHARACTERISTICS: the device supports KNX Secure. To be configured with ETS software.
APPLICATIONS: allows the measurement, the visualisation on the display and the sending on the KNX bus of the active energy (exported and imported), instantaneous active and reactive power (exported and imported), voltage, current, power factor and frequency.
NOTES: equipped with coupling terminal for connection to bus.

APPLICATION: allows the measurement and visualisation on the display of the active energy values (exported and imported), istantaneous active power (exported and imported), voltage, current, power factor and frequency.
If used with the KNX GW90876 interface, the measured values can be sent on the KNX BUS.
If used with the MODBUS GWD6820 interface, the measured values can be sent on Modbus RS485.
CHARACTERISTICS: the energy meters have an impulse output for remote energy consumption control.

APPLICATION: allow the measurement and the visualization on display of the active and reactive energy values (exported and imported), and instantaneous active and reactive power values (exported and imported). If used with the KNX GW90876 interface, the measured values can be sent on the KNX BUS.
If used with the MODBUS GWD6820 interface, the measured values can be sent on Modbus RS485.
CHARACTERISTICS: the meters have two impulse outputs for remote energy consumption control.

CHARACTERISTICS: to be configured with ETS software.
APPLICATIONS: it communicates on the KNX bus system the values of energy and power measured by the GWD6801, GWD6802, GWD6806, GWD6807, GWD6808, GWD6809 energy meters. The KNX interface is optically coupled with the energy meter (the two devices have to be installed side-by-side).
NOTE: it is equipped with coupling terminal for connection to bus.

CHARACTERISTICS: recognises the GW10684 transponder cards, bringing them within at least 3cm.
Incorporates 2 relays for activating electric systems or users (e.g: electro-locks, courtesy lights, etc.) and 3 inputs for potential-free contacts.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: equipped with housing for GW10684 transponder cards, allowing them to be recognised and notifying of the presence to the GWHost supervision sw.
Incorporates 2 relays for activating electric systems or users (e.g: electro-locks, courtesy lights, etc.) and 3 inputs for potential-free contacts.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: powered directly via USB port (5V 150mA) of the programming PC (e.g: reception). Configures the transponder cards, GW10684 assigning the level of access.
The product is supplied already installed in a 4 gang table box complete with CHORUS range ONE plate.
NOTES: for the programming of cards it is necessary to install a client license in the PC (included in the GW Host sw package).

CHARACTERISTICS: can be programmed via the transponder programming unit. The same card can be activated for more than one transponder reading unit.
NOTES: space available for customizing.

CHARACTERISTICS: software developed to dialog with devices on KNX bus, suitable for the access management in hotel facilities and tertiary, with different sizes according to the number of required supervision pages (rooms, common areas, etc.). They include the GWHost software pre-installed in a mini-PC with USB dongle license and 3 client licenses that can be installed in as many PCs running Windows (es: reception). For additional client licenses (necessary in case more than 3 PCs are required to be connected to the mini-PC) or how to interface GWHost with the most common hotel management sw, please refer to the Gewiss technical assistance.
NOTE: the mini-PC included in GWHost is a compact hardware platform, based on Microsoft® Windows, that connects to the PC in reception via LAN network.

CHARACTERISTICS: includes the following sensors: rain, temperature (from -40°C to +80°C), luminosity (from 0 lux to 150000 lux), wind (from 0 m/s to 35 m/s). The weather station includes a GPS receiver for determining coordinates, data and hour.
APPLICATIONS: the weather station stores and processes the analogue signals coming from the embedded sensors.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: the device uses a sensor to analyse the conductivity of the rainwater, and immediately detects the end of the precipitation with the aid of a built-in heater. To be configured with ETS software.
APPLICATIONS: detects and analyses the precipitation (rain drops and snow flakes).
NOTES: equipped with coupling terminal for connection to BUS.
AVAILABILITY: item available while stocks last.

CHARACTERISTICS: the device measures the wind speed electronically. To be configured with ETS software.
APPLICATIONS: detects and analyses the wind speed, even in the presence of hail and snow.
NOTES: equipped with coupling terminal for connection to BUS.
AVAILABILITY: item available while stocks last.

CHARACTERISTICS: with the aid of a combined sensor, the device analyses the conductivity of the rainwater (via the built-in heater, it immediately detects the end of the precipitation) and electronically measures the wind speed. To be configured with ETS software.
APPLICATIONS: detects and analyses the precipitation (rain drops and snow flakes) and wind speed, even in the presence of hail and snow.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: the device measures the light intensity. With light-sensitive sensor function. To be configured with ETS software.
APPLICATIONS: detects and analyses the light level.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: the sensor measures the temperature. The sensor is also equipped with a PI (proportional integral) regulator for heating and air conditioning. To be configured with ETS software.
APPLICATIONS: measures the temperature.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: To be configured with ETS software.
APPLICATIONS: multifunction logic module. Equipped with 10 functional blocks for logic operations, 10 for delays/filters, 8 for converters, and 12 for the multiplexer.
3 local push-buttons and 3 display LEDs (freely configurable) are available.
NOTES: equipped with coupling terminal for connection to BUS.

APPLICATIONS: one-way interface that can receive the KNX BUS commands and re-transmit them towards the devices on the DMX BUS.
The interface manages up to 512 DMX channels.
NOTES: equipped with coupling terminal for connection to BUS.

CHARACTERISTICS: interface that - via KNX BUS - can control up to 64 lamps managed with the DALI protocol. The device is equipped with a RJ45 LAN port for configuration and/or access via IP and supplies power to the DALI line. Category 1 device (in accordance with EN 62386-103).
NOTES: equipped with coupling terminal for connection to BUS.

APPLICATIONS: for connecting up to 4 pairs of conductors. Can also be used as a junction terminal.

APPLICATIONS: for connecting up to 4 pairs of conductors. Can also be used as a junction terminal.

Can be installed with the 230V power supply cable, and are recommended for protruding or flush assembly, for arrangement in conduits, in dry environments, and outdoors if protected against direct solar irradiation.
In the GW90582 KNX cable, the first duplex cable (red + black) is used for the power supply and the data transmission of the KNX devices; the second one (yellow + white) can be used for another SELV service power supply.
In the KNX cable GW90583, the duplex cable (red + black) is used for the power supply and the data transmission of the KNX devices.
CHARACTERISTICS: GW90582 BUS cable for shielded installation consisting of 2 pairs of twisted wires. Colours - black/red + yellow/white.
GW90583 BUS cable for shielded installation consisting of 1 pair of twisted wires. Colours - black/red.
