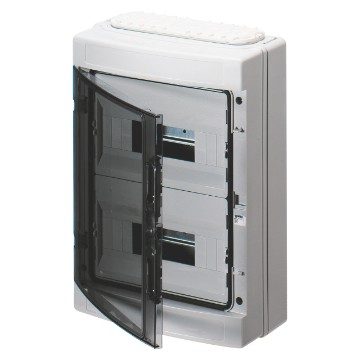

DISTRIBUTION BOARD - GERMAN STANDARD - (12X2) 24MODULES - IP65 - FITTED WITH TERMINAL BLOCK - WITH SMOKED TRANSPARENT DOOR

Kód: GW40114

Řada: 40 CDE
Enclosures and distribution boards for country-specific standards

The range of enclosures and distribution boards for specific country standards: 40 CD French standard enclosures (IP30), also including VDI multimedia enclosures (Grade 1, Grade 2 and Grade 3); 40 CDKE German standard enclosures - IP65 watertight with flanges for quick cable insertion, and 40CDE German standard enclosures - IP40 for home use, either surface-mounted or flush-mounted in masonry or plasterboard. The range is completed by the 40 CDE Spanish standard enclosures - IP40 with smoked transparent doors.

IP65

IK07

750 °C

70 °C

Technické informace

Informace

Stáhnout

Certifikáty

Insulation class II

Colour Grey RAL 7035

Outer dim. LxHxD (mm) 298x420x140

IP degree IP65

Installation Wall mounting

Mechanical resistance IK07

Door colour Smoked Transparent

Terminal block N (mm²) (3x25)+(10x10)

Terminal block T (mm²) (3x25)+(10x10)

No. of modules EN 50022 24 (12X2)

Glow Wire Test 750 °C

Standard IEC EN 60670-1; IEC EN 60670-24; DIN VDE 0603-1

Operating temperature -25 +60 °C

Thermo-pressure with ball 70 °C

Pole 1 (mm²) N (3x35) + (10x10)

Pole 2 (mm²) E (3x35) + (10x10)

Ware Number 85381000

Product Data Sheet

User guide

Disposal

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Přejít do oblasti pro stahování Přejít do oblasti pro stahování

Reach Declaration

CE marking

Display the certificate

VYBAVENÍ A POZNÁMKY

CHARACTERISTICS: the flanges with knockout holes have the following inputs: 4xM16; 4xM20; 3xM25; 1xM32; Glow Wire Test: 750°C
ACCESSORIES SUPPLIED: terminal block, screwcaps and module masks for double insulation, circuit labels.
To restore the double insulation, use the relative accessories (module masks, screwcaps or wall mounting brackets).
