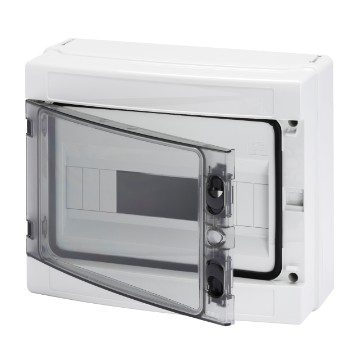

SMOOTH WALLS ENCLOSURE - WITH TERMINAL BLOCKS N (3X16)+(11X10) E (3X16)+(11X10) - 12M IP65

Kód: GW40103BS

Řada: 40 CD Range
Surface-mounting distribution boards and enclosures

The 40CD Series of control units, available in transparent or blind door versions and in sizes from 8 to 72 modules, guarantees aesthetic integration with all types of furniture. The offer includes: 40CDK - IP65 watertight panels with removable frame (from 24M) and lead-in panels; accessories with wiring ducts, locks, aesthetic covers and blind panels; 40CD - IP55 watertight control units with drilling doilies on the walls, door with lock for each modular row; 40CD control units protected by Furniture - IP40 up to 72M in the smoke and blind door versions; 40CD control units without door - IP40. All materials are Halogen Free.

IP65

IK09

650 °C

70 °C

Technické informace

Informace

Stáhnout

Certifikáty

Insulation class II (according to IEC 61140 standards)

Colour Grey RAL 7035

Outer dim. LxHxD (mm) 298x260x140

IP degree IP65

Dispersible power (W) 26

Mechanical resistance IK09

Rated voltage 400 V

Door colour Smoked Transparent

Terminal blocks 80 A - IP20 bipolar holes with screws

No. of modules EN 50022 12

Rated current 125 A

Glow Wire Test 650 °C

Operating temperature -25 +60 °C

Type of material Halogen-free in compliance with EN 60754-2

Thermo-pressure with ball 70 °C

Accessories for insulation restoring Screwcaps (GW44623) or fixing brackets in resin (GW44621)

Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49

Insulation voltage 1000 V according to EN 62208 both in ac as well as in dc

Pole 1 (mm²) N/E (3x16) + (11x10)

Pole 2 (mm²) N/E (3x16) + (11x10)

Ware Number 85381000

Product Data Sheet

User guide

Disposal

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES

Přejít do oblasti pro stahování Přejít do oblasti pro stahování

CE marking

Display the certificate

VYBAVENÍ A POZNÁMKY

ACCESSORIES SUPPLIED: screwcaps and module masks, circuit labels. Self-adhesive label to be filled out for certification according to standard CEI 23-51. Insulated bipolar screw 80A - IP20 terminal blocks to be installed on the frame before wiring.
NOTES: dispersible power calculated according to CEI 23-49. For the perforations, use the GW52401 milling cutter. To restore the double insulation, use the relative accessories supplied (module masks and screwcaps) or the brackets for surface-mounting (GW44621). For applications in the photovoltaic environment, use the surface-mounting brackets - code GW44621.
CHARACTERISTICS: thermo-pressure with ball equal to 70°C.
