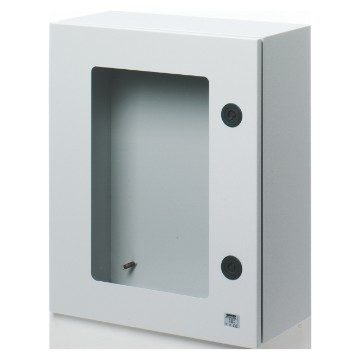

BOARD IN METAL WITH BLANK DOOR FITTED WITH TEMPERED GLASS WINDOW AND LOCK 405X500X200 - IP55 - GREY RAL 7035

Kód: GW46233

Řada: 46 Range
Watertight surface-mounting distribution and automation boards

The offer includes: 46 QP boards - monobloc, Halogen Free glass fiber loaded polyester, degree of protection IP66; 46 QM boards - IP55 in metal; 46 QX boards - IP55 in stainless steel; 44 CEP boards - monobloc, Halogen Free technopolymer. The 46 QP, QM and 44 CEP boards are available in transparent and blank door versions. In addition, 46 QP, QM and QX boards features Fast & Easy accessories with metal snap fastening.

IP55

IK08

Technické informace

Informace

Stáhnout

Certifikáty

Insulation class Pre-arranged with earth terminal

Colour Grey RAL 7035

Nominal dim. LxHxD (mm) 405x500x200

IP degree IP55

Material Sheet metal from 10/10 to 15/10, painted with epoxy-polyester powders

Mechanical resistance IK08

No. locks 2

No. of modules EN 50022 54 (18x3)

Application For indoor use

Dispersible power A (W) 106

Dispersible power B (W) 80

Functional dim. LxHxD (mm) 405x500x200

Operating temperature -25 +60 °C

Type of material Metal

Electrocod 0320

Standard EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24

Family 46 QM

Maximum rated insulation voltage (Ui) 690 V

Type of door Door with tempered glass window

Ware Number 85381000

Product Data Sheet

Information and general recommendations

User guide

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES

Přejít do oblasti pro stahování Přejít do oblasti pro stahování

Reach Declaration

CE marking

VYBAVENÍ A POZNÁMKY

ACCESSORIES SUPPLIED: screwcaps, threaded pins or reversible squares with the relative bolts and screws for fixing the back-mounting plates or uprights for modular devices.
GW46234, GW46235, GW46236, GW46237 with perforated bottom equipped with flange for cables to pass through.
NOTES: Dispersible power calculated according to CEI 23-49.
For the front configuration (via panels and DIN rails), it is necessary to use the uprights.
Dispersible power A (W): board configuration with back-mounting plate (as far back as possible).
Dispersible power B (W): board configuration with DIN rails + panels with windows.
The technical and functional characteristics, and the nominal values, refer to vertical installation only.
APPLICATIONS: for indoor use (e.g. in industrial systems, on machines, etc.).
The nominal dimensions LxHxD in the table above refer to the external size of the boards.
For the real outer dimensions LxHxD refer to the technical data sheet downloadable from professionals website GEWISS or to the technical section of this catalogue.
