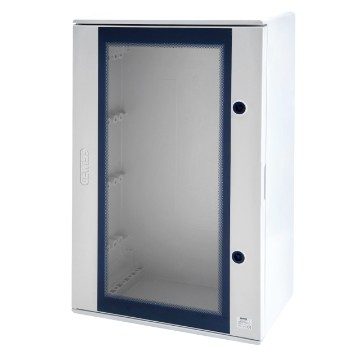

POLYESTER ENCLOSURE WITH TRANSPARENT DOOR FITTED WITH LOCK - 515X650X250 - IP66 - GREY RAL 7035

Kód: GW46205F

Řada: 46 Range
Watertight surface-mounting distribution and automation boards

The offer includes: 46 QP boards - monobloc, Halogen Free glass fiber loaded polyester, degree of protection IP66; 46 QM boards - IP55 in metal; 46 QX boards - IP55 in stainless steel; 44 CEP boards - monobloc, Halogen Free technopolymer. The 46 QP, QM and 44 CEP boards are available in transparent and blank door versions. In addition, 46 QP, QM and QX boards features Fast & Easy accessories with metal snap fastening.

650 °C

200 °C

IP66

Bottom IK10

Technické informace

Informace

Stáhnout

Certifikáty

Glow Wire Test 650 °C

Insulation voltage (Ui) 1000 V

Standard EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24

Surface-mounting brackets GW46446-GW46451

Kit for double insulation restore GW46526

Thermo-pressure with ball 200 °C

Nominal dim. LxHxD (mm) 515x650x250

Insulation voltage 1000 V according to EN 62208 both in ac as well as in dc

Family 46 QP

Maximum rated insulation voltage (Ui) 690 V

No. locks 2

Dispersible power A (W) 126

Dispersible power B (W) 106

Insulation class II

IP degree IP66

Mechanical resistance Bottom IK10

Functional dim. LxHxD (mm) 518,5x653,5x250

Operating temperature -25 +60 °C

Type of material Halogen-free in compliance with EN 60754-2

Electrocod 0321

Type of door Transparent door

Colour Grey RAL 7035

Characteristics UV resistance (EN 62208)

Material Polyester reinforced with fibreglass

No. of modules EN 50022 96 (24x4)

Ware Number 85381000

Product Data Sheet

Information and general recommendations

DXF drawing

User guide

3D step drawing

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES

Přejít do oblasti pro stahování Přejít do oblasti pro stahování

Reach Declaration

Display the certificate

CE marking

VYBAVENÍ A POZNÁMKY

ACCESSORIES SUPPLIED: boxes equipped with inserts pre-assembled in the slots, to speed up the configuration of the board. For the transparent door version: GWT 650°C. From board GW46202F to board GW46206F it is possible to fix the panels with windows or blank (1 or 2 modules) directly in the seats housed in the vertical walls of the boards; for the board GW46207F use uprights GW46439F. Impact resistance of the bottom: IK10 according to EN 62262.
ACCESSORIES SUPPLIED: 4 reversible brackets with relative screws for fixing back-mounting plates or uprights for modular devices.
NOTES: Dispersible power calculated according to CEI 23-49.
Dispersible power A (W): board configuration with back-mounting plate (as far back as possible).
Dispersible power B (W): board configuration with DIN rails + panels with windows.
The nominal dimensions in the table above refer to the external size of the boards; for the real outer dimensions refer to the technical data sheet downloadable from professionals website GEWISS or to the technical section of this catalogue.
For applications in the photovoltaic environment, use the surface-mounting brackets - code GW44621.
