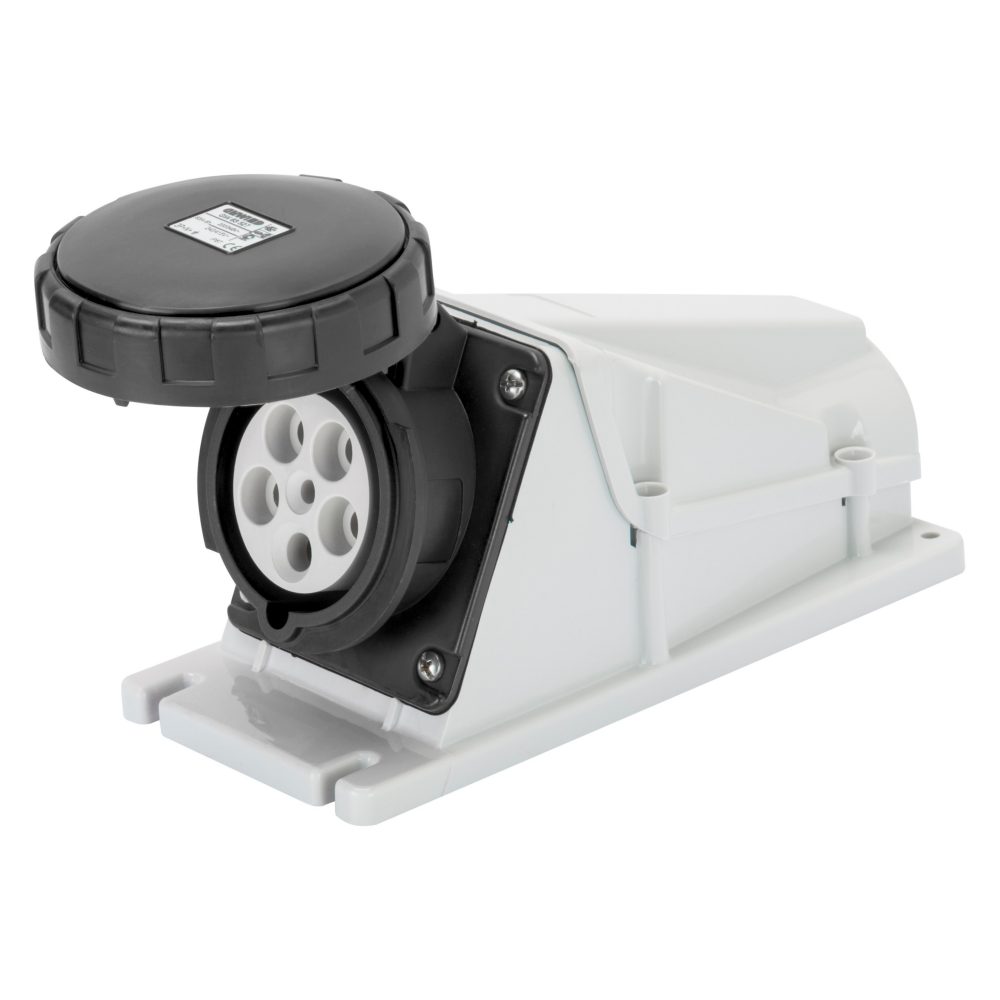

90° ANGLED SURFACE-MOUNTING SOCKET-OUTLET - IP67 - 3P+E 125A 480-500V 50/60HZ - BLACK - 7H - SCREW WIRING

Kód: GW62536
Řada: IEC 309 HP range
Plugs and socket-outlets IEC 309 Standard

The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.

IP67

IK08

850 °C (active parts) - 650 °C (passive parts)

125 °C (active parts) - 80 °C (passive parts)

Technické informace

Informace
Stáhnout
Certifikáty
Colour Black
Rated current (A) 125
IP degree IP67
No. of poles 3P+E
Mechanical resistance IK08
Reference h 7
Rated voltage 480-500 V
Type 90° angled surface-mounting socket-outlet
Frequency 50/60 Hz
Terminal tightening capacity 16-50mm² flexible cables - 25-70mm² rigid cables
Operating temperature -25 +55 °C
Type of wiring With screw
Electrocod 2211
Glow wire test 850 °C (active parts) - 650 °C (passive parts)
Total number of operations > 500
Breaking capacity at 1.1 Un 156 A
Insulation resistance > 10 MΩ
Thermo-pressure with ball 125 °C (active parts) - 80 °C (passive parts)
Ware Number 85366990

Product Data Sheet

Technical characteristics - IT

Technical characteristics - DE

Technical characteristics - EN

Technical characteristics - ES

Reach Declaration

Display the certificate

CE marking

VYBAVENÍ A POZNÁMKY
CHARACTERISTICS: PG36 cable gland for 63A versions; PG48 cable gland for 125A versions. Versions with pilot contact. nickel-plated contacts.
NOTE: all products are packaged individually.
