EGO SMART PLATE - IN PAINTED TECHNOPOLYMER - 3 MODULES - STEEL - CHORUSMART

Kód: GW16003SST

Řada: CHORUSMART - Domestic range
EGO SMART plates

The EGO SMART plates go beyond pure aesthetics to become an element of interaction with the user and with other ChoruSmart system connected devices. Through RGB LED edge strips and a graphic display, the plates communicate operating statuses and alarms detected by other smart functions controlling your home. The EGO SMART and EGO plates, with their harmonious aesthetics, can be installed within the same system for a seamlessly designed look throughout the interior environment.

IP20

650 °C

70 °C

Technické informace

Informace

Stáhnout

Certifikáty

Colour Steel

Description 3 modules

For support codes GW16803N

Power supply Via one of the suitable connected devices installed within it or via dedicated power supply unit GWA1700

Standard 2014/35/EU, 2014/30/EU, 2011/65/EU + 2015/863, EN 62368-1, EN 55032, EN 55035, EN IEC 63000

Working temperature -5 ÷ +45 °C

Relative humidity (non-condensative) Max 93%

IP degree IP20

Functions System information/status with messages on the display and notifications by RGB LED strips.

Material Painted technopolymer

Finishing Opaque finish

Glow wire test 650 °C

Thermo-pressure with ball 70 °C

Family EGO SMART

User interface The plate is equipped with a dot-matrix display and RGB LED strips

Ware Number 85389099

Product Data Sheet

User guide

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Přejít do oblasti pro stahování Přejít do oblasti pro stahování

Conformity declaration

CE marking

VYBAVENÍ A POZNÁMKY

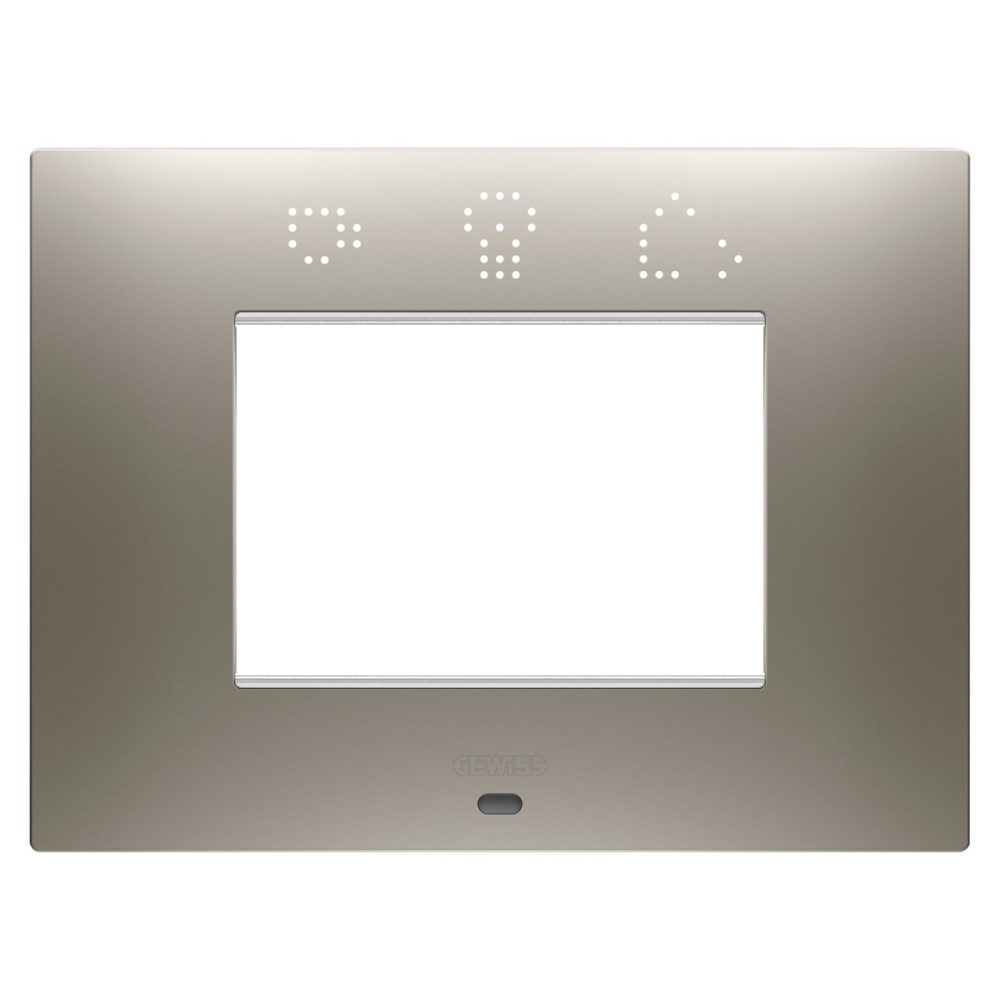

CHARACTERISTICS: matt finish, metallic effect. The plate has a dot-matrix display on the upper portion, RGB LED strips (along the outer and inner edges at the top and bottom) and a proximity sensor.
APPLICATIONS: visualisation of dynamic icons on the display indicating the functions associated with the devices installed in the plate; event/alarm signalling using the display (messages) and/or RGB led strips.
NOTES: the plate must be supplied with power by one of the following Smart devices, which must be installed in the same box as the plate: GWA1201, GWA1202, GWA1231, GWA1232, GWA1241, GWA1242 or GW1x826, or by a dedicated GWA1700 power supply. The connection cable from the plate to the device powering it is included in the plate package.
Codes not held as stock, for delivery times contact your local representative.
