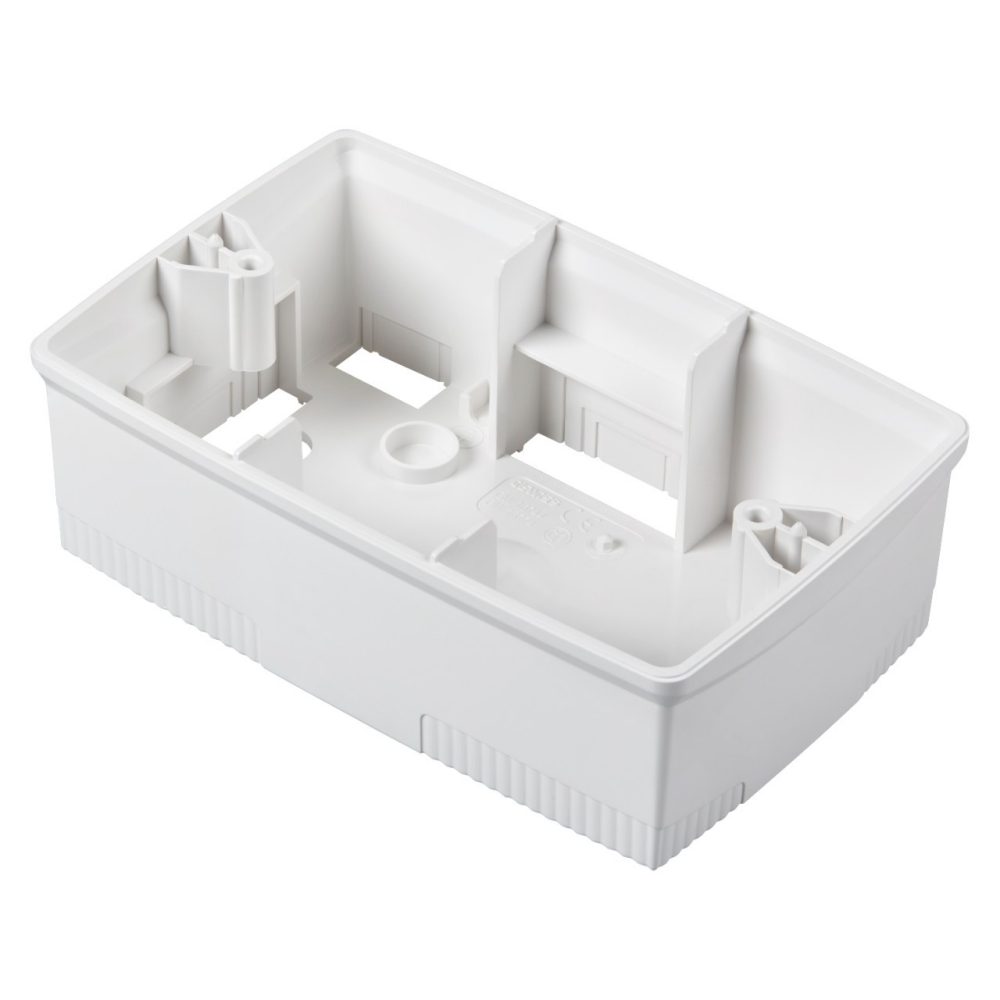

WALL-MOUNTING BOX FOR ONE PLATE - ITALIAN STANDARD 4 GANG - WHITE - CHORUSMART

Kód: GW16744

Řada: 24 SC Range
Flush-mounting, surface-mounting and underfloor boxes

Wide range of surface-mounting and flush-mounting boxes for domestic ranges with high mechanical robustness and accessories supplied: dividers, junction elements, mortarguard shield etc.. Completing the range, the distribution outlet boxes for floor-mounting installations can be personalised in terms of capacity, external design finish, and internal fittings (they take both System range components and DIN rail devices).

650 °C

70 °C

Technické informace

Informace

Stáhnout

Certifikáty

Description 4 modules

Colour Satin White

Characteristics Halogen free

Support GW16804

Suitable for plates ONE

Torque screws tightening 0.8 Newton/Meter

Outer dim. LxHxD (mm) 140x90x46

Glow wire test 650 °C

Thermo-pressure with ball 70 °C

Standard EN 60670-1

Installation temperature -5 +60 °C

Electrocod 0212

Ware Number 85381000

Product Data Sheet

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - DE

Technical characteristics - ES

Přejít do oblasti pro stahování Přejít do oblasti pro stahování

Display the certificate

CE marking

VYBAVENÍ A POZNÁMKY

CHARACTERISTICS: support and plate not included. Use ONE plates (interchangeability with the entire colour range of plates). Pre-arranged for mini-trunking with dimensions BxH (mm): 15x8, 15x10, 22x10, 30x15.
NOTES: fitted for fixing the earth terminal GW26407.
