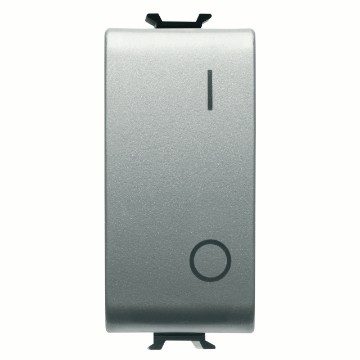

ONE-WAY SWITCH 2P 250V ac HEAVY DUTY - 25AX - NEUTRAL BUTTON - SYMBOL 0/1 - 1 MODULE - TITANIUM - CHORUSMART

Kód: GW14007
Řada: CHORUSMART - Domestic range
Glossy titanium modular devices
The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colors and finishes: glossy painted titanium, innovative and trendy.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.

125 °C

850 °C

Technické informace

Informace
Stáhnout
Certifikáty
Category One-way switch
Type of use Heavy duty
Colour Glossy Titanium
Description 2P - 25 AX
Voltage 250 V ac
Standard EN 60669-1
Resistance at test voltage 2000 V at 50 Hz for 1 minute
Rated power of 230V LED lamps 250 W
Insulation resistance > 5 MOhm
Wiring terminals With screw
Prolonged operation switch (no.of position changes) 40.000 at In 250 V ac cosφ=0,6
Thermo-pressure with ball 125 °C
Glow Wire Test 850 °C
Terminal grip on cable traction > 50 N
Terminal tightening capacity
stranded cables (mm²)
min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²)
min. 0,5 - max. 2x2,5
No. modules 1
Button key Neutral
Symbol 0/1
Material Technopolymer
Electrocod 0130
Ware Number 85365080

Product Data Sheet

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Conformity declaration

CE marking

VYBAVENÍ A POZNÁMKY
APPLICATIONS: suitable for particular heavy-duty loads (e.g. fluorescent lamp batteries) or high-consumption devices (e.g. ovens, air-conditioners, boilers, etc.).
