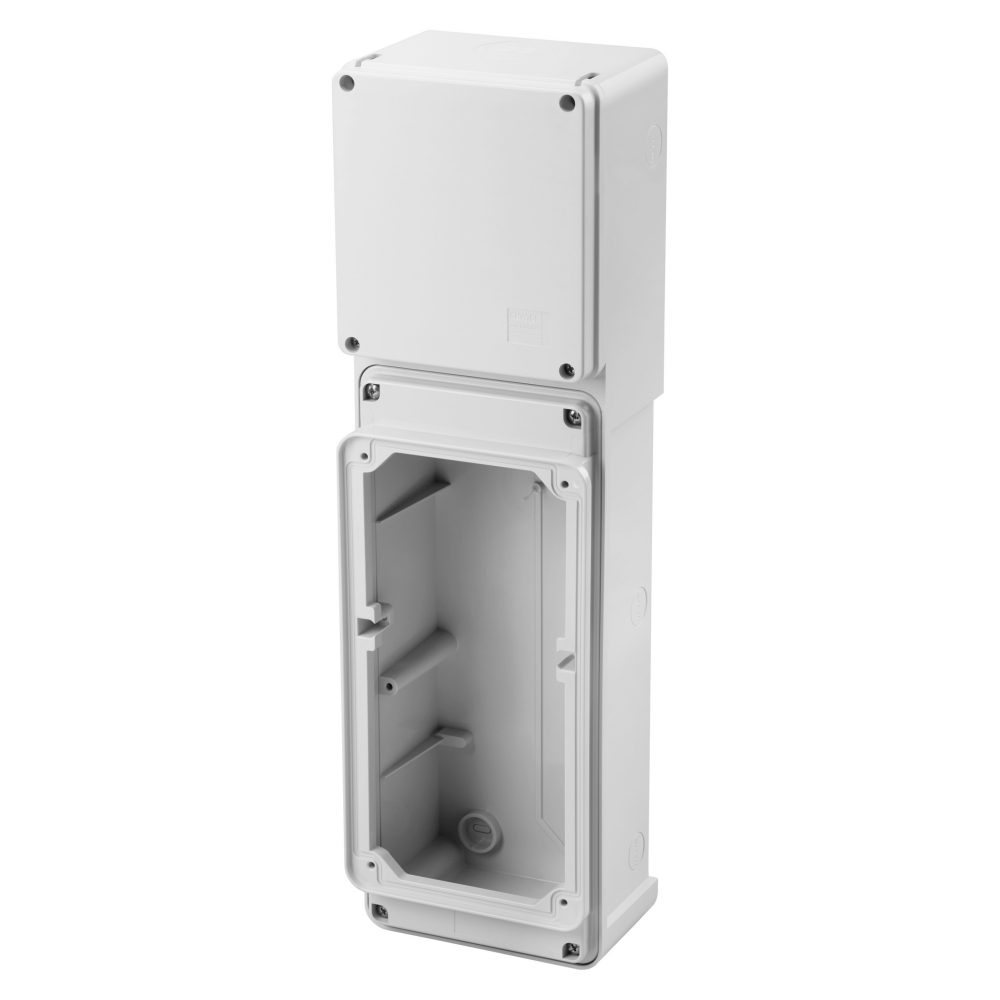

MODULAR BASE FOR COMBINATION MOUNTING OF VERTICAL INTERLOCKED SOCKET OUTLET - 1 SOCKET OUTLET 63A CBF - IP55

Code: GW66693
Range: IB Range
Interlocked socket-outlets IEC 309 standard
System of industrial socket-outlets for power distribution in the industrial and commercial sector, equipped with locking device, enabling the most varied professional requirements of installers and panel builder to be met. The IB range is composed of 4 product lines: IP67 standard vertical socket-outlets, IP66 vertical socket-outlets for heavy duty applications, IP44 horizontal socket-outlets and IP44 and IP55 compact socket-outlets.

650 °C

IP55

IK08

Technical Info

Information
Download
Software
Certificates
Top entries 2xØ 37/48
Glow Wire Test 650 °C
Houseable interloc. socket 1
IP degree IP55
Mechanical resistance IK08
Side entries 6xØ 23
Houseable IB socket-outlets 63 A
Electrocod 2221
Minimum installation temperature -25°C
Ware Number 85381000

Product Data Sheet

DXF drawing

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

CADpro

Advanced design of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

ENERGYpro

Boards for building sites, campings-piers and distribution

Show more

PRICE

Estimation of electrical systems

Show more

Display the certificate

CE marking

EQUIPMENT AND NOTES
NOTES: the bases for 16-32A can house interlocked switched socket-outlets with rotary (SBF), fuse-holder base (CBF) or Automatika.
ACCESSORIES SUPPLIED: 1 coupling device for combined assembly and 4 screwcaps for restoring double insulation.
GW66694: 1 blank lid for closing the socket-outlet compartment.
GW66693: already supplied with adapter for new 67IB 63A socket-outlets SBF/CBF.
