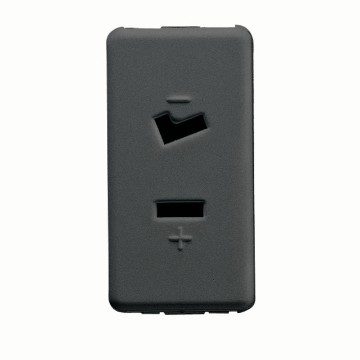

SELV SOCKET-OUTLET - 2P 6A 24V POLARIZED - 1 MODULE - SYSTEM BLACK
Code:
GW21234
Range: SYSTEM BLACK - Domestic range
Modular devices
Modular devices
The System modular devices allow the creation of infinite combinations of devices and plates, through a complete range that covers all design, functional and installation needs. Colours and finishes: satin black, elegant and classy. Ideal for flush-mounted solutions (for rectangular or square boxes), surface-mounted solutions and special applications. The range includes control units, socket-outlets, breakers, indicators, connectors and devices for the control, safety and comfort of your home.
125 °C
0 °C
Technical Info
Information
Download
Software
Certificates
Category
-
Description
2P - 6A - 24V polarized
For plug pins
Flat
Centre distance
12.4 mm
Thermo-pressure with ball
125 °C
Glow Wire Test
0 °C
Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4
stranded cables (mm²) min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5
solid cables (mm²) min. 0,5 - max. 2x2,5
Colour
Black
No. SYSTEM modules
1
Cable fixing
With screw
Case
Pressure casting zamak metal body
Material
Technopolymer
Electrocod
0131
Ware Number
85366990
