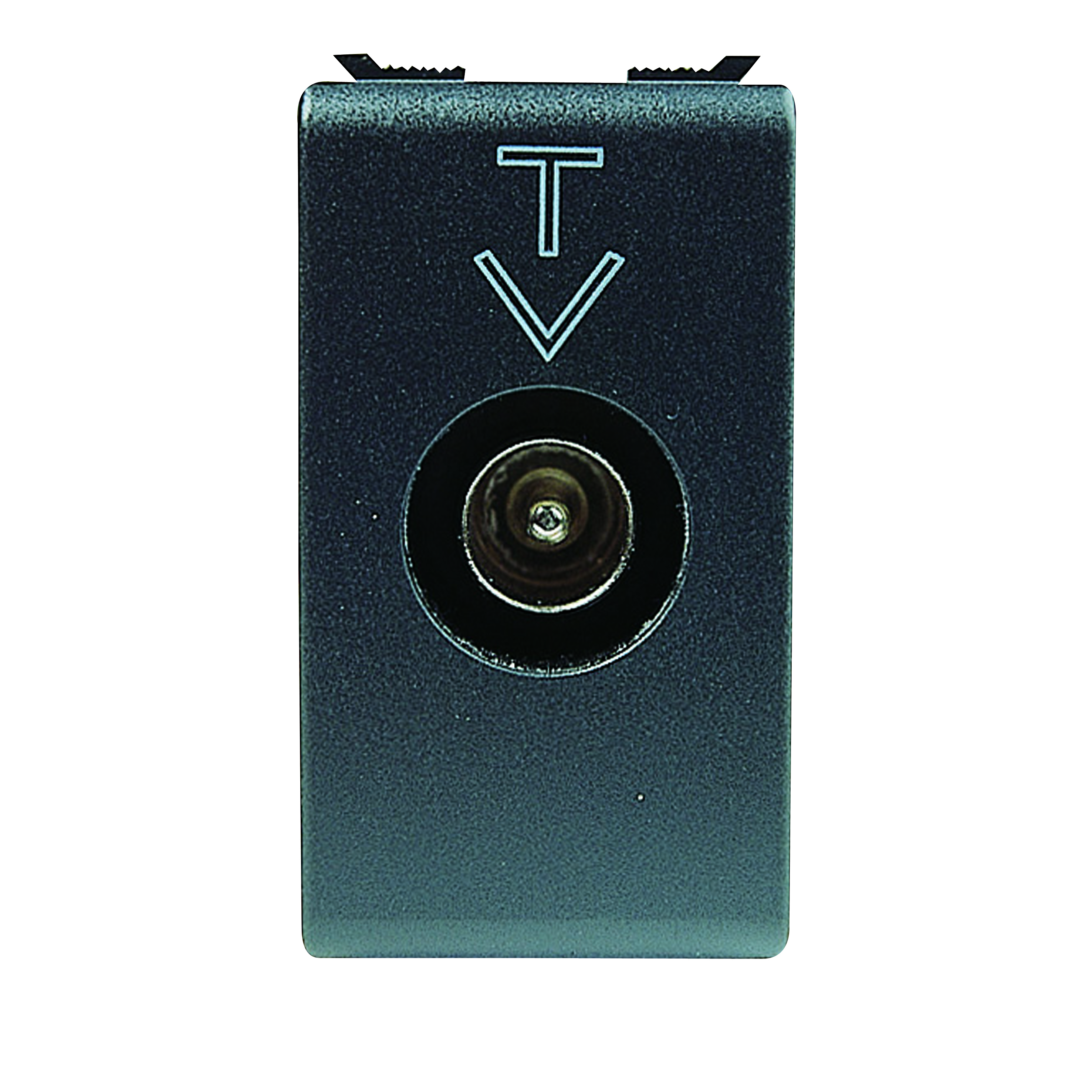

COAXIAL SOCKET-OUTLET TV CLASS A SHIELDING - IEC MALE CONNECTOR 9,9 mm - FEEDTHROUGH 5 dB - 1 MODULE - PLAYBUS

Code: GW30306
Range: PLAYBUS - Domestic range
Modular devices
A range of modular devices for domestic and similar uses; can be composed on frames for rectangular flush-mounting boxes of up to 18 modules, or on square versions.
Colours and finishes: satin black, elegant and classy. The range includes commands, socket-outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.

Technical Info

Information
Download
Software
Certificates
Description Through wiring
Attenuation 5 dB
No. Playbus modules 1
Ware Number 85366910

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

User guide

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

PRICE

Estimation of electrical systems

Show more

CADpro

Advanced design of electrical systems

Show more

CE marking

Related products

Gewiss Code
Description
Type
Attenuation
No. Playbus modules

GW30301

Direct

With passage of current

0 dB

1

GW30306

Through wiring

-

5 dB

1

GW20277

Terminal resistance 75 ohm

-

-

-

EQUIPMENT AND NOTES
CHARACTERISTICS: GW30301 permits carrying a remote power supply voltage/current and/or control signals towards the user port (max 24 V - 500 mA). GW20277 in combination with feedthrough socket-outlets allows you to make terminal socket-outlets.
APPLICATIONS: Socket-outlets suitable for return channel.
NOTES: the TV 5 dB GW30306 coaxial socket-outlet is defined with conditioned use, it is a special through socket-outlet and as such must be used, with the only difference that the user door (socket-outlet towards the user device) must always be closed with a load of 75 Ohm (TV, VCR, SAT receiver or 75-Ohm termination).
