JOINON Range
Range Electric vehicle charging components - Type2

Range of charging cables and socket Type2 for electric vehicles in compliance with international standard IEC 62196-1 e IEC 62196-2 and suitable for EV charging units as required by standard IEC 61851.The range includes, charging cable for electric vehicles, mobile connect Type2 with and without attached cable, and flushmounting Socket type2 equipped with security shutters (IPXXD protection), double drain system for water, vandal-proof mechanism and by a locking actuator that has the double aim to block gate-valves and to lock the plug during the charging session.

Benefits
Easy charging with one-hand system
LED lighting
Easy charging with one-hand system
Easy charging with one-hand system
Vandal-proof socket with shutter and without cover, designed to facilitate the start of charging with the one-hand system
LED lighting
LED lighting
The socket is also available in versions with an INTERMITTENT LED lighting system, to facilitate cable insertion, or RGB LED, to highlight the socket status indicator.

The products of this series

Navigate by catalogue
All filters
39 products
Grid
List

Type 2 charging cables for electric vehicles

Flat Charging cables

Category
Monophase

Change category

Change category

Cod Gewiss
I max (A)
Power max.
Voltage
Frequency
Cable length
Number of poles
JOINON - CORDSET - T2-T2 1P - 20A - 5M FLAT CABLE
GWJ5815BL
20 A
4,6 kW
230/250 V
50 - 60 Hz
5 m
L1 - N - PE - CC - CP
JOINON - CORDSET - T2-T2 1P - 20A - 8M FLAT CABLE
GWJ5818BL
20 A
4,6 kW
230/250 V
50 - 60 Hz
8 m
L1 - N - PE - CC - CP
JOINON - CORDSET - T2-T2 1P - 32A - 5M FLAT CABLE
GWJ5815CL
32 A
7,4 kW
230/250 V
50 - 60 Hz
5 m
L1 - N - PE - CC - CP
JOINON - CORDSET - T2-T2 1P - 32A - 8M FLAT CABLE
GWJ5818CL
32 A
7,4 kW
230/250 V
50 - 60 Hz
8 m
L1 - N - PE - CC - CP
JOINON - CORDSET - T2-T2 1P - 20A - 5M FLAT CABLE
GWJ5815BL
JOINON - CORDSET - T2-T2 1P - 20A - 5M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 1P - 20A - 8M FLAT CABLE
GWJ5818BL
JOINON - CORDSET - T2-T2 1P - 20A - 8M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 1P - 32A - 5M FLAT CABLE
GWJ5815CL
JOINON - CORDSET - T2-T2 1P - 32A - 5M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 1P - 32A - 8M FLAT CABLE
GWJ5818CL
JOINON - CORDSET - T2-T2 1P - 32A - 8M FLAT CABLE
Show
Cod Gewiss
I max (A)
Power max.
Voltage
Frequency
Cable length
Number of poles
JOINON - CORDSET - T2-T2 3P - 16A - 5M FLAT CABLE
GWJ5835AL
16 A
11 kW
380/480 V
50 - 60 Hz
5 m
L1/L2/L3 - N- PE - CC - CP
JOINON - CORDSET - T2-T2 3P - 16A - 8M FLAT CABLE
GWJ5838AL
16 A
11 kW
380/480 V
50 - 60 Hz
8 m
L1/L2/L3 - N- PE - CC - CP
JOINON - CORDSET - T2-T2 3P - 32A - 5M FLAT CABLE
GWJ5835CL
32 A
22 kW
380/480 V
50 - 60 Hz
5 m
L1/L2/L3 - N- PE - CC - CP
JOINON - CORDSET - T2-T2 3P - 32A - 8M FLAT CABLE
GWJ5838CL
32 A
22 kW
380/480 V
50 - 60 Hz
8 m
L1/L2/L3 - N- PE - CC - CP
JOINON - CORDSET - T2-T2 3P - 16A - 5M FLAT CABLE
GWJ5835AL
JOINON - CORDSET - T2-T2 3P - 16A - 5M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 3P - 16A - 8M FLAT CABLE
GWJ5838AL
JOINON - CORDSET - T2-T2 3P - 16A - 8M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 3P - 32A - 5M FLAT CABLE
GWJ5835CL
JOINON - CORDSET - T2-T2 3P - 32A - 5M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 3P - 32A - 8M FLAT CABLE
GWJ5838CL
JOINON - CORDSET - T2-T2 3P - 32A - 8M FLAT CABLE
Show
Cod Gewiss
I max (A)
Power max.
Voltage
Frequency
Cable length
Number of poles
JOINON - CORDSET - T2-T2 1P - 32A - 5M FLAT CABLE
GWJ5815EV
32 A
7,4 kW
230/250 V
50 - 60 Hz
5 m
L1 - N - PE - CC - CP
JOINON - CORDSET - T2-T2 1P - 32A - 8M FLAT CABLE
GWJ5818EV
32 A
7,4 kW
230/250 V
50 - 60 Hz
8 m
L1 - N - PE - CC - CP
JOINON - CORDSET - T2-T2 3P - 32A - 5M FLAT CABLE
GWJ5835EV
32 A
22 kW
380/480 V
50 - 60 Hz
5 m
L1/L2/L3 - N- PE - CC - CP
JOINON - CORDSET - T2-T2 3P - 32A - 8M FLAT CABLE
GWJ5838EV
32 A
22 kW
380/480 V
50 - 60 Hz
8 m
L1/L2/L3 - N- PE - CC - CP
JOINON - CORDSET - T2-T2 1P - 32A - 5M FLAT CABLE
GWJ5815EV
JOINON - CORDSET - T2-T2 1P - 32A - 5M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 1P - 32A - 8M FLAT CABLE
GWJ5818EV
JOINON - CORDSET - T2-T2 1P - 32A - 8M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 3P - 32A - 5M FLAT CABLE
GWJ5835EV
JOINON - CORDSET - T2-T2 3P - 32A - 5M FLAT CABLE
Show
JOINON - CORDSET - T2-T2 3P - 32A - 8M FLAT CABLE
GWJ5838EV
JOINON - CORDSET - T2-T2 3P - 32A - 8M FLAT CABLE
Show

Spiral charging cables

Category
Threephase

Change category

Change category

Cod Gewiss
I max (A)
Power max.
Voltage
Frequency
Cable length
Number of poles

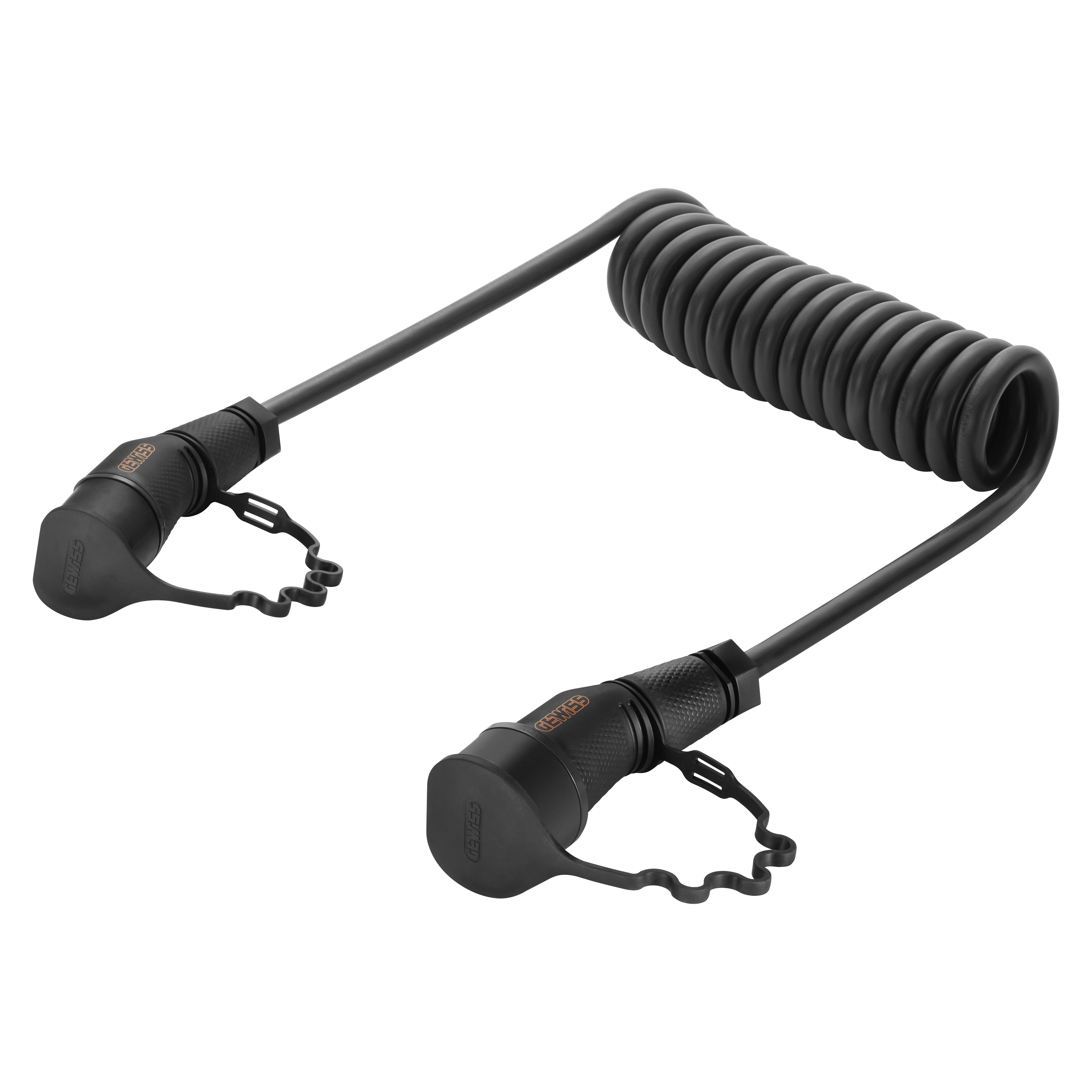

JOINON - CORDSET - T2-T2 1P - 32A - 4M SPIRAL CABLE
GWJ5814CT
32 A
7,4 kW
230/250 V
50 - 60 Hz
4 m
L1 - N - PE - CC - CP
JOINON - CORDSET - T2-T2 3P - 32A - 4M SPIRAL CABLE
GWJ5834CT
32 A
22 kW
380/480 V
50 - 60 Hz
4 m
L1/L2/L3 - N- PE - CC - CP
JOINON - CORDSET - T2-T2 1P - 32A - 4M SPIRAL CABLE
GWJ5814CT
JOINON - CORDSET - T2-T2 1P - 32A - 4M SPIRAL CABLE
Show
JOINON - CORDSET - T2-T2 3P - 32A - 4M SPIRAL CABLE
GWJ5834CT
JOINON - CORDSET - T2-T2 3P - 32A - 4M SPIRAL CABLE
Show

Accessories for charging cable

Category
Accessories

Change category

Change category

Cod Gewiss
Description

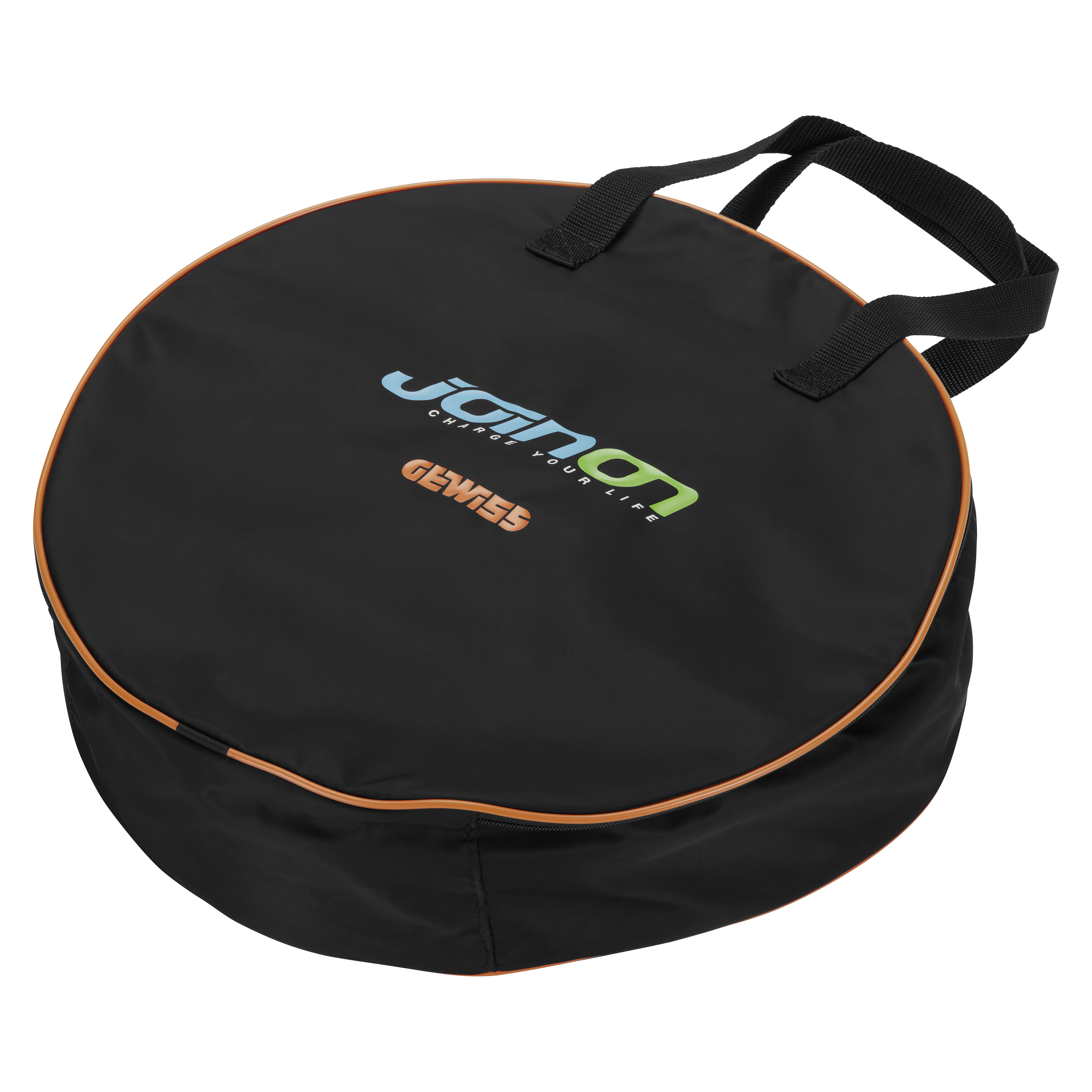

JOINON - CORDSET - BAG GEWISS
GWJ5913
Cable bag in waterproof fabric made from recycled material
JOINON - CORDSET - BAG GEWISS
GWJ5913
JOINON - CORDSET - BAG GEWISS
Show
You saw 15 products on 39
Show others
