SMART [3] PLUS- LED watertight luminaires

SMART [3] PLUS
LED watertight luminaires

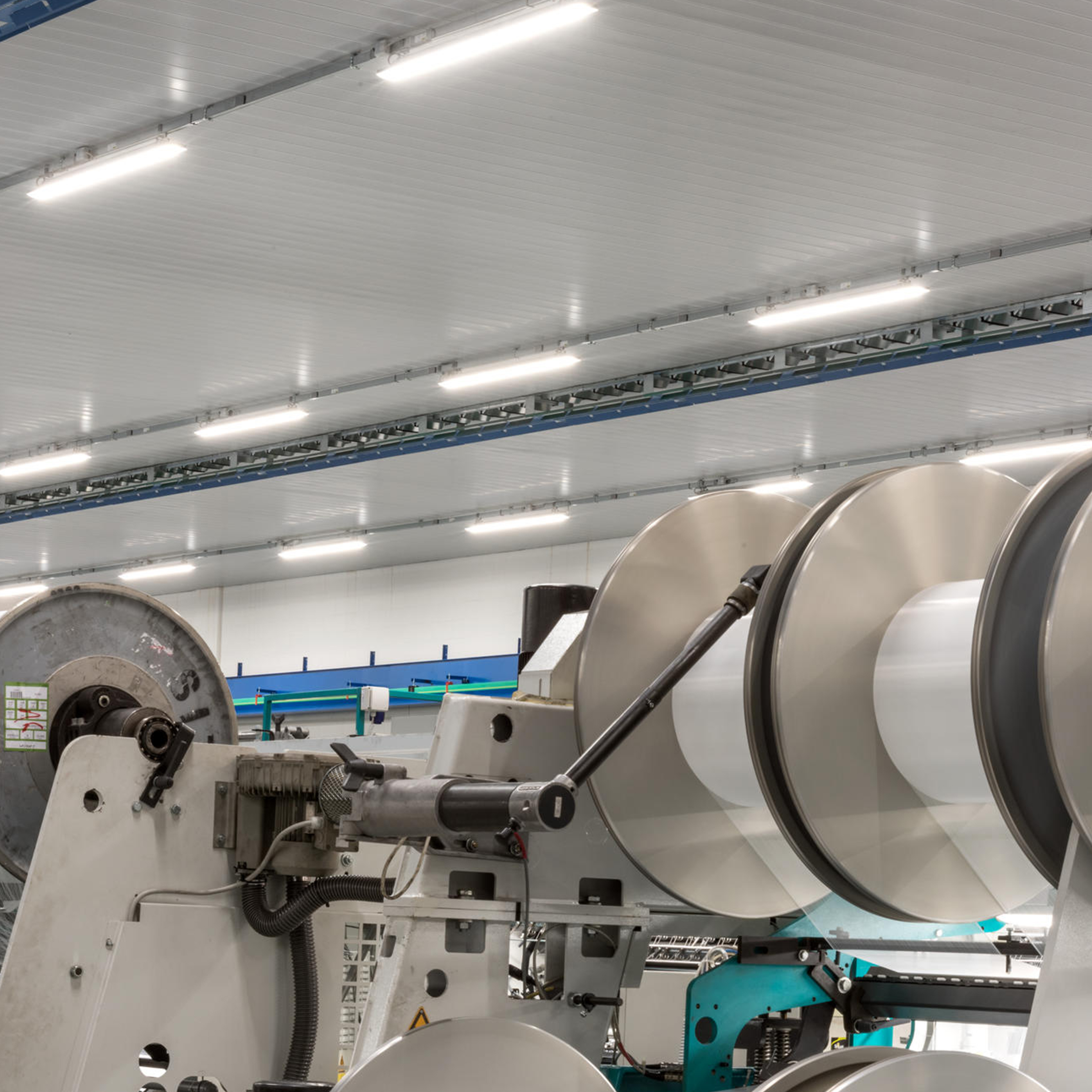

Smart [3] Plus is a range of watertight LED luminaires entirely made of polycarbonate. Suitable for industrial applications with heights of 2 to 9 metres, it has been fully designed, developed and manufactured in Italy. It features an elegant design that makes the best use of the new LED technology with its exceptionally low energy consumption, high impact resistance and ease and speed of installation. It can replace high-flow and low bay fluorescents up to 10,000 lm. Thanks to the high light flows, it is possible to reduce the number of installed devices while maintaining the same level of lighting.

See all product
Benefits
Modularity
Connectivity
Flexibility
Modularity
Modularity
Smart [3] Plus is available in three sizes and in a Stand Alone version or with through wiring for quick and easy installation and modular in-line or group assembly.
Connectivity
Connectivity
Smart [3] Plus is designed to communicate with IoT systems that allow you to monitor consumption, power, programming, and perform efficiency testing, for an increasingly SMART system.
Flexibility
Flexibility
Thanks to the different wattages and high-efficiency versions, the range is able to meet any lighting requirement and application.

The products of this series

Navigate by catalogue
All filters
310 products
Grid
List

SMART[3] PLUS - Watertight luminaires for industry 4.0

SMART[3] PLUS - 800

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3120AP830
ON / OFF
Stand alone
3000 K
CRI>80
3500
25 W
1.7
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3120AP840
ON / OFF
Stand alone
4000 K
CRI>80
3700
25 W
1.7
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3120AP857
ON / OFF
Stand alone
5700 K
CRI>80
3700
25 W
1.7
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3120AP930
ON / OFF
Stand alone
3000 K
CRI>90
2700
25 W
1.7
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3120AP940
ON / OFF
Stand alone
4000 K
CRI>90
2900
25 W
1.7
See all
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3120AP830
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3120AP840
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3120AP857
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3120AP930
SMART[3] PLUS - 800 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3120AT830
ON / OFF
Stand alone
3000 K
CRI>80
3700
25 W
1.7
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3120AT840
ON / OFF
Stand alone
4000 K
CRI>80
3900
25 W
1.7
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3120AT857
ON / OFF
Stand alone
5700 K
CRI>80
3900
25 W
1.7
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3120AT930
ON / OFF
Stand alone
3000 K
CRI>90
2900
25 W
1.7
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3120AT940
ON / OFF
Stand alone
4000 K
CRI>90
3100
25 W
1.7
See all
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3120AT830
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3120AT840
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3120AT857
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3120AT930
SMART[3] PLUS - 800 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all

SMART[3] PLUS - 1200

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3220AP830
ON / OFF
Stand alone
3000 K
CRI>80
5100
36 W
2.4
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3220AP840
ON / OFF
Stand alone
4000 K
CRI>80
5400
36 W
2.4
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3220AP857
ON / OFF
Stand alone
5700 K
CRI>80
5400
36 W
2.4
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3220AP930
ON / OFF
Stand alone
3000 K
CRI>90
4000
36 W
2.4
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3220AP940
ON / OFF
Stand alone
4000 K
CRI>90
4200
36 W
2.4
See all
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3220AP830
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3220AP840
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3220AP857
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3220AP930
SMART[3] PLUS - 1200 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3220AT830
ON / OFF
Stand alone
3000 K
CRI>80
5400
36 W
2.4
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3220AT840
ON / OFF
Stand alone
4000 K
CRI>80
5700
36 W
2.4
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3220AT857
ON / OFF
Stand alone
5700 K
CRI>80
5700
36 W
2.4
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3220AT930
ON / OFF
Stand alone
3000 K
CRI>90
4200
36 W
2.4
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3220AT940
ON / OFF
Stand alone
4000 K
CRI>90
4500
36 W
2.4
See all
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3220AT830
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3220AT840
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3220AT857
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3220AT930
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all

SMART[3] PLUS - 1200 Integrated Emergency

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3225AP830
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>80
5100 (560 Em.)
38W (+5W Emerg.)
2.8
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3225AP840
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>80
5400 (600 Em.)
38W (+5W Emerg.)
2.8
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3225AP857
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
5700 K
CRI>80
5400 (600 Em.)
38W (+5W Emerg.)
2.8
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3225AP930
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>90
4000 (440 Em.)
38W (+5W Emerg.)
2.8
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>90
GWS3225AP940
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>90
4200 (460 Em.)
38W (+5W Emerg.)
2.8
See all
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3225AP830
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
Show
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3225AP840
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
Show
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3225AP857
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
Show
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3225AP930
SMART[3] PLUS - 1200 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
Show
See all
Cod Gewiss
Control System
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3225AT830
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>80
5400 (600 Em.)
38W (+5W Emerg.)
2.8
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3225AT840
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>80
5700 (630 Em.)
38W (+5W Emerg.)
2.8
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3225AT857
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
5700 K
CRI>80
5700 (630 Em.)
38W (+5W Emerg.)
2.8
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3225AT930
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>90
4200 (460 Em.)
38W (+5W Emerg.)
2.8
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>90
GWS3225AT940
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>90
4500 (500 Em.)
38W (+5W Emerg.)
2.8
See all
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3225AT830
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
Show
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3225AT840
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
Show
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3225AT857
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
Show
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3225AT930
SMART[3] PLUS - 1200 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
Show
See all

SMART[3] PLUS - 1600

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Transparent diffuser with medium beam
Transparent diffuser with elliptic beam
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320AP830
ON / OFF
Stand alone
3000 K
CRI>80
6800
46 W
3.8
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320AP840
ON / OFF
Stand alone
4000 K
CRI>80
7100
46 W
3.8
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320AP857
ON / OFF
Stand alone
5700 K
CRI>80
7100
46 W
3.8
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320AP930
ON / OFF
Stand alone
3000 K
CRI>90
5300
46 W
3.8
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3320AP940
ON / OFF
Stand alone
4000 K
CRI>90
5600
46 W
3.8
See all
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320AP830
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320AP840
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320AP857
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320AP930
SMART[3] PLUS - 1600 - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320AT830
ON / OFF
Stand alone
3000 K
CRI>80
7100
46 W
3.8
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320AT840
ON / OFF
Stand alone
4000 K
CRI>80
7500
46 W
3.8
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320AT857
ON / OFF
Stand alone
5700 K
CRI>80
7500
46 W
3.8
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320AT930
ON / OFF
Stand alone
3000 K
CRI>90
5500
46 W
3.8
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3320AT940
ON / OFF
Stand alone
4000 K
CRI>90
5900
46 W
3.8
See all
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320AT830
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320AT840
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320AT857
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320AT930
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320AC830
ON / OFF
Stand alone
3000 K
CRI>80
6700
46 W
4
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320AC840
ON / OFF
Stand alone
4000 K
CRI>80
7100
46 W
4
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320AC857
ON / OFF
Stand alone
5700 K
CRI>80
7100
46 W
4
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320AC930
ON / OFF
Stand alone
3000 K
CRI>90
5200
46 W
4
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3320AC940
ON / OFF
Stand alone
4000 K
CRI>90
5600
46 W
4
See all
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320AC830
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320AC840
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320AC857
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320AC930
SMART[3] PLUS - 1600 - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320AB830
ON / OFF
Stand alone
3000 K
CRI>80
6200
46 W
4
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320AB840
ON / OFF
Stand alone
4000 K
CRI>80
6600
46 W
4
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320AB857
ON / OFF
Stand alone
5700 K
CRI>80
6600
46 W
4
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - FEEDTROUGH - 3.000K CRI>80
GWS3322AB830
ON / OFF
Through wiring
3000 K
CRI>80
6200
46 W
4
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - FEEDTROUGH - 4.000K CRI>80
GWS3322AB840
ON / OFF
Through wiring
4000 K
CRI>80
6600
46 W
4
See all
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320AB830
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320AB840
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320AB857
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - FEEDTROUGH - 3.000K CRI>80
GWS3322AB830
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - FEEDTROUGH - 3.000K CRI>80
Show
See all

SMART[3] PLUS - 1600 Integrated Emergency

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Transparent diffuser with elliptic beam
Cod Gewiss
Control System
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3325AP830
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>80
6800 (560 Em.)
50W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3325AP840
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>80
7100 (600 Em.)
50W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3325AP857
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
5700 K
CRI>80
7100 (600 Em.)
50W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3325AP930
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>90
5600 (460 Em.)
50W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>90
GWS3325AP940
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>90
5600 (460 Em.)
50W (+5W Emerg.)
4.2
See all
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3325AP830
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
Show
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3325AP840
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
Show
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3325AP857
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
Show
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3325AP930
SMART[3] PLUS - 1600 - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
Show
See all
Cod Gewiss
Control System
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3325AT830
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>80
7100 (600 Em.)
50W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3325AT840
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>80
7500 (630 Em.)
50W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3325AT857
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
5700 K
CRI>80
7500 (630 Em.)
50W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3325AT930
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>90
5500 (460 Em.)
50W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>90
GWS3325AT940
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>90
5900 (500 Em.)
50W (+5W Emerg.)
4.2
See all
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3325AT830
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3325AT840
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3325AT857
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3325AT930
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
Show
See all
Cod Gewiss
Control System
Colour temperature
Colour Rendering Index
Lumen output (lm)
Luminous flux in emerg. [lm]
System power
Weight (kg)
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4.000K - CRI>80
GWS3325AB840
DALI
4000 K
CRI>80
6600 (550 Em.)
550
50W (+5W Emerg.)
4.4
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5.700K - CRI>80
GWS3325AB857
DALI
5700 K
CRI>80
6600 (550 Em.)
550
50W (+5W Emerg.)
4.4
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4.000K - CRI>80
GWS3325AB840
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4.000K - CRI>80
Show
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5.700K - CRI>80
GWS3325AB857
SMART[3] PLUS - 1600 - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5.700K - CRI>80
Show

SMART[3] PLUS - 1600 HLO

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Transparent diffuser with medium beam
Transparent diffuser with elliptic beam
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320BP830
ON / OFF
Stand alone
3000 K
CRI>80
8500
61 W
3.8
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320BP840
ON / OFF
Stand alone
4000 K
CRI>80
9000
61 W
3.8
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320BP857
ON / OFF
Stand alone
5700 K
CRI>80
9000
61 W
3.8
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320BP930
ON / OFF
Stand alone
3000 K
CRI>90
6600
61 W
3.8
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3320BP940
ON / OFF
Stand alone
4000 K
CRI>90
7100
61 W
3.8
See all
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320BP830
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320BP840
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320BP857
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320BP930
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320BT830
ON / OFF
Stand alone
3000 K
CRI>80
8900
61 W
3.8
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320BT840
ON / OFF
Stand alone
4000 K
CRI>80
9400
61 W
3.8
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320BT857
ON / OFF
Stand alone
5700 K
CRI>80
9400
61 W
3.8
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320BT930
ON / OFF
Stand alone
3000 K
CRI>90
6900
61 W
3.8
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3320BT940
ON / OFF
Stand alone
4000 K
CRI>90
7400
61 W
3.8
See all
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320BT830
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320BT840
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320BT857
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320BT930
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320BC830
ON / OFF
Stand alone
3000 K
CRI>80
8500
61 W
4
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320BC840
ON / OFF
Stand alone
4000 K
CRI>80
8900
61 W
4
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320BC857
ON / OFF
Stand alone
5700 K
CRI>80
8900
61 W
4
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320BC930
ON / OFF
Stand alone
3000 K
CRI>90
6600
61 W
4
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>90
GWS3320BC940
ON / OFF
Stand alone
4000 K
CRI>90
7100
61 W
4
See all
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320BC830
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320BC840
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320BC857
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
GWS3320BC930
SMART[3] PLUS - 1600 HLO - MEDIUM BEAM TRANSPARENT DIFFUSER - ON / OFF - STAND ALONE - 3.000K CRI>90
Show
See all
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320BB830
ON / OFF
Stand alone
3000 K
CRI>80
7800
61 W
4
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320BB840
ON / OFF
Stand alone
4000 K
CRI>80
8200
61 W
4
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320BB857
ON / OFF
Stand alone
5700 K
CRI>80
8200
61 W
4
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - FEEDTROUGH - 3.000K CRI>80
GWS3322BB830
ON / OFF
Through wiring
3000 K
CRI>80
7800
61 W
4
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - FEEDTROUGH - 4.000K CRI>80
GWS3322BB840
ON / OFF
Through wiring
4000 K
CRI>80
8200
61 W
4
See all
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 3.000K CRI>80
GWS3320BB830
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 3.000K CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 4.000K CRI>80
GWS3320BB840
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 4.000K CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 5.700K CRI>80
GWS3320BB857
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - STAND ALONE - 5.700K CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - FEEDTROUGH - 3.000K CRI>80
GWS3322BB830
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - ON / OFF - FEEDTROUGH - 3.000K CRI>80
Show
See all

SMART[3] PLUS - 1600 HLO Integrated Emergency

Category
Opal diffuser

Change category

Change category

Opal diffuser
Transparent diffuser
Transparent diffuser with elliptic beam
Cod Gewiss
Control System
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3325BP830
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>80
8500 (560 Em.)
63W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3325BP840
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>80
9000 (600 Em.)
63W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3325BP857
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
5700 K
CRI>80
9000 (600 Em.)
63W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3325BP930
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>90
6600 (440 Em.)
63W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>90
GWS3325BP940
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>90
7100 (460 Em.)
63W (+5W Emerg.)
4.2
See all
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3325BP830
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
Show
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3325BP840
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
Show
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3325BP857
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
Show
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3325BP930
SMART[3] PLUS - 1600 HLO - OPAL DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
Show
See all
Cod Gewiss
Control System
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3325BT830
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>80
8900 (600 Em.)
63W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3325BT840
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>80
9400 (630 Em.)
63W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3325BT857
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
5700 K
CRI>80
9400 (630 Em.)
63W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3325BT930
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
3000 K
CRI>90
6900 (460 Em.)
63W (+5W Emerg.)
4.2
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>90
GWS3325BT940
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>90
7400 (500 Em.)
63W (+5W Emerg.)
4.2
See all
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
GWS3325BT830
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
GWS3325BT840
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4000K - CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
GWS3325BT857
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5700K - CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
GWS3325BT930
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 3000K - CRI>90
Show
See all
Cod Gewiss
Control System
Colour temperature
Colour Rendering Index
Lumen output (lm)
Luminous flux in emerg. [lm]
System power
Weight (kg)
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4.000K - CRI>80
GWS3325BB840
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
4000 K
CRI>80
8200(550 Em.)
550
63W (+5W Emerg.)
4.4
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5.700K - CRI>80
GWS3325BB857
1 x DALI DT6 + 1 x DALI DT1 (Emerg. 3h)
5700 K
CRI>80
8200(550 Em.)
550
63W (+5W Emerg.)
4.4
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4.000K - CRI>80
GWS3325BB840
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 4.000K - CRI>80
Show
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5.700K - CRI>80
GWS3325BB857
SMART[3] PLUS - 1600 HLO - TRANSPARENT DIFFUSER WITH ELLIPTIC  BEAM - INTEGRATED EMERGENCY - DALI DT1 - 3h DT6 - 5.700K - CRI>80
Show

SMART[3] PLUS - Complementary items

Category
Complements for installation

Change category

Change category

Complements for installation
Emergency kit
Cod Gewiss
Description
SMART [3] - WALL-MOUNTING BRACKET 30°/45°
GWS3191
Pair of brackets for fixing to the wall at 30° or 45°
SMART [3] - MALE CONNECTOR 4 POLES 10A
GWS3194
4P 10 A male connector
SMART [3] - RIGID PIPE ADAPTOR
GWS3193
Flexible connector for 20 mm pipe
SMART [3] - CONTINUOUS LINE CONNECTION KIT
GWS3197
Continuous line connection kit
SMART [3] - RINA BRACKET KIT
GWS3296
RINA collars kit for Smart [3]
SMART [3] - WALL-MOUNTING BRACKET 30°/45°
GWS3191
SMART [3] - WALL-MOUNTING BRACKET 30°/45°
Show
SMART [3] - MALE CONNECTOR 4 POLES 10A
GWS3194
SMART [3] - MALE CONNECTOR 4 POLES 10A
Show
SMART [3] - RIGID PIPE ADAPTOR
GWS3193
SMART [3] - RIGID PIPE ADAPTOR
Show
SMART [3] - CONTINUOUS LINE CONNECTION KIT
GWS3197
SMART [3] - CONTINUOUS LINE CONNECTION KIT
Show
See all
Cod Gewiss
Description
SMART [3] - EMERGENCY KIT 3H FOR THROUGH WIRING VERSION
GWS3198
Smart [3] emergency kit - through wiring
SMART [3] - EMERGENCY KIT 3H FOR THROUGH WIRING VERSION
GWS3198
SMART [3] - EMERGENCY KIT 3H FOR THROUGH WIRING VERSION
Show
You saw 310 products on 310

Applications

services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy text has been changed. Please consent again

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website
