Installation MAVIL trunkings SP Range- Supports and accessories

SP Range
Supports and accessories

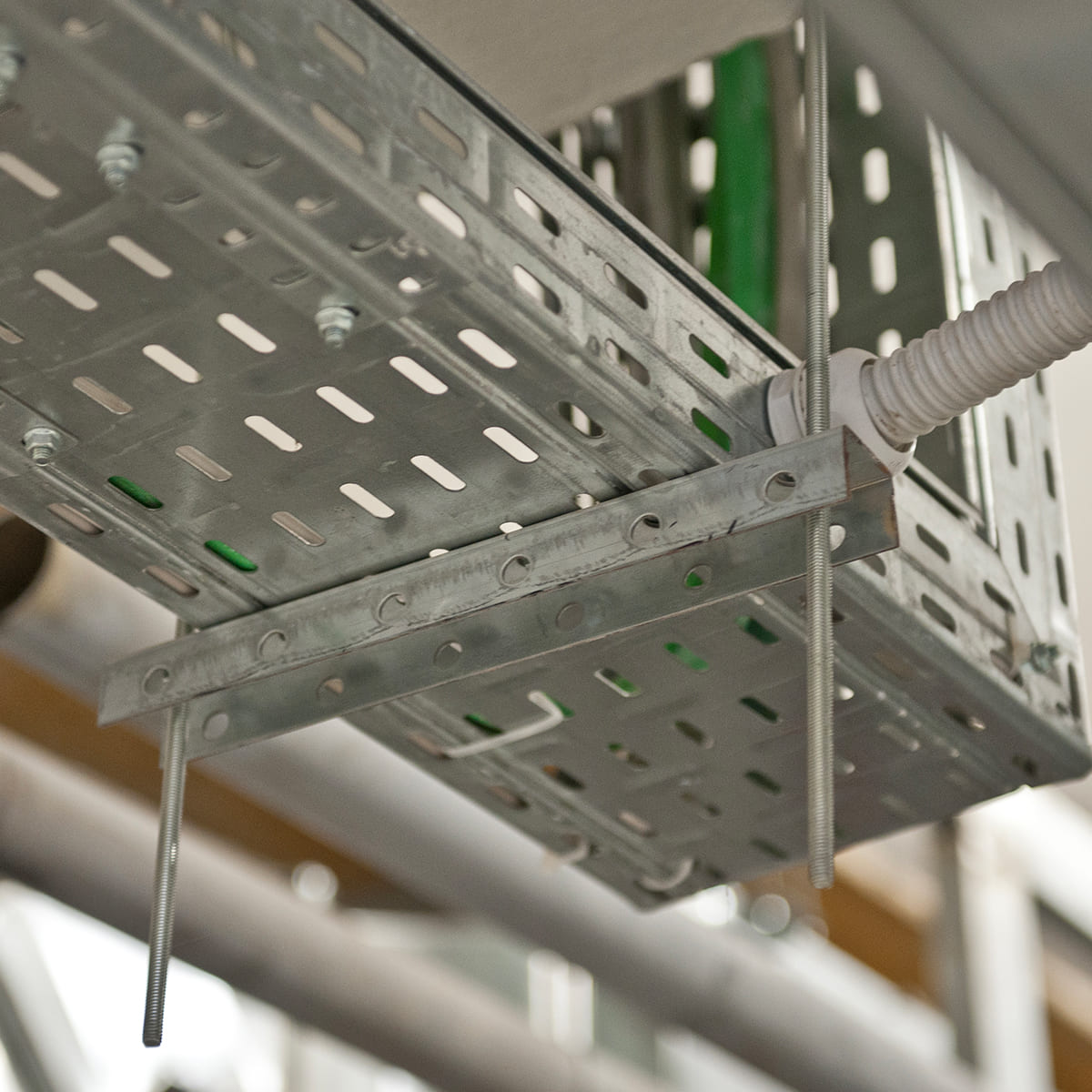

The GEWISS cable trunking system is completed by the range of installation supports for walls and ceilings, with universal connections, for quick installation and system reliability.

See all product
Benefits
A rational range
Convenience and cost-effectiveness
High-performance supports
A rational range
A rational range
Supports and brackets usable on all trunkings are divided by intended use: light, medium and heavy loads.
Convenience and cost-effectiveness
Convenience and cost-effectiveness
Quick-fit shelves, notched profiles for fast and secure attachment, and tool-free attachment accessories.
High-performance supports
High-performance supports
With the MAVISTRUT supports, the bracket snaps onto the notched profile with no need for bolts. Simple, fast, and secure locking. With the TRISIGMA version, the supports are bolted to ensure maximum hold (up to 450 kg).

The products of this series

Navigate by catalogue
All filters
738 products
Grid
List

Profiles and supports for light loads

Profiles

Category

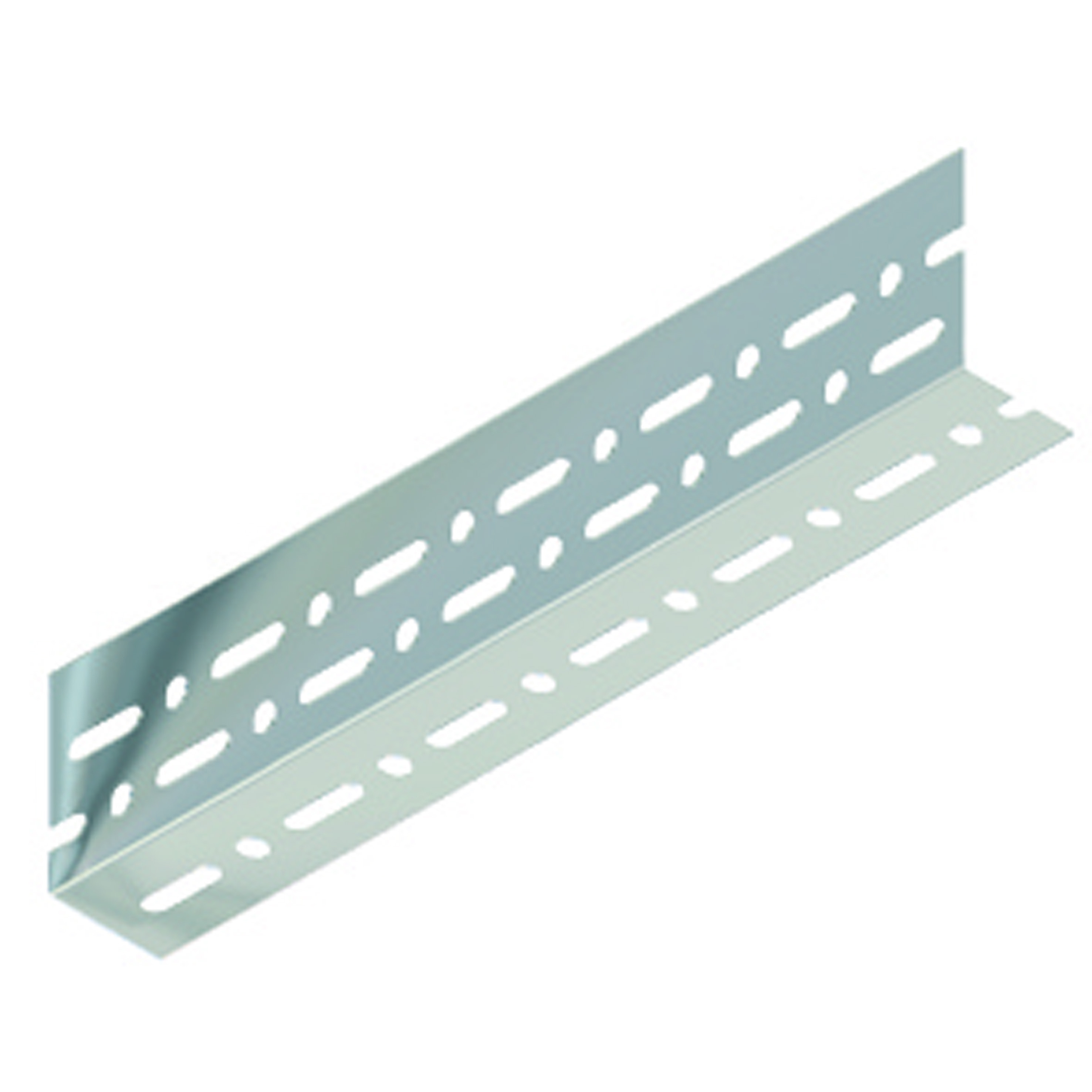

Profile type Z - 3 metres

Change category

Change category

Profile type Z - 3 metres

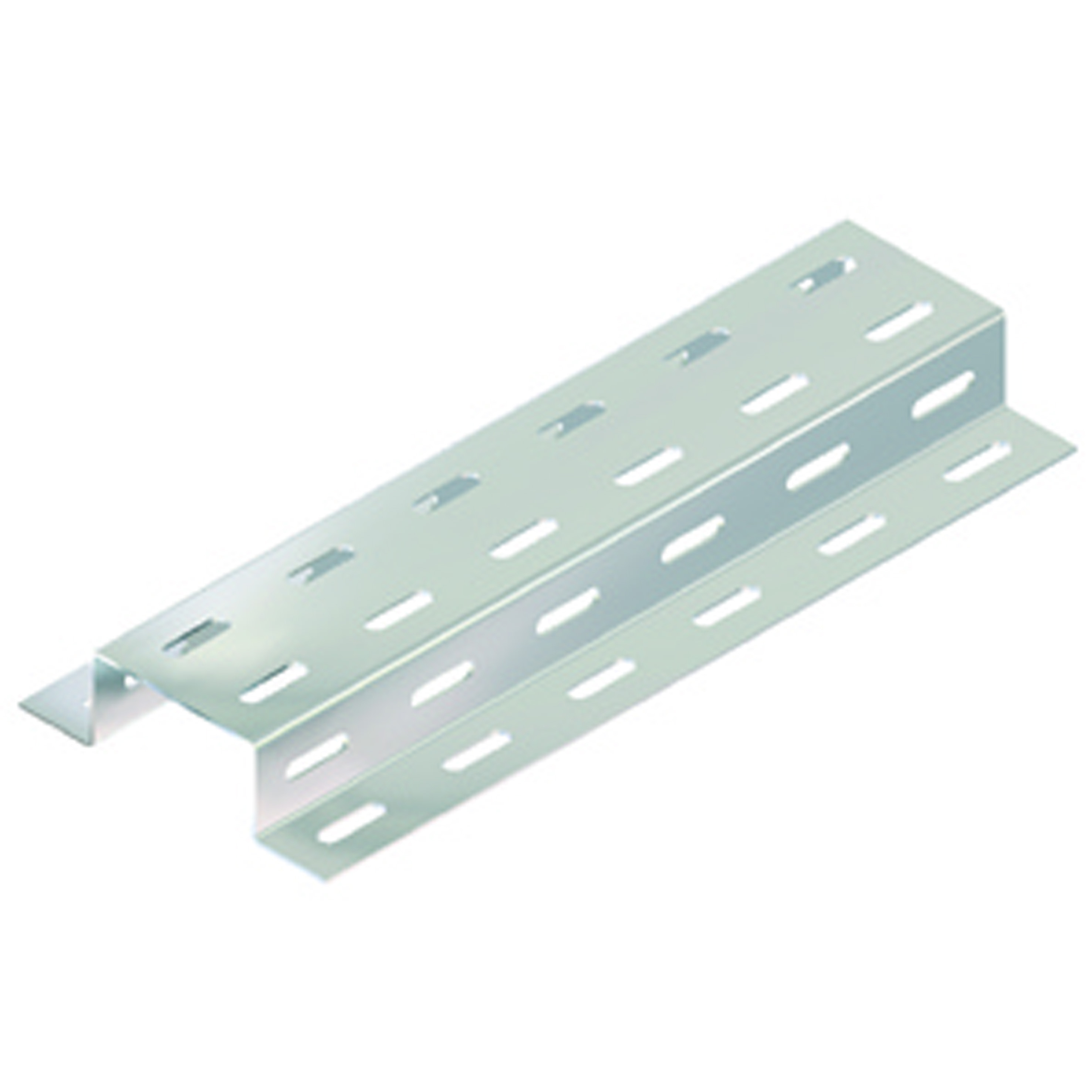

Profile type OMEGA - 3 metres
Divider - 3 metres
Rail type TELEX - 2 metres

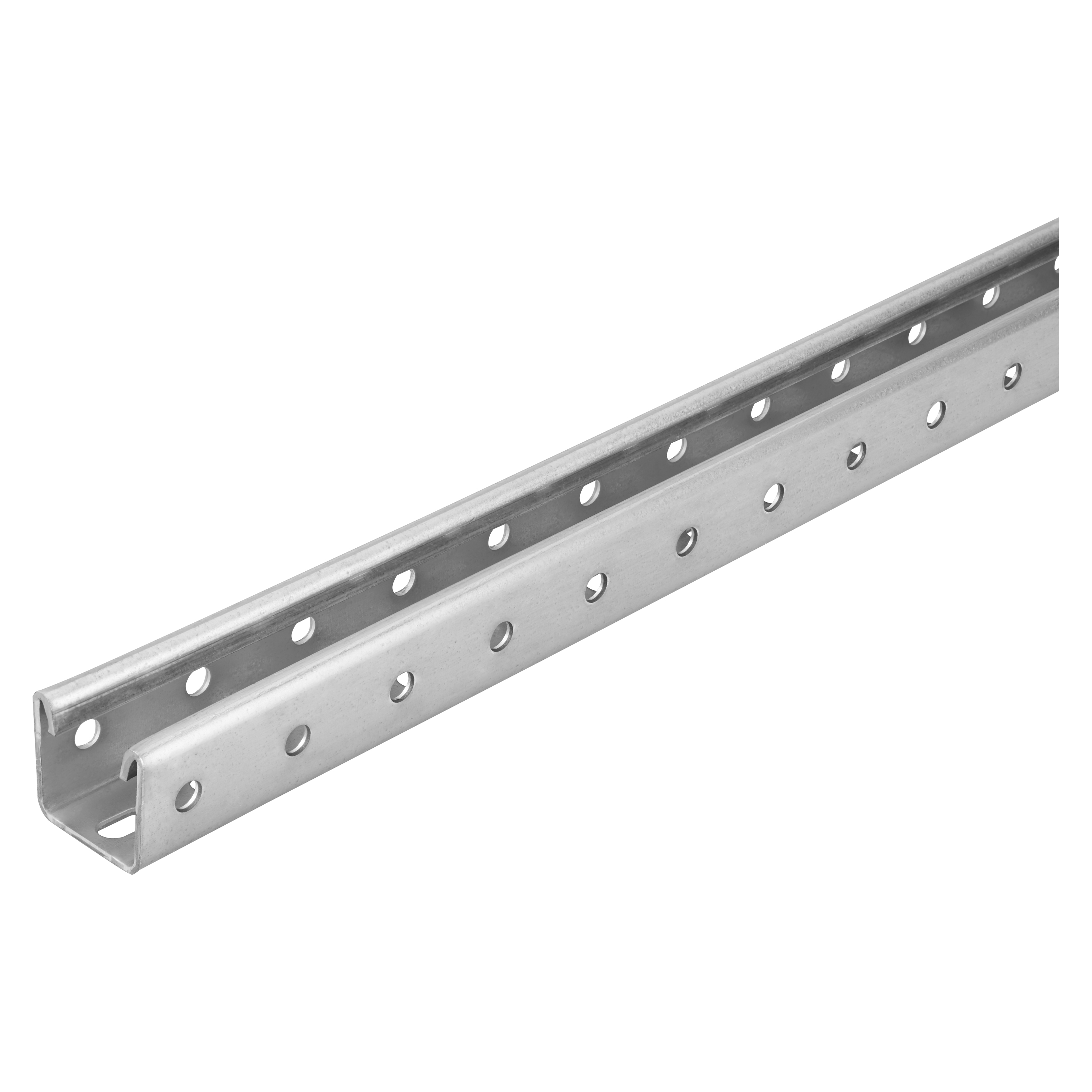

Smooth rail 41
Vertical support

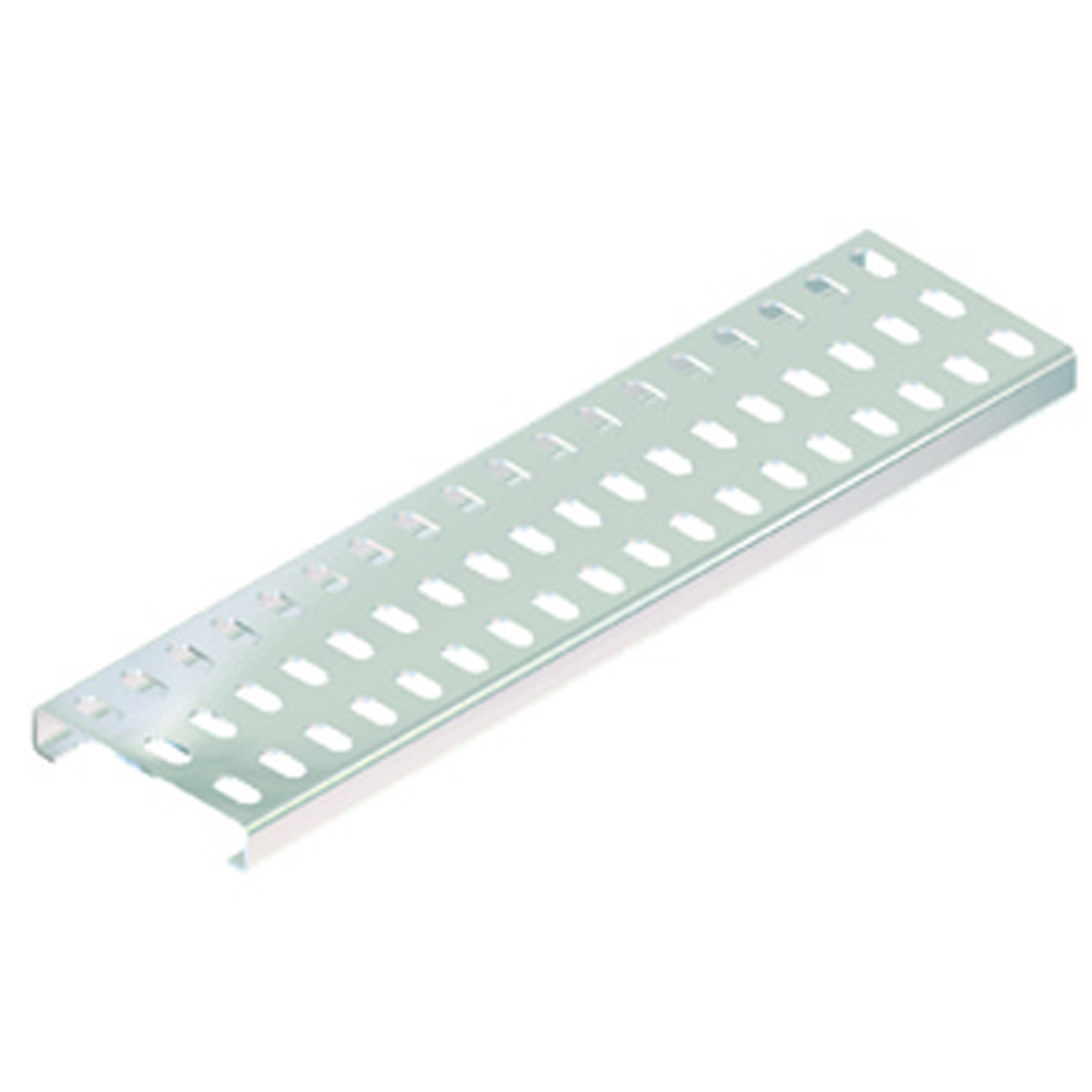

Protection trunking - 3 metres
Cod Gewiss
Finishing
Dimensions AxBxC (mm)
Kg/u
Z TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING Z275
MV65130X
Z275
30x30x30
2.82
Z TYPE PROFILE - 30x60x30MM - LENGTH 3000MM - FINISHING Z275
MV65131X
Z275
30x60x30
3.75
Z TYPE PROFILE - 60x60x60MM - LENGTH 3000MM - FINISHING Z275
MV65133X
Z275
60x60x60
5.64
Z TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING HDG
MV65230X
HDG
30x30x30
2.82
Z TYPE PROFILE - 30x60x30MM - LENGTH 3000MM - FINISHING HDG
MV65231X
HDG
30x60x30
3.75
See all
Z TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING Z275
MV65130X
Z TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING Z275
Show
Z TYPE PROFILE - 30x60x30MM - LENGTH 3000MM - FINISHING Z275
MV65131X
Z TYPE PROFILE - 30x60x30MM - LENGTH 3000MM - FINISHING Z275
Show
Z TYPE PROFILE - 60x60x60MM - LENGTH 3000MM - FINISHING Z275
MV65133X
Z TYPE PROFILE - 60x60x60MM - LENGTH 3000MM - FINISHING Z275
Show
Z TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING HDG
MV65230X
Z TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING HDG
Show
See all
Cod Gewiss
Finishing
Dimensions AxBxC (mm)
Kg/u
OMEGA TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING Z275
MV65134X
Z275
30x30x30
4.68
OMEGA TYPE PROFILE - 30x30x60MM - LENGTH 3000MM - FINISHING Z275
MV65135X
Z275
30x30x60
5.64
OMEGA TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING HDG
MV65234X
HDG
30x30x30
4.68
OMEGA TYPE PROFILE - 30x30x60MM - LENGTH 3000MM - FINISHING HDG
MV65235X
HDG
30x30x60
5.64
OMEGA TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING Z275
MV65134X
OMEGA TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING Z275
Show
OMEGA TYPE PROFILE - 30x30x60MM - LENGTH 3000MM - FINISHING Z275
MV65135X
OMEGA TYPE PROFILE - 30x30x60MM - LENGTH 3000MM - FINISHING Z275
Show
OMEGA TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING HDG
MV65234X
OMEGA TYPE PROFILE - 30x30x30MM - LENGTH 3000MM - FINISHING HDG
Show
OMEGA TYPE PROFILE - 30x30x60MM - LENGTH 3000MM - FINISHING HDG
MV65235X
OMEGA TYPE PROFILE - 30x30x60MM - LENGTH 3000MM - FINISHING HDG
Show
Cod Gewiss
Finishing
Dimensions AxB (mm)
Kg/u
DEVIDER - 30x30MM - FINISHING Z275
MV65160
Z275
30x30
1.53
DEVIDER - 40x40MM - FINISHING Z275
MV65162
Z275
40x40
2.85
DEVIDER - 30x30MM - FINISHING HDG
MV65260
HDG
30x30
1.53
DEVIDER - 40x40MM - FINISHING HDG
MV65262
HDG
40x40
2.85
DEVIDER - 30x30MM - FINISHING Z275
MV65160
DEVIDER - 30x30MM - FINISHING Z275
Show
DEVIDER - 40x40MM - FINISHING Z275
MV65162
DEVIDER - 40x40MM - FINISHING Z275
Show
DEVIDER - 30x30MM - FINISHING HDG
MV65260
DEVIDER - 30x30MM - FINISHING HDG
Show
DEVIDER - 40x40MM - FINISHING HDG
MV65262
DEVIDER - 40x40MM - FINISHING HDG
Show
Cod Gewiss
Finishing
Width (mm)
Shape
Kg/u
TELEX TYPE RAIL - WIDTH 30MM - LENGTH 2000MM - FINISHING Z275
MV65150
Z275
30
C
0.81
TELEX TYPE RAIL - WIDTH 50MM - LENGTH 2000MM - FINISHING Z275
MV65151
Z275
50
C
1.026
TELEX TYPE RAIL - WIDTH 75MM - LENGTH 2000MM - FINISHING Z275
MV65152
Z275
75
C
1.318
TELEX TYPE RAIL - WIDTH 30MM - LENGTH 2000MM - FINISHING HDG
MV65250
HDG
30
C
0.81
TELEX TYPE RAIL - WIDTH 50MM - LENGTH 2000MM - FINISHING HDG
MV65251
HDG
50
C
1.026
See all
TELEX TYPE RAIL - WIDTH 30MM - LENGTH 2000MM - FINISHING Z275
MV65150
TELEX TYPE RAIL - WIDTH 30MM - LENGTH 2000MM - FINISHING Z275
Show
TELEX TYPE RAIL - WIDTH 50MM - LENGTH 2000MM - FINISHING Z275
MV65151
TELEX TYPE RAIL - WIDTH 50MM - LENGTH 2000MM - FINISHING Z275
Show
TELEX TYPE RAIL - WIDTH 75MM - LENGTH 2000MM - FINISHING Z275
MV65152
TELEX TYPE RAIL - WIDTH 75MM - LENGTH 2000MM - FINISHING Z275
Show
TELEX TYPE RAIL - WIDTH 30MM - LENGTH 2000MM - FINISHING HDG
MV65250
TELEX TYPE RAIL - WIDTH 30MM - LENGTH 2000MM - FINISHING HDG
Show
See all
Cod Gewiss
Finishing
Description
Length (mm)
Thickness (mm)
Kg/u
SMOOTH RAIL 41 - 41x21 STANDARD - 3000MM - FINISHING Z275
MV68110
Z275
41x21 Standard rail
3000
2
4.294
SMOOTH RAIL 41 - 41x41 STANDARD - 3030MM - FINISHING Z275
MV68105
Z275
Rail 41x41 Standard
3030
2.5
7.486
SMOOTH RAIL 41 - 41x41 ECO - 3000MM - FINISHING Z275
MV68115
Z275
Rail 41x41 Eco
3000
2
5.652
SMOOTH RAIL 41 - 41x21 STANDARD - 3000MM - FINISHING HDG
MV68210
HDG
41x21 Standard rail
3000
2
4.294
SMOOTH RAIL 41 - 41x41 STANDARD - 3030MM - FINISHING HDG
MV68205
HDG
Rail 41x41 Standard
3030
2.5
7.486
See all
SMOOTH RAIL 41 - 41x21 STANDARD - 3000MM - FINISHING Z275
MV68110
SMOOTH RAIL 41 - 41x21 STANDARD - 3000MM - FINISHING Z275
Show
SMOOTH RAIL 41 - 41x41 STANDARD - 3030MM - FINISHING Z275
MV68105
SMOOTH RAIL 41 - 41x41 STANDARD - 3030MM - FINISHING Z275
Show
SMOOTH RAIL 41 - 41x41 ECO - 3000MM - FINISHING Z275
MV68115
SMOOTH RAIL 41 - 41x41 ECO - 3000MM - FINISHING Z275
Show
SMOOTH RAIL 41 - 41x21 STANDARD - 3000MM - FINISHING HDG
MV68210
SMOOTH RAIL 41 - 41x21 STANDARD - 3000MM - FINISHING HDG
Show
See all
Cod Gewiss
Finishing
Width (mm)
Kg/u
VERTICAL SUPPORT - BFR/BRN/BRX - 100MM - FINISHING Z275
MV64170
Z275
100
0.217
VERTICAL SUPPORT - BFR/BRN/BRX - 200MM - FINISHING Z275
MV64171
Z275
200
0.29
VERTICAL SUPPORT - BFR/BRN/BRX - 300MM - FINISHING Z275
MV64172
Z275
300
0.396
VERTICAL SUPPORT - BFR/BRN/BRX - 400MM - FINISHING Z275
MV64173
Z275
400
0.433
VERTICAL SUPPORT - BFR/BRN/BRX - 500MM - FINISHING Z275
MV64174
Z275
500
0.505
See all
VERTICAL SUPPORT - BFR/BRN/BRX - 100MM - FINISHING Z275
MV64170
VERTICAL SUPPORT - BFR/BRN/BRX - 100MM - FINISHING Z275
Show
VERTICAL SUPPORT - BFR/BRN/BRX - 200MM - FINISHING Z275
MV64171
VERTICAL SUPPORT - BFR/BRN/BRX - 200MM - FINISHING Z275
Show
VERTICAL SUPPORT - BFR/BRN/BRX - 300MM - FINISHING Z275
MV64172
VERTICAL SUPPORT - BFR/BRN/BRX - 300MM - FINISHING Z275
Show
VERTICAL SUPPORT - BFR/BRN/BRX - 400MM - FINISHING Z275
MV64173
VERTICAL SUPPORT - BFR/BRN/BRX - 400MM - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Height (mm)
Width (mm)
PROTECTION TRUNKING - LENGTH 3000MM - WIDTH 83,2MM - FINISHING Z275
MV65139
Z275
71.6
83,2
PROTECTION TRUNKING - LENGTH 3000MM - WIDTH 83,2MM - FINISHING Z275
MV65139
PROTECTION TRUNKING - LENGTH 3000MM - WIDTH 83,2MM - FINISHING Z275
Show

Support light load

Category
Angle bracket for BFR, BRN and BRX

Change category

Change category

Angle bracket for BFR, BRN and BRX
Cod Gewiss
Finishing
Dimensions AxBxC (mm)
daN
Kg/u
ANGLE BRACKET - BFR/BRN/BRX - 50x50x70MM - FINISHING Z275
MV60120
Z275
50x50x70
20
0.073
ANGLE BRACKET - BFR/BRN/BRX - 50x100x70MM - FINISHING Z275
MV60121
Z275
50x100x70
15
0.111
ANGLE BRACKET - BFR/BRN/BRX - 50x150x70MM - FINISHING Z275
MV60122
Z275
50x150x70
10
0.15
ANGLE BRACKET - BFR/BRN/BRX - 50x50x70MM - FINISHING HDG
MV60220
HDG
50x50x70
20
0.073
ANGLE BRACKET - BFR/BRN/BRX - 50x100x70MM - FINISHING HDG
MV60221
HDG
50x100x70
15
0.111
See all
ANGLE BRACKET - BFR/BRN/BRX - 50x50x70MM - FINISHING Z275
MV60120
ANGLE BRACKET - BFR/BRN/BRX - 50x50x70MM - FINISHING Z275
Show
ANGLE BRACKET - BFR/BRN/BRX - 50x100x70MM - FINISHING Z275
MV60121
ANGLE BRACKET - BFR/BRN/BRX - 50x100x70MM - FINISHING Z275
Show
ANGLE BRACKET - BFR/BRN/BRX - 50x150x70MM - FINISHING Z275
MV60122
ANGLE BRACKET - BFR/BRN/BRX - 50x150x70MM - FINISHING Z275
Show
ANGLE BRACKET - BFR/BRN/BRX - 50x50x70MM - FINISHING HDG
MV60220
ANGLE BRACKET - BFR/BRN/BRX - 50x50x70MM - FINISHING HDG
Show
See all

OMEGA support for light loads

Category
OMEGA type pendant

Change category

Change category

OMEGA type pendant

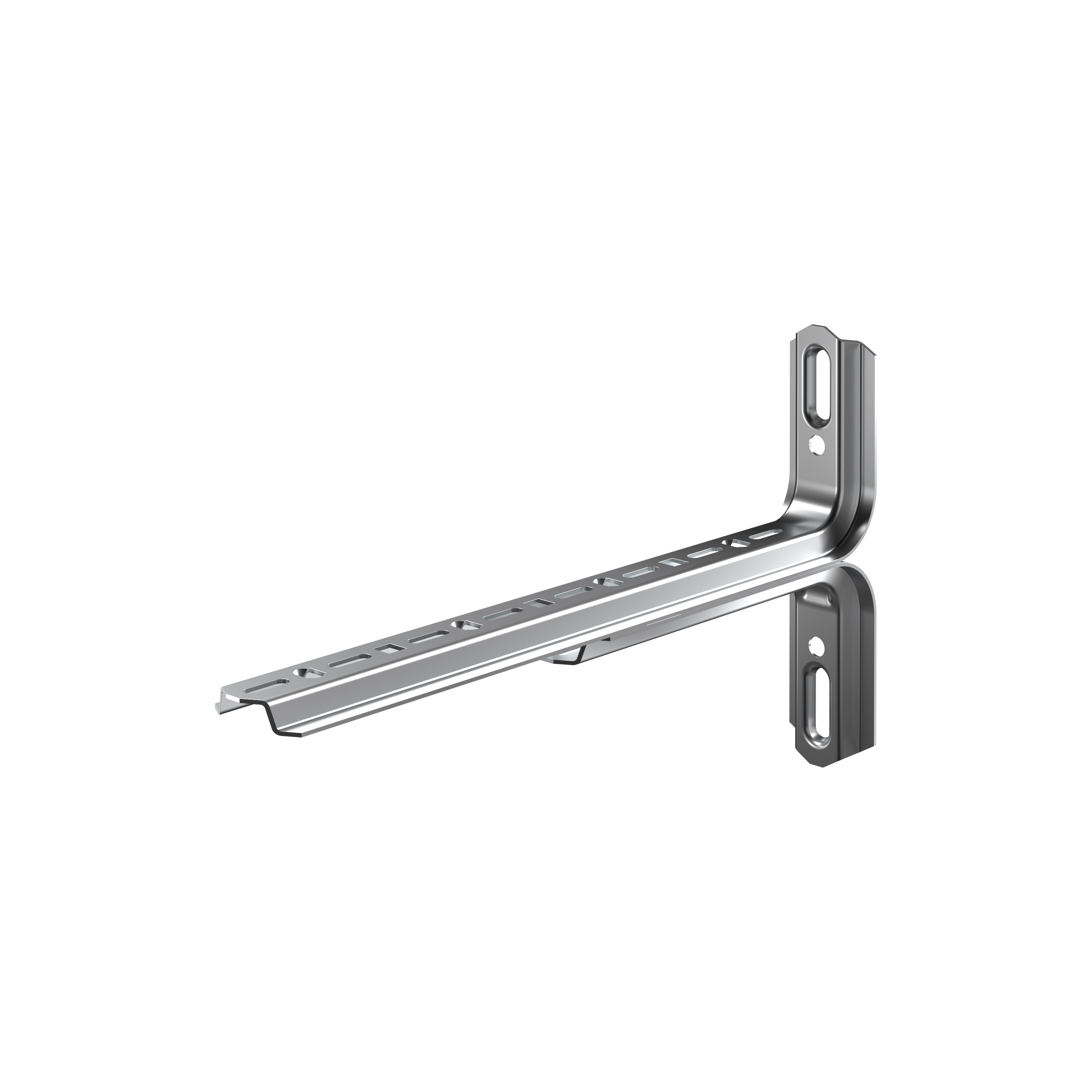

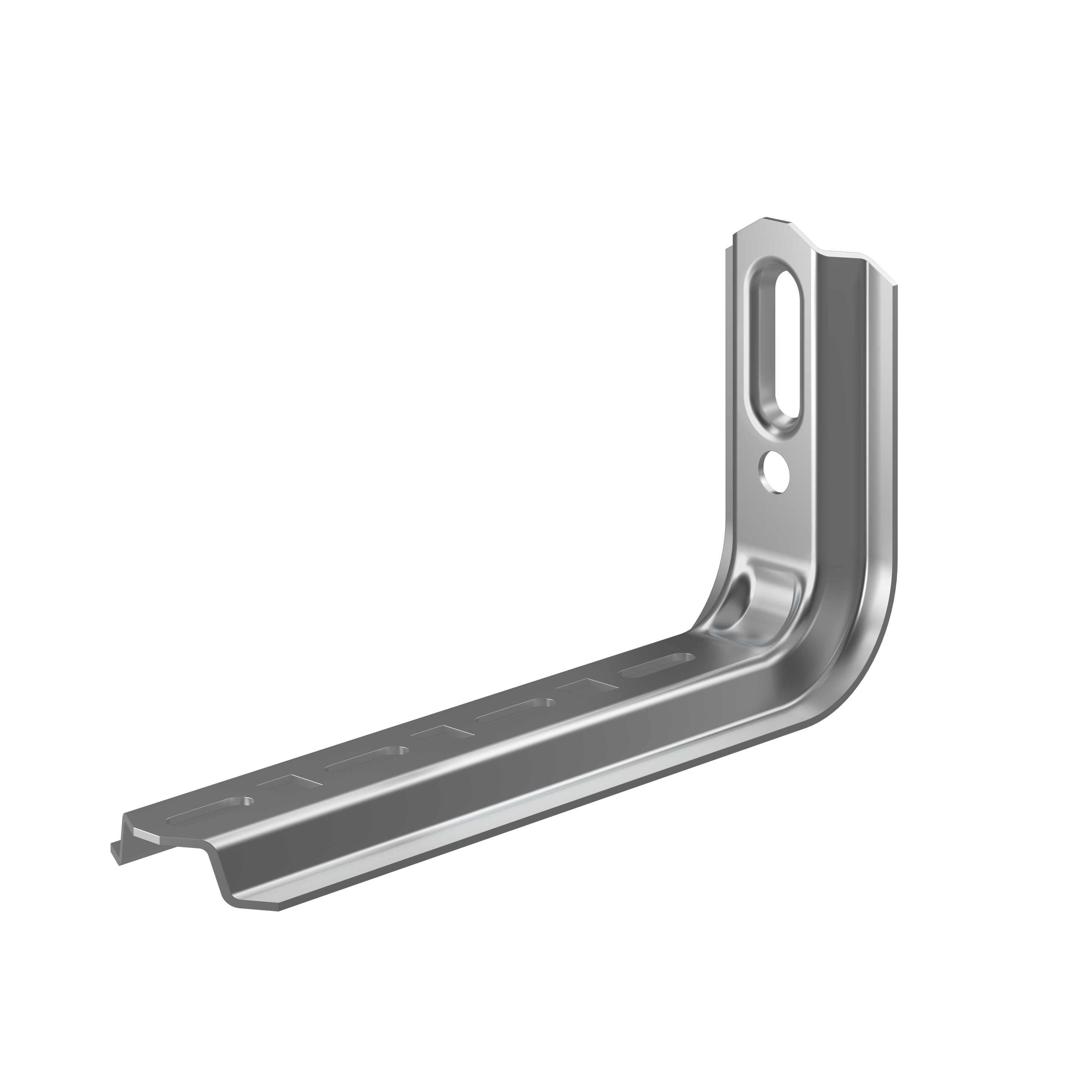

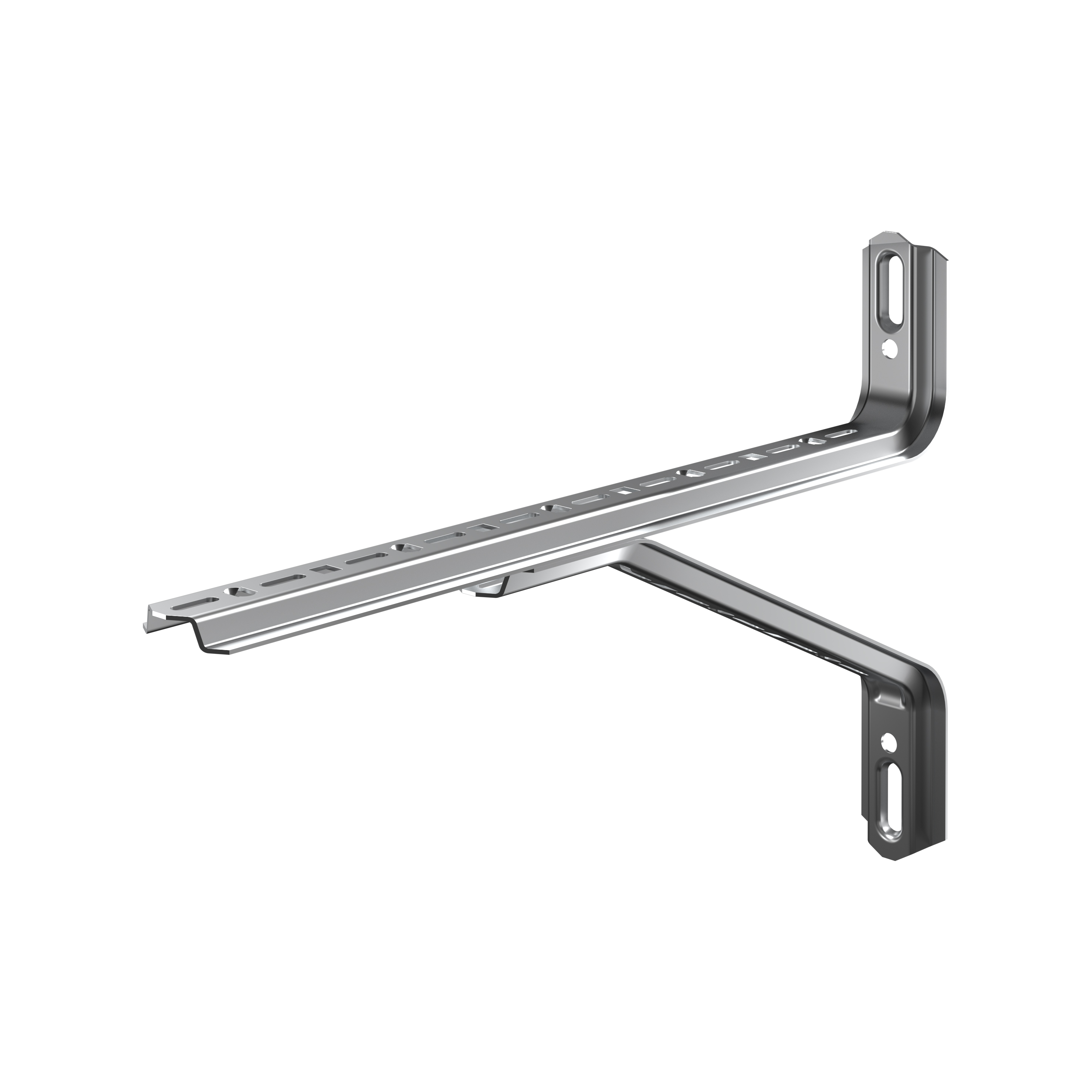

OMEGA type bracket
OMEGA C-shaped pendant bracket

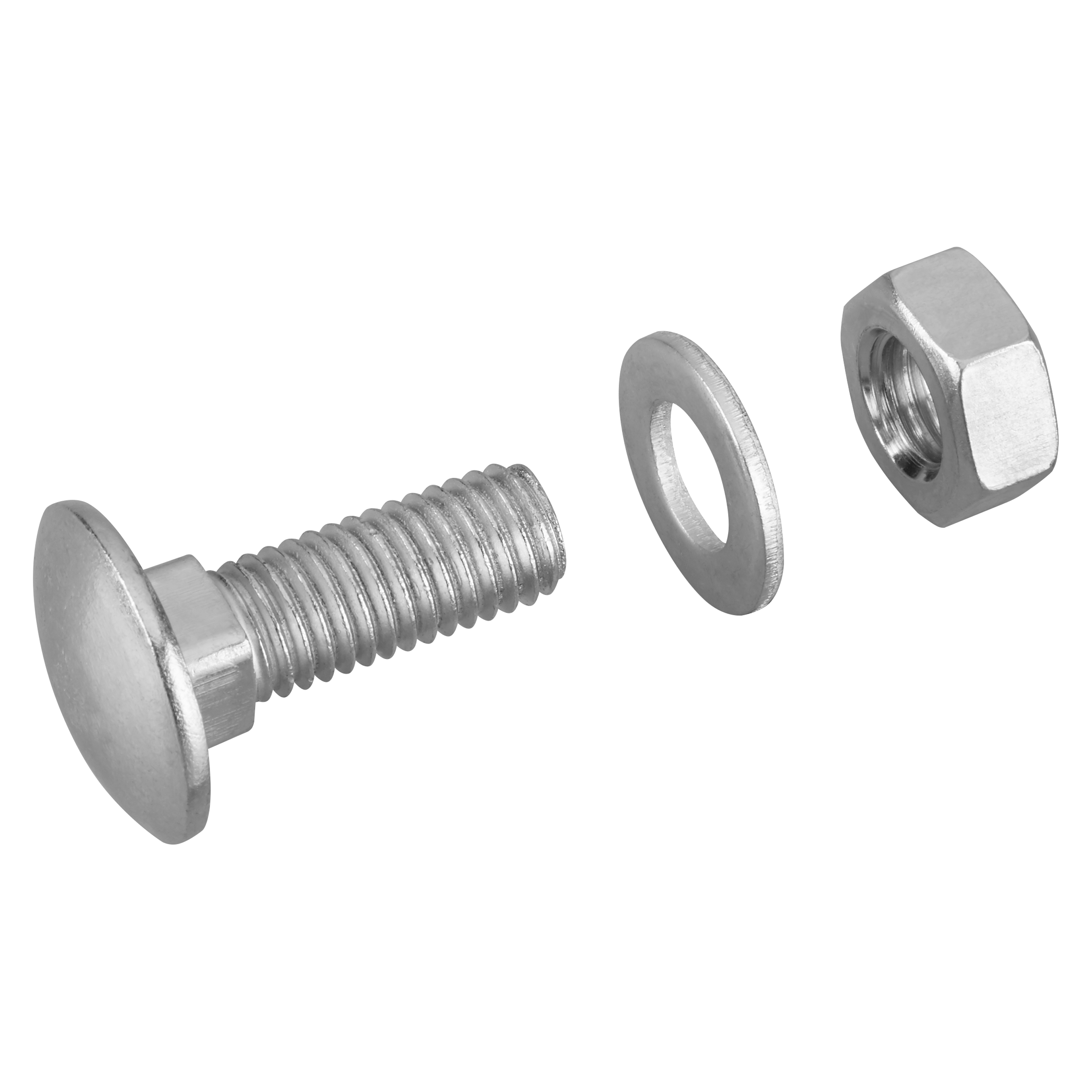

OMEGA bolts
FILMATIC - Fast fixing for BFR trunking on OMEGA brackets
Spacer for mounting an OMEGA bracket on a 41 rail
Cod Gewiss
Finishing
Length (mm)
Admittable load on brack (DaN/m)
Kg/u
OMEGA TYPE PENDANT - LENGTH 410MM - FINISHING Z 275
MV62100
Z275
410
2
0.52
OMEGA TYPE PENDANT - LENGTH 510MM - FINISHING Z 275
MV62101
Z275
510
2
0.626
OMEGA TYPE PENDANT - LENGTH 610MM - FINISHING Z 275
MV62102
Z275
610
2
0.733
OMEGA TYPE PENDANT - LENGTH 410MM - FINISHING HDG
MV62200
HDG
410
2
0.52
OMEGA TYPE PENDANT - LENGTH 510MM - FINISHING HDG
MV62201
HDG
510
2
0.626
See all
OMEGA TYPE PENDANT - LENGTH 410MM - FINISHING Z 275
MV62100
OMEGA TYPE PENDANT - LENGTH 410MM - FINISHING Z 275
Show
OMEGA TYPE PENDANT - LENGTH 510MM - FINISHING Z 275
MV62101
OMEGA TYPE PENDANT - LENGTH 510MM - FINISHING Z 275
Show
OMEGA TYPE PENDANT - LENGTH 610MM - FINISHING Z 275
MV62102
OMEGA TYPE PENDANT - LENGTH 610MM - FINISHING Z 275
Show
OMEGA TYPE PENDANT - LENGTH 410MM - FINISHING HDG
MV62200
OMEGA TYPE PENDANT - LENGTH 410MM - FINISHING HDG
Show
See all
Cod Gewiss
Finishing
Length (mm)
Max load (kg/bracket)
Kg/u
OMEGA TYPE BRACKET - LENGTH 110MM - FINISHING Z 275
MV60100
Z275
110
50
0.202
OMEGA TYPE BRACKET - LENGTH 210MM - FINISHING Z 275
MV60101
Z275
210
50
0.308
OMEGA TYPE BRACKET - LENGTH 310MM - FINISHING Z 275
MV60102
Z275
310
30
0.414
OMEGA TYPE BRACKET - LENGTH 410MM - FINISHING Z 275
MV60113
Z275
410
130
0.641
OMEGA TYPE BRACKET - LENGTH 510MM - FINISHING Z 275
MV60114
Z275
510
130
0.785
See all
OMEGA TYPE BRACKET - LENGTH 110MM - FINISHING Z 275
MV60100

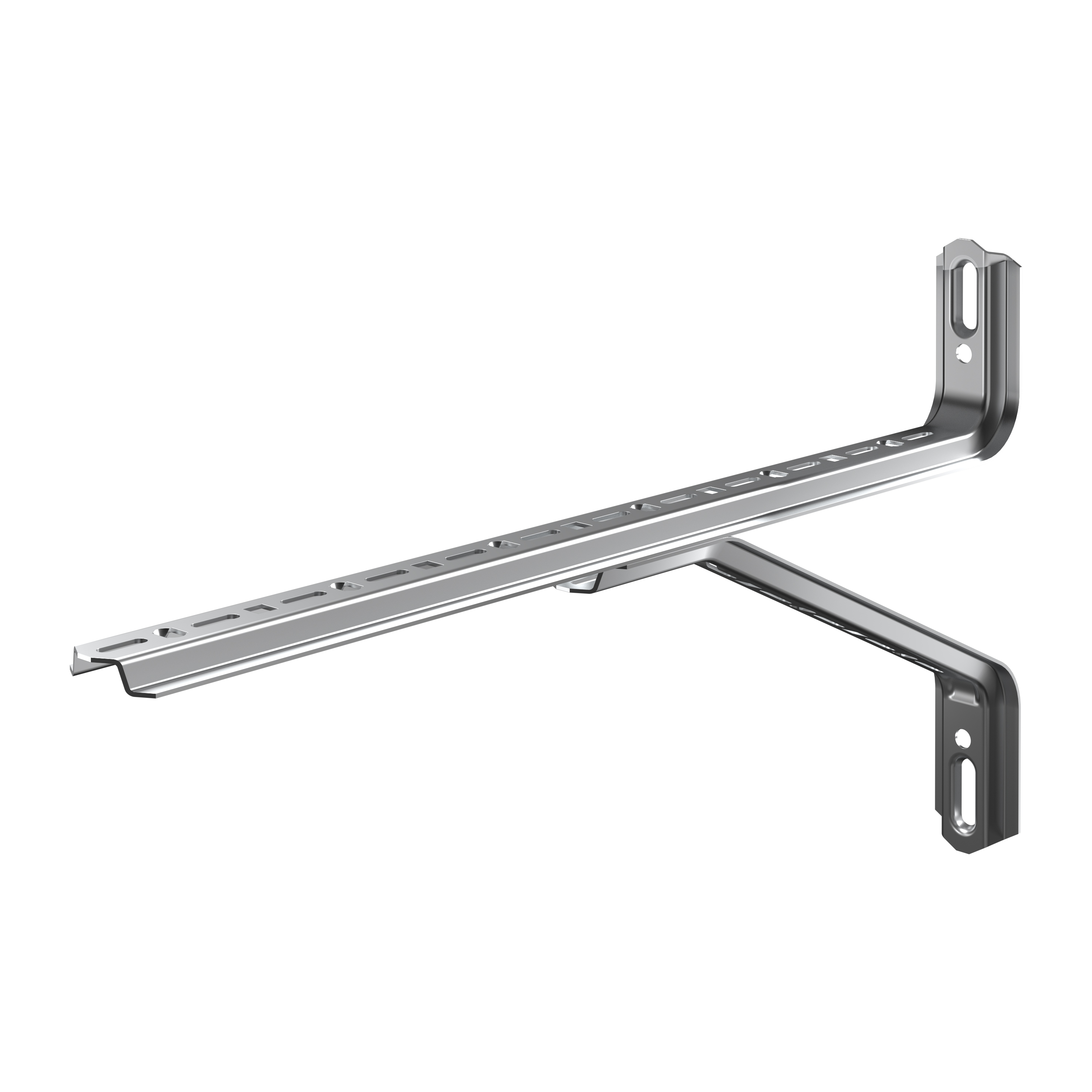

OMEGA TYPE BRACKET - LENGTH 110MM - FINISHING Z 275
Show
OMEGA TYPE BRACKET - LENGTH 210MM - FINISHING Z 275
MV60101
OMEGA TYPE BRACKET - LENGTH 210MM - FINISHING Z 275
Show
OMEGA TYPE BRACKET - LENGTH 310MM - FINISHING Z 275
MV60102
OMEGA TYPE BRACKET - LENGTH 310MM - FINISHING Z 275
Show
OMEGA TYPE BRACKET - LENGTH 410MM - FINISHING Z 275
MV60113
OMEGA TYPE BRACKET - LENGTH 410MM - FINISHING Z 275
Show
See all
Cod Gewiss
Finishing
Dimensions LxH (mm)
Max load (kg/bracket)
Kg/u
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 95X115MM - FINISHING Z 275
MV62110
Z275
95x115
22
0.309
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 195X115MM - FINISHING Z 275
MV62111
Z275
195x115
22
0.415
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 295X115MM - FINISHING Z 275
MV62112
Z275
295x115
14
0.521
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 95X165 - FINISHING Z275
MV62140
Z275
95x165
21
0.386
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 195X165 - FINISHING Z275
MV62141
Z275
195x165
21
0.491
See all
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 95X115MM - FINISHING Z 275
MV62110
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 95X115MM - FINISHING Z 275
Show
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 195X115MM - FINISHING Z 275
MV62111
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 195X115MM - FINISHING Z 275
Show
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 295X115MM - FINISHING Z 275
MV62112
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 295X115MM - FINISHING Z 275
Show
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 95X165 - FINISHING Z275
MV62140
OMEGA TYPE - C SHAPE PENDANT BRACKET - DIMENSIONS 95X165 - FINISHING Z275
Show
See all
Cod Gewiss
Finishing
Description
Dimension
Accessories supplied
Kg/u
BOLT - SCREW TRCC M10x30 + WASHER - FINISHING EZ
MV66122
EZ
TRCC bolt+nut
M10x30
Nut + washer
4.3
BOLT - SCREW TRCC M10x60 + WASHER - FINISHING EZ
MV66123
EZ
TRCC bolt+nut
M10x60
Nut + washer
5.75
BOLT - SCREW TRCC M10x30 + WASHER - FINISHING GEOMET
MV66222
Geomet
TRCC bolt+nut
M10x30
Nut + washer
4.3
BOLT - SCREW TRCC M10x60 + WASHER - FINISHING GEOMET
MV66223
Geomet
TRCC bolt+nut
M10x60
Nut + washer
5.75
BOLT - SCREW TRCC M10x30 + WASHER - FINISHING INOX 304L
MV66622
Stainless steel 304L
TRCC bolt+nut
M10x30
Nut + washer
4.3
See all
BOLT - SCREW TRCC M10x30 + WASHER - FINISHING EZ
MV66122
BOLT - SCREW TRCC M10x30 + WASHER - FINISHING EZ
Show
BOLT - SCREW TRCC M10x60 + WASHER - FINISHING EZ
MV66123
BOLT - SCREW TRCC M10x60 + WASHER - FINISHING EZ
Show
BOLT - SCREW TRCC M10x30 + WASHER - FINISHING GEOMET
MV66222
BOLT - SCREW TRCC M10x30 + WASHER - FINISHING GEOMET
Show
BOLT - SCREW TRCC M10x60 + WASHER - FINISHING GEOMET
MV66223
BOLT - SCREW TRCC M10x60 + WASHER - FINISHING GEOMET
Show
See all
Cod Gewiss
Finishing
Kg/u
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING Z 275
MV51100
Z275
0.009
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING HP
MV51700
HP
0.009
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING INOX 316L
MV51800
Stainless steel 316L
0.009
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING Z 275
MV51100
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING Z 275
Show
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING HP
MV51700
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING HP
Show
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING INOX 316L
MV51800
FIXING ON OMEGA BRACKET - FILMATIC - FINISHING INOX 316L
Show
Cod Gewiss
Finishing
Kg/u

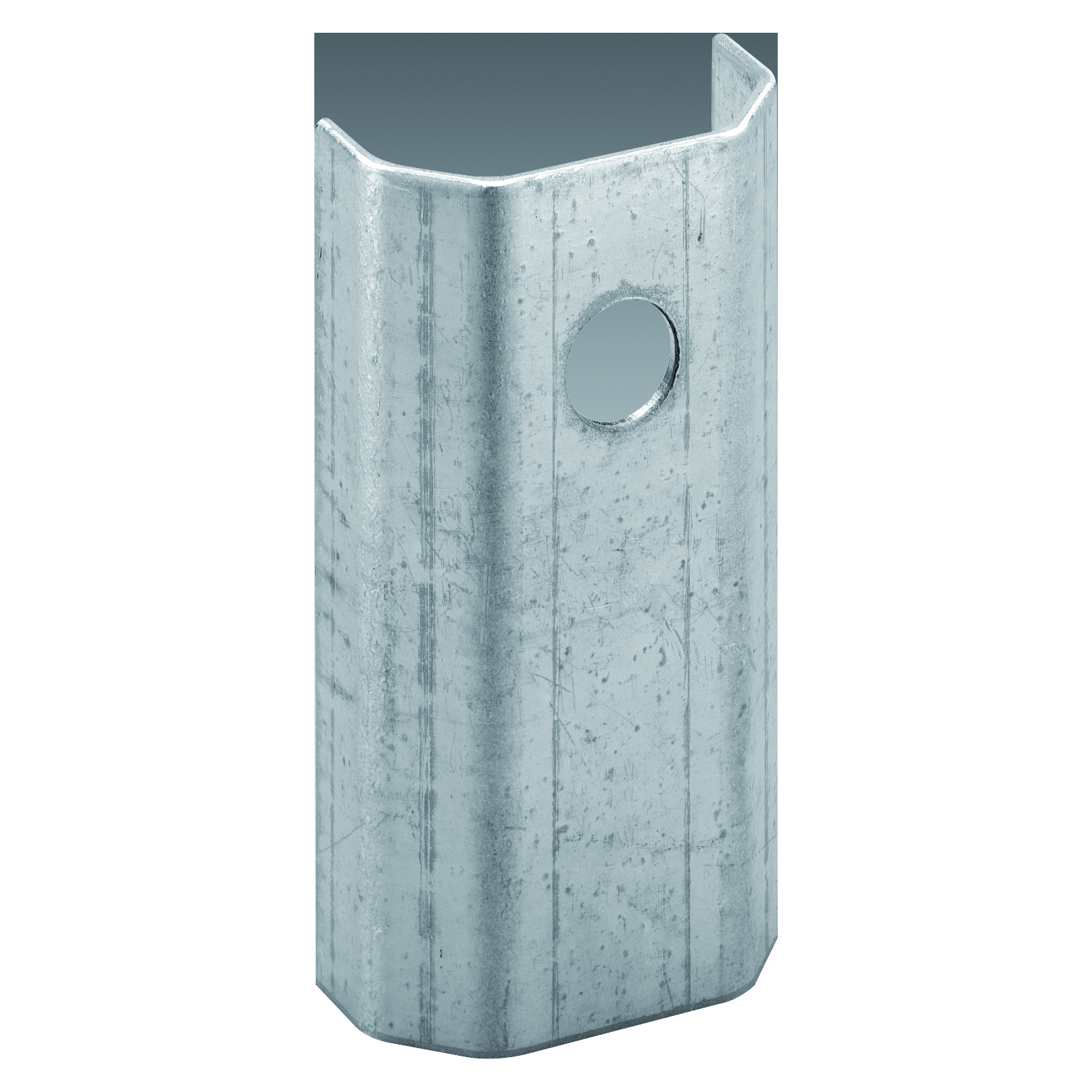

OMEGA-TYPE SPACER ON MAVISTRUT NOTCHED RUNNER - FINISHING: Z275
MV64105
Z275
0.096
OMEGA-TYPE SPACER ON MAVISTRUT NOTCHED RUNNER - FINISHING: Z275
MV64105
OMEGA-TYPE SPACER ON MAVISTRUT NOTCHED RUNNER - FINISHING: Z275
Show
You saw 137 products on 738
Show others
Navigate by catalogue

Applications

Sports
Indoor sports facilities
Show more
Sports
Stadium and arena
Show more
Retail
Shopping centres
Show more
Industry
Manufacturing
Show more
Industry
Heavy industry
Show more
Healthcare
Hospitals
Show more
Retail
DIY stores
Show more
Transportation
Airports
Show more
Residential
Residences
Show more
Industry
Warehouse logistics
Show more
services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy policy has been updated. Please review and provide your consent again. Thank you

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website

You are entering the site:

International - EN

GEWISS World websites are available for each country, differentiated by language, services and catalogue offerings.

Continue on international site Continue on international site

Do you want to change country?

Choose another country Choose another country
