BRN HL range
MAVIL Heavy-Load trunking made

For particularly heavy-load installations, GEWISS introduces the BRN HL Series trunking, adding increased durability to the already proven BRN Series.

See all product
Benefits
Increased thickness
High-performance supports
Safety first
Increased thickness
Increased thickness
To provide additional strength, the thickness of the trunking has been increased to 1.5 mm (and to 2 mm on request)
High-performance supports
High-performance supports
Given the harsh conditions for which the BRN HL Series trunkings are designed, GEWISS also offers a dedicatplastified ed range of high-performance supports.
Safety first
Safety first
The top edges with rounded (patented) profile ensure the ease of installation of the trunking and safety of the cable routing.

The products of this series

Navigate by catalogue
All filters
545 products
Grid
List

Trunking and accessories

BRN50 HL

Category
HL cable trays - 3 meters - Height 50

Change category

Change category

HL cable trays - 3 meters - Height 50
Cod Gewiss
Finishing
Internal width (mm)
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 65MM - FINISHING Z 275
MVH0013GC
Z275
65
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
MVH0013GD
Z275
95
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
MVH0013GF
Z275
155
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
MVH0013GH
Z275
215
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 305MM - FINISHING Z 275
MVH0013GL
Z275
305
See all
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 65MM - FINISHING Z 275
MVH0013GC
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 65MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
MVH0013GD
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
MVH0013GF
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
MVH0013GH
STEEL CABLE TRAY - HEAVY LOAD - BRN50 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
Show
See all

BRN80 HL

Category
HL cable trays - 3 meters - Height 80

Change category

Change category

HL cable trays - 3 meters - Height 80
Cod Gewiss
Finishing
Internal width (mm)
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
MVH0013LD
Z275
95
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
MVH0013LF
Z275
155
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
MVH0013LH
Z275
215
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 305MM - FINISHING Z 275
MVH0013LL
Z275
305
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 395MM - FINISHING Z 275
MVH0013LP
Z275
395
See all
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
MVH0013LD
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
MVH0013LF
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
MVH0013LH
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 305MM - FINISHING Z 275
MVH0013LL
STEEL CABLE TRAY - HEAVY LOAD - BRN80 HL - LENGTH 3M - WIDTH 305MM - FINISHING Z 275
Show
See all

BRN95 HL

Category
HL cable trays - 3 meters - Height 95

Change category

Change category

HL cable trays - 3 meters - Height 95
Cod Gewiss
Finishing
Internal width (mm)
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
MVH0013ND
Z275
95
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
MVH0013NF
Z275
155
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
MVH0013NH
Z275
215
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 305MM - FINISHING Z 275
MVH0013NL
Z275
305
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 395MM - FINISHING Z 275
MVH0013NP
Z275
395
See all
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
MVH0013ND
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 95MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
MVH0013NF
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 155MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
MVH0013NH
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 215MM - FINISHING Z 275
Show
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 305MM - FINISHING Z 275
MVH0013NL
STEEL CABLE TRAY - HEAVY LOAD - BRN95 HL - LENGTH 3M - WIDTH 305MM - FINISHING Z 275
Show
See all

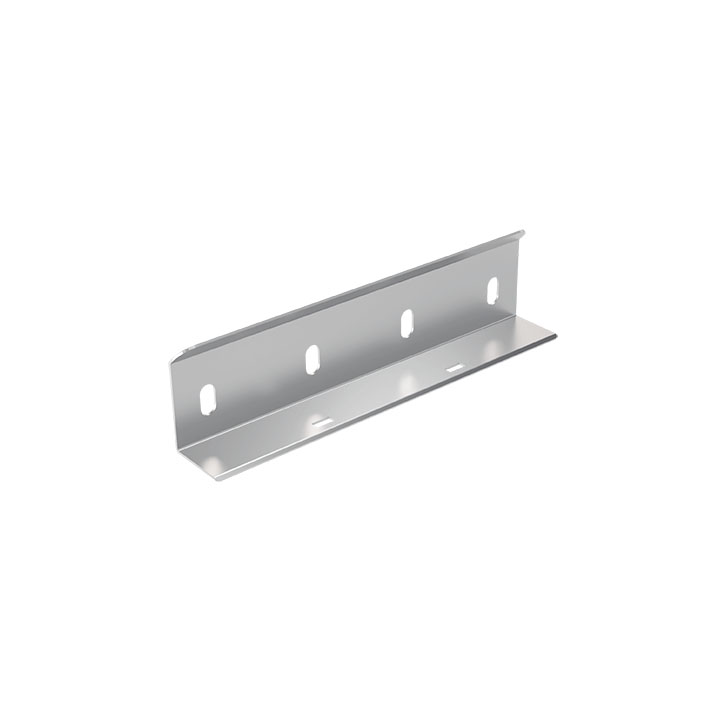

Coupler

Category
BRN HL bolted coupler

Change category

Change category

BRN HL bolted coupler

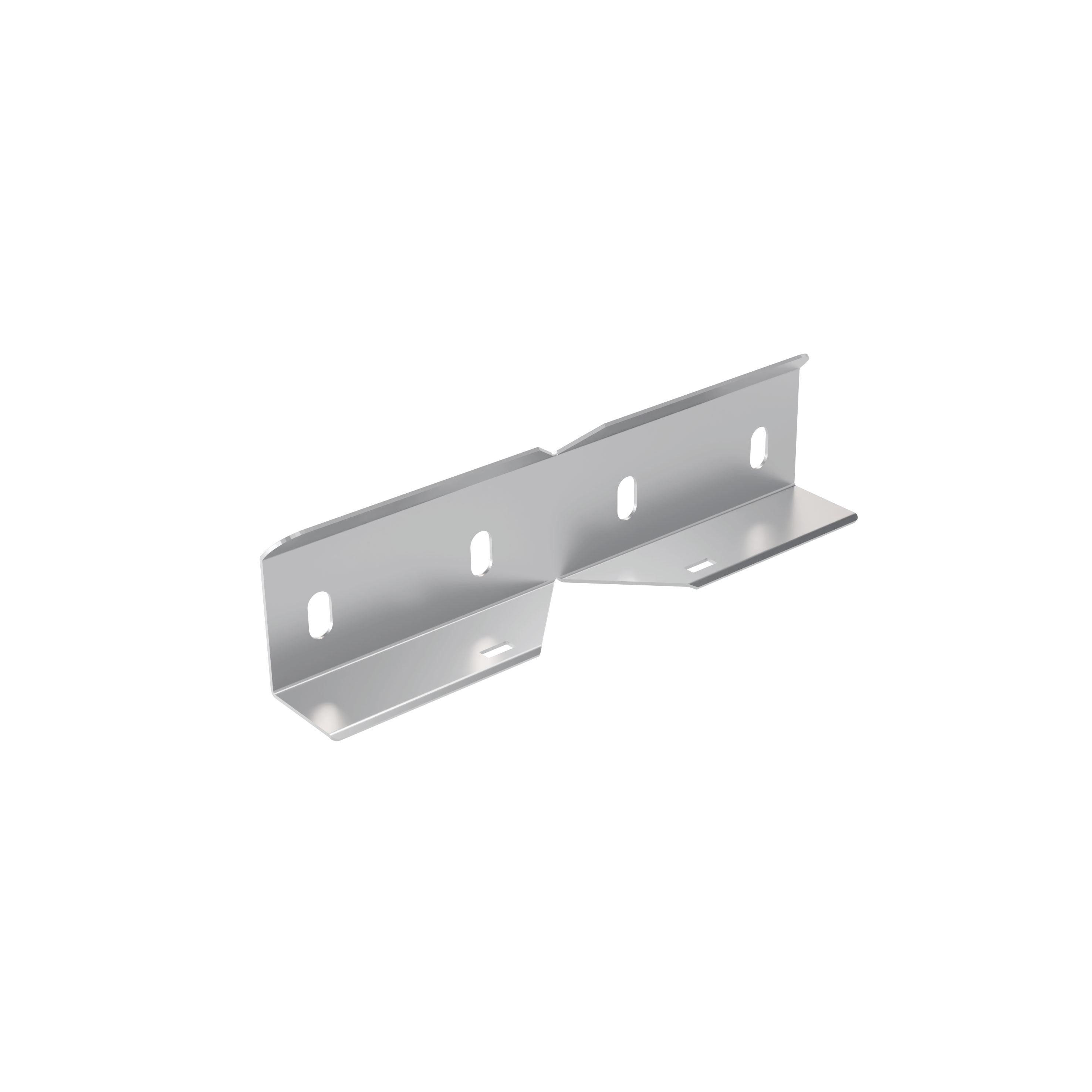

BRN HL horizontal articulated coupler
BR NP clamp coupler
Earthing connector
Bolts
Cod Gewiss
Finishing
Suitable for
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
MVC0710GA
Z275
BRN 50
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
MVC0710LA
Z275
BRN 80
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
MVC0710NA
Z275
BRN 95
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HDG
MVC0720GA
HDG
BRN 50
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING HDG
MVC0720LA
HDG
BRN 80
See all
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
MVC0710GA
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING Z275
Show
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
MVC0710LA
BRX/BRN NP/BRN HL BOLT COUPLER - H80 - FINISHING Z275
Show
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
MVC0710NA
BRN HL-BRN NP-BRX BOLT COUPLER - H95 - FINISHING Z275
Show
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HDG
MVC0720GA
BRX/BRN NP/BRN HL BOLT COUPLER - H50 - FINISHING HDG
Show
See all
Cod Gewiss
Finishing
Suitable for
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING Z275
MVC0810GA
Z275
BRN 50
BRX/BRN NP/BRN HL PLIABLE COUPLER- H80 - FINISHING Z275
MVC0810LA
Z275
BRN 80
BRX/BRN NP/BRN HL PLIABLE COUPLER- H95 - FINISHING Z275
MVC0810NA
Z275
BRN 95
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING HDG
MVC0820GA
HDG
BRN 50
BRX/BRN NP/BRN HL PLIABLE COUPLER- H80 - FINISHING HDG
MVC0820LA
HDG
BRN 80
See all
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING Z275
MVC0810GA
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING Z275
Show
BRX/BRN NP/BRN HL PLIABLE COUPLER- H80 - FINISHING Z275
MVC0810LA
BRX/BRN NP/BRN HL PLIABLE COUPLER- H80 - FINISHING Z275
Show
BRX/BRN NP/BRN HL PLIABLE COUPLER- H95 - FINISHING Z275
MVC0810NA
BRX/BRN NP/BRN HL PLIABLE COUPLER- H95 - FINISHING Z275
Show
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING HDG
MVC0820GA
BRX/BRN NP/BRN HL PLIABLE COUPLER- H50 - FINISHING HDG
Show
See all
Cod Gewiss
Finishing
Suitable for
BRN50 HL - CLAMP COUPLER - LENGTH 150 - FINISHING Z275
MVC0510EA
Z275
BRN 50
BRN 65/80 HL - CLAMP COUPLER - LENGTH 165 - FINISHING Z275
MVC0510JA
Z275
BRN 80
BRN95 HL - CLAMP COUPLER - LENGTH 175 - FINISHING Z275
MVC0510NA
Z275
BRN 95
BRN50 HL - CLAMP COUPLER - LENGTH 150 - FINISHING HDG
MVC0520EA
HDG
BRN 50
BRN65/80 HL - CLAMP COUPLER - LENGTH 65 - FINISHING HDG
MVC0520JA
HDG
BRN 80
See all
BRN50 HL - CLAMP COUPLER - LENGTH 150 - FINISHING Z275
MVC0510EA
BRN50 HL - CLAMP COUPLER - LENGTH 150 - FINISHING Z275
Show
BRN 65/80 HL - CLAMP COUPLER - LENGTH 165 - FINISHING Z275
MVC0510JA
BRN 65/80 HL - CLAMP COUPLER - LENGTH 165 - FINISHING Z275
Show
BRN95 HL - CLAMP COUPLER - LENGTH 175 - FINISHING Z275
MVC0510NA
BRN95 HL - CLAMP COUPLER - LENGTH 175 - FINISHING Z275
Show
BRN50 HL - CLAMP COUPLER - LENGTH 150 - FINISHING HDG
MVC0520EA
BRN50 HL - CLAMP COUPLER - LENGTH 150 - FINISHING HDG
Show
See all
Cod Gewiss
Type
Ø (mm)
Height (mm)
Nominal section (mm²)
Kg/u
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 16-25 MM²
MV41940
Terminal kit + 2 washers
17
20
16-25
0.48
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-70 MM²
MV41941
Terminal kit + 2 washers
21
26
25-70
0.7
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-95 MM²
MV41942
Terminal kit + 2 washers
24
30
25-95
0.94
EARTH CONNECTOR - NOMINAL SECTION 16-25 MM²
MV41943
Terminal only
17
20
16-25
0.382
EARTH CONNECTOR - NOMINAL SECTION 25-70 MM²
MV41944
Terminal only
21
26
25-70
0.606
See all
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 16-25 MM²
MV41940
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 16-25 MM²
Show
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-70 MM²
MV41941
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-70 MM²
Show
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-95 MM²
MV41942
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-95 MM²
Show
EARTH CONNECTOR - NOMINAL SECTION 16-25 MM²
MV41943
EARTH CONNECTOR - NOMINAL SECTION 16-25 MM²
Show
See all
Cod Gewiss
Finishing
Description
Dimension
Accessories supplied
Kg/u
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING EZ
MV66100
EZ
Bolt + nut
M6x10
Flanged nut
0.748
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING EZ
MV66101
EZ
Bolt + nut
M6x14
Flanged nut
0.82
BOLTS - BOLT M6 X 20 - FLANGED NUT - FINISHING EZ.
MV66403
EZ
Bolt + nut
M6x20
Flanged nut
0.936
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING GEOMET
MV66200
Geomet
Bolt + nut
M6x10
Flanged nut
0.82
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING GEOMET
MV66201
Geomet
Bolt + nut
M6x14
Flanged nut
0.748
See all
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING EZ
MV66100
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING EZ
Show
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING EZ
MV66101
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING EZ
Show
BOLTS - BOLT M6 X 20 - FLANGED NUT - FINISHING EZ.
MV66403
BOLTS - BOLT M6 X 20 - FLANGED NUT - FINISHING EZ.
Show
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING GEOMET
MV66200
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING GEOMET
Show
See all

BRN HL cover

Category
Snap-fit cover - 3 metres

Change category

Change category

Snap-fit cover - 3 metres
Cod Gewiss
Finishing
Width (mm)
Kg/m
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 65 - 3 METRES - FINISHING Z275
MVH0013AC
Z275
65
0.545
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 95 - 3 METRES - FINISHING Z275
MVH0013AD
Z275
95
0.644
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 155 - 3 METRES - FINISHING Z275
MVH0013AF
Z275
155
0.94
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 215 - 3 METRES - FINISHING Z275
MVH0013AH
Z275
215
1.236
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 305 - 3 METRES - FINISHING Z275
MVH0013AL
Z275
305
1.683
See all
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 65 - 3 METRES - FINISHING Z275
MVH0013AC
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 65 - 3 METRES - FINISHING Z275
Show
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 95 - 3 METRES - FINISHING Z275
MVH0013AD
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 95 - 3 METRES - FINISHING Z275
Show
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 155 - 3 METRES - FINISHING Z275
MVH0013AF
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 155 - 3 METRES - FINISHING Z275
Show
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 215 - 3 METRES - FINISHING Z275
MVH0013AH
BRN HL - HEAVY LOAD - SNAP-FIT COVER - WIDTH 215 - 3 METRES - FINISHING Z275
Show
See all

Cover accessory

Category
BRN HL cover clip

Change category

Change category

BRN HL cover clip
Cod Gewiss
Finishing
Suitable for
BRX/BRN HL 50-80-110 COVER CLIP - FINISHING INOX 304L
MV41602
Stainless steel 304L
BRN 50 - 80
BFR60/110-BRN95 HL-BRX65/95 COVER CLIP - FINISHING INOX 304L
MV41603
Stainless steel 304L
BRN 95
BRX/BRN HL 50-80-110 COVER CLIP - FINISHING INOX 304L
MV41602
BRX/BRN HL 50-80-110 COVER CLIP - FINISHING INOX 304L
Show
BFR60/110-BRN95 HL-BRX65/95 COVER CLIP - FINISHING INOX 304L
MV41603
BFR60/110-BRN95 HL-BRX65/95 COVER CLIP - FINISHING INOX 304L
Show

Dividers

Category
Dividers

Change category

Change category

Dividers
Cod Gewiss
Finishing
Suitable for
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65111X
Z275
BRN 50
BFR110-BRN80/95HL-BRN80/95NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65113X
Z275
BRN 80 - 95
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65211X
HDG
BRN 50
BFR110-BRN80/95 HL-BRN80/95 NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65213X
HDG
BRN 80 - 95
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65111X
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
Show
BFR110-BRN80/95HL-BRN80/95NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65113X
BFR110-BRN80/95HL-BRN80/95NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
Show
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65211X
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
Show
BFR110-BRN80/95 HL-BRN80/95 NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65213X
BFR110-BRN80/95 HL-BRN80/95 NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
Show
You saw 97 products on 545
Show others
Navigate by catalogue

Applications

Sports
Stadium and arena
Show more
Industry
Heavy industry
Show more
Healthcare
Hospitals
Show more
Transportation
Airports
Show more
Industry
Warehouse logistics
Show more
Transportation
Logistics hubs
Show more
Industry
Food industry
Show more
Industry
Mining
Show more
services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy text has been changed. Please consent again

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website

You are entering the site:

International - EN

GEWISS World websites are available for each country, differentiated by language, services and catalogue offerings.

Continue on international site Continue on international site

Do you want to change country?

Choose another country Choose another country
