Installation Wall-mounting enclosures 42 TV Range-Multifunctional supporting bases

42 TV Range
Multifunctional supporting bases

A range of boards for universal applications, as for example the support of electronic devices, power supply units or for the creation of small control boards with indicators and push-buttons. The cover with honeycomb finish offers the possibility of direct screw mounting of exposed equipment. Completing the offer is the watertight floor version outlet box ideal for example for the fixing of surface or recessed sockets-outlets.

See all product
Benefits
A complete offer
Application multifunctionality
Floor-standing tower version
A complete offer
A complete offer
The range consists of three sizes with different depths, and the practical floor-mounted tower. The accessories line includes back-mounting plates in sheet metal or insulating material, screwcaps to restore the IP protection rating and double insulation.
Application multifunctionality
Application multifunctionality
The front panel of the support bases is reversible: one face is smooth, to facilitate the fitting of recessed components and the other has a hollow structure to facilitate visible fitting of the products. Ideal for control and signalling boards.

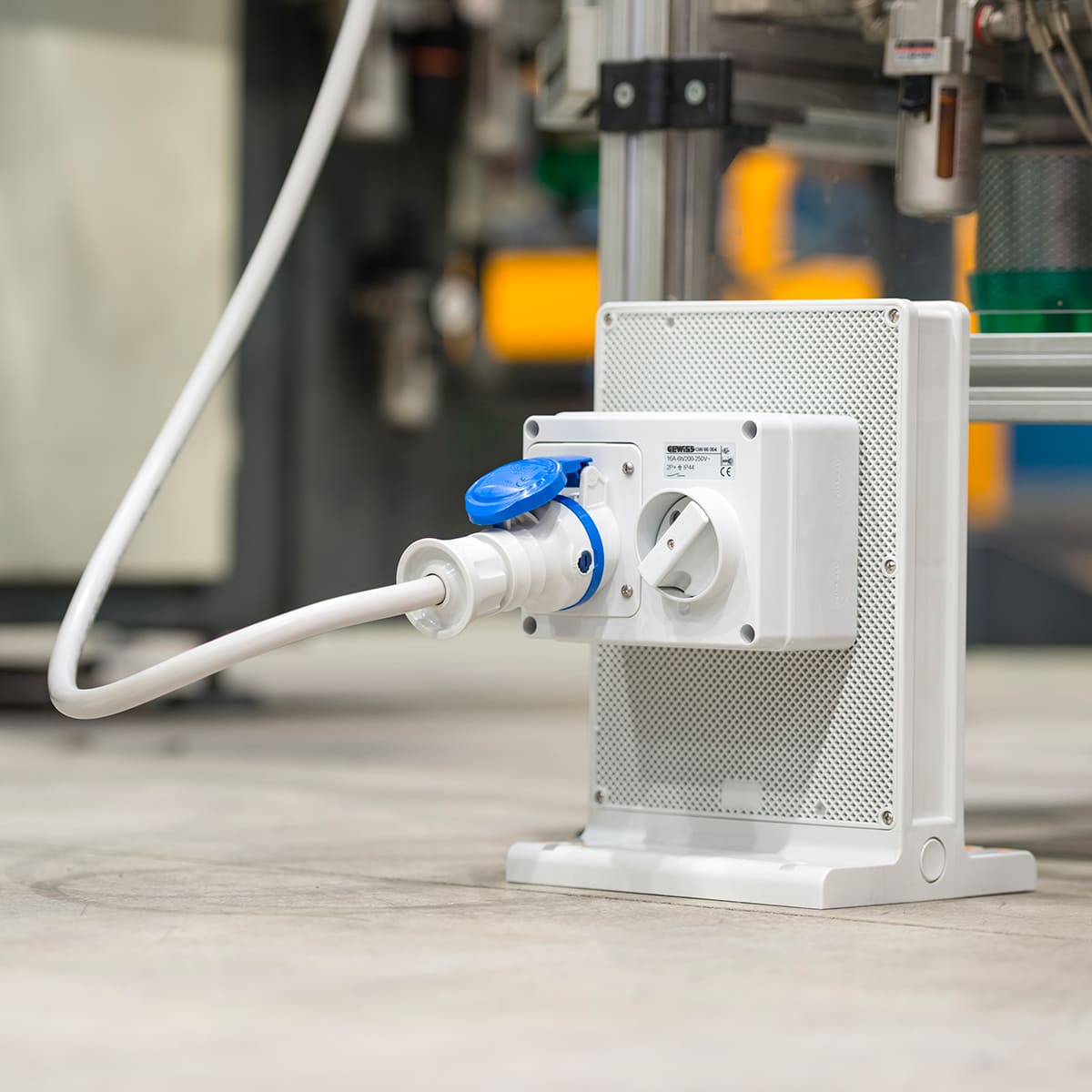

Floor-standing tower version
Floor-standing tower version
The practical and functional floor-standing tower, with an IP55 rating, enables configurations with IB interlocked sockets, Q-DIN distribution boards and enclosures of the 27 COMBI range.

The products of this series

Navigate by catalogue
All filters
19 products
Grid
List

Distribution tower and boards

Surface-mounting distribution boards - IP41

Category
With reversible door, with smooth and honeycomb surface - Grey RAL 7035

Change category

Change category

With reversible door, with smooth and honeycomb surface - Grey RAL 7035
Cod Gewiss
Outer dim. LxHxD (mm)
No. input
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X40
GW42001
200x150x40
Ø 20.5 = 16
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X60
GW42002
200x150x60
Ø 20.5 = 12 Ø 20.5/23 = 4
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X80
GW42003
200x150x80
Ø 20.5 = 12 Ø 20.5/23 = 4
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 300X200X40
GW42004
300x200x40
Ø 20.5 = 16
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 300X200X60
GW42005
300x200x60
Ø 23/29 = 16
See all
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X40
GW42001
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X40
Show
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X60
GW42002
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X60
Show
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X80
GW42003
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 200X150X80
Show
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 300X200X40
GW42004
BOARD WITH REVERSIBLE DOOR - SMOOTH AND HONEYCOMB SURFACE - DIMENSION 300X200X40
Show
See all

Floor mounting and workbench tower - IP55

Category
With reversible door and smooth and honeycomb surface - Grey RAL 7035

Change category

Change category

With reversible door and smooth and honeycomb surface - Grey RAL 7035
Cod Gewiss
Outer dim. LxHxD (mm)
Houseable IB socket-outlets
Installable Q-DIN boards
FLOOR MOUNTING AND WORKBENCH TOWER - IP55
GW68441
200x295x180
16/32 A
Q-DIN 5
FLOOR MOUNTING AND WORKBENCH TOWER - IP55
GW68441
FLOOR MOUNTING AND WORKBENCH TOWER - IP55
Show

Complementary items

Category
Waterproof coupler

Change category

Change category

Waterproof coupler
Back-mounting plate with self-tapping fixing screws
Cup drill milling cutter to drill panels
Cod Gewiss
Mounting hole Ø (mm)
Type of pitch
WATERPROOF COUPLER FOR ENCLOSURES, DEVICES AND BOXES - IP55 - PG16
GW26406
23
PG16
WATERPROOF COUPLER FOR ENCLOSURES, DEVICES AND BOXES - IP55 - PG16
GW26406
WATERPROOF COUPLER FOR ENCLOSURES, DEVICES AND BOXES - IP55 - PG16
Show
Cod Gewiss
Material
For boxes dimensions
For distribution boards

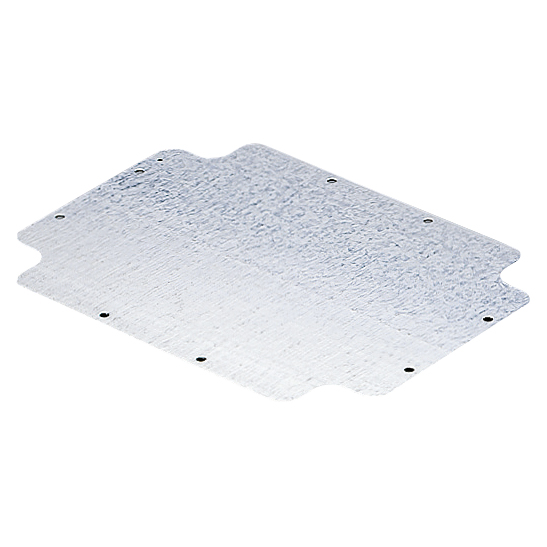

BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 190X140 - IN GALVANISED STEEL
GW44615
Galvanized metal
190x140
GW42001 - GW42002 - GW42003
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 240X190 - IN GALVANISED STEEL
GW44616
Galvanized metal
240x190
GW42004 - GW42005 - GW42006 - GW42007
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 300X220 - IN GALVANISED STEEL
GW44617
Galvanized metal
300x220
GW42008 - GW42009 - GW42010
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 190X140 - IN INSULATED MATERIAL
GW44625
Insulation
190x140
GW42001 - GW42002 - GW42003
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 240X190 - IN INSULATED MATERIAL
GW44626
Insulation
240x190
GW42004 - GW42005 - GW42006 - GW42007
See all
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 190X140 - IN GALVANISED STEEL
GW44615
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 190X140 - IN GALVANISED STEEL
Show
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 240X190 - IN GALVANISED STEEL
GW44616
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 240X190 - IN GALVANISED STEEL
Show
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 300X220 - IN GALVANISED STEEL
GW44617
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 300X220 - IN GALVANISED STEEL
Show
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 190X140 - IN INSULATED MATERIAL
GW44625
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 190X140 - IN INSULATED MATERIAL
Show
See all
Cod Gewiss
Description
CUP DRILL MILLING CUTTER TO DRILL PANELS - Ø 56
GW52402
Cup drill milling Ø56
CUP DRILL MILLING CUTTER TO DRILL PANELS - Ø 56
GW52402
CUP DRILL MILLING CUTTER TO DRILL PANELS - Ø 56
Show
You saw 19 products on 19
