Energy Electrical distribution boards 47 CVX 160 I Range-Flush-mounting distribution boards up to 160 A

47 CVX 160 I Range
Flush-mounting distribution boards up to 160 A

The CVX 160 I range of pre-assembled flush-mounting distribution boards up to 160A allows configurations to be made to suit your needs, from a minimum capacity of 96 modules up to a maximum of 144, with three different heights from 600 mm to 1000 mm.

See all product
Benefits
Screw and tool-free mounting
Fast fixing of insulation panels
Complete with accessories
Screw and tool-free mounting
Screw and tool-free mounting
The rail brackets have been designed for screw-free fitting thanks to coupling on functional profiles. In addition, the innovative support allows the rails to be attached to the brackets and adjusted in depth without the use of screws and tools.
Fast fixing of insulation panels
Fast fixing of insulation panels
The plastic front panels allow quick fitting via two 1⁄4 turn inserts and require no grounding. A kit is included throughout the range to enable the panels to be hinged.
Complete with accessories
Complete with accessories
Once the distribution board size is chosen, a single order code covers the DIN rails and front insulation panels, as well as the metal case and door.

The products of this series

Navigate by catalogue
All filters
32 products

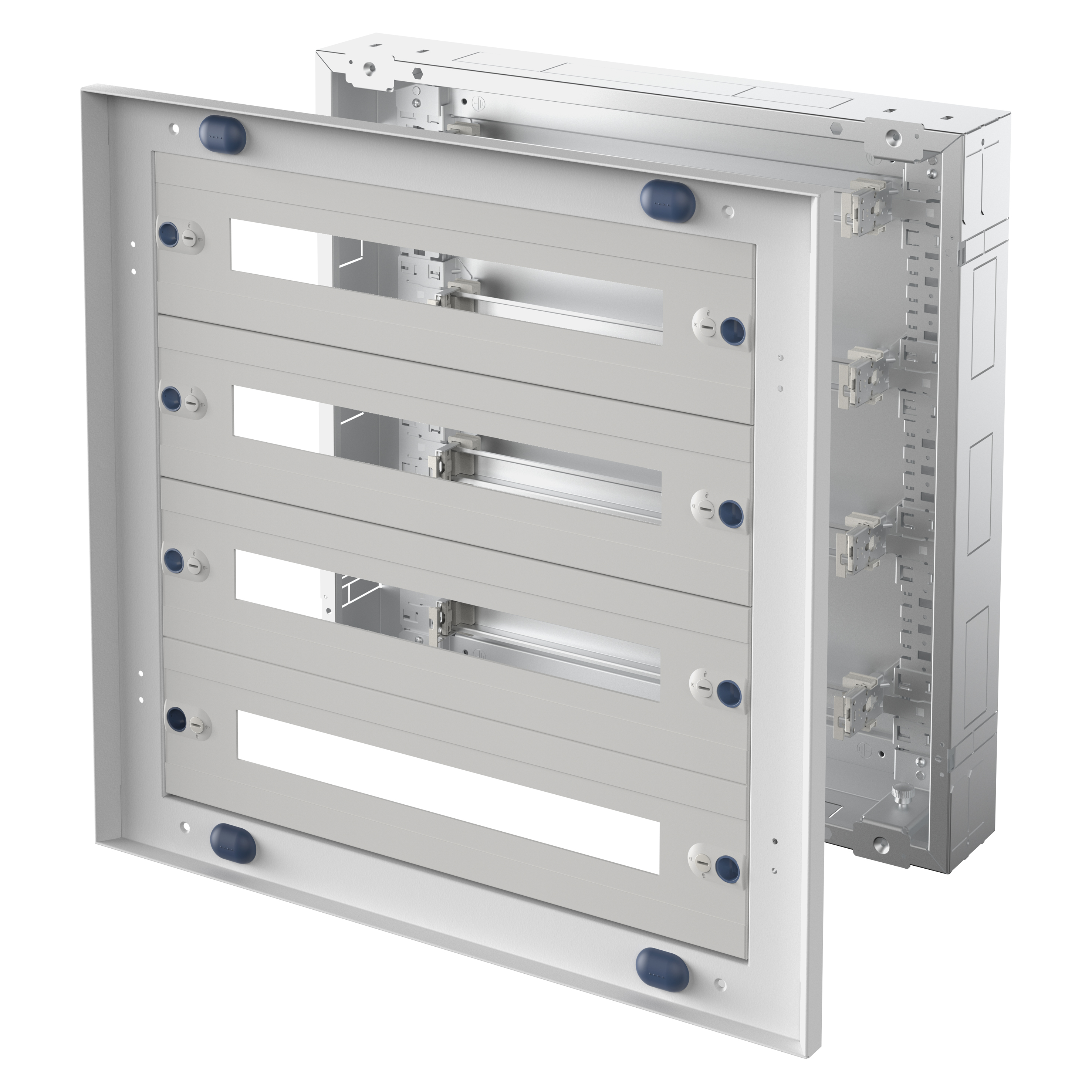

CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x600x105- 96(24x4) MODULES - IP30 - WITHOUT DOOR - GREY RAL7035
GW47072
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x600x105- 96(24x4) MODULES - IP30 - WITHOUT DOOR - GREY RAL7035
Show
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x800x105 - 120(24x5) MODULES - IP30 - WITHOUT DOOR - GREY RAL7035
GW47073
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x800x105 - 120(24x5) MODULES - IP30 - WITHOUT DOOR - GREY RAL7035
Show
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x1000x105 - 144(24x6) MODULES - IP30 - WITHOUT DOOR - GREY RAL7035
GW47074
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x1000x105 - 144(24x6) MODULES - IP30 - WITHOUT DOOR - GREY RAL7035
Show

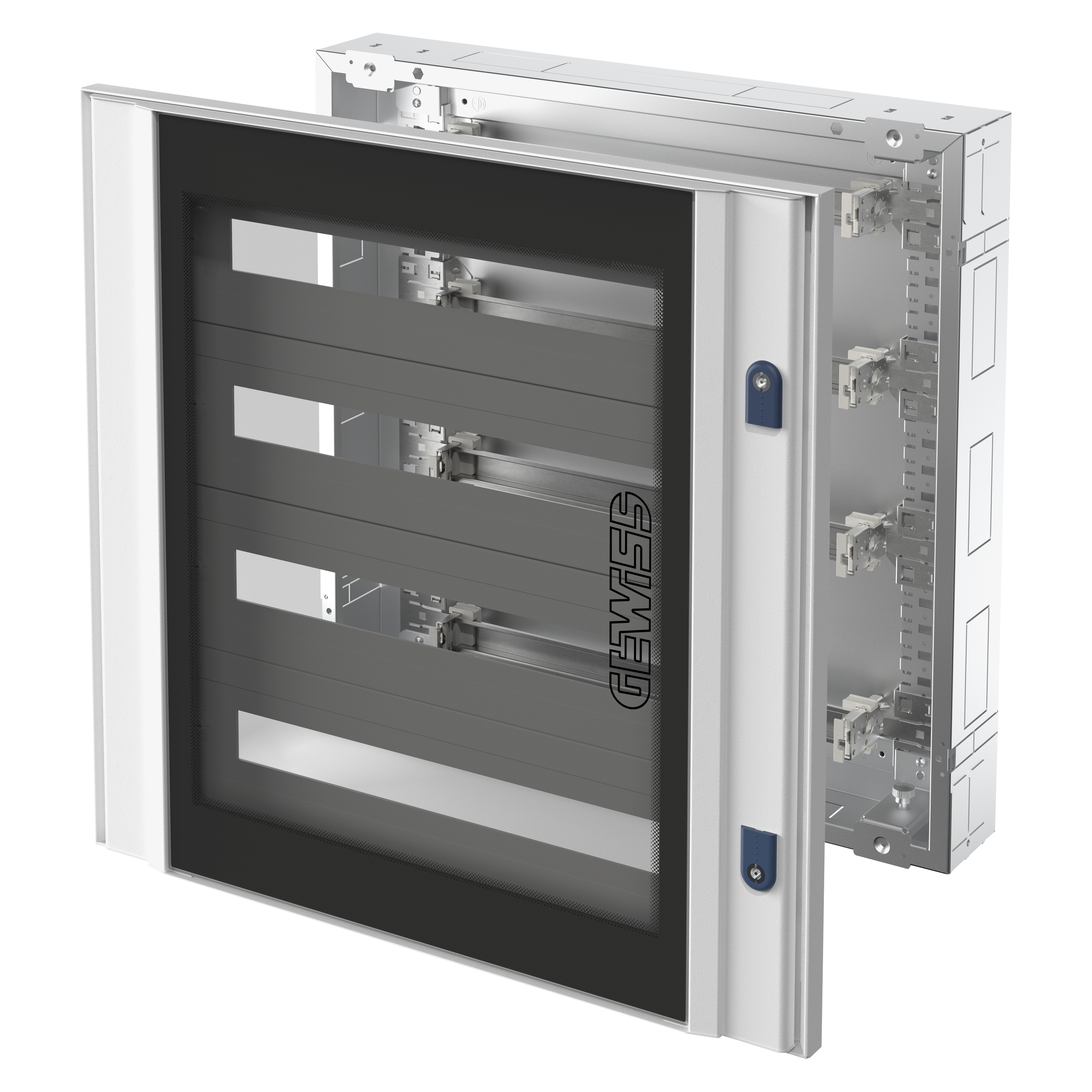

CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x600x105 - 96(24x4) MODULES - IP40 - GLASS DOOR WITH 2 LOCKS - GREY RAL7035
GW47082
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x600x105 - 96(24x4) MODULES - IP40 - GLASS DOOR WITH 2 LOCKS - GREY RAL7035
Show
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x800x105 - 120(24x5) MODULES - IP40 - GLASS DOOR WITH 2 LOCKS - GREY RAL7035
GW47083
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x800x105 - 120(24x5) MODULES - IP40 - GLASS DOOR WITH 2 LOCKS - GREY RAL7035
Show
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x1000x105 - 144(24x6) MODULES - IP40 - GLASS DOOR WITH 2 LOCKS - GREY RAL7035
GW47084
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x1000x105 - 144(24x6) MODULES - IP40 - GLASS DOOR WITH 2 LOCKS - GREY RAL7035
Show

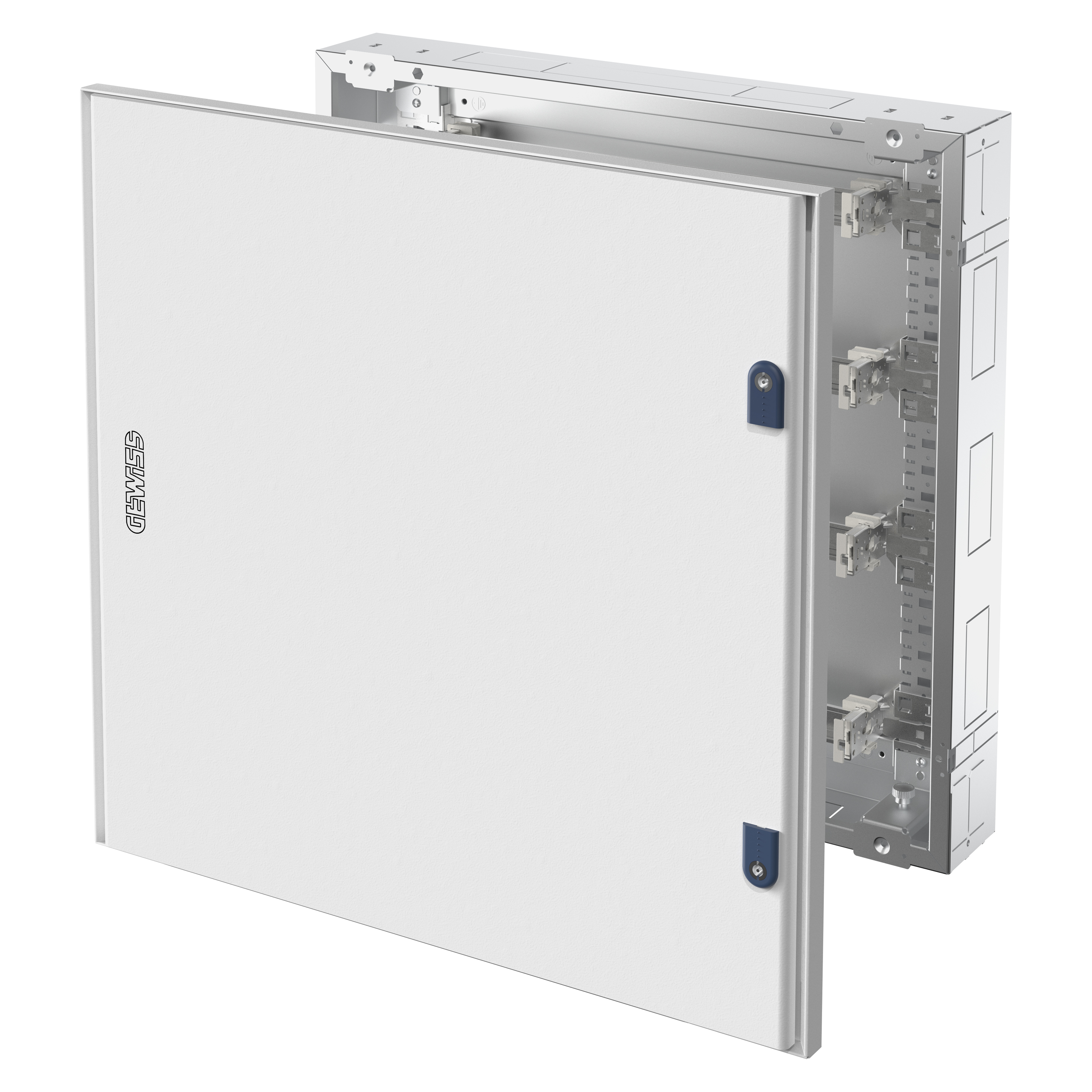

CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x600x105 - 96(24x4) MODULES - IP40 - BLANK DOOR IN SHEET METAL- WITH 2 LOCKS -GREY RAL7035
GW47087
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x600x105 - 96(24x4) MODULES - IP40 - BLANK DOOR IN SHEET METAL- WITH 2 LOCKS -GREY RAL7035
Show
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x800x105 - 120(24x5) MODULES - IP40 - BLANK DOOR IN SHEET METAL- WITH 2 LOCKS -GREY RAL7035
GW47088
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x800x105 - 120(24x5) MODULES - IP40 - BLANK DOOR IN SHEET METAL- WITH 2 LOCKS -GREY RAL7035
Show
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x1000x105 - 144(24x6) MODULES - IP40 - BLANK DOOR IN SHEET METAL- WITH 2 LOCKS -GREY RAL7035
GW47089
CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x1000x105 - 144(24x6) MODULES - IP40 - BLANK DOOR IN SHEET METAL- WITH 2 LOCKS -GREY RAL7035
Show
FRONT PANEL WITH WINDOW FOR MODULAR DIVICES - CVX 160I/160E - 24 MODULES - 600X150
GW47178
FRONT PANEL WITH WINDOW FOR MODULAR DIVICES - CVX 160I/160E - 24 MODULES - 600X150
Show
FRONT PANEL WITH WINDOW FOR MODULAR DIVICES - CVX 160I/160E - 24 MODULES - 600X200
GW47179
FRONT PANEL WITH WINDOW FOR MODULAR DIVICES - CVX 160I/160E - 24 MODULES - 600X200
Show
BLANK FRONT PANEL - CVX 160I/160E - 24 MODULES - 600X50
GW47173
BLANK FRONT PANEL - CVX 160I/160E - 24 MODULES - 600X50
Show
BLANK FRONT PANEL - CVX 160I/160E - 24 MODULES - 600X150
GW47174
BLANK FRONT PANEL - CVX 160I/160E - 24 MODULES - 600X150
Show
BLANK FRONT PANEL - CVX 160I/160E - 24 MODULES - 600X200
GW47175
BLANK FRONT PANEL - CVX 160I/160E - 24 MODULES - 600X200
Show
DIN RAIL FOR MODULAR DEVICES - CVX 160I - EN 50022
GW47251
DIN RAIL FOR MODULAR DEVICES - CVX 160I - EN 50022
Show
DIN RAIL FOR MODULAR DEVICES - CVX 160I - DOUBLE EN 50022
GW47252
DIN RAIL FOR MODULAR DEVICES - CVX 160I - DOUBLE EN 50022
Show
You saw 16 products on 32
Show others
