90 PV range
Products for photovoltaic systems

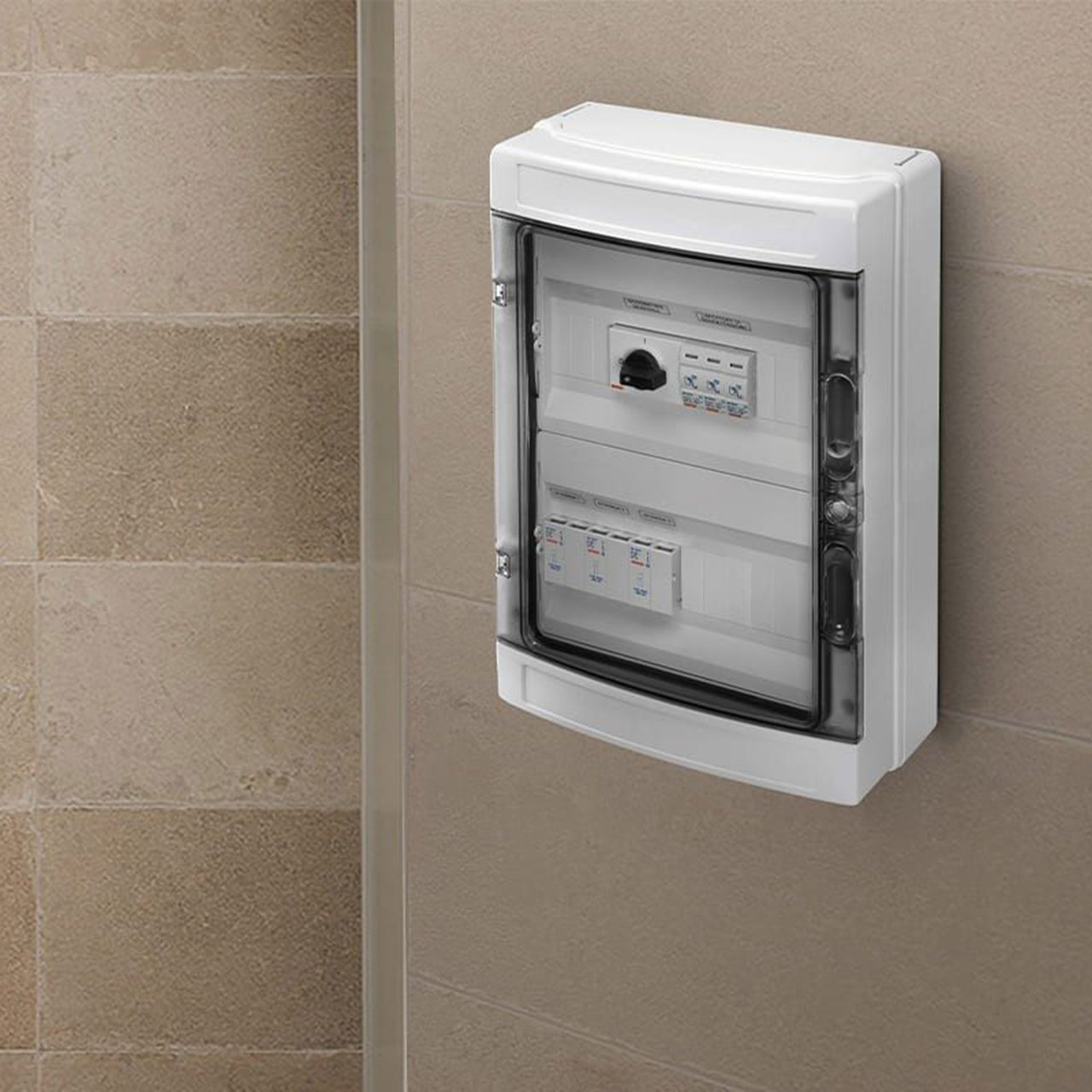

The 90 PV range comprises 6 versions of string boards able to meet the most varying photovoltaic plant engineering requirements, from the residential context to the commercial/industrial one
The different versions are distinguished by the number of strings that can be managed, and by the voltage level of the photovoltaic generator.
In addition to string boards, the range also includes modular products specifically for the DC side of the photovoltaic system.

Benefits
Ready to connect right away
Already tested and certified
Completeness of range
Ready to connect right away
Ready to connect right away
To allow for easy, fast and secure connection, the string boards include cable glands and equipotential terminal blocks. The cable glands are supplied loose, to allow entry of the cables according to your needs (from the top, the bottom or the sides).
Already tested and certified
Already tested and certified
The string distribution boards are tested in GEWISS laboratories, passing and exceeding all tests required by EN 61439-1 and EN 61439-2 for the issue of product certification.
Completeness of range
Completeness of range
The GEWISS AC protection offer meets all system needs, from residential to tertiary/industrial, with a wide range of products, including modular devices, moulded case circuit breakers, modular accessories and distribution boards

The products of this series

Navigate by catalogue
All filters
22 products
BOARD WITH 2 PRE-WIRED STRINGS - 600V DC - 25A - 12 MODULES
GWD9901
BOARD WITH 2 PRE-WIRED STRINGS - 600V DC - 25A - 12 MODULES
Show
BOARD WITH 3 PRE-WIRED STRINGS - 600V DC - 25A - 24 MODULES
GWD9902
BOARD WITH 3 PRE-WIRED STRINGS - 600V DC - 25A - 24 MODULES
Show
BOARD WITH 4 PRE-WIRED STRINGS - 600V DC - 50A - 24 MODULES
GWD9903
BOARD WITH 4 PRE-WIRED STRINGS - 600V DC - 50A - 24 MODULES
Show
BOARD WITH 2 PRE-WIRED STRINGS - 800V DC - 20A - 12 MODULES
GWD9906
BOARD WITH 2 PRE-WIRED STRINGS - 800V DC - 20A - 12 MODULES
Show
BOARD WITH 3 PRE-WIRED STRINGS - 1000V DC - 32A - 12 MODULES
GWD9907
BOARD WITH 3 PRE-WIRED STRINGS - 1000V DC - 32A - 12 MODULES
Show
BOARD WITH 4 PRE-WIRED STRINGS - 1000V DC - 32A - 12 MODULES
GWD9908
BOARD WITH 4 PRE-WIRED STRINGS - 1000V DC - 32A - 12 MODULES
Show
ROTARY SWITCH DISCONNECTOR - 2P 25A 600V DC - 3.5 MODULES
GW96186
ROTARY SWITCH DISCONNECTOR - 2P 25A 600V DC - 3.5 MODULES
Show
ROTARY SWITCH DISCONNECTOR - 4P 32A 600V DC - 3.5 MODULES
GW96187
ROTARY SWITCH DISCONNECTOR - 4P 32A 600V DC - 3.5 MODULES
Show
LST - SURGE PROTECTIVE DEVICE FOR PHOTOVOLTAIC APPLICATIONS - 5KA 1000V DC - TYPE T1+2
GWD6429
LST - SURGE PROTECTIVE DEVICE FOR PHOTOVOLTAIC APPLICATIONS - 5KA 1000V DC - TYPE T1+2
Show
LST - SURGE PROTECTIVE DEVICE FOR PHOTOVOLTAIC APPLICATIONS - 40KA 600V DC - TYPE 2
GWD6426
LST - SURGE PROTECTIVE DEVICE FOR PHOTOVOLTAIC APPLICATIONS - 40KA 600V DC - TYPE 2
Show
LST - SURGE PROTECTIVE DEVICE FOR PHOTOVOLTAIC APPLICATIONS - 40KA 1000V DC - TYPE 2
GWD6428
LST - SURGE PROTECTIVE DEVICE FOR PHOTOVOLTAIC APPLICATIONS - 40KA 1000V DC - TYPE 2
Show
LST - EXTRACTABLE SPARE CARTRIDGE - 5KA 1000V DC - TIPO 1+2
GWD6449
LST - EXTRACTABLE SPARE CARTRIDGE - 5KA 1000V DC - TIPO 1+2
Show
LST - EXTRACTABLE SPARE CARTRIDGE - 40KA 600V DC - TYPE 2
GWD6446
LST - EXTRACTABLE SPARE CARTRIDGE - 40KA 600V DC - TYPE 2
Show
LST - EXTRACTABLE SPARE CARTRIDGE - 40KA 1000V DC
GWD6448
LST - EXTRACTABLE SPARE CARTRIDGE - 40KA 1000V DC
Show
DISCONNECTABLE FUSE HOLDER - 1P 10.3X38 1000V DC 20A - 1 MODULE
GW96226
DISCONNECTABLE FUSE HOLDER - 1P 10.3X38 1000V DC 20A - 1 MODULE
Show
DISCONNECTABLE FUSE HOLDER - 2P 10.3X38 1000V DC 20A - 1 MODULE
GW96227
DISCONNECTABLE FUSE HOLDER - 2P 10.3X38 1000V DC 20A - 1 MODULE
Show
You saw 16 products on 22
Show others
