Building Domestic Range PLAYBUS - Domestic range-Modular devices

PLAYBUS - Domestic range
Modular devices

A range of modular devices for domestic and similar uses; can be composed on frames for rectangular flush-mounting boxes of up to 18 modules, or on square versions.
Colours and finishes: satin black, elegant and classy. The range includes commands, socket-outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.

See all product
Benefits
Design and Safety
Installation flexibility
Control devices
Design and Safety
Design and Safety
The Playbus series includes two plate shapes, modern or classic, available in 5 colours with a glossy or satin finish.
The use of technopolymer ensures complete and safe electrical insulation together with greater durability of colours and finishes.
Installation flexibility
Installation flexibility
The Playbus series lets you manage multiple sockets and lines from a single point, thanks to the high-capacity plates,
with up to 18 modules and internal circuit separation. The exceptional flexibility of the installations is also ensured by the wide range of accessories available.
Control devices
Control devices
The control units have three types of backlighting: functional (also visible during the day), night location (discrete luminosity) and iconographic (the symbols for over 40 keys/functions can be replaced by simple and intuitive graphic icons).

The products of this series

Navigate by catalogue
All filters
106 products
Grid
List

Command

Command devices

Category
One-way switches - 250V ac

Change category

Change category

One-way switches - 250V ac
Two-way switches - 250V ac
Intermediate switch - 250V ac
Three-way switch - 250V ac
Push-buttons - 250V ac
Push-button with backlit name-plate - 250V ac
Cod Gewiss
Description
Type
Symbol
Rated power of 230V LED lamps
No. Playbus modules

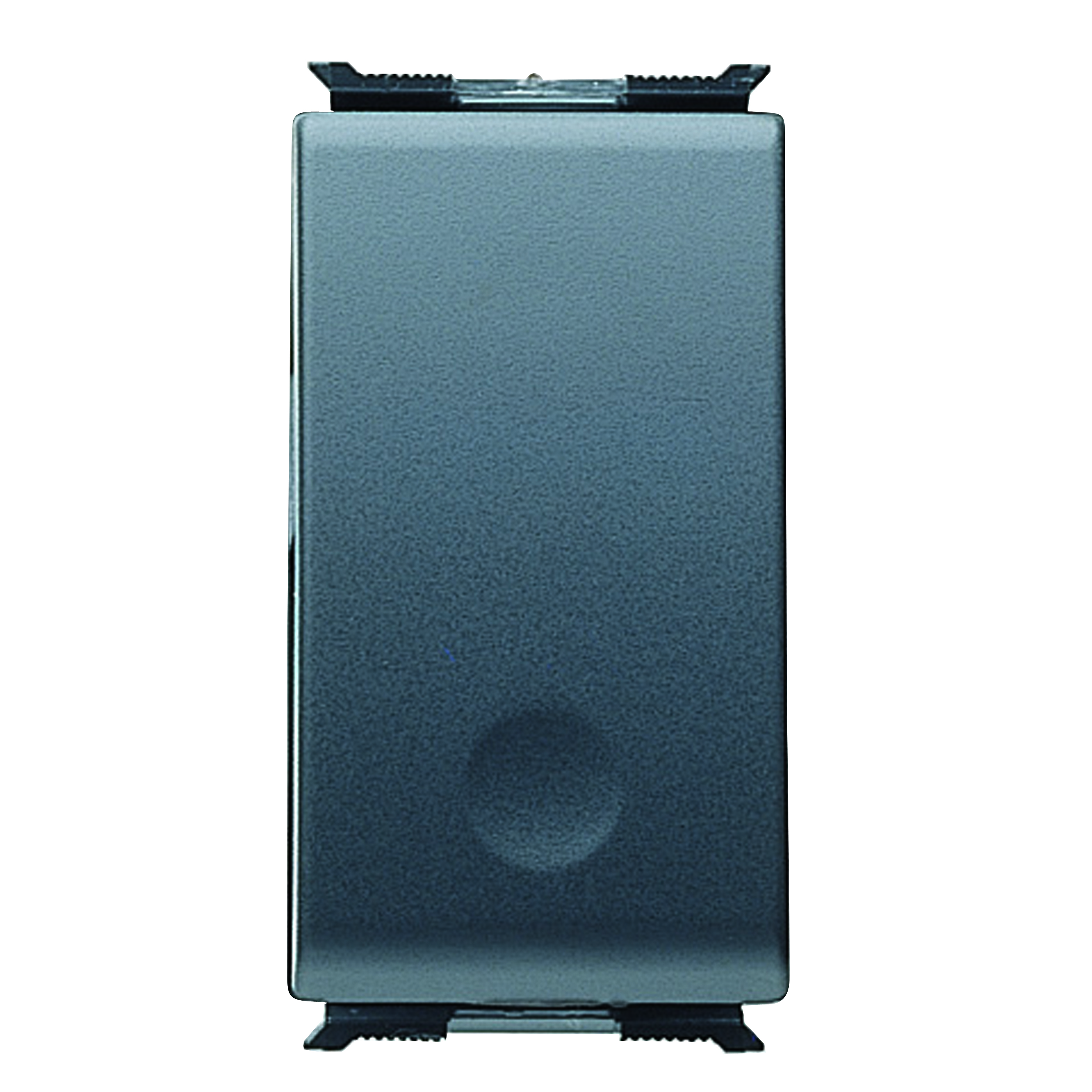

ONE-WAY SWITCH 1P 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
GW30001
1P - 16AX
General
-
200 W
1
ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
GW30002
1P - 16AX illuminable
Night-time backlit
-
200 W
1

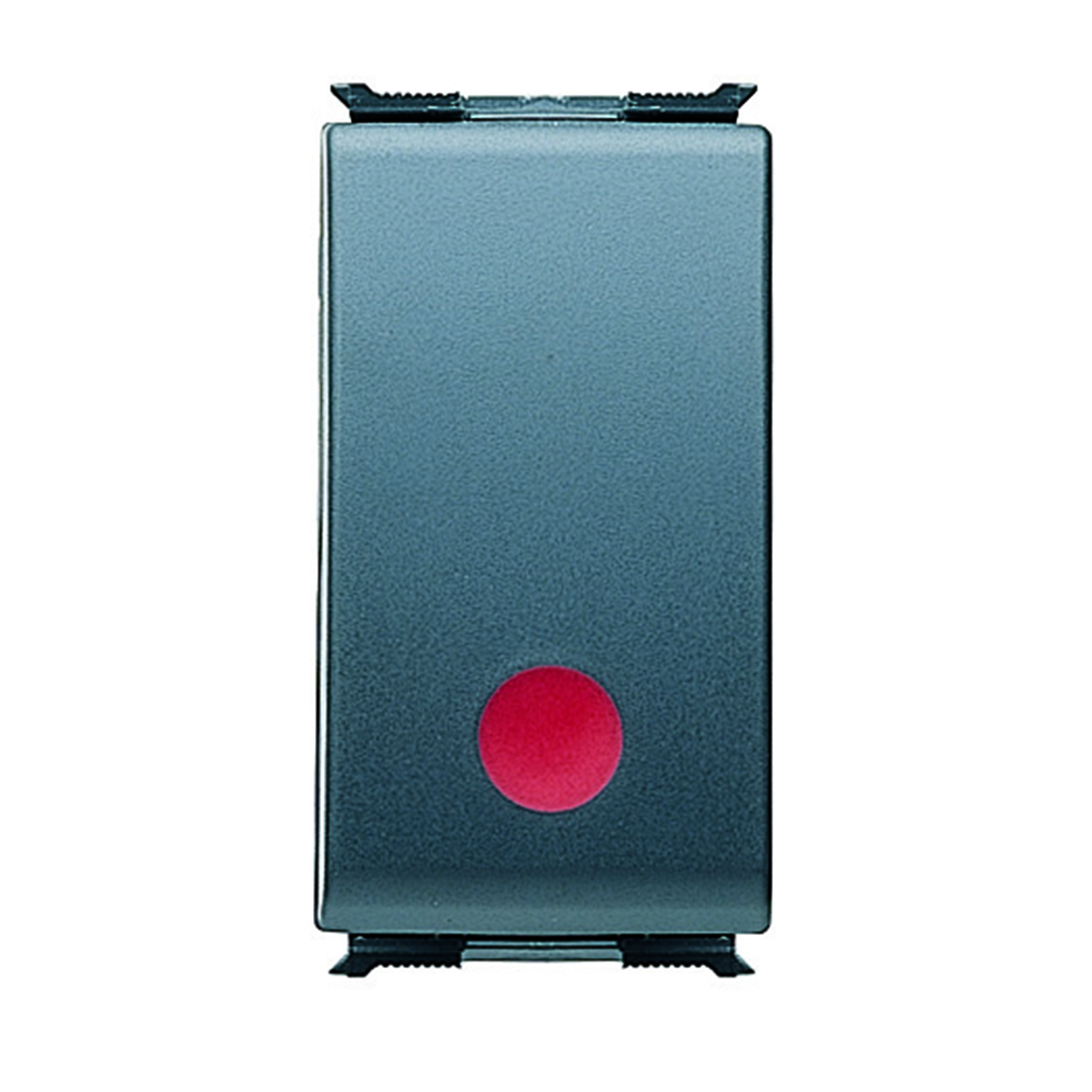

ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
GW30003
1P - 16AX illuminable
Functional indicator
-
200 W
1
ONE-WAY SWITCH 2P 250V ac - 16AX - GENERAL - SYMBOL: 0/1 - 1 MODULE - PLAYBUS
GW30004
2P - 16 AX
General
0/1
200 W
1

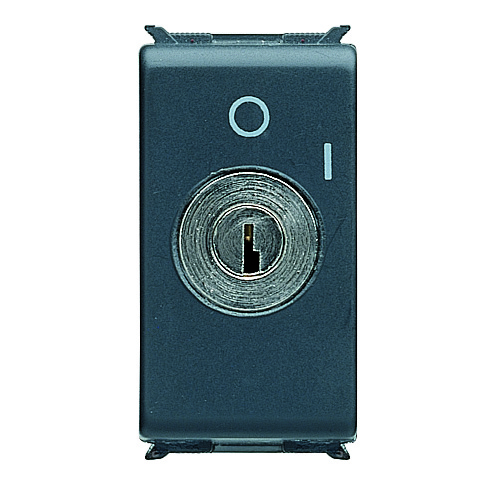

ONE-WAY SWITCH 2P 250V ac - 10AX - WITH KEY - SYMBOL: 0/1 - 1 MODULE - PLAYBUS
GW30007
2P - 10AX
With key
0/1
100 W
1
ONE-WAY SWITCH 1P 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
GW30001
ONE-WAY SWITCH 1P 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
Show
ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
GW30002
ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
Show
ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
GW30003
ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
Show
ONE-WAY SWITCH 2P 250V ac - 16AX - GENERAL - SYMBOL: 0/1 - 1 MODULE - PLAYBUS
GW30004
ONE-WAY SWITCH 2P 250V ac - 16AX - GENERAL - SYMBOL: 0/1 - 1 MODULE - PLAYBUS
Show
See all
Cod Gewiss
Description
Type
Rated power of 230V LED lamps
No. Playbus modules
TWO-WAY SWITCH 1P 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
GW30011
1P - 16AX
General
200 W
1
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
GW30012
1P - 16AX illuminable
Night-time backlit
200 W
1
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
GW30013
1P - 16AX illuminable
Functional indicator
200 W
1
TWO-WAY SWITCH 1P 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
GW30011
TWO-WAY SWITCH 1P 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
Show
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
GW30012
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
Show
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
GW30013
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
Show
Cod Gewiss
Description
Type
Rated power of 230V LED lamps
No. Playbus modules
REVERSING SWITCH 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
GW30015
1P - 16AX
General
200 W
1
REVERSING SWITCH 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
GW30015
REVERSING SWITCH 250V ac - 16AX - GENERAL - 1 MODULE - PLAYBUS
Show
Cod Gewiss
Description
Symbol
Rated power of 230V LED lamps
No. Playbus modules

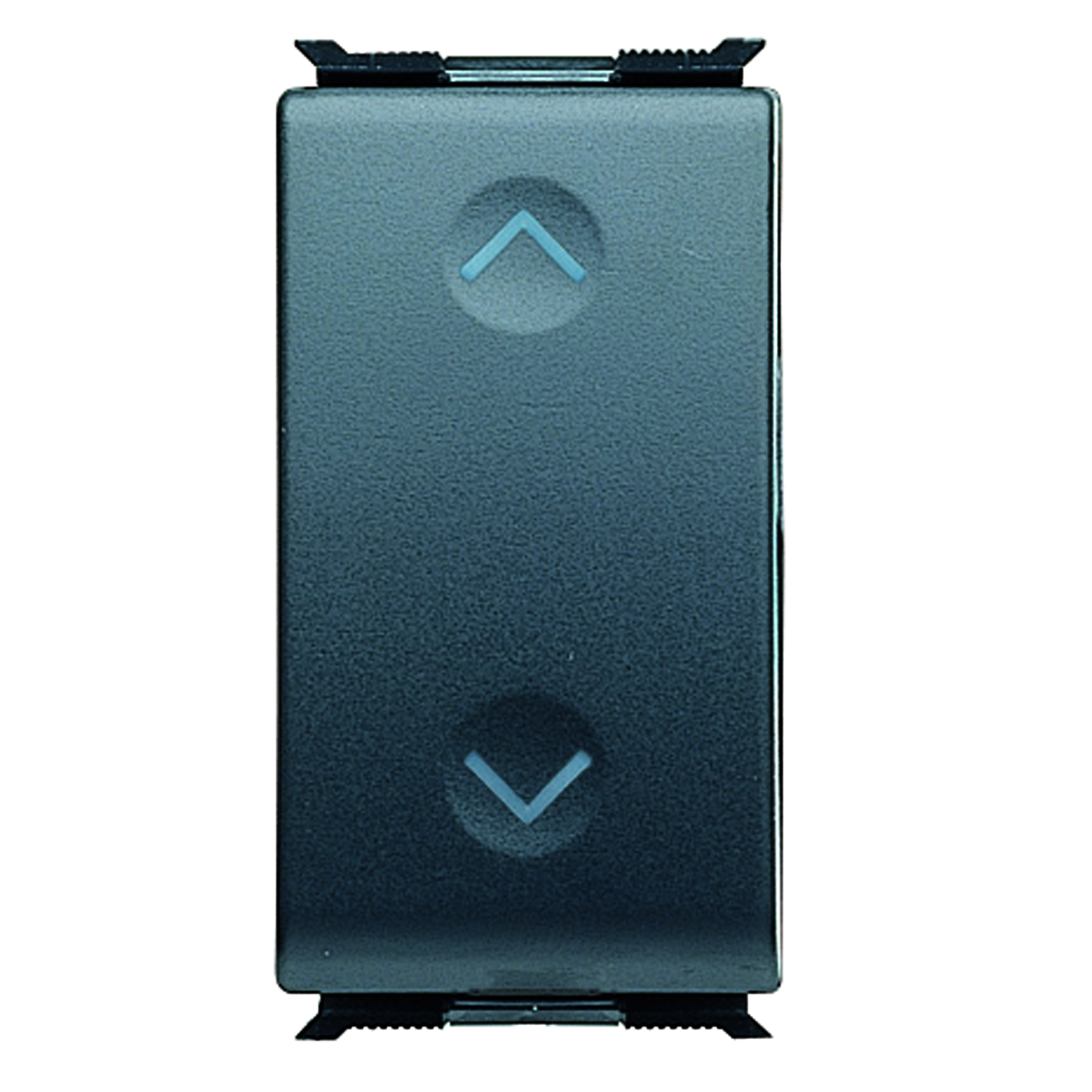

THREE-WAY SWITCH 250V ac - 10AX - SYMBOL: UP-DOWN - POSITIONS 1-0-2 - 1 MODULE - PLAYBUS
GW30016
1P - 10AX
UP - DOWN
100 W
1
THREE-WAY SWITCH 250V ac - 10AX - SYMBOL: UP-DOWN - POSITIONS 1-0-2 - 1 MODULE - PLAYBUS
GW30016
THREE-WAY SWITCH 250V ac - 10AX - SYMBOL: UP-DOWN - POSITIONS 1-0-2 - 1 MODULE - PLAYBUS
Show
Cod Gewiss
Description
Type
Symbol
No. Playbus modules
PUSH-BUTTON 1P 250V ac - NO 16A - GENERAL - 1 MODULE - PLAYBUS
GW30021
1P NO - 16A
General
-
1
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
GW30022
1P NO - 16A illuminable
Night-time backlit
-
1
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
GW30023
1P NO - 16A illuminable
Functional indicator
-
1
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - SYMBOL:.KEY - 1 MODULE - PLAYBUS
GW30024
1P NO - 16A illuminable
With symbol
Key
1
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - SYMBOL: BELL - 1 MODULE - PLAYBUS
GW30025
1P NO - 16A illuminable
With symbol
Bell
1
See all
PUSH-BUTTON 1P 250V ac - NO 16A - GENERAL - 1 MODULE - PLAYBUS
GW30021
PUSH-BUTTON 1P 250V ac - NO 16A - GENERAL - 1 MODULE - PLAYBUS
Show
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
GW30022
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - NIGHT-TIME BACKLIT - 1 MODULE - PLAYBUS
Show
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
GW30023
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - FUNCTIONAL INDICATOR - 1 MODULE - PLAYBUS
Show
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - SYMBOL:.KEY - 1 MODULE - PLAYBUS
GW30024
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - SYMBOL:.KEY - 1 MODULE - PLAYBUS
Show
See all
Cod Gewiss
Description
Lamp
Lamp voltage
Lamp power
No. Playbus modules
PUSH-BUTTON WITH BACKLIT NAME PLATE 250V ac - 1P NO 10A ILLUMINABLE - 2 MODULES - PLAYBUS
GW30038
1P NO - 10A illuminable
Cartridge lamp S6x36 mm
12 - 24 V
2 W
2
PUSH-BUTTON WITH BACKLIT NAME PLATE 250V ac - 1P NO 10A ILLUMINABLE - 2 MODULES - PLAYBUS
GW30038
PUSH-BUTTON WITH BACKLIT NAME PLATE 250V ac - 1P NO 10A ILLUMINABLE - 2 MODULES - PLAYBUS
Show

Blanking modules and cable outlet

Category
Blanking modules and cable outlet

Change category

Change category

Blanking modules and cable outlet
Cod Gewiss
Description
No. Playbus modules
BLANKING MODULE - 1 GANG - 1 MODULE - PLAYBUS
GW30901
1 module
1
BLANKING MODULE - 2 GANG - 2 MODULES - PLAYBUS
GW30902
2 modules
2
BLANKING MODULE - 3 GANG - 3 MODULES - PLAYBUS
GW30903
3 modules
3

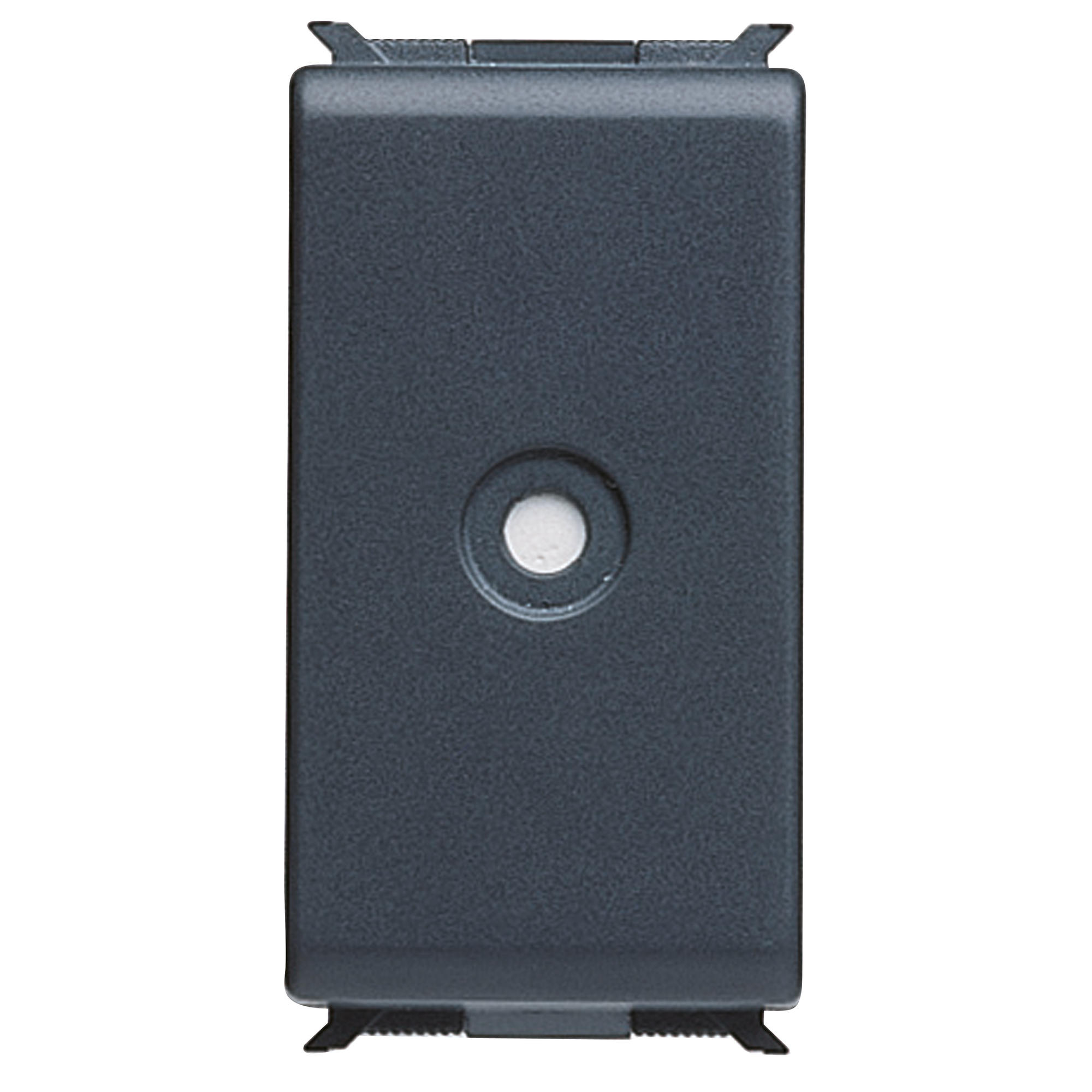

BLANKING MODULE - 1 GANG WITH OUTLET FOR CABLE - 1 MODULE - PLAYBUS
GW30905
1 module with outlet for cable Ø 4 and Ø 8mm
1
BLANKING MODULE - 1 GANG - 1 MODULE - PLAYBUS
GW30901
BLANKING MODULE - 1 GANG - 1 MODULE - PLAYBUS
Show
BLANKING MODULE - 2 GANG - 2 MODULES - PLAYBUS
GW30902
BLANKING MODULE - 2 GANG - 2 MODULES - PLAYBUS
Show
BLANKING MODULE - 3 GANG - 3 MODULES - PLAYBUS
GW30903
BLANKING MODULE - 3 GANG - 3 MODULES - PLAYBUS
Show
BLANKING MODULE - 1 GANG WITH OUTLET FOR CABLE - 1 MODULE - PLAYBUS
GW30905
BLANKING MODULE - 1 GANG WITH OUTLET FOR CABLE - 1 MODULE - PLAYBUS
Show

IR movement detector

Category
Infrared movement detectors

Change category

Change category

Infrared movement detectors
Cod Gewiss
Supply voltage
Output contacts
No. Playbus modules

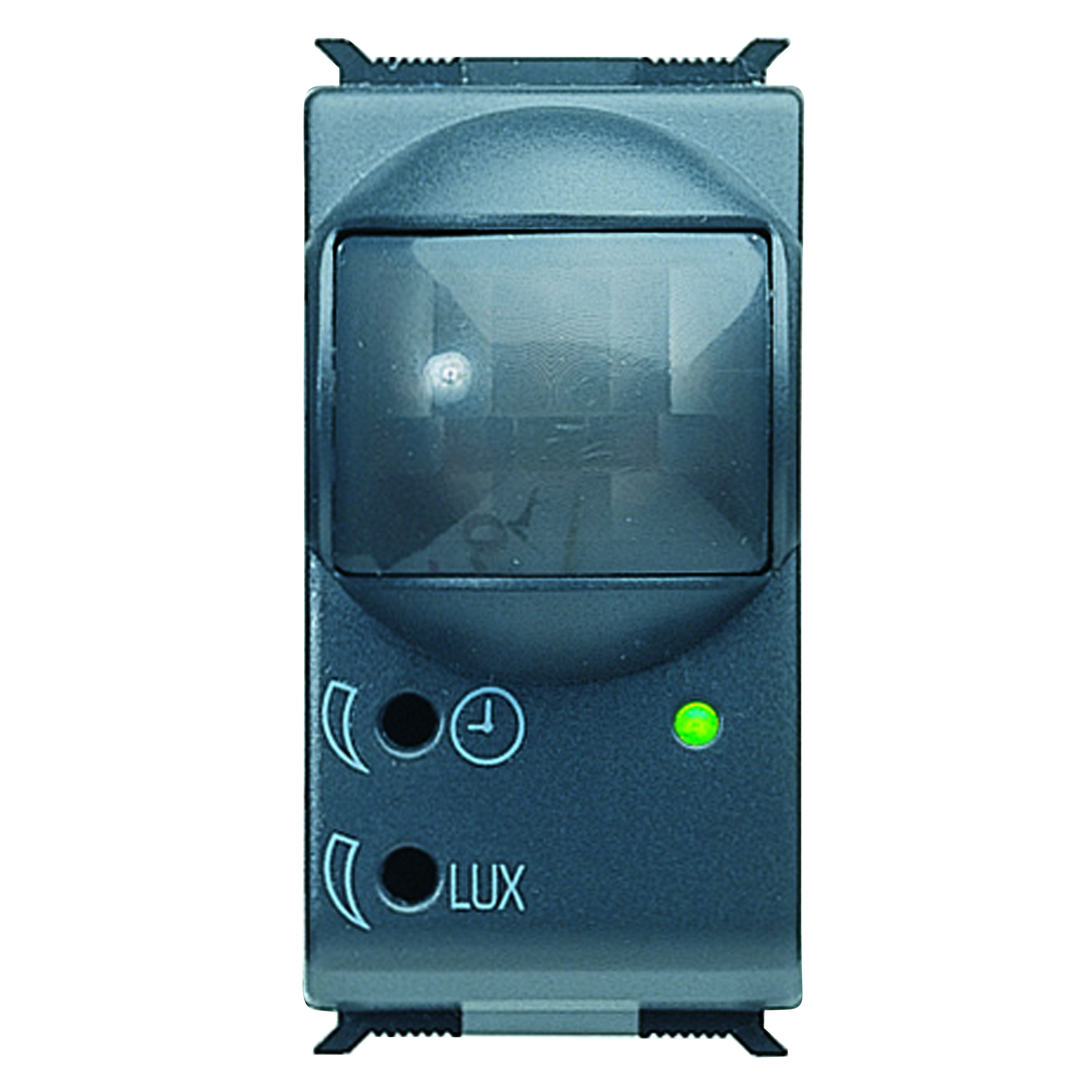

INFRARED MOVEMENT SENSOR - 230V 50/60Hz - 1NO 3A(AC1)/2A(AC15) - 1 MODULE - PLAYBUS
GW30121
230V ac - 50/60Hz
1NO 3A(AC1) 250V ac
1
INFRARED MOVEMENT SENSOR - 230V 50/60Hz - 1NO 3A(AC1)/2A(AC15) - 1 MODULE - PLAYBUS
GW30121
INFRARED MOVEMENT SENSOR - 230V 50/60Hz - 1NO 3A(AC1)/2A(AC15) - 1 MODULE - PLAYBUS
Show
You saw 31 products on 106
Show others
