QMC63B - WIRED - DOUBLE SIDE TAKE-OFF - 4 SOCKET OUTLET 2P+E 16A - IP55 - WHITE

Code: GW68851W

Range: 68 Q-MC
Terminal system for energy distribution and service in insulating material

The 68 Q-MC range is an innovative energy and services distribution system made of thermoplastic, for environments such as tourist ports, campsites and public spaces (trade fairs, markets, gardens, etc.). It combines an attractive design with complete reliability over time, thanks to its resistance to chemical and atmospheric agents. The range includes both pre-wired and unwired versions, which can be configured as needed, and is available in light blue and white.

Technical Info

Information

Download

Software

Certificates

Colour White

Socket-outlet 2P+E 16A 4 (2 for side)

Ware Number 85371098

DXF drawing

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES

Information and general recommendations

Conformity declaration

User guide

Go to download area Go to download area

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

ENERGYpro

Boards for building sites, campings-piers and distribution

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

PRICE

Estimation of electrical systems

CADpro

Advanced design of electrical systems

Go to software area Go to software area

Reach Declaration

CE marking

EQUIPMENT AND NOTES

PROTECTIONS:
GW68851A/W: Board In: 25 A; Main switch disconnector 4P 32 A;
4 RCBO - MDC Range 2P 230 V 16 A C 6 kA 0.03 A - AC Type for the four 2P+E 16 A 230 V socket-outlets.
GW68852A/W: Board In: 25 A; Main switch disconnector 4P 32 A;
2 RCBO - MDC Range 2P 230 V 16 A C 6 kA 0.03 A - AC Type for the two 2P+E 16 A 230 V socket-outlets;
2 RCBO - MDC Range 2P 230 V 32 A C characteristic 6 kA 0.03 A - AC Type for the two 2P+E 32 A 230 V socket-outlets.
ACCESSORIES SUPPLIED: 1 LED lighting lamp 230 V; 4 padlockable 1/2" ball valves.
CHARACTERISTICS: stainless steel cable fastener devices; enclosure with hinged opening that can be fitted with security lock, for access to modular devices.
Power supply terminal block section: 16 mm². Pedestal dimensions: 445x950x300 mm (LxHxD).

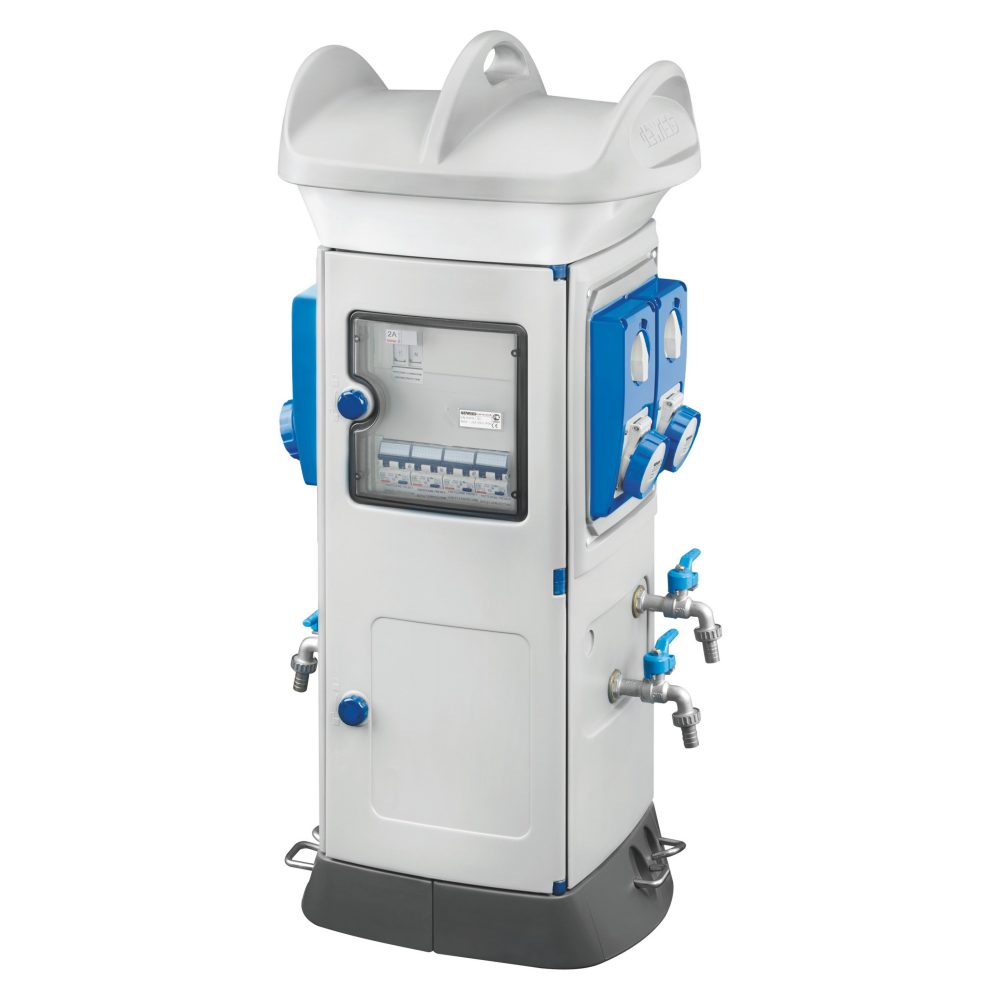

NOTE: Products will be supplied in the configuration with the new design, as shown in the picture, and with the LED lighting KIT installed as standard, only after having sold out the previous one.
