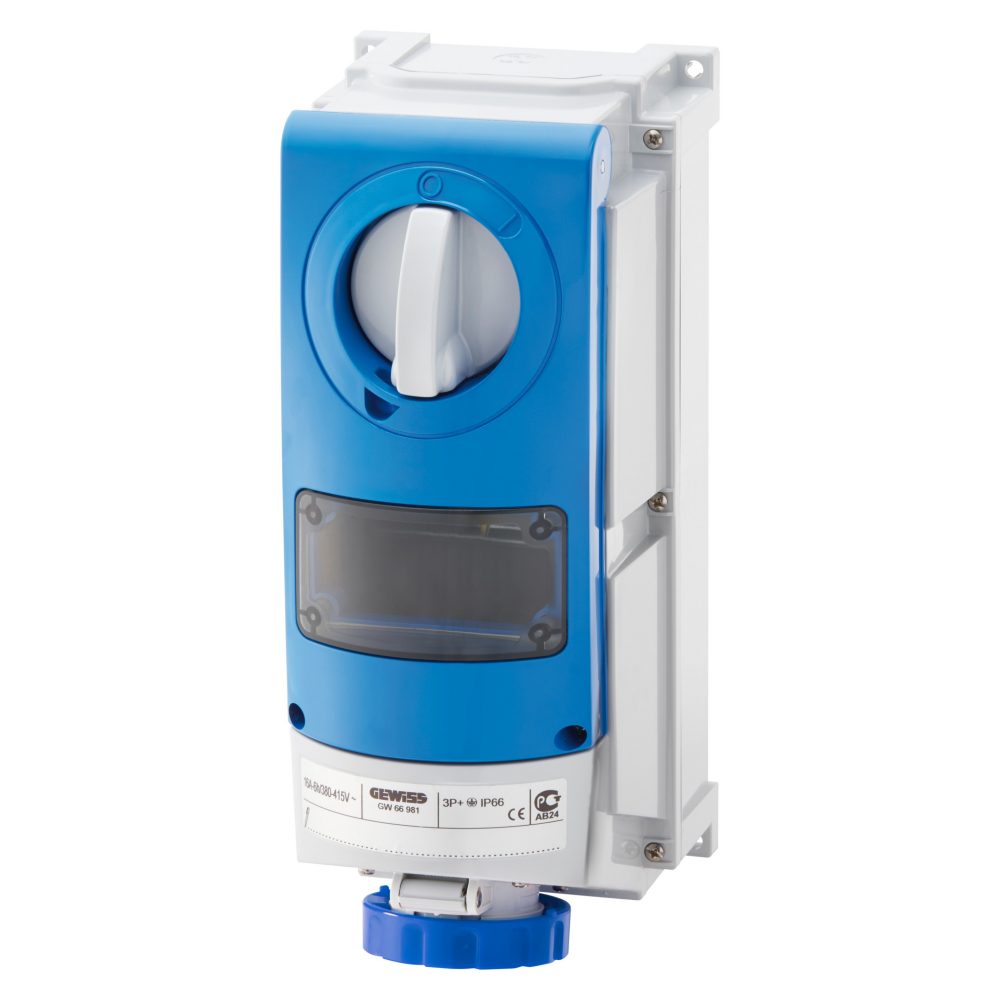

VERTICAL FIXED INTERLOCKED SOCKET OUTLET - WITH BOTTOM -FOR MOUNTING MODULAR DEVICES - FOR HEAVY-DUTY USE - 3P+N+E 32A 200-250V-50/60HZ 9H-IP66
Code:
GW66990
Range: IB Range
Interlocked socket-outlets IEC 309 standard
Interlocked socket-outlets IEC 309 standard
System of industrial socket-outlets for power distribution in the industrial and commercial sector, equipped with locking device, enabling the most varied professional requirements of installers and panel builder to be met. The IB range is composed of 4 product lines: IP67 standard vertical socket-outlets, IP66 vertical socket-outlets for heavy duty applications, IP44 horizontal socket-outlets and IP44 and IP55 compact socket-outlets.
80 °C
IP66
> IK10
850 °C
Technical Info
Information
Download
Software
Certificates
Type
Vertical
Thermo-pressure with ball
80 °C
Impact resistance at -20 °C
20 J
IP degree
IP66
No. of poles
3P+N+E
Mechanical resistance
> IK10
Frequency
50/60 Hz
Operating temperature
-25 +40 °C
Protection
Suitable for modular apps. (6M)
With back-mounting box
Yes
Electrocod
2222
Glow wire test
850 °C
Colour
Blue
Rated current (A)
32
Reference h
9
Rated voltage
200-250 V
Type of use
Heavy duty
Ware Number
85366990
EQUIPMENT AND NOTES
CHARACTERISTICS: pre-arrangement for 6 DIN EN 50022 modules. IK10, in compliance with EN 62262. 63A versions equipped with a pilot contact.
