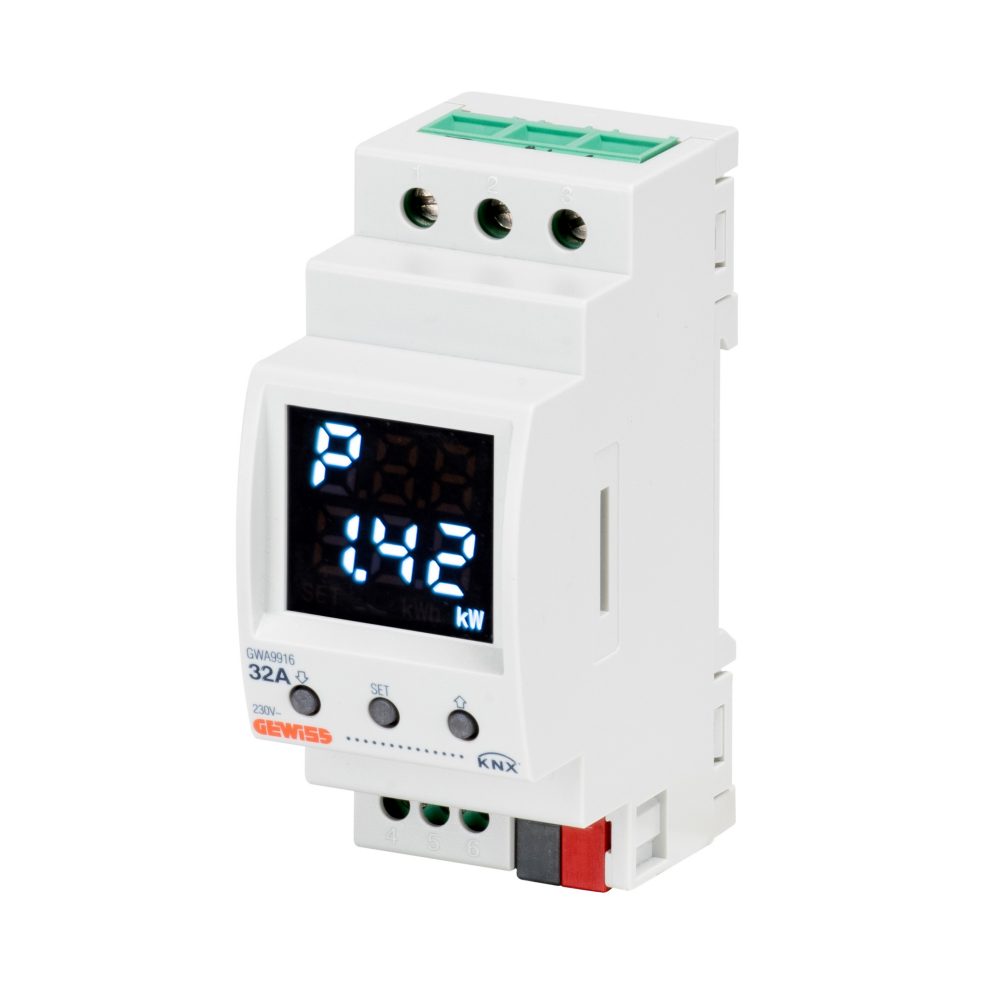

P-COMFORT - LOAD MANAGEMENT RELAY - KNX - IP20 - 2 MODULES - DIN RAIL MOUNTING

Code: GWA9916
Range: 90 AM Range
Modular accessories
The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.

Technical Info

Information
Download
Software
Certificates
Supply voltage 230V ac - 50Hz
Rated current 32 A
Type relay contact Changeover (potential free contact)
Capacity relay contact 16 A AC1 250 V ac
No. DIN modules 2
Ware Number 85389099

ETS4 Data Base

ETS5 Data Base

Technical characteristics - IT

Technical characteristics - DE

Technical characteristics - EN

Technical characteristics - ES

Technical manual (IT)

Programming manual

Technical manual (EN)

User guide (IT-EN-FR)

User guide (ES-DE)

User guide (PT-RO)

User guide (AR-TR-HU)

CADpro

Advanced design of electrical systems

Show more

PRICE

Estimation of electrical systems

Show more

KNX

Database with GEWISS products for ETS software

Show more

SMART GATEWAY

APP for managing the KNX home automation system

Show more

PBT-Q

Low voltage systems and boards

Show more

PROJEX

Low voltage system design

Show more

Display the certificate

Display the certificate

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: load management to control the activation/deactivation of electrical appliances wired to the relay inside the device or connected to KNX actuators, preventing the main line power supply disconnection and avoiding service interruptions. The device supports KNX Secure. To be configured with ETS software.
APPLICATIONS: allows the measurement, the visualisation on the display and the sending on the KNX bus of the active energy (exported and imported), instantaneous active and reactive power (exported and imported), voltage, current, power factor and frequency.
NOTES: equipped with coupling terminal for connection to bus.
