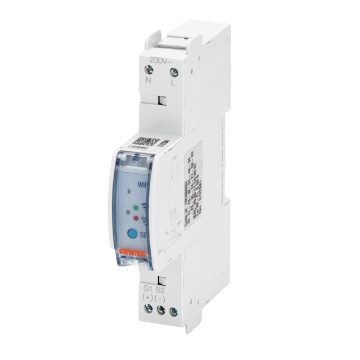

WI-FI INTERFACE MODULE - RESTART RD PRO 4P / RESTART RM PRO 4P - 1 MODULE EN 50022
Code:
GW90945
Range: 90 ReStart Range
Automatic reclosing devices
Automatic reclosing devices
In the event the switch trips, the ReStart devices, after checking the system status, restore the power supply thereby ensuring maximum continuity of service in complete safety.
Available for both residual current circuit breakers and residual current circuit breakers with overcurrent protection, the range is characterized by the Autotest functions, with periodic and automatic control of the residual current protection without interrupting the power supply and PRO with extended control of the system.
Available for both residual current circuit breakers and residual current circuit breakers with overcurrent protection, the range is characterized by the Autotest functions, with periodic and automatic control of the residual current protection without interrupting the power supply and PRO with extended control of the system.
Technical Info
Information
Download
Software
Certificates
Description
Interface module Wi-Fi
Code
90 ReStart range
No. of modules EN 50022
1
Suitable for
ReStart Rd PRO 4P /ReStart Rm PRO 4P
Rated frequency (Hz)
50
Rated voltage
230/240 V a.c.
Max power consumption
1,6 W
Operating temperature
-25 +60 °C
Rated impulse withstand voltage (Uimp)
4 kV
Rated tightening torque
0,4 Nm
Stocking temperature
-40°C ÷ +70°C
Rated insulation voltage (Ui)
500 V
Standard
EN 301489-1; EN 301489-17
Distribution system
TT - TN-S
Terminal section
2.5 mm²
Minimum requirements of the operating system
Android 4.4 / iOS 9
Wi-Fi communication
2.4
Maximum Wi-Fi range
100m free space trasmission (towards router) - 80m free space trasmission (other directions)
Maximum measurable current
80 A
CT maximum cable section
25 Square millimeter
Measure of electrical parameters
No
Ware Number
85389099
