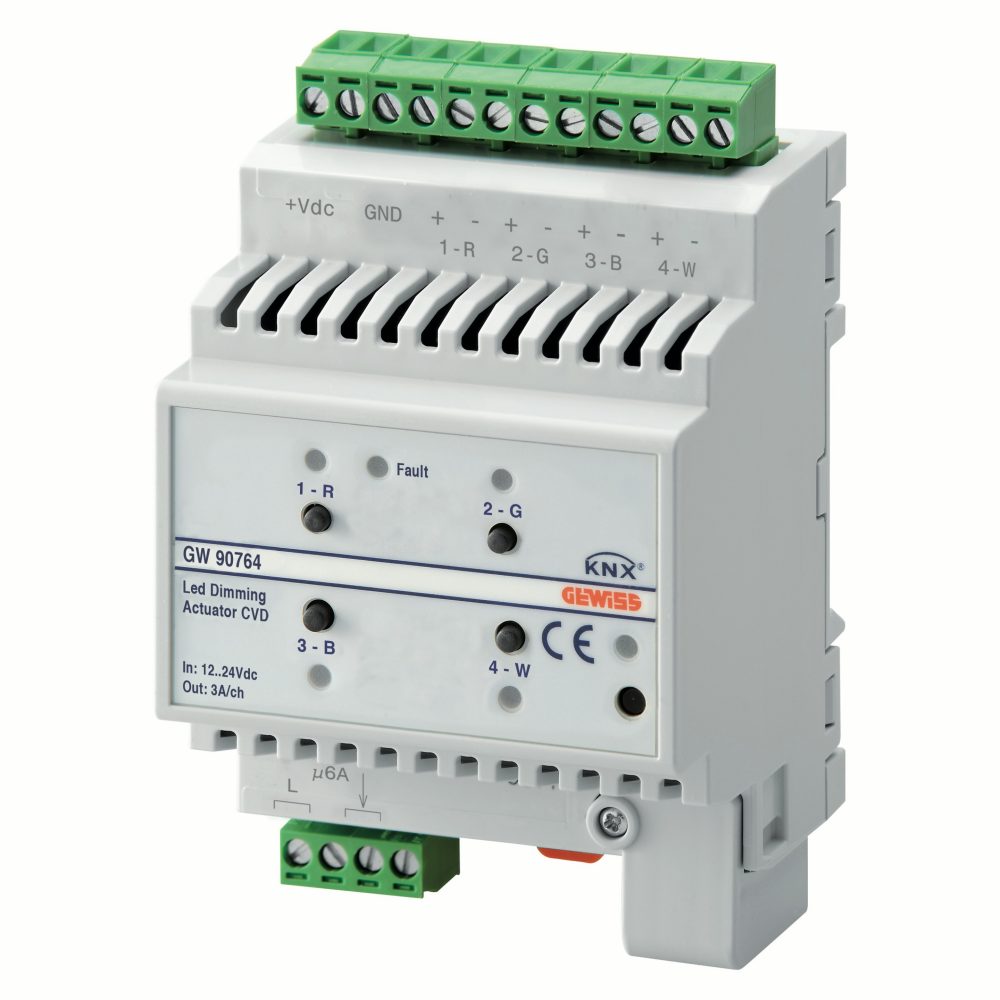

DIMMER ACTUATOR FOR LED - 12-24Vdc - CVD - 4 CHANNELS - KNX - IP20 - 4 MODULES - DIN RAIL MOUNTING

Code: GW90764
Range: Home&Building Pro
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

Technical Info

Information
Download
Software
Certificates
Supply voltage 12-24V dc
No. output channels 4
Type of control CVD
No. DIN modules 4
Ware Number 85365080

ETS4 Data Base

ETS3 Data Base

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Technical manual (IT)

Technical manual (EN)

User guide (DE-ES-PT)

User guide (RO-AR-TR)

User guide (IT-EN-FR)

User guide (HU)

PRICE

Estimation of electrical systems

Show more

PBT-Q

Low voltage systems and boards

Show more

KNX

Database with GEWISS products for ETS software

Show more

CADpro

Advanced design of electrical systems

Show more

SMART GATEWAY

APP for managing the KNX home automation system

Show more

PROJEX

Low voltage system design

Show more

Display the certificate

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: dimmer in CVD version (control with constant voltage) for regulating RGB(W) LED strips, and in CCD version (control with constant current) for regulating "power" LEDs. 4 front button keys for testing the outputs and 4 front LEDs for signalling the load status and other operating parameters. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, regulation and setting of the light intensity level for each single channel (and the 4 channels simultaneously), selection of feedback on status or light intensity value, scene management, timed sequences, priority commands, logic functions. The 4 outputs can be used to control each of the 4 channels R, G, B and W of a single LED lamp, or up to 4 independent LEDs.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
