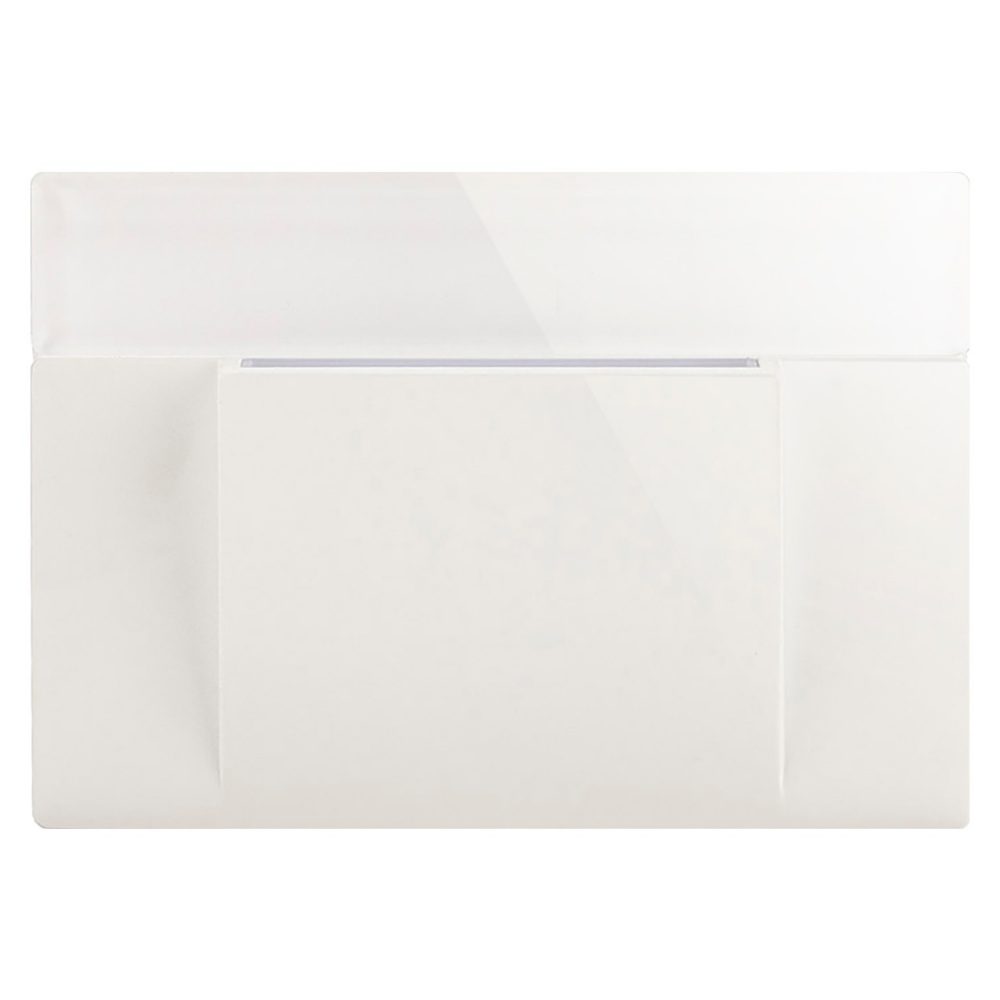

TRANSPONDER CARD HOLDER UNIT - KNX - 12-24Vac 12-32Vdc - FLUSH MOUNTING - WHITE - CHORUSMART

Code: GW16892CB

Range: Home&Building Pro
Home & Building PRO system

Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

IP20 (with plate fitted)

Technical Info

Information

Download

Software

Certificates

Category Transponder card holder unit MIFARE®

Colour White

Material Front plate in technoplymer (included)

Installation Flush mounting on 3-modules rectangular (GW24403, GW24403PM),
round (GW24234, GW24234PM) or square (GW24231) boxes

Power supply SELV: 12-24 Vac 50/60Hz, 12-32 Vdc

Current absorbed by power supply 30 mA a 24 V dc

Interfaces KNX TP1

Current absorbed by KNX bus (mA) Max 10 mA a 29 V

Technology Trasponder RFID-MIFARE®

No. output channels 2

Output contacts Max switching voltage 30Vdc / 24Vac
Max switching current 5A(AC1) 1A (AC3)

No. input channels 2

Input voltage Potential free

Wiring terminals With screw

Terminal tightening capacity
stranded cables (mm²) Max. 1,5

Terminal tightening capacity
solid cables (mm²) Max. 1,5

Working temperature -5 ÷ +45 °C

Relative humidity (non-condensative) Max 90%

Stocking temperature -5 ÷ +55 °C

Connection to the KNX bus KNX bus terminal

Dimensions LxHxD (mm) 110,0x78,0x12,1

IP degree IP20 (with plate fitted)

Standard Directive RED 2014/53/UE; Directive RoHS 2011/65/EU + 2015/863;
EN 63044-3; EN 63044-5-1; EN 63044-5-2; EN 300 330;
EN 301 489-3; EN IEC 63000

Ware Number 85389099

Product Data Sheet

ETS5 Data Base

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

User guide (IT-EN-FR-ES-DE)

User guide (PT-RO-AR-TR-HU)

Technical manual (EN)

Technical manual (IT)

Additional instructions

Go to download area Go to download area

PBT-Q

Low voltage systems and boards

SMART GATEWAY

APP for managing the KNX home automation system

PRICE

Estimation of electrical systems

CADpro

Advanced design of electrical systems

PROJEX

Low voltage system design

KNX

Database with GEWISS products for ETS software

Go to software area Go to software area

Display the certificate

Conformity declaration

CE marking

EQUIPMENT AND NOTES

CHARCTERISTICS: the transponder card holder unit allows the recognition of cards with RFID-MIFARE® transponder technology, use the cards from Gewiss catalogue. Card recognition is reported to the hotel access control and management software and can be configured to control other actions and automations. The devices are equipped with 2 inputs for potential-free contacts and 2 NO relay outputs for SELV circuits (max switching voltage 30Vdc / 24Vac, max switching current 5A(AC1) 1A (AC3)).
APPLICATIONS:the inputs can be used to detect the status of sensors or to send on/off and toggle commands, dimming commands (1 or 2 buttons), shutter commands, sequence commands, scenario commands, short/long press commands; the pulse counter function is also available. The outputs can control generic loads on, off, timed on, with flashing. The devices implement advanced logical functions and the "Virtual holder" function.
NOTES: the devices include a technopolymer front plate and a KNX bus terminal; the devices are suitable for screw fixing on 3-module rectangular (GW24403, GW24403PM), round (GW24234, GW24234PM) or square (GW24231) boxes.
