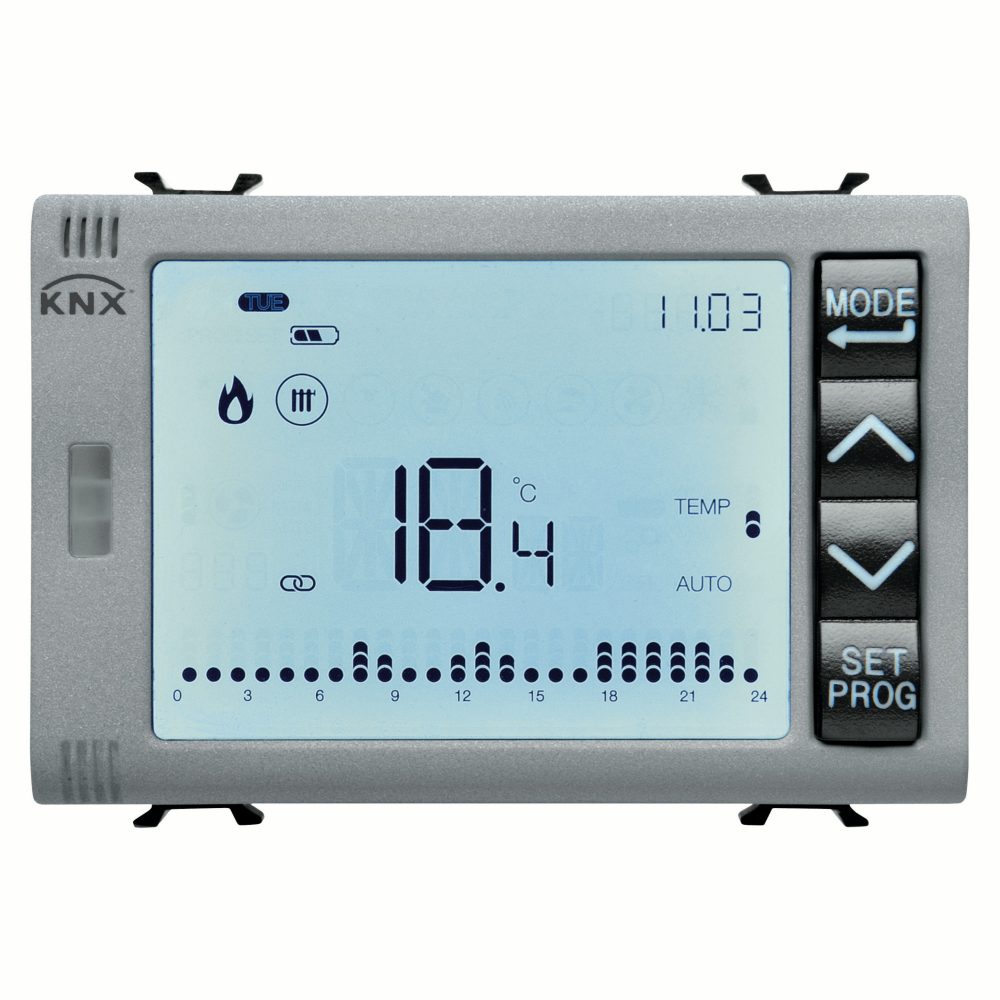

TIMED THERMOSTAT/PROGRAMMER WITH HUMIDITY MANAGEMENT - KNX - 3 MODULES - TITANIUM - CHORUSMART

CHARACTERISTICS: flush-mounting timed thermostat with humidity management, that can be programmed on a weekly basis to control heating/cooling and humidification/dehumidification systems on the BUS. 3-level temperature profile (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 output for commanding the area solenoid valve (or as a generic output for executing ON/OFF commands, timed commands, priority commands or scene management); 1 input for the potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. With 10 hour profiles that can be freely used (programmer function) plus another two reserved for the timed thermostat, with 15-minute resolution. Equipped with an extractable front and LCD display with customisable RGB backlighting. To be configured with ETS software.
APPLICATIONS: can be combined with KNX flush-mounting thermostats for local temperature adjustment: In this case, the timed thermostat acts as a master, sending the temperature profile to the BUS.
NOTES: equipped with coupling terminal for connection to BUS. The device requires a back-up power supply from 2 AA alkaline batteries (not included), housed in the extractable front, to guarantee the updating of the calendar (day, time) in the event of a BUS voltage failure. The device does not have a built-in humidity sensor, so the relative humidity value must be obtained from an external KNX sensor (es: GW1x762H).
