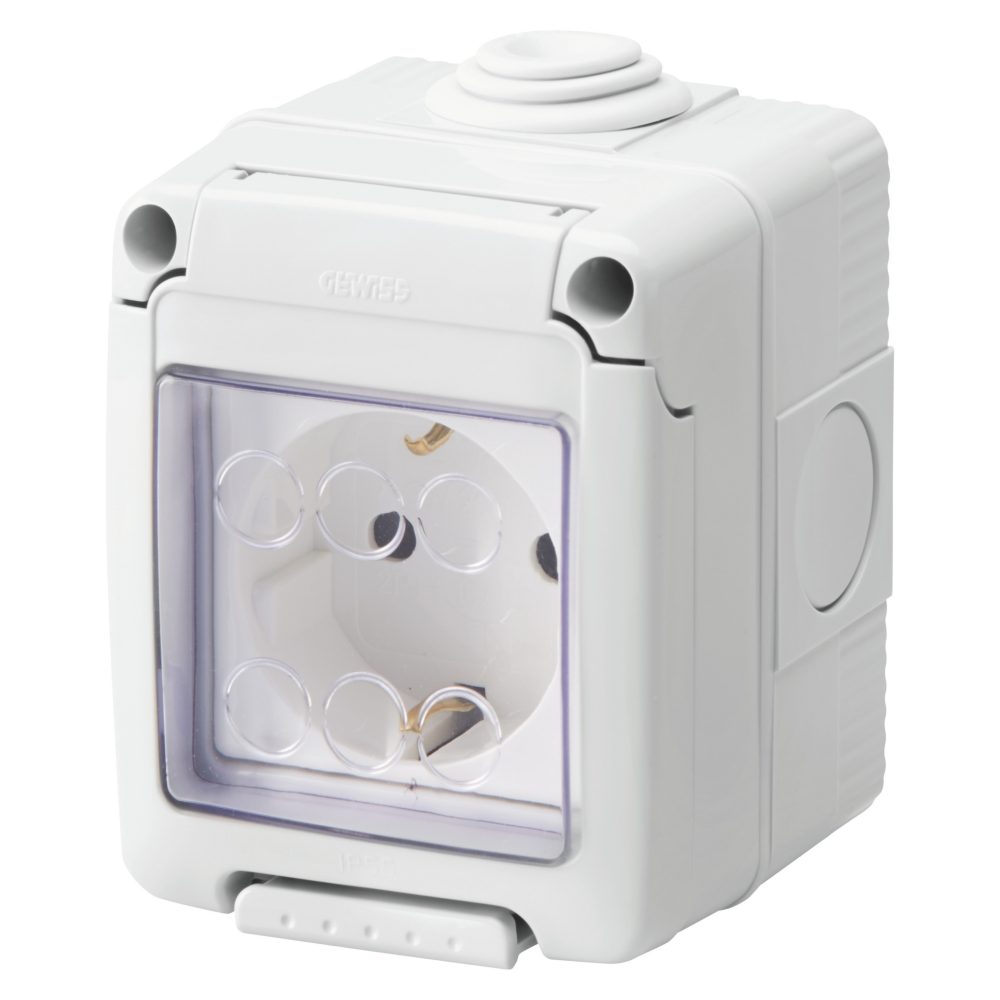

WATERTIGHT ENCLOSURE COMPLETE WITH SYSTEM DEVICES - WITH SOCKET-OUTLET 2P+E 16 A - GERMAN STANDARD - IP55 - GREY RAL 7035
Code:
GW27844
Range: 27 COMBI Range
Wall-mounting enclosures and modular components
Wall-mounting enclosures and modular components
A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.
IP55
650 °C
70 °C
Technical Info
Information
Download
Software
Certificates
Description
Socket-outlet 2P+E - 16A
Voltage
250 V ac
Colour
Grey RAL 7035
Door type
With membrane
Door colour
Transparent
No. knockout holes Ø23
3 on sides / 1 on the bottom
N. holes Ø 23 with cable gland
1
Type of knockout holes
Removable with tool
IP degree
IP55
Insulation class
II
Characteristics
German standard
Lid screws
Stainless steel
Torque screws tightening
0.8 Newton/meter
Outer dim. LxHxD (mm)
66x82x65
Glow Wire Test
650 °C
Thermo-pressure with ball
70 °C
Standard
IEC 60884-1
Installation temperature
-25 +60 °C
Electrocod
0131
Ware Number
85366990
EQUIPMENT AND NOTES
CHARACTERISTICS: IP55 with door closed. Knockout holes removable with tool. Enclosures are customized for fixing the earth terminal GW26407. Complete insulation can be obtained by using the screwcaps GW44622. GW27836 supplied without lamp: S6x36 - 12/24V cartridge lamp required. GW27831, GW27832, GW27833, GW27834, rated power of 230V LED lamps: 200W.
ACCESSORIES SUPPLIED: quick entry cable gland for cables with Ø from 4 to 14 mm and conduits Ø 16 and 20 mm.
ACCESSORIES SUPPLIED: quick entry cable gland for cables with Ø from 4 to 14 mm and conduits Ø 16 and 20 mm.
