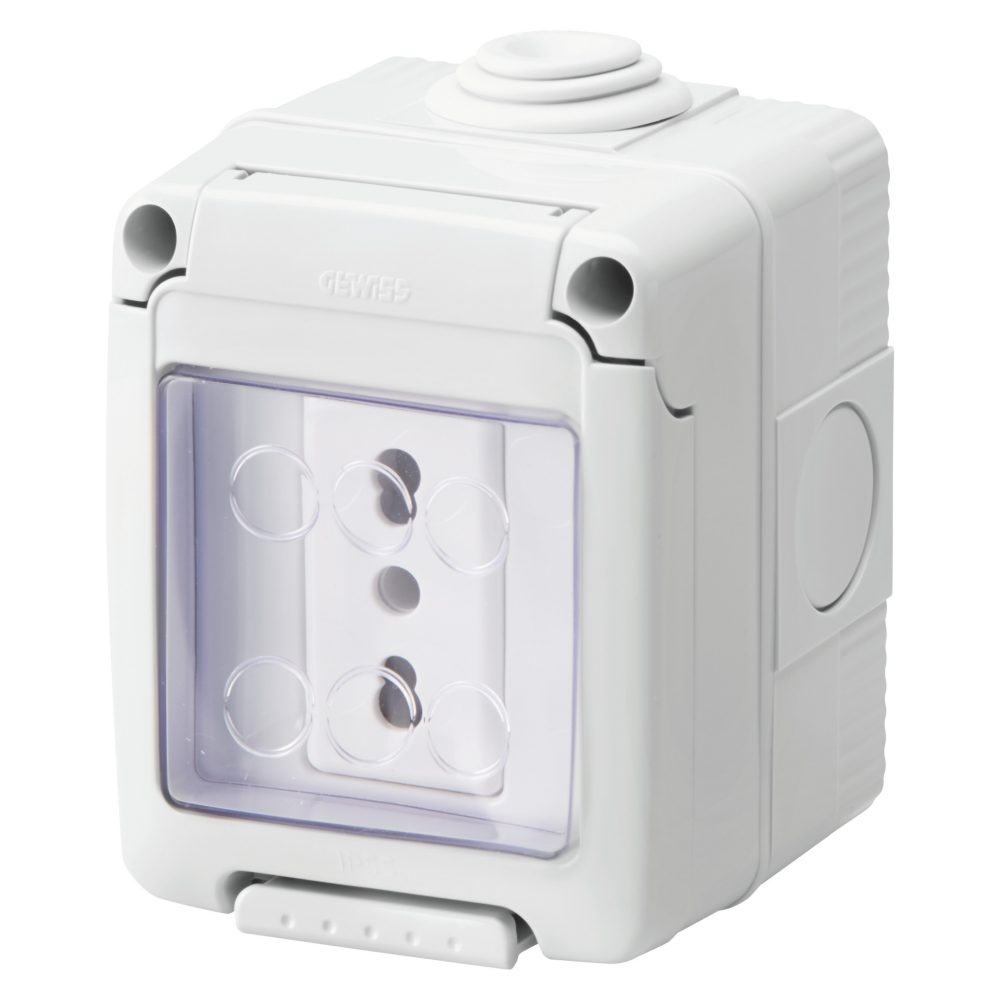

WATERTIGHT ENCLOSURE COMPLETE WITH SYSTEM DEVICES - WITH SOCKET-OUTLET 2P+E 16 A DUAL AMPERAGE - ITALIAN STANDARD - IP55 - GREY RAL 7035

Code: GW27841
Range: 27 COMBI Range
Wall-mounting enclosures and modular components
A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.

IP55

650 °C

70 °C

Technical Info

Information
Download
Software
Certificates
Description S.-outlet 2P+E - 16A Dual amp
Voltage 250 V ac
Colour Grey RAL 7035
Door type With membrane
Door colour Transparent
No. knockout holes Ø23 3 on sides / 1 on the bottom
N. holes Ø 23 with cable gland 1
Type of knockout holes Removable with tool
IP degree IP55
Insulation class II
Characteristics Italian standard
Lid screws Stainless steel
Torque screws tightening 0.8 Newton/meter
Outer dim. LxHxD (mm) 66x82x65
Glow Wire Test 650 °C
Thermo-pressure with ball 70 °C
Standard IEC 60884-1
Installation temperature -25 +60 °C
Electrocod 0131
Ware Number 85366990

Product Data Sheet

BIM

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

PRICE

Estimation of electrical systems

Show more

CADpro

Advanced design of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

Conformity declaration

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: IP55 with door closed. Knockout holes removable with tool. Enclosures are customized for fixing the earth terminal GW26407. Complete insulation can be obtained by using the screwcaps GW44622. GW27836 supplied without lamp: S6x36 - 12/24V cartridge lamp required. GW27831, GW27832, GW27833, GW27834, rated power of 230V LED lamps: 200W.
ACCESSORIES SUPPLIED: quick entry cable gland for cables with Ø from 4 to 14 mm and conduits Ø 16 and 20 mm.
