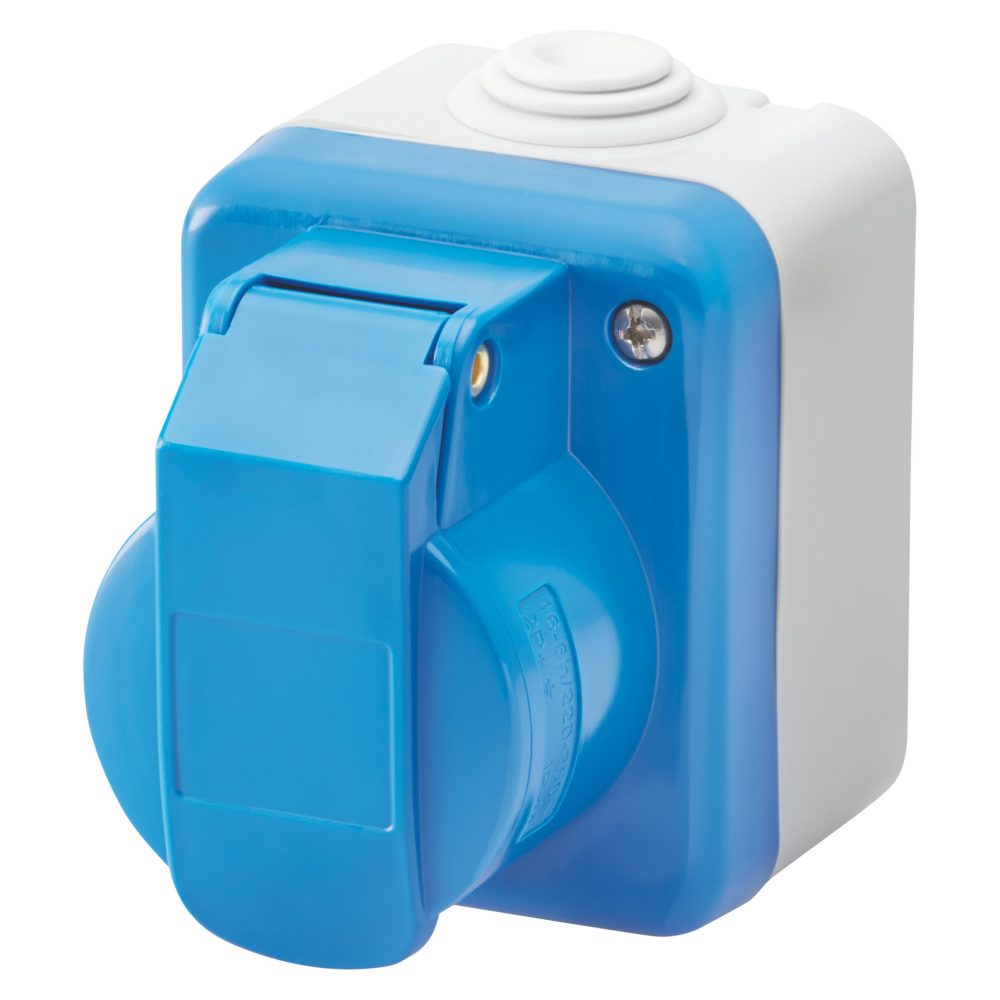

WALL-MOUNTING INDUSTRIAL SOCKET-OUTLET TO IEC 309 STANDARD - 2P+E - 230V - IP44 - GREY RAL 7035

Code: GW26222
Range: 27 COMBI Range
Wall-mounting enclosures and modular components
A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.

IP44

650 °C

70 °C

Technical Info

Information
Download
Software
Certificates
Colour Grey RAL 7035
No. knockout holes Ø23 1 on sides / 1 on the bottom
N. holes Ø 23 with cable gland 1
Type of knockout holes Removable with tool
IP degree IP44
Insulation class II
Lid screws Corrosion-resistant steel
Torque screws tightening 0.8 Newton/meter
Outer dim. LxHxD (mm) 64x80x97
Rated voltage 230 V ac
Rated current (A) 16
No. of poles 2P+E
Reference h 6
Glow Wire Test 650 °C
Thermo-pressure with ball 70 °C
Standard IEC 309
Installation temperature -25 +60 °C
Electrocod 2210
Ware Number 85366990

Product Data Sheet

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

PRICE

Estimation of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

CADpro

Advanced design of electrical systems

Show more

Reach Declaration

ENEC E2700

CE marking

EQUIPMENT AND NOTES
rated voltage with alternated current.
CHARACTERISTICS: Knockout holes removable with tool. Enclosures are customized for fixing the earth terminal GW26407.
ACCESSORIES SUPPLIED: quick entry cable gland for cables with Ø from 4 to 14 mm and conduits Ø 16 and 20 mm.
