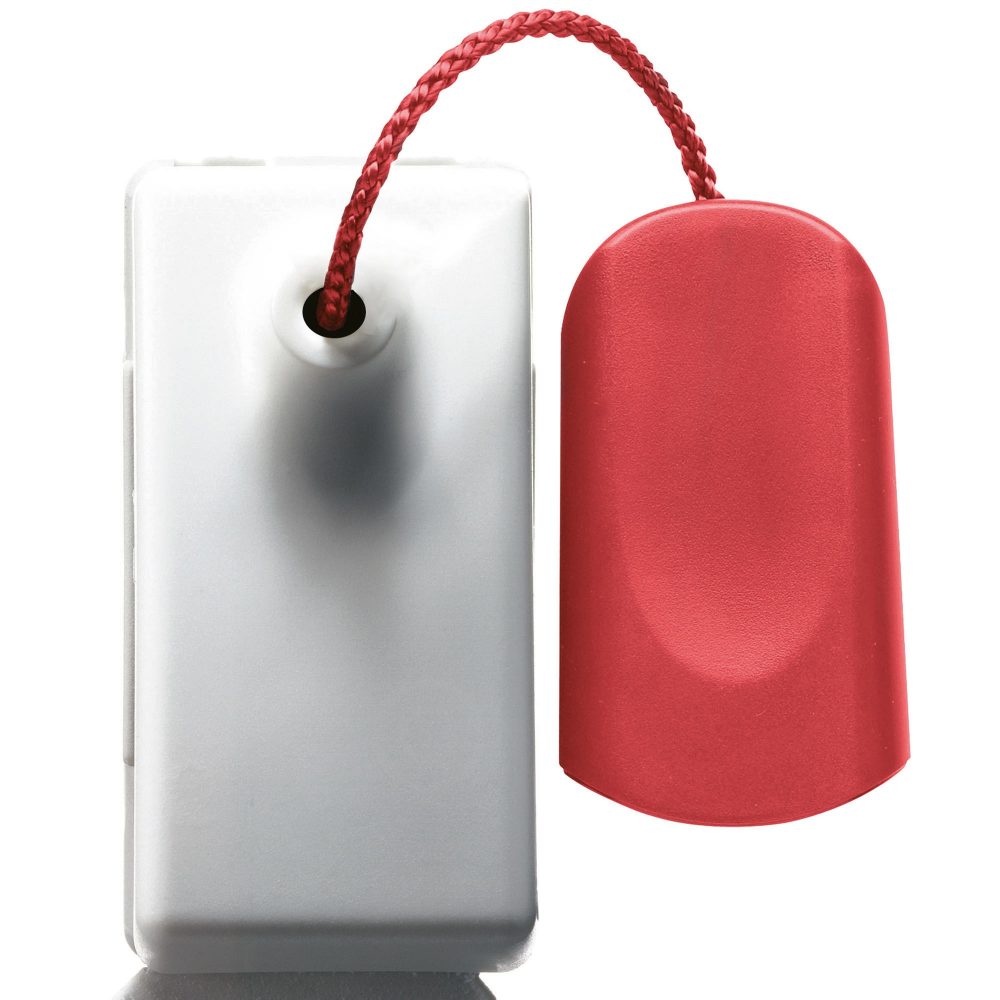

PUSH-BUTTON 2P 250V ac - NO 10A - WITH PULL-CORD - 1 MODULE - SYSTEM WHITE
Code:
GW20518
Range: SYSTEM WHITE - Domestic range
Modular devices
Modular devices
The System modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colour and finiture: glossy white, bright and versatile
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Push-button
Button key
With pull-cord
Symbol
-
Colour
White
Description
2P NO - 10A
Voltage
250 V ac
Signalling unit
-
Standard
EN 60669-1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Wiring terminals
With screw
Prolonged operation switch (no.of position changes)
40.000 at In 250 V ac cosφ=0,6
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4
stranded cables (mm²) min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5
solid cables (mm²) min. 0,5 - max. 2x2,5
No. SYSTEM modules
1
Material
Technopolymer
Electrocod
0130
Ware Number
85365080
EQUIPMENT AND NOTES
CHARACTERISTICS: the illuminable articles use miniature lamp units, not included. GW20520, GW20521, both contacts are open in the central position (OFF).
ACCESSORIES SUPPLIED: GW20515 - red fluorescent 230Vac (0.4W) signalling unit. GW20516 - white LED 12/24Vac/dc (0.4W) signalling unit. GW20518, cord in insulating material, 140cm long, with a knob. GW20530 supplied with 2 keys. Spare keys: GW30912.
ACCESSORIES SUPPLIED: GW20515 - red fluorescent 230Vac (0.4W) signalling unit. GW20516 - white LED 12/24Vac/dc (0.4W) signalling unit. GW20518, cord in insulating material, 140cm long, with a knob. GW20530 supplied with 2 keys. Spare keys: GW30912.
