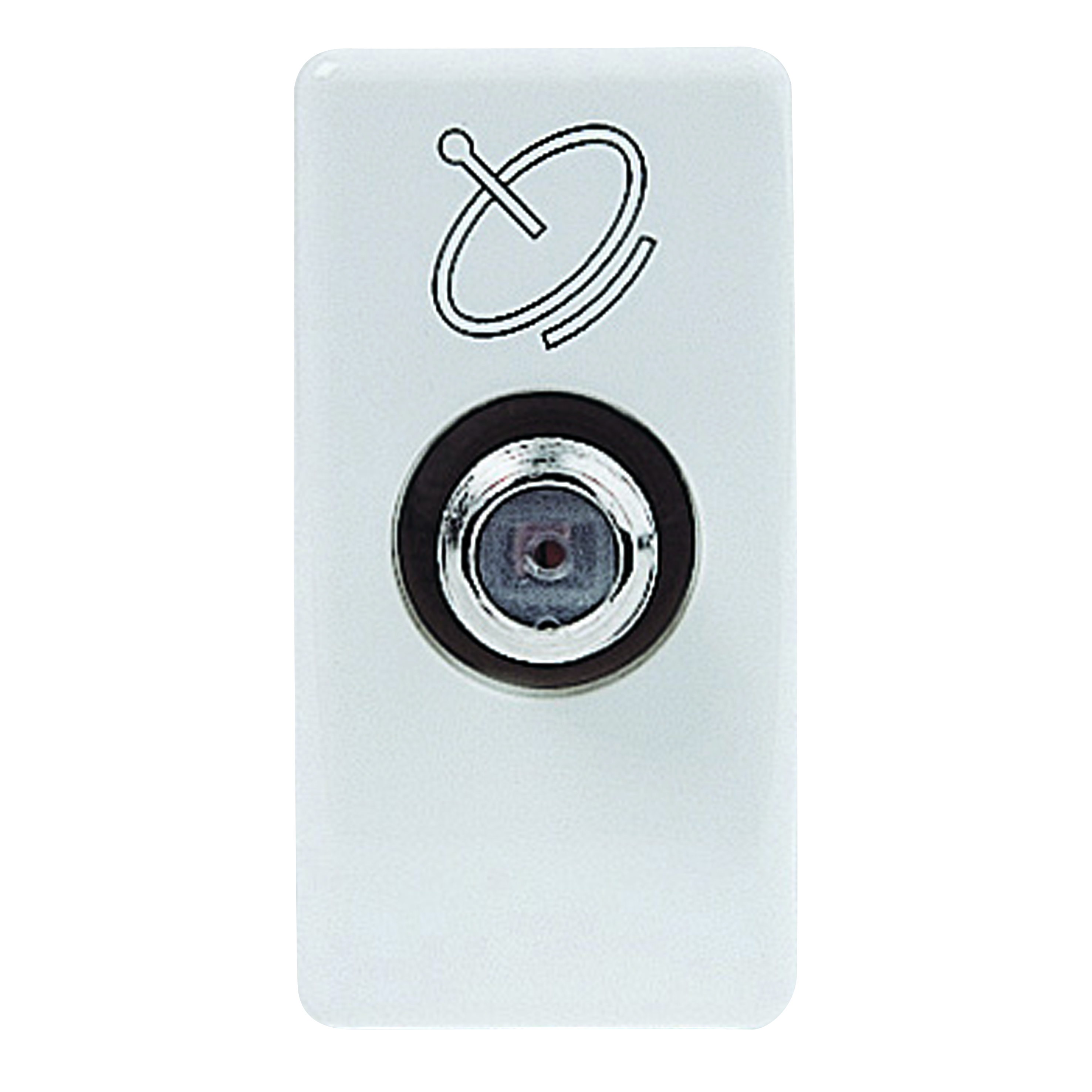

COAXIAL SOCKET-OUTLET TV-SAT CLASS A SHIELDING - FEMALE F CONNECTOR - DIRECT WITH CURRENT PASSING - 1 MODULE - SYSTEM WHITE
Code:
GW20391
Range: SYSTEM WHITE - Domestic range
Modular devices
Modular devices
The System modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colour and finiture: glossy white, bright and versatile
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.
Technical Info
Information
Download
Software
Certificates
Category
TV/SAT socket-outlet
Description
Direct
Type
With passage of current
Colour
White
Attenuation
0 dB
Frequency
5-2400 MHz
Shielding
Class A
For connector type
F-Female
Standard
EN 60728-4; IEC 61169-24
No. SYSTEM modules
1
Cable fixing
With screw
Case
Pressure casting zamak metal body
Material
Technopolymer
Electrocod
0131
Ware Number
85366910
EQUIPMENT AND NOTES
CHARACTERISTICS: GW20391 permits carrying a remote power supply voltage/current and/or control signals towards the user port (max 24 V - 500 mA). GW20277 in combination with feedthrough socket-outlets allows you to make terminal socket-outlets.
APPLICATIONS: Socket-outlets suitable for return channel.
NOTES: the TV-SAT 5 dB GW20396 coaxial socket-outlet is defined with conditioned use, it is a special through socket-outlet and as such must be used, with the only difference that the user door (socket-outlet towards the user device) must always be closed with a load of 75 Ohm (TV, VCR, SAT receiver or 75-Ohm termination).
APPLICATIONS: Socket-outlets suitable for return channel.
NOTES: the TV-SAT 5 dB GW20396 coaxial socket-outlet is defined with conditioned use, it is a special through socket-outlet and as such must be used, with the only difference that the user door (socket-outlet towards the user device) must always be closed with a load of 75 Ohm (TV, VCR, SAT receiver or 75-Ohm termination).
