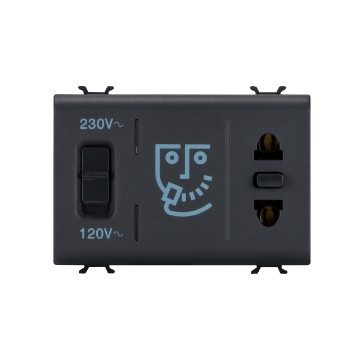

EURO-AMERICAN STANDARD SHAVER SOCKET-OUTLET WITH INSULATION TRANSFORMER - 230V ac - 50/60 Hz - 3 MODULES - SATIN BLACK - CHORUSMART

Code: GW12331

Range: CHORUSMART - Domestic range
Black modular devices

The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colors and finishes: satin black, elegant and classy. Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs. Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.

125 °C

850 °C

Technical Info

Information

Download

Software

Certificates

Category Shaver socket-outlet

Description With isolation transformer

Colour Satin black

Standard Euro-American

For plug pins Ø 4 / 5 - 6.3x1.5 mm

Wiring terminals With screw

Socket-out type P11-USA

Standard IEC 60884-1; EN 61558-2-5

Selectable output voltage 120-230V ac

Resistance at test voltage 2000 V at 50 Hz for 1 minute

Maximum power 20 VA

Insulation resistance > 5 MOhm

Supply voltage 230 V ac - 50/60 Hz

Thermo-pressure with ball 125 °C

Glow Wire Test 850 °C

Terminal grip on cable traction > 50 N

Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4

Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5

No. modules 3

Electrocod 0131

Material Technopolymer

Ware Number 85366990

Product Data Sheet

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Disposal

User guide

Go to download area Go to download area

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

HOME

Configuration of the home electrical system

CADpro

Advanced design of electrical systems

PRICE

Estimation of electrical systems

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Go to software area Go to software area

Display the certificate

CE marking

EQUIPMENT AND NOTES

CHARACTERISTICS: the socket-outlet is equipped with a self-protection device against overloading.
The output voltage should be selected correctly, consulting the rating of the user device before inserting the plug.
The relevant indicator LED allows the chosen voltage to be clearly seen.
NOTES: not suitable for installation in wall-mounting boxes or free-standing containers.
