AXIAL ROLLER SHUTTER/VENETIAN MODULE EVO - 100-240 V ac - 50/60 Hz - 2 MODULE - CHORUSMART
Code:
GW10676
Range: CHORUSMART - Domestic range
Black modular devices
Black modular devices
The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colors and finishes: satin black, elegant and classy. Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs. Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
IP20 (with button key)
Technical Info
Information
Download
Software
Certificates
Description

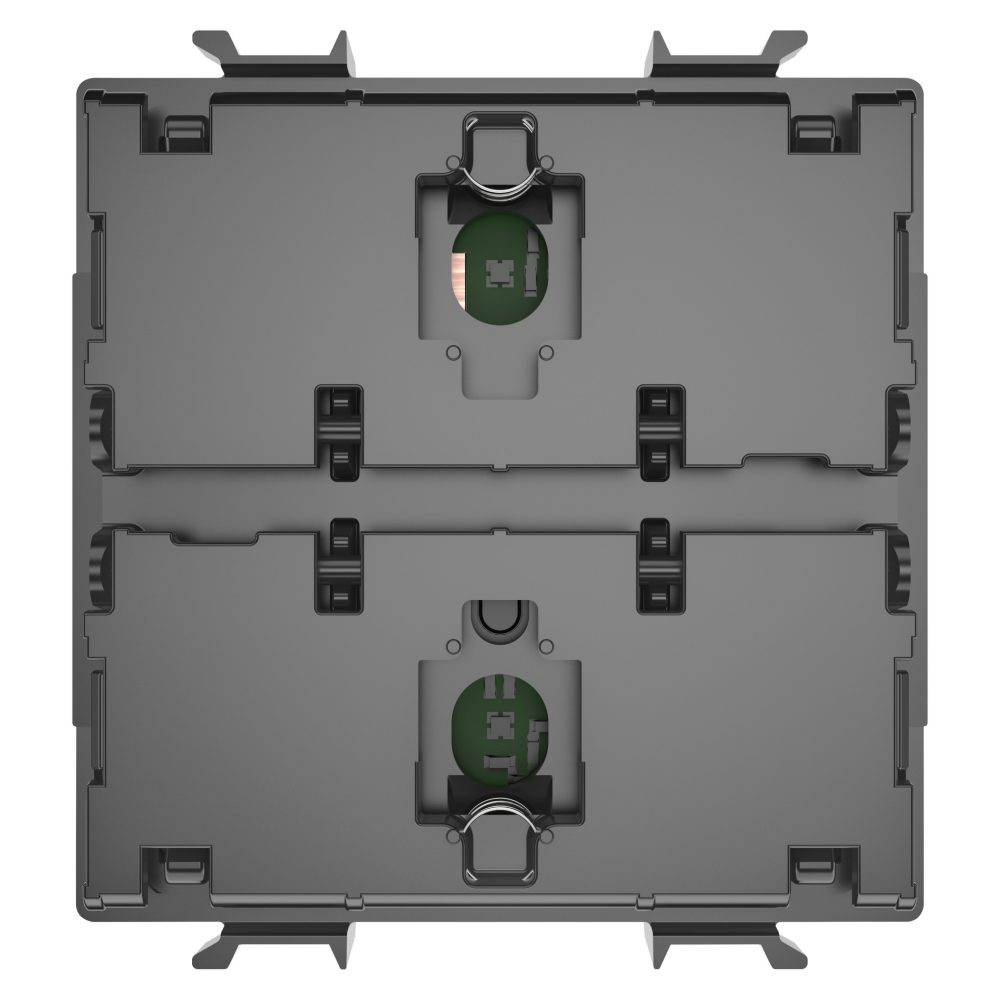

Axial roller shutter module
Power supply
100 ÷ 240 V ac - 50/60 Hz
No. modules
2
No. input channels
2
Local control
Via 2 front push buttons (to complete with button key)
Auxiliary input channel voltage
100 ÷ 240 V ac - 50/60 Hz
Stocking temperature
-25 ÷ +70 °C
N. of LED input channels
-
Working temperature
-5 ÷ +45 °C
LED input channels voltage
-
Relative humidity (non-condensative)
Max 93%
No. output channels
2
Front light signaling
Blue led
Output contacts
n. 2 x 2,3 A cosφ 0,6
Wiring terminals
With screw
240 V ac Incandescent-halogen lamps
-
Terminal tightening capacity
stranded cables (mm²) Max. 1,5
stranded cables (mm²) Max. 1,5
240 V ac LED lamps
-
Terminal tightening capacity
solid cables (mm²) Max. 1,5
solid cables (mm²) Max. 1,5
Loads piloted from electronic transf. 240 V ac
-
Context
Dry indoor places
240 V Fluorescent lamps
-
IP degree
IP20 (with button key)
Load control
-
Standard
2014/35/EU (LVD), 2014/30/EU (EMC), 2011/65/EU + 2015/863 (RoHS), EN 60669-2-1, EN 60669-1, EN IEC 63000
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: Devices for the control of a motor to operate roller-shutters, curtains, venetian blinds, awnings, etc., through 2 live interlocked output contacts. Two axial-operated local buttons control the motor connected to the device. Equipped with 2 inputs for replicating local control of the motor via the auxiliary module GW10679, GW10680 or NO-type up/down buttons, or for creating the centralisation function.
APPLICATIONS: control of the motor connected to the devices. The dedicated inputs can be used to operate roller-shutters/venetian blinds via the auxiliary axial modules or NO-type up/down buttons, or they can be set, through programming, for centralisation functions (Up/Down). The devices are equipped with blue LEDs which can be configured to facilitate location at night and to signal the movement of the roller-shutter/Venetian blind.
NOTES: the devices must be completed with a front button key: GW10675 must be completed with the GW12553S or GW12557S button keys.GW10676 must be completed with the GW12554S or GW12558S button keys.
APPLICATIONS: control of the motor connected to the devices. The dedicated inputs can be used to operate roller-shutters/venetian blinds via the auxiliary axial modules or NO-type up/down buttons, or they can be set, through programming, for centralisation functions (Up/Down). The devices are equipped with blue LEDs which can be configured to facilitate location at night and to signal the movement of the roller-shutter/Venetian blind.
NOTES: the devices must be completed with a front button key: GW10675 must be completed with the GW12553S or GW12557S button keys.GW10676 must be completed with the GW12554S or GW12558S button keys.
