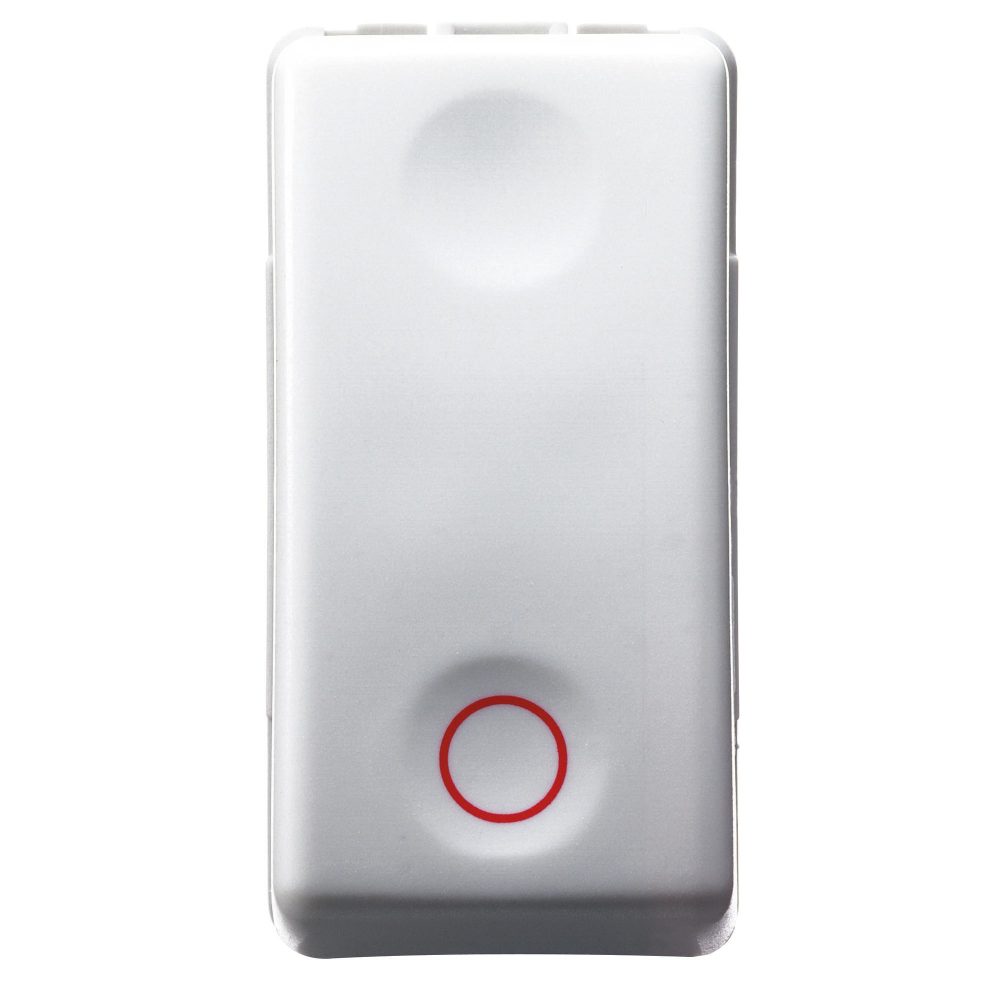

PUSH-BUTTON 1P 250V ac - NC 10A - NEUTRAL - SYMBOL CIRCLE - 1 MODULE - SYSTEM WHITE

Code: GW20519

Range: SYSTEM WHITE - Domestic range
Modular devices

The System modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colour and finiture: glossy white, bright and versatile
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.

125 °C

850 °C

Technical Info

Information

Download

Software

Certificates

Category Push-button

Button key Neutral

Symbol Circle

Colour White

Description 1P NC - 10A

Voltage 250 V ac

Signalling unit -

Standard EN 60669-1

Resistance at test voltage 2000 V at 50 Hz for 1 minute

Insulation resistance > 5 MOhm

Wiring terminals With screw

Prolonged operation switch (no.of position changes) 40.000 at In 250 V ac cosφ=0,6

Thermo-pressure with ball 125 °C

Glow Wire Test 850 °C

Terminal grip on cable traction > 50 N

Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4

Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5

No. SYSTEM modules 1

Material Technopolymer

Electrocod 0130

Ware Number 85365080

Product Data Sheet

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

Vai all'area download Vai all'area download

PRICE

Estimation of electrical systems

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

CADpro

Advanced design of electrical systems

Vai all’area software Vai all’area software

Reach Declaration

Conformity declaration

Display the certificate

CE marking

Display the certificate

EQUIPMENT AND NOTES

CHARACTERISTICS: the illuminable articles use miniature lamp units, not included. GW20520, GW20521, both contacts are open in the central position (OFF).
ACCESSORIES SUPPLIED: GW20515 - red fluorescent 230Vac (0.4W) signalling unit. GW20516 - white LED 12/24Vac/dc (0.4W) signalling unit. GW20518, cord in insulating material, 140cm long, with a knob. GW20530 supplied with 2 keys. Spare keys: GW30912.
