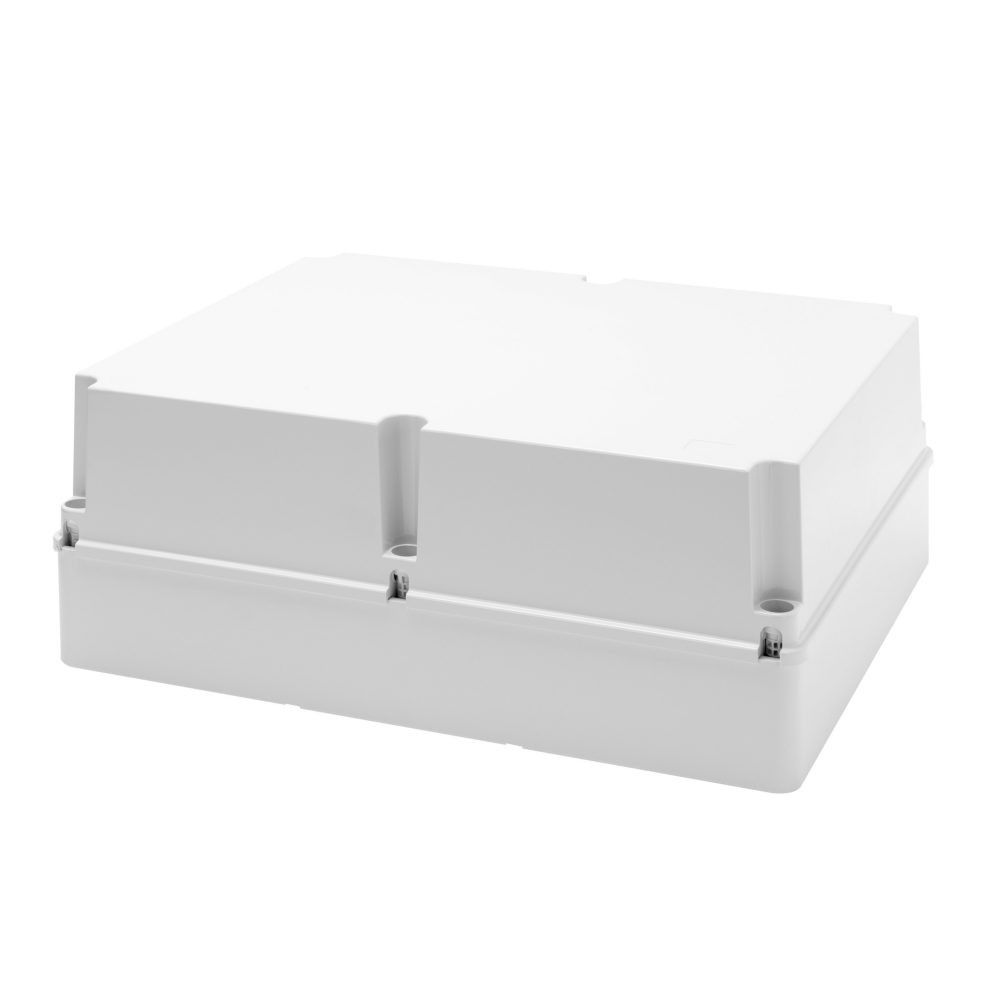

JUNCTION BOX WITH DEEP SCREWED LID - IP56 - INTERNAL DIMENSIONS 460X380X180 - SMOOTH WALLS - GREY RAL 7035

Code: GW44221

Range: 44 CE Range
Technopolymer surface-mounting watertight junction boxes

The 44 CE junction boxes range consists of 3 families made of different technopolymers (two of which are Halogen Free) and available in 11 sizes with an ordinary or high-capacity base, high or low lids, blank or transparent lids, smooth walls or with quick-entry cable glands.

IP56

IK08

650 °C

85 °C

Technical Info

Information

Download

Software

Certificates

Insulation class II (according to IEC 61140 standards)

Colour Grey RAL 7035

IP degree IP56

Material Technopolymer GWPLAST 75

Mechanical resistance IK08

Internal dim. LxHxD (mm) 460x380x180

Max Ø holes possible 48 mm

Lid screws (no. and type) 6 insul. sealable hinged

Application Ordinary junctions

Glow Wire Test 650 °C

Lid Deep screwed

Operating temperature -25 +60 °C

Type of material Halogen-free in compliance with EN 60754-2

Electrocod 02211

Thermo-pressure with ball 85 °C

Torque screws tightening 1.8 Newton/meter

Walls Smooth

Accessories for insulation restoring GW44621

Ware Number 85381000

Product Data Sheet

BIM

Technical characteristics - DE

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

Go to download area Go to download area

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

PRICE

Estimation of electrical systems

CADpro

Advanced design of electrical systems

Go to software area Go to software area

Reach Declaration

Display the certificate

CE marking

EQUIPMENT AND NOTES

ACCESSORIES SUPPLIED: GW44221 screwcaps for double insulation.
NOTES: to restore the double insulation and original IP degree of protection of the boxes, use the isolating screwcaps or the surface-mounting fixing brackets for boxes measuring at least 190x140mm.
