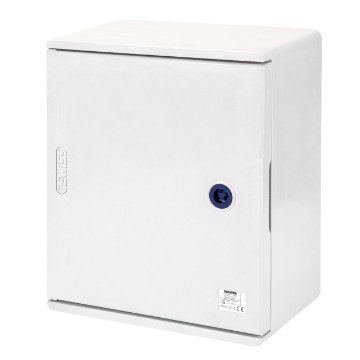

POLYESTER ENCLOSURE WITH BLANK DOOR FITTED WITH LOCK - 250X300X160 - IP66 - GREY RAL 7035

Code: GW46001F

Range: 46 Range
Watertight surface-mounting distribution and automation boards

The offer includes: 46 QP boards - monobloc, Halogen Free glass fiber loaded polyester, degree of protection IP66; 46 QM boards - IP55 in metal; 46 QX boards - IP55 in stainless steel; 44 CEP boards - monobloc, Halogen Free technopolymer. The 46 QP, QM and 44 CEP boards are available in transparent and blank door versions. In addition, 46 QP, QM and QX boards features Fast & Easy accessories with metal snap fastening.

IP66

IK10

960 °C

200 °C

Technical Info

Information

Download

Software

Video

Certificates

Insulation class II

Colour Grey RAL 7035

Nominal dim. LxHxD (mm) 250x300x160

IP degree IP66

Characteristics UV resistance (EN 62208)

Material Polyester reinforced with fibreglass

Mechanical resistance IK10

No. locks 1

Dispersible power A (W) 34

Dispersible power B (W) -

Glow Wire Test 960 °C

Functional dim. LxHxD (mm) 253x303x160

Operating temperature -25 +60 °C

Insulation voltage (Ui) 1000 V

Type of material Halogen-free in compliance with EN 60754-2

Electrocod 0321

Thermo-pressure with ball 200 °C

Standard EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24

Family 46 QP

Maximum rated insulation voltage (Ui) 690 V

Type of door Blank door

Surface-mounting brackets GW46446-GW46451

Kit for double insulation restore GW46526

Ware Number 85381000

Product Data Sheet

3D step drawing

BIM

DXF drawing

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES

Information and general recommendations

User guide

Go to download area Go to download area

PRICE

Estimation of electrical systems

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

PBT-Q

Low voltage systems and boards

ENERGYpro

Boards for building sites, campings-piers and distribution

CADpro

Advanced design of electrical systems

PROJEX

Low voltage system design

Go to software area Go to software area

Reach Declaration

Display the certificate

CE marking

EQUIPMENT AND NOTES

CHARACTERISTICS: boxes equipped with inserts pre-assembled in the slots, to speed up the configuration of the board. Doors equipped with functional grid of reference for fixing the devices. From board GW46002F to board GW46006F it is possible to fix the panels with windows or blank (1 or 2 modules) directly in the seats housed in the vertical walls of the boards; for the board GW46007F use uprights GW46439F. Impact resistance: IK10 according to EN 62262.
ACCESSORIES SUPPLIED: 4 reversible brackets with relative screws for fixing back-mounting plates or uprights for modular devices.
NOTES: Dispersible power calculated according to CEI 23-49.
Dispersible power A (W): board configuration with back-mounting plate (as far back as possible).
Dispersible power B (W): board configuration with DIN rails + panels with windows.
The nominal dimensions in the table above refer to the external size of the boards; for the real outer dimensions refer to the technical data sheet downloadable from professionals website GEWISS or to the technical section of this catalogue.
For applications in the photovoltaic environment, use the surface-mounting brackets - code GW44621.
