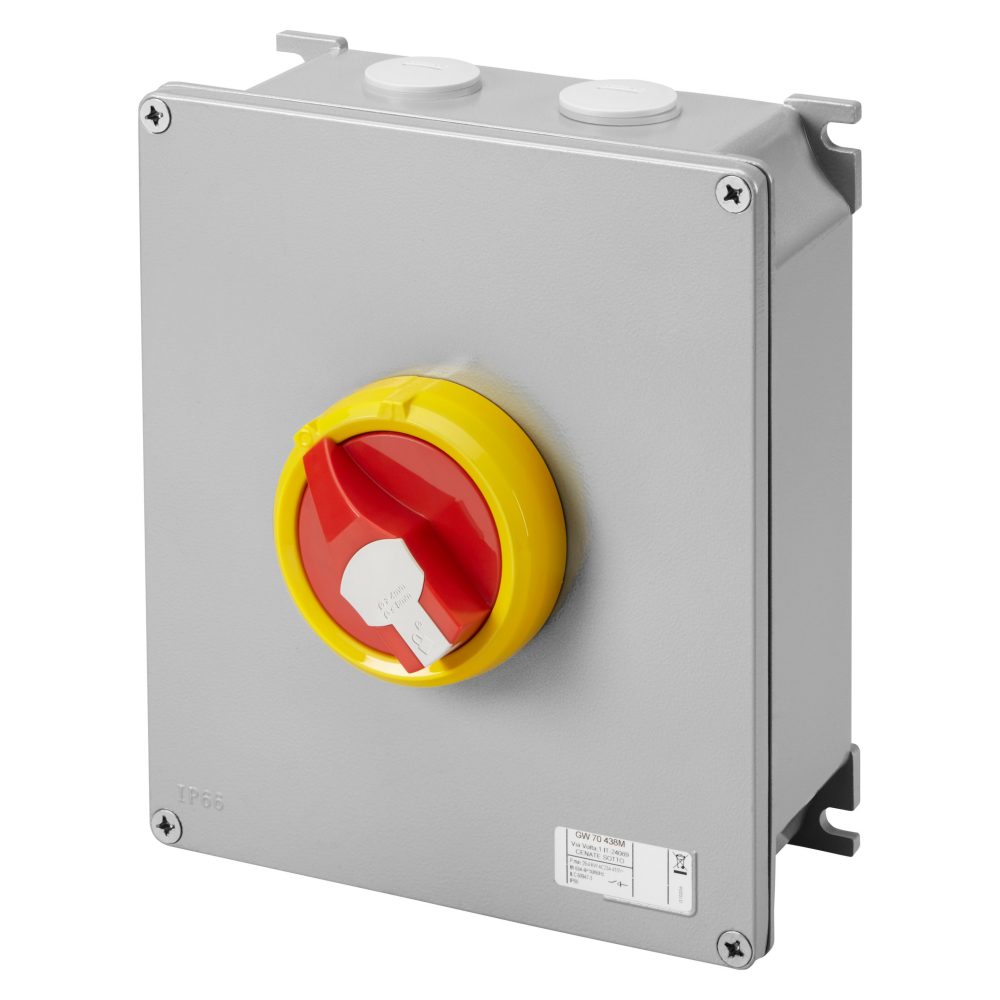

ROTARY ISOLATOR SWITCH - HP- SURFACE-MOUNTING - EMERGENCY - METAL BOX - 63A 3P+N - LOCKABLE RED KNOB - IP66
Code:
GW70437NM
Range: 70 RT HP Range
Rotary isolators
Rotary isolators
70 RT HP is a complete offer of rotary isolator switches from 16A to 160A, available in boxes both in insulating material and metal, in control or emergency versions, compatible with the main applications for residential, tertiary and industrial contexts. DC versions for photovoltaic applications are also available from 16A to 40A in insulating box. The series is completed with versions for board from 16A to 1000A and for DIN rail fixing from 16A to 63A, which can be equipped with auxiliary contacts. The devices have been designed to reduce wiring time, facilitate installation and guarantee the maximum safety and robustness even in the most demanding conditions.
IP66
IK10 (box); IK08 (knob)
Technical Info
Information
Download
Software
Certificates
Circuit breaker
Rotary isolator
Version
Box
Material
Metal
Type
For emergency
Rated current (A)
63
No. of poles
3P+N
Knob colour
Red
Lockable
YES (max. 3 locks in OFF)
IP degree
IP66
Mechanical resistance
IK10 (box); IK08 (knob)
Ambient temperature
-25 +60 °C
Lid screws (no. and type)
4 metal screws
Current in AC21A (415V)
63
Holes entry
4xM32
Current in AC22A (415V)
63
Type of accessory
Max. 2 auxiliary contacts (1 per side)
Current in AC23A (415V)
63
Cable section
2,5-25 mm²
Ware Number
85363030
EQUIPMENT AND NOTES
NOTE: can be padlocked in OFF position with max. 3 locks with diameter max. 8 mm.
Versions 100-160A up to 4P and 63-100A 6P and 8P allow to install max. 2 x M63 cable glands.
Versions 100-160A up to 4P and 63-100A 6P and 8P allow to install max. 2 x M63 cable glands.
