Type

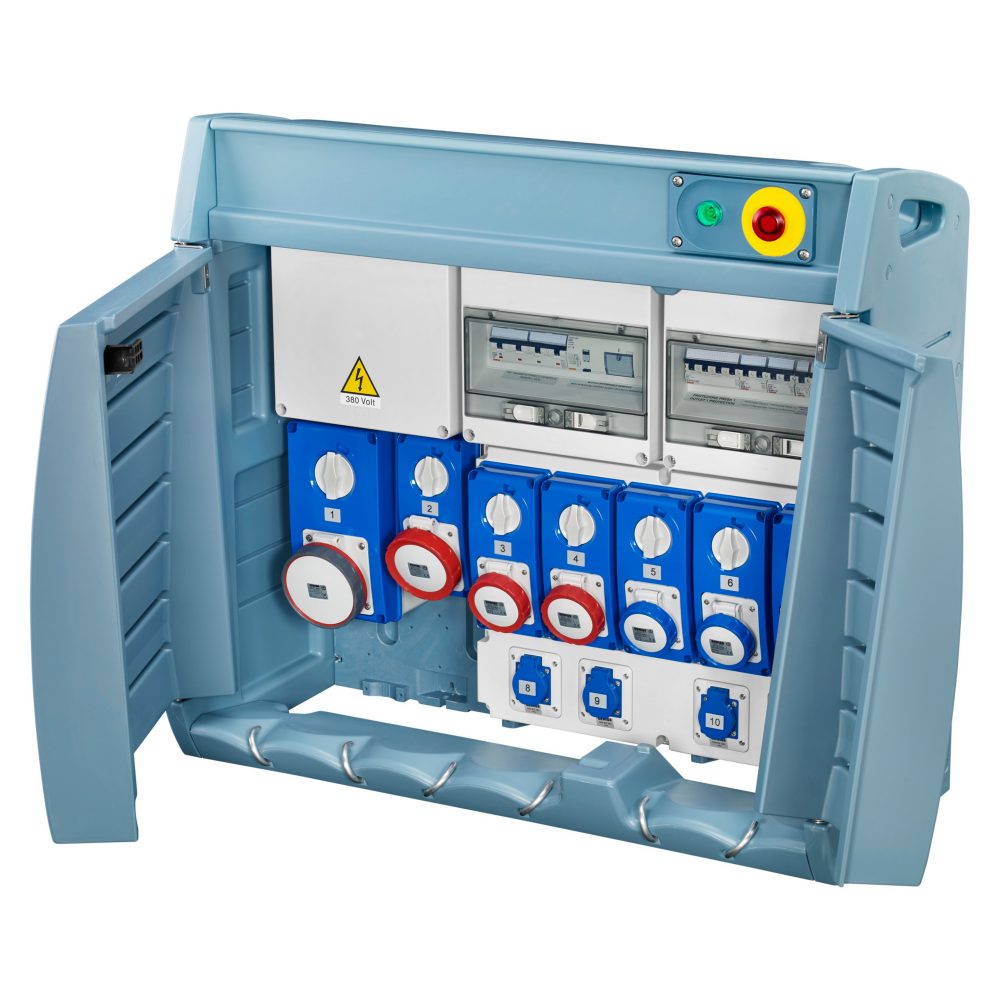

Q-BOX 6 ACS
board type
Wired
Colour
Light blue
Outer dim. LxHxD (mm)
914x821x400
Weight (kg)
32
Accordance with Standards
EN 61439-4 (ACS)
Characteristics
UV resistance (EN 62208)
IP degree
IP55
Mechanical resistance
IK10
Glow wire test
650 °C
Thermo-pressure with ball
70 °C
Insulation class
II
Power supply
Terminal block
No. of poles
3P+N+E
Power suppliable (kW)
53
Mains switch
MCB 100A 4P 6kA
MCB’S MT main RCCB
RCCB 100A 4P 0,03A - A type
Circuits protection
MCB
No. socket outlets
11
Socket-outlet 2P+E 16A - IB
3
Socket-outlet 3P+E 16A - IB
2
Socket-outlet 3P+N+E 32A - IB
1
Socket-outlet 3P+N+E 63A - IB
1
German Std socket-outlet 16 A
4
Emergency push-button
Yes
Electrocod
139
Ware Number
85371098
