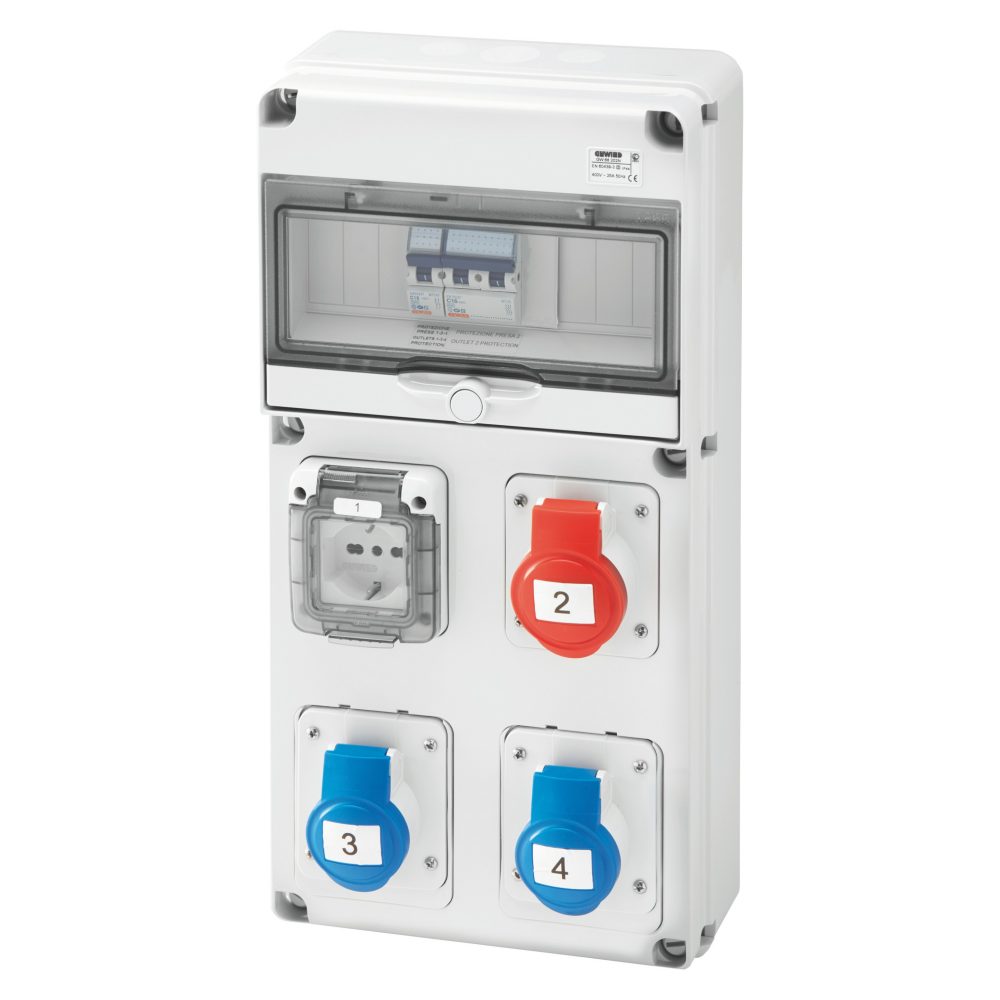

Q-DIN 10 DBO - 3 IEC 309 - 1 SOCKET OUTLET IT/DE - IP44

Code: GW68202N

Range: 68 Q-DIN Range
Distribution boards

A complete system of IP65 boards for distributing energy in tertiary, commercial sector and building applications, available both empty and pre-wired, in accordance with the international standard IEC 61439. The Q-DIN range comprises boards from 5 to 20 DIN modules, plus supplementary modules of 14 or 20 M to add even more DIN spaces. They can accommodate flush-mounting socket-outlets and interlocked socket-outlets of up to 63 A, and they can be combined with numerous accessories.

IP44

IK09

850 °C (active parts) - 650 °C (passive parts)

70 °C

Technical Info

Information

Download

Software

Certificates

Type Q-DIN 10 DBO

board type Wired

Colour Grey RAL 7035

Outer dim. LxHxD (mm) 220x435x125

Weight (kg) 2.6

Accordance with Standards EN 61439-3 (DBO)

Characteristics UV resistance (EN 62208)

IP degree IP44

Mechanical resistance IK09

Glow wire test 850 °C (active parts) - 650 °C (passive parts)

Thermo-pressure with ball 70 °C

Insulation class II

Power supply Terminal block

No. of poles 3P+N+E

Power suppliable (kW) 17.3

Mains switch Not present

Circuits protection MCB

No. socket outlets 4

Socket-outlet 2P+E 16A - IEC 309 2

Socket-outlet 3P+E 16A - IEC 309 1

Schuko socket-outlet 10/16A 1

Electrocod -

Installation type -

Operating temperature -

Version -

Ware Number 85371098

Product Data Sheet

Conformity declaration

User guide

Schema elettrico

Disposal

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES
